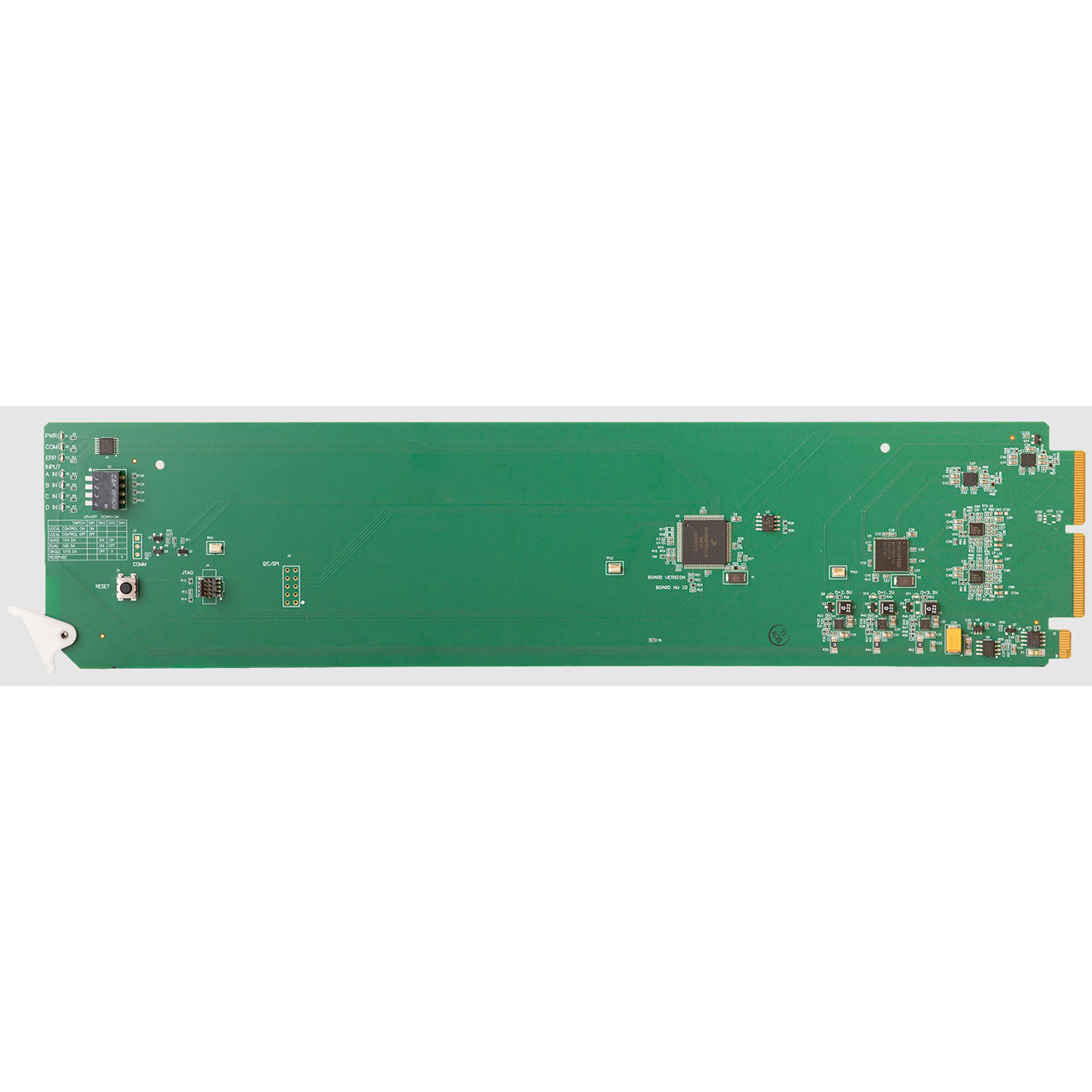

The Cobalt 9910DA-4Q-3G is a 3G/HD/SD/ASI Quad-Channel Multi-Rate DA with x4 Output Crosspoint that supports four input channels which can be crosspoint-routed to any of 16 DA outputs. The 9910DA-4Q-3G is multi-rate and supports SDI and ASI/DVB on all inputs and outputs with non-inverting outputs. The quad-input capacity provides a one-card solution for distribution of 3G quadrant-division content over 3G/HD/SD-SDI interfaces.
The extremely flexible crosspoint (which is user-configurable via DashBoard GUI remote control) allows quad 1x4, dual 1x8, single 1x16 and other routing possibilities (such as dual 1x4 plus a single 1x8). Any of the four input channels can be distributed or duplicated across four groups of 1x4 DAs, and any of the four inputs can be set to use an alternate failover input upon loss of signal.
Excellent receive performance allows receive EQ for up to 120m 3G and 160m HD cable length (1694A). Card edge and DashBoardT remote status monitoring indicates input lock for each input channel. Up to 10 of the 9910DA-4Q-3G cards can be installed in a frame to provide 40 channels of input, with distribution to up to 160 outputs.
Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Please Note: Required rear module sold seperately.
