    CONVNTRM/EA/DA - Overview

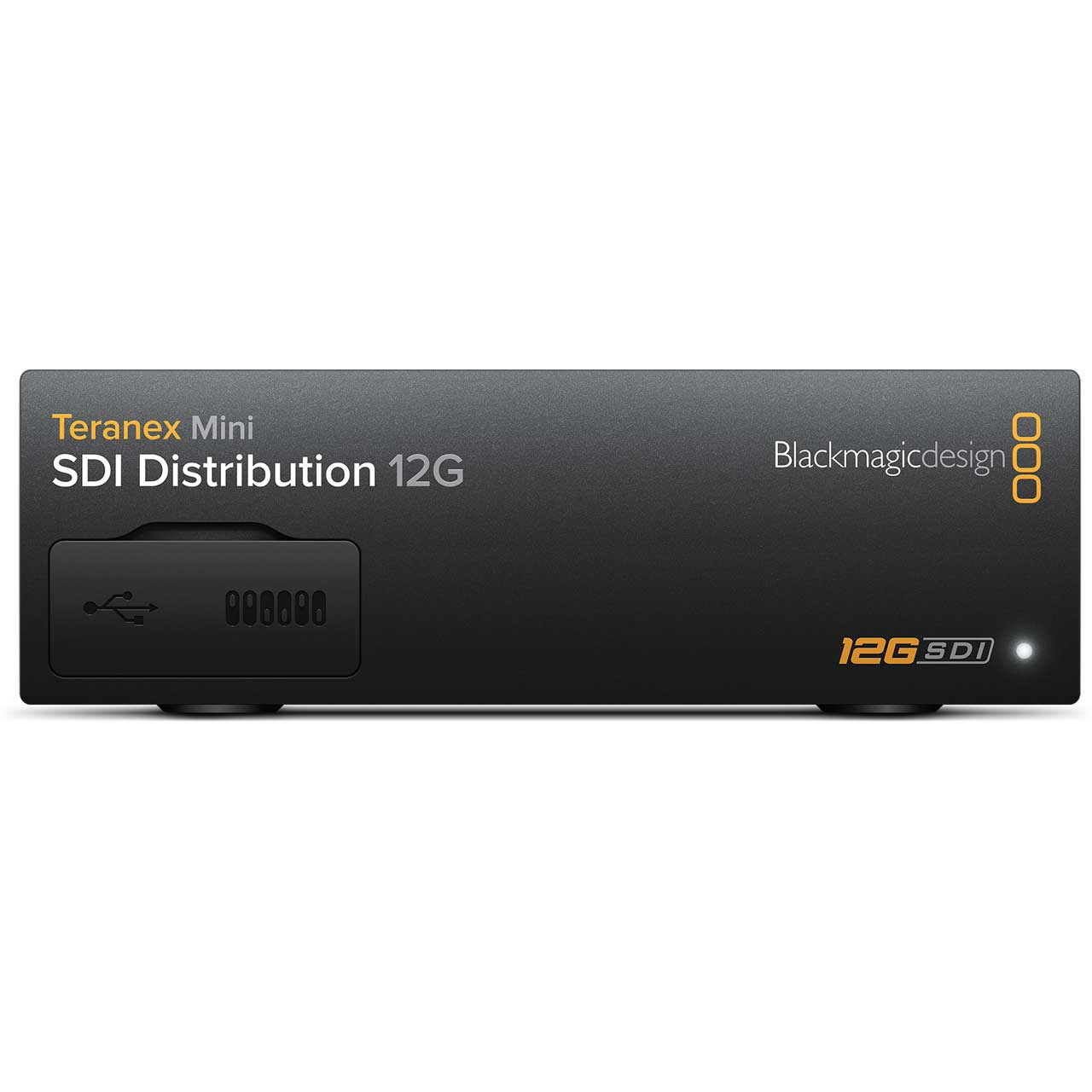

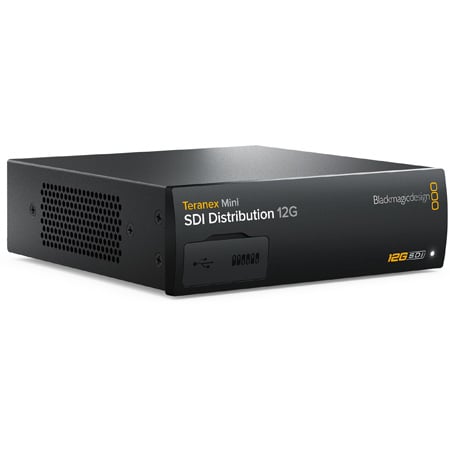

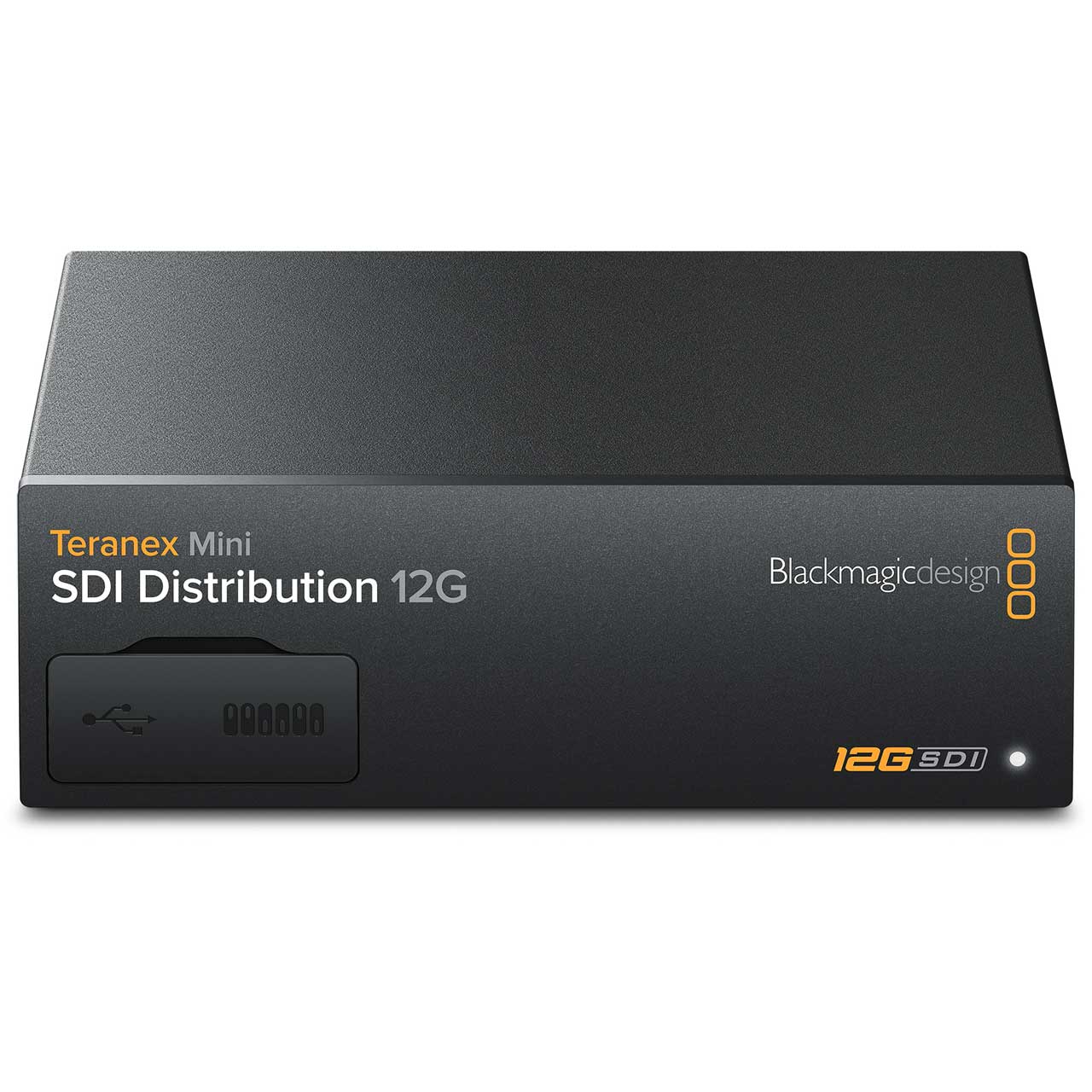

    The Blackmagic Teranex Mini - SDI Distribution 12G distributes a single SDI video input to up to eight SDI outputs. It features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

    The Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what's being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear. You can even use them in editing and color grading suites to drive big screen displays and projectors!

    • Specifications:

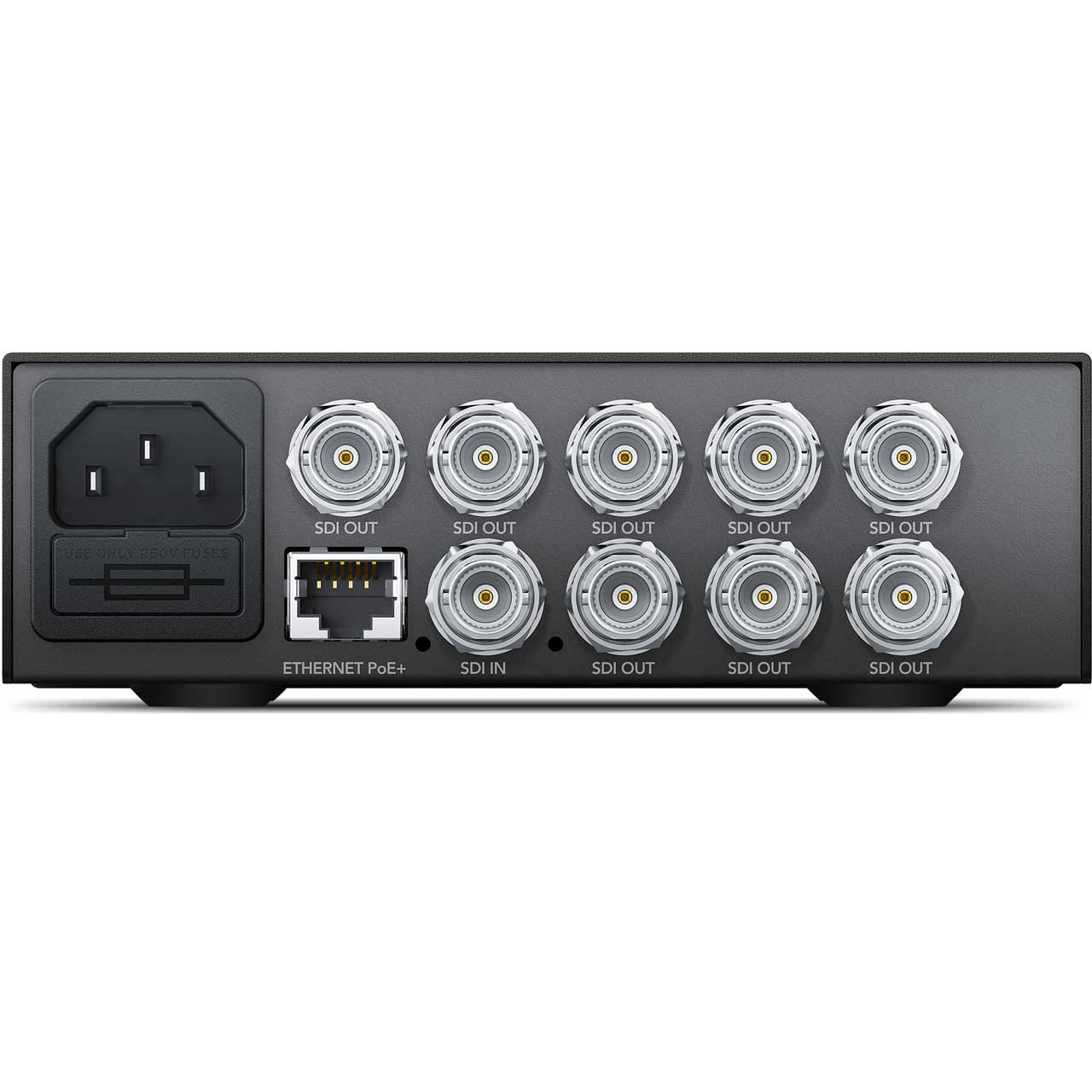

      • Connections
      • SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching.
      • SDI Video Outputs: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
      • Embedded Audio Support: 16 channels.
      • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
      • Updates and Configuration: USB or Ethernet
      • Reclocking: Yes

      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
      • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
      • SDI Video Rates: SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • SDI Color Space: YUV & RGB

      • Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
      • Internal Software Upgrade: Via included updater application.

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

        Settings Control
      • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
      • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

        Power Requirements
      • Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
      • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
      • Power Consumption: 16 Watts
    • Item Includes:

      • Teranex Mini - SDI Distribution 12G
      • Software SD Card
    • Warranty:

      • 3 year Limited Manufacturer's Warranty.
