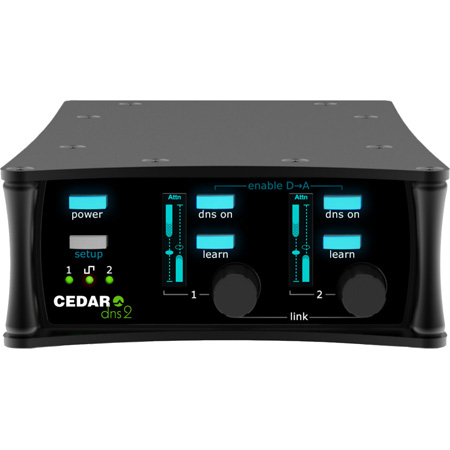

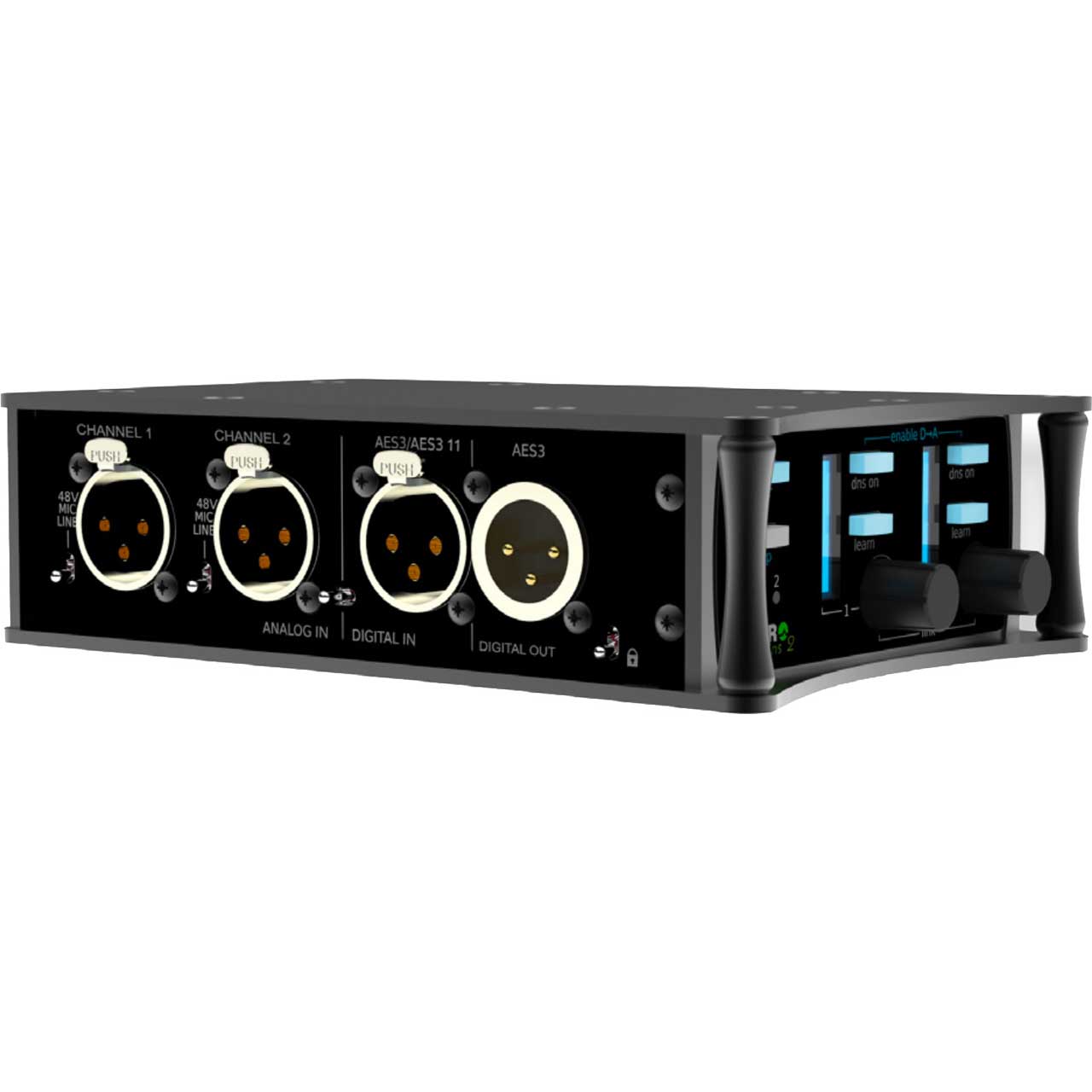

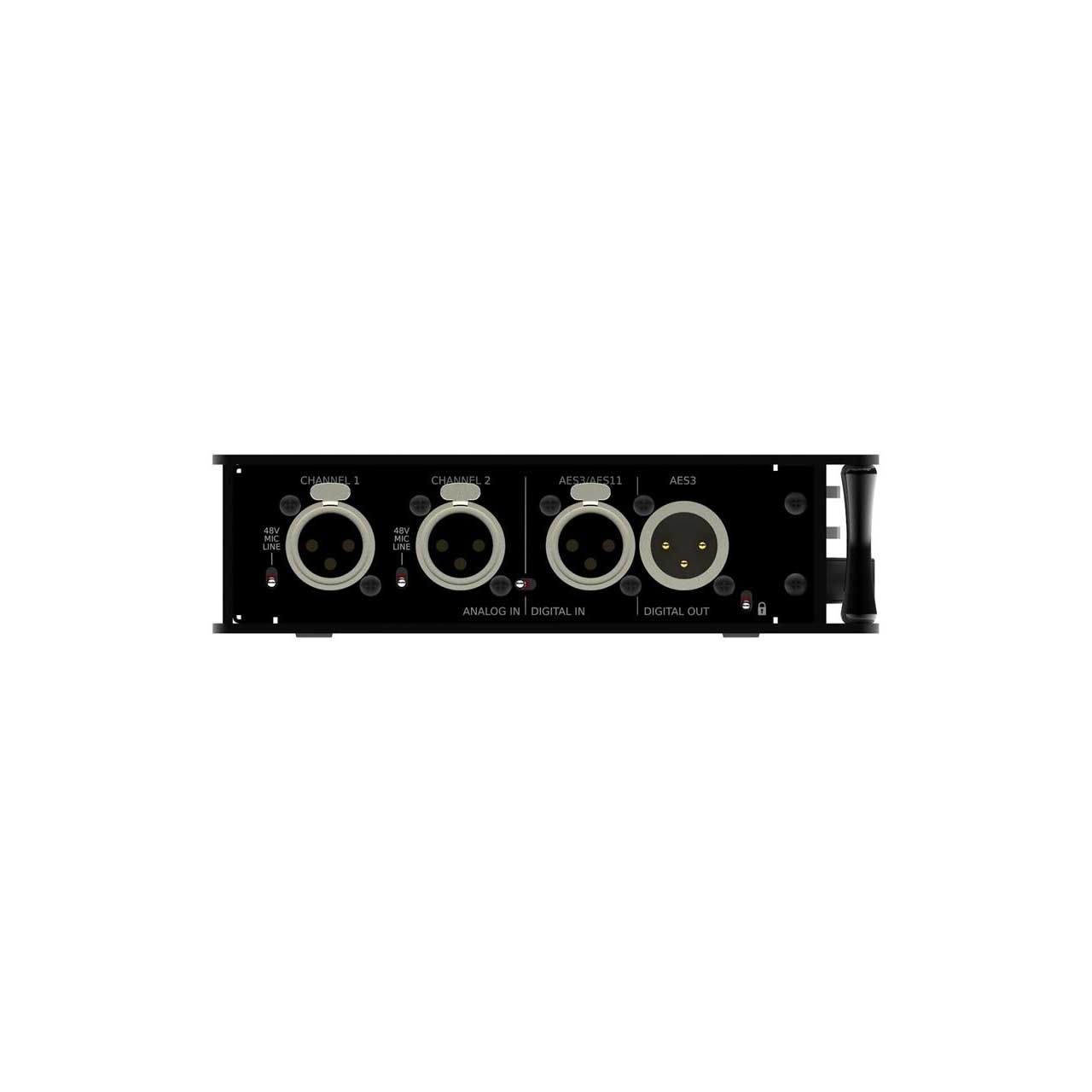

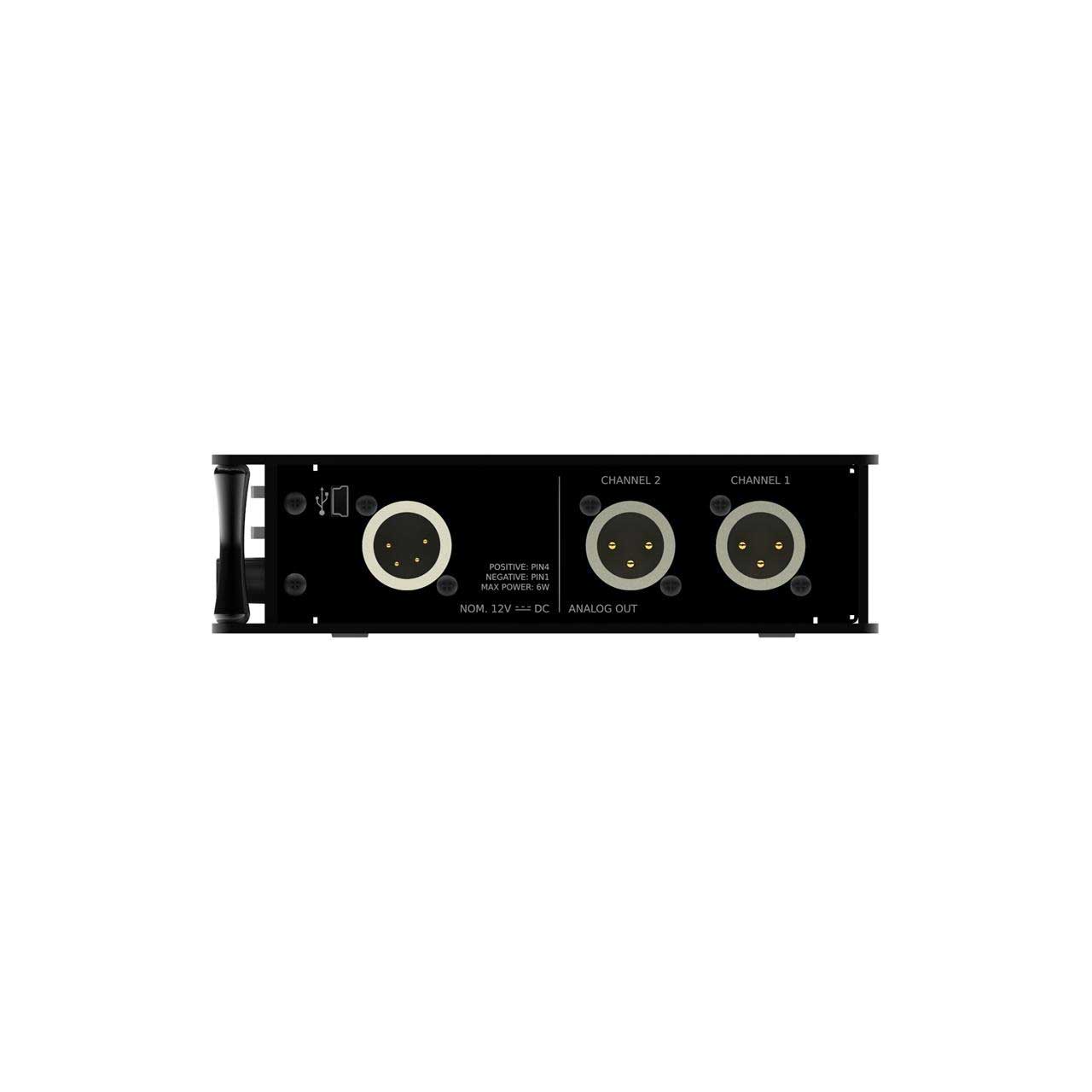

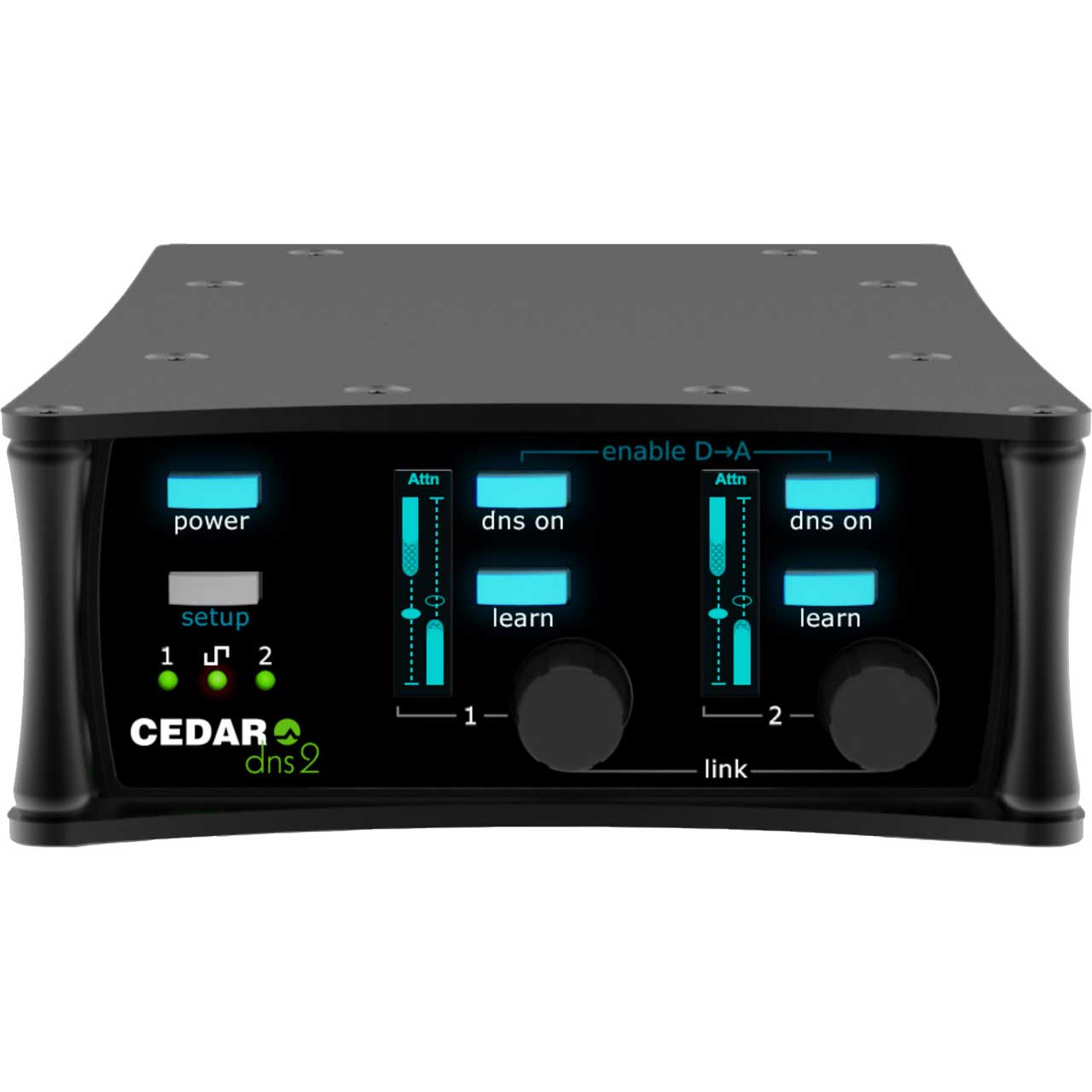

CEDAR DNS 2 2-Channel Dialogue Noise Suppressor

ITEM #: CEDA-DNS-2 MFG #: DNS 2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,838.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DNS 2 - Overview

    The smallest, lightest and most convenient dialog noise suppressor for location and studio use.

    CEDAR's dialog noise suppression (DNS) technology eliminates traffic noise, air conditioning, wind, rain, babble and general background noise from audio signals. It will also help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.

    The 2-channel DNS 2 is the first DNS designed specifically for portability and extreme simplicity of use. It hosts a new DNS algorithm that requires nothing more than switching on the Learn function that identifies and adapts to the background noise, and dialing in the amount of noise attenuation required. Retaining the near-zero latency of all its predecessors, it's suitable for use in all situations - location recording, live-to-air broadcasting, live sound in venues such as theatres, concert halls, conferences venues, and places of worship, as well as studio work and post.

    What's more, despite being so small and light that you can slip it inside your pocket or equipment bag, the DNS 2 offers analog line and microphone inputs (the latter with optional 48V phantom powering), an AES3/AES11 digital input, and both analogue and digital outputs. This increases its flexibility even further, and its 12V power input means that you can use it in the middle of a field as easily as in the studio or the edit suite.

    Designed for use anywhere that you might need it, the DNS 2 offers:

  • The latest adaptive noise suppression technology
  • The fastest and most intiutive interface ever designed for DNS
  • Analog and digital inputs and outputs
  • 12V operation and camera mounting points
  • When CEDAR invented the modern dialog noise suppressor (the CEDAR `DNS') they designed it for off-line use. It quickly became a standard in post-production, winning an Academy Award and leading the Academy to describe it as "the tool of choice for removing unwanted noise by re-recording mixers everywhere". Nevertheless, this didn't stop hundreds of units ending up on location carts, in football stadiums and other sports venues, at the summer and winter Olympics, in newsrooms, in live TV studios, and at other high-profile live-to-air events such as The Oscars, The Grammys and the Super Bowl.

    So they created the DNS 2, which has been designed for everyone who needs the highest quality real-time noise suppression in a small, convenient, and simple to use format. It features CEDAR's most powerful DNS algorithm, together with the unique Learn function that calculates the noise content within a signal and determines optimum parameters to attenuate the noise while maintaining the wanted signal. This makes it simultaneously the simplest and fastest yet most effective dialog noise suppressor we have ever built. The DNS 2 offers virtually zero latency so it can be used live without loss of lip-sync. Yet it still eliminates traffic noise, air conditioning, wind, rain, babble and general background noise, compensates for unfavourable acoustics and poor microphone placement, and suppresses excessive reverberation. It can even output simultaneously the raw and processed versions of a single signal, which makes it ideal for use on location, as well as in the studio and in all live situations; not just live-to-air broadcasting, but also for live sound in venues such as theatres, concert halls, conferences venues, and places of worship.

    • Features:

      • Small, light and portable
      • A unique DNS algorithm with super-fast setup and control
      • Analog (mic/line) and digital I/O
      • 12V power

    • Specifications:

      • Number of channels: 2
      • Process type: CEDAR DNS with Learn

        Analog audio
      • Mic and line inputs: Balanced XLR3F
      • Line output: Balanced XLR3M
      • Output signal level: +4dBu nominal
      • Maximum output: +24dBu
      • AD/DA resolution: 24-bit linear PCM
      • Sample rate (internal sync): 48kHz
      • Sample rate (external sync): 40kHz - 100kHz
      • Phantom power on mic input: 48V +/- 4V, 10mA per mic

        Digital audio
      • Input: AES3 or AES11 via balanced XLR3F
      • Sample rate sync range: 40kHz - 100kHz
      • Output: AES3 via balanced XLR3M
      • Sample rate (internal sync): 48kHz
      • Sample rate (external sync): Locked to input

        Processing
      • Process resolution: 40-bit, floating-point
      • Latency: <0.1ms

        Power
      • Input: 8VDC - 17.5VDC on XLR4M
      • Supplied adapter
      • Input: 85-250VAC, 50-60Hz auto-selecting
      • Output: 12V, 1A (max)

        Dimensions
      • Size: 146mm x 110mm x 44mm
      • Weight: 540g
