Chroma-Q CHES07 Ethernet Switch-7

ITEM #: CHRQ-CHES07 MFG #: CHES07

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CHRQ-CHES07

CHES07 - Overview

The Chroma-Q CHES07 provides a heavy duty, high speed unmanaged network switch that supports simultaneous computer connections. The unit is equipped with seven shielded EtherCon ports (RJ45) providing 10 / 100 / 1000 Mbps bandwidth in full-duplex mode. The CHES07 enables the concurrent use of various multimedia devices within a network without traffic restrictions. The unit is designed for customized front of house racks and utilizes the unique Magic Box interlocking enclosure to facilitate rack mounting when used in single units or pairs and easy truss mounting via captive nut insert.

  • Features:

    • Two shielded EtherCon ports (RJ45) at the front panel

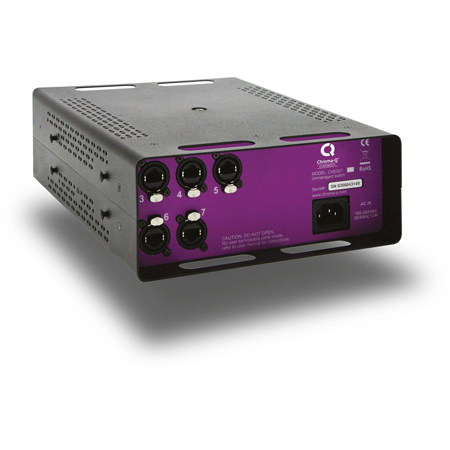

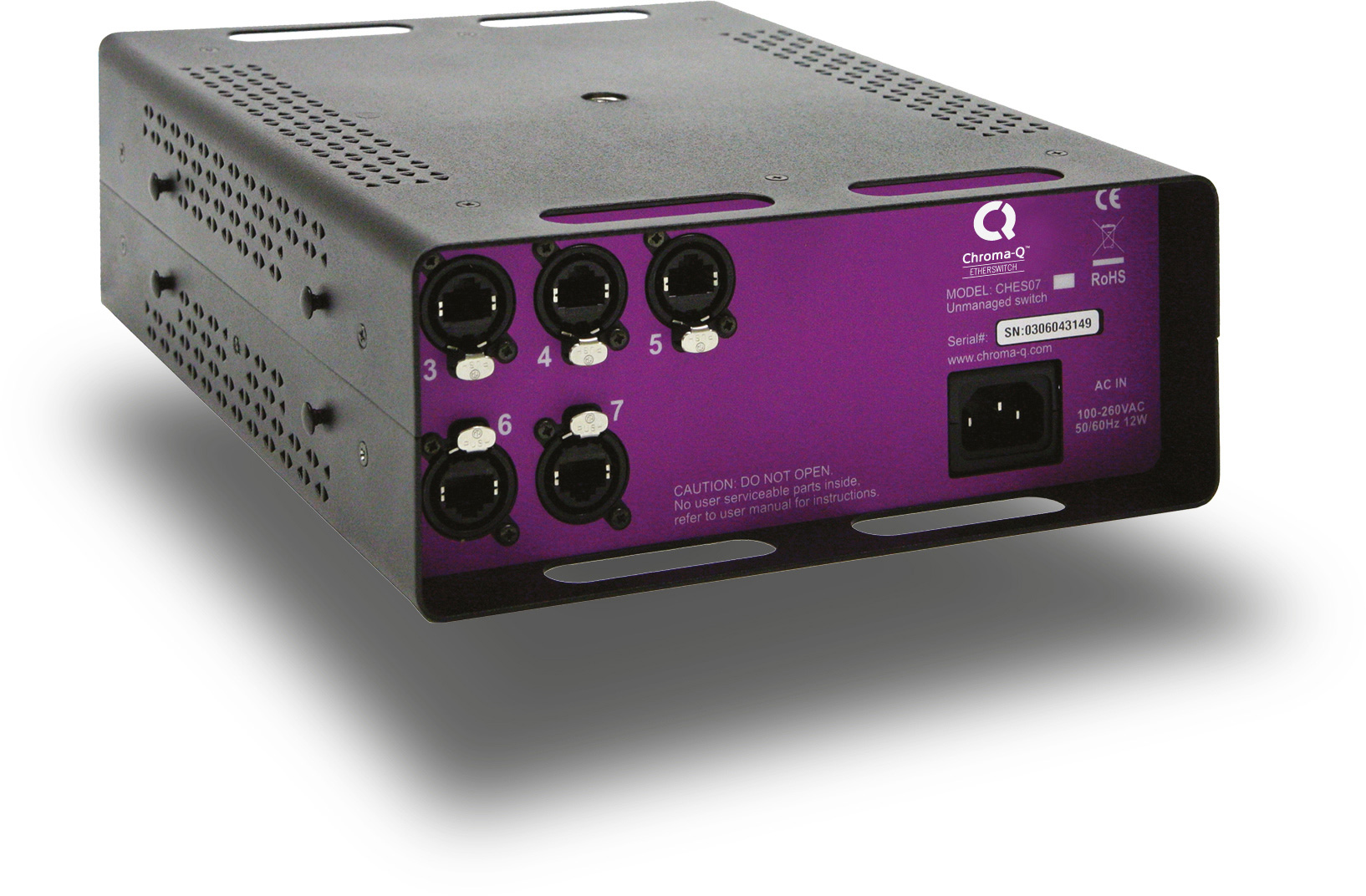

    • Five shielded EtherCon ports (RJ45) at the rear panel
    • Easy to see status LED for each port
    • Designed for customised front of house racks
    • Unique Magic Box interlocking enclosure facilitates easy rack mounting when used in single units or pairs and easy truss mounting via captive nut insert
    • Rack mounting brackets are available in single and dual unit versions to enable customisation of equipment racks or installations
    • Upgradable to EtherSwitch 7F (Fibre)

  • Specifications:

    • Net Dimensions (W x H x D): 8.6” x 3.5” x 11”
    • Net Weight: 7.8lbs
    • Shipping Dimensions (W x H x D): 9.8” x 4.9” x 11.8”
    • Shipping Weight: 9lbs
    • Power: 100-240V AC, 50-60Hz, 0.4A
    • Power Connector: IEC chassis male
    • Ethernet Switch Type: Intelligent store & forward
    • Ethernet Protocols: All IEEE 802.3
    • RJ45 / EtherCon Port: Shielded 10BaseT / 100BaseTX / 1000BaseT
    • RJ45 / EtherCon: Auto-negotiation
    • RJ45 / EtherCon MDI / MDIX: Auto-crossover
    • RJ45 / EtherCon TD & RD Polarity: Auto-polarity
    • MAC Addresses Supported: 8192
    • VLAN Supported: 4096
    • Jumbo Frame Support: Up to 9.6K
    • Buffer Memory: 144 Kbytes
    • Memory Bandwidth: 16 Gbps for full wire speed on all ports
    • Forwarding Rate: 10 Mbps: 14,880pps
    • 100 Mbps: 148,81pps
    • 1000 Mbps: 1488,1pps
    • Port Connection: Link and activity LED
    • Power: Power LED
    • Color: Black
