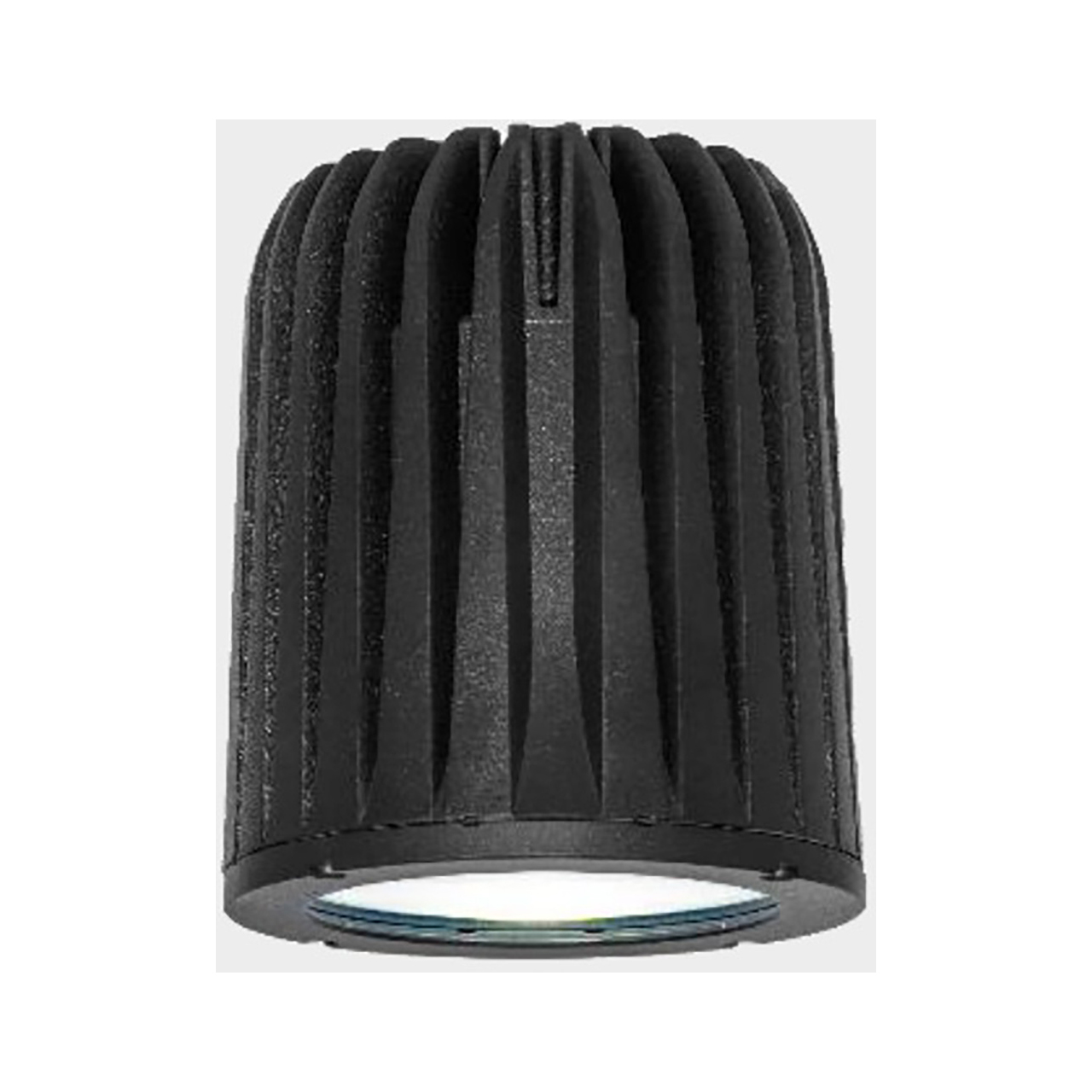

Chroma-Q 2Inspire 100 PoE RGBWWCW IP20 LED House Light Fixture - Black

ITEM #: CHRQ-CQ1501-1000 MFG #: CQ1501-1000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$533.75

Our Price:

$499.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CQ1501-1000 - Overview

The new Chroma-Q 2inspire 100 PoE is one of 3 in a family of fixtures that deliver truly flexible lighting into any space, quickly and efficiently. 2inspireT is a compact, silent, bright fixture in 3 sizes. These installation luminaires deliver studio-grade tuneable white light and pure theatrical quality colours. A holistically designed accessory collection easily mounts each fixture - on a wall, as a pendant, in a ceiling, or from a yoke. Innovative technology minimises deployment costs and maximises efficiency, making every 2inspire flexible, sustainable, and durable. This fixture features easy connection using power over ethernet.

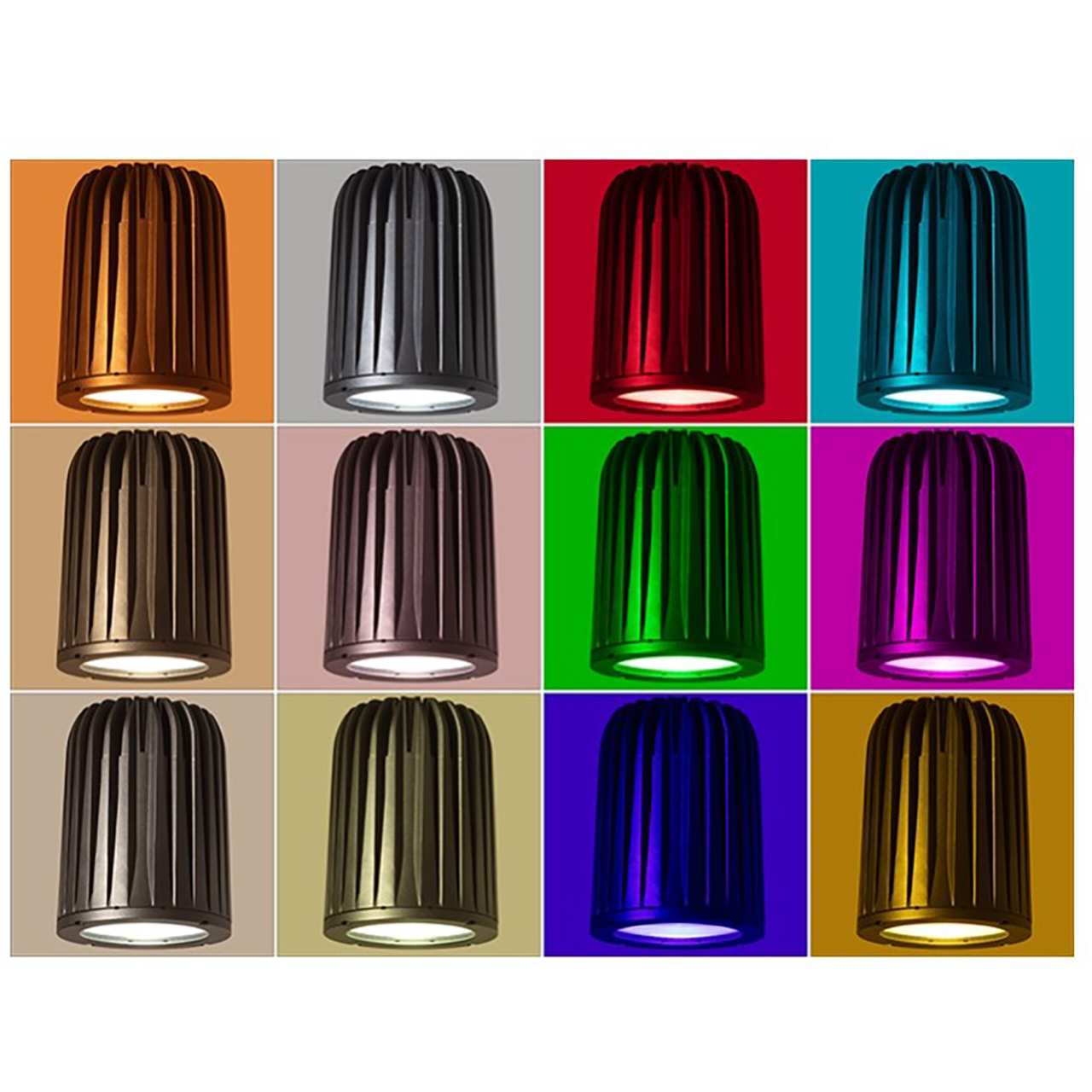

The 2inspire PoE family provides a rich, full range of colour and pure tuneable whites. The new Chroma-Q Gen3 LED engine - designed, built, and calibrated in North America - comes from over 20 years of experience at the very cutting edge of LED technology. It delivers 2,400K to 6,500K broadcast grade whites and pure theatrical colours using RGB, WW, and CW LEDs.

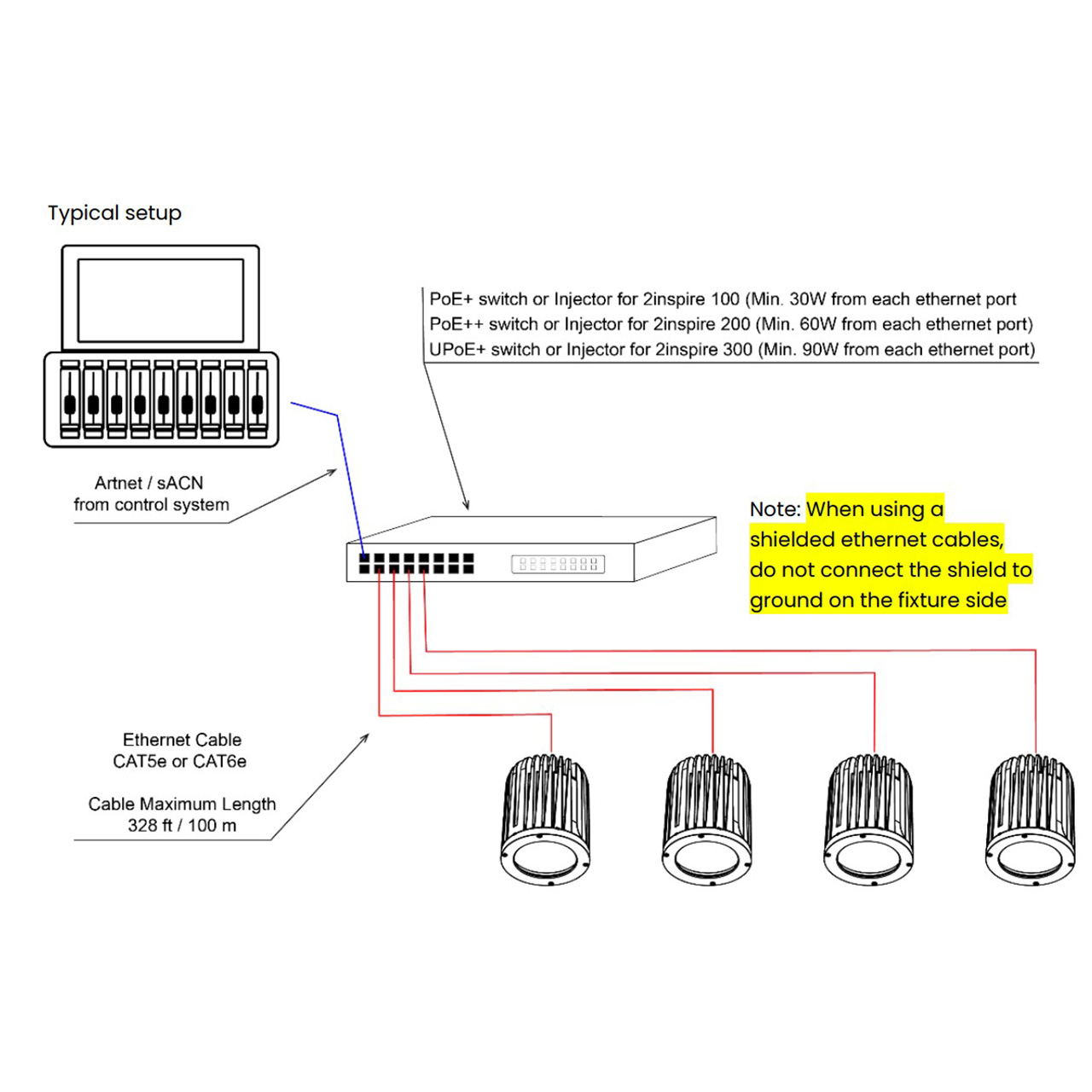

Each 2inspire PoE requires a single ethernet cable carrying power and data.

2inspire accessories are an intrinsic part of the design. Accessories should not just be an afterthought but an inherent part of the design. One source type, three sizes, four lens options, and over twenty accessories give hundreds of different physical configurations - including wall, pendant, ceiling, and yoke mounting - that can be quickly and easily adjusted on-site.

Control your environment. Seamless color control and theatrical grade dimming of the precisely calibrated 2inspire LED engine deliver unmatched creativity. Fully convection-cooled, the 2inspire operates silently, even in the most noise-sensitive environments. The super-fast LED driver system ensures no flickering to the eye or high-speed cameras. Engineered for IP20 and IP65 applications is designed for your most creative applications.

Applications Include:
Concerts & Tours
Theatre & Performance
Film & TV
Museums & Exhibitions
Club, Bars & Restaurants
Corporate & Hospitality
House of Worship
Landmarks & Heritage
Retail & Leisure

  • Specifications:

    • Color mixing: RGB WW CW
    • Color Temp Control: Variable 2400 - 6500K
    • Tint Control: -2 to +2
    • Control Protocol: Artnet / sACN / RDM
    • RDM compliance: Yes
    • Control Modes: 18
    • DMX Channels: 1 to 13
    • Dimming Curve: Inverse square-law,
    • square-law, S-curve
    • Setting and Addressing: Through Art-Net RDM
    • Hot Lumen Output: 900 / 1400 / 3100 lumens
    • Optics: Fully homogenized
    • Beam Distribution: Symmetrical
    • Colour Engine: Gen3 ColorSure, calibrated engine
    • CCT: 2400-6500K
    • Colour Gamut Ratio: sRGB=151%; NTSC=107%; AdobeRGB=112%; DCI-P3=112%; REC.2020=80%.
    • CRI: >90
    • TLCI: >90
    • IES TM-30 Rf: >90
    • TM-30 Rg: <100 to 103
    • Lamp Life:
    • Power & Data Connector In: RJ45 Ethernet POE.
    • Mounting points: Multi
    • Orientation: Any
    • IP Rating: IP20 / Optional IP65
    • Power Supply: 802.3at / 802.3bt Class A / Class B
    • Power Input Rating: 50-57 VDC
    • Idle Power Consumption: 3W.
    • Cooling System: Natural Convection
    • Max Surface Temperature: Ta=60°C
    • Operating Temperature: -20°C to 40°C
    • Net Dimensions W: 93mm / 3.7",
    • (without fixings): H: 93mm / 3.7",
    • D: 108mm / 4.3"
    • Net Weight: 0.62kg / 1.4lb
    • Hot Lumen Output: 900 Lumens
    • Beam Angle: 21° (approx.)
    • Format: ~PAR 30 size
    • Power Consumption: 20W
    • Total heat dissipation: 69 BTU/hr
