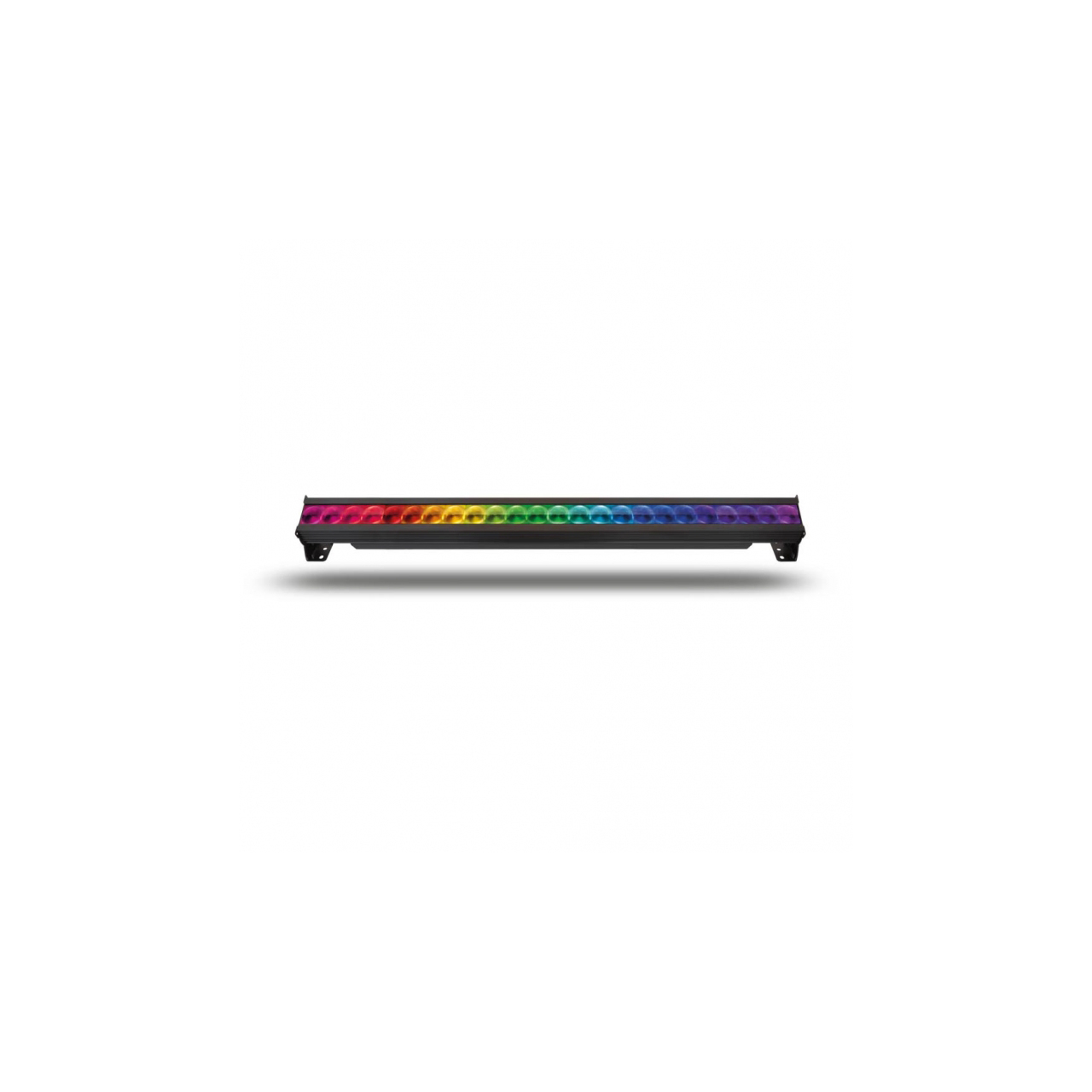

Chroma-Q Color Force II Plus 72 - 5 Pin DMX w/Trunnion Mounting Bracket & 3 ft TRUE1 Cable - Black - 6 Ft Version

ITEM #: CHRQ-CQ1641-3000 MFG #: CQ1641-3000

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.

CQ1641-3000 - Overview

Cyc, Wash & Effects LED Lighting, Simply Amazing!

Once again, Chroma-Q impresses with Color Force II Plus™, the updated version of the renowned Color Force II™ professional luminaire.

The Color Force II Plus™ boasts enhanced brightness and a richer palette, while maintaining the same form factor and character as the market-leading original. The innovative optical system with individually controlled pixels provides smooth, beautiful and even coverage for any cyc or surface with no unsightly color shadowing.

Designed for a variety of applications where powerful and precise lighting is essential, including cyc, flood and wall washing up to 12m.

Homogenised Output - Superior Color Blend & No Unsightly Color-Mixing Shadows
Using the very latest fully homogenised optics found in the award winning Chroma-Q product range, the Color Force II Plus™ fixtures' output is a single, clean and pure beam of light, delivering a superior color blend with no unsightly color-mixing shadows.

The homogenised optics and improved Chroma-Q technology provide even brighter, richer, higher quality saturates and pastels, and a purer white - all from a single source.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Color Consistency
Proprietary calibration technologies ensure each Color Force II Plus leaves the factory color matched, delivering completely consistent colors unit to unit even side by side.

Even More Creative Control
The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths - providing independently controllable cells every 3 inches.

Simply Amazing!
When you are ready for new fixtures the choice remains simple.

Extensive RDM functionality is provided through wired CRM.

Available in 0.3m / 1 ft, 1.2m / 4 ft, and 1.8m / 6 ft versions.

  • Features:

    • Featuring Chroma-Q's proven award-winning technology
    • Fully useable along side original Color Force II
    • Over 4500 / 18,000 / 27,000 hot lumens, respectively
    • Extremely smooth, uniform output
    • Unmatched cyc evenness
    • Homogenised RGBA colour mixing
    • Rich saturated colours and smooth pastel colours
    • Pixel control to 76mm / 3 in increments
    • High CRI of 92
    • Theatrical grade dimming
    • Rugged extruded aluminium body
    • Built-in power supply
    • Chroma-Q ColorSureT calibration means superior fixture-to-fixture consistency
    • Works great in theatre, TV, concert touring, exhibitions, or corporate events
    • Touchscreen user interface
  • Specifications:

    • Power Supply: Built-in
    • Power Input Rating: 100-240V AC 50-60Hz 800VA
    • Power Factor: 0.96 @ 120V AC, 0.99 @ 240V AC
    • Power Consumption: 800W @ 120V AC, 800W @ 240V AC
    • Idle Power Consumption: 29W @ 120V AC, 32W @ 230V AC
    • Typical Power & Current: Measurements were done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

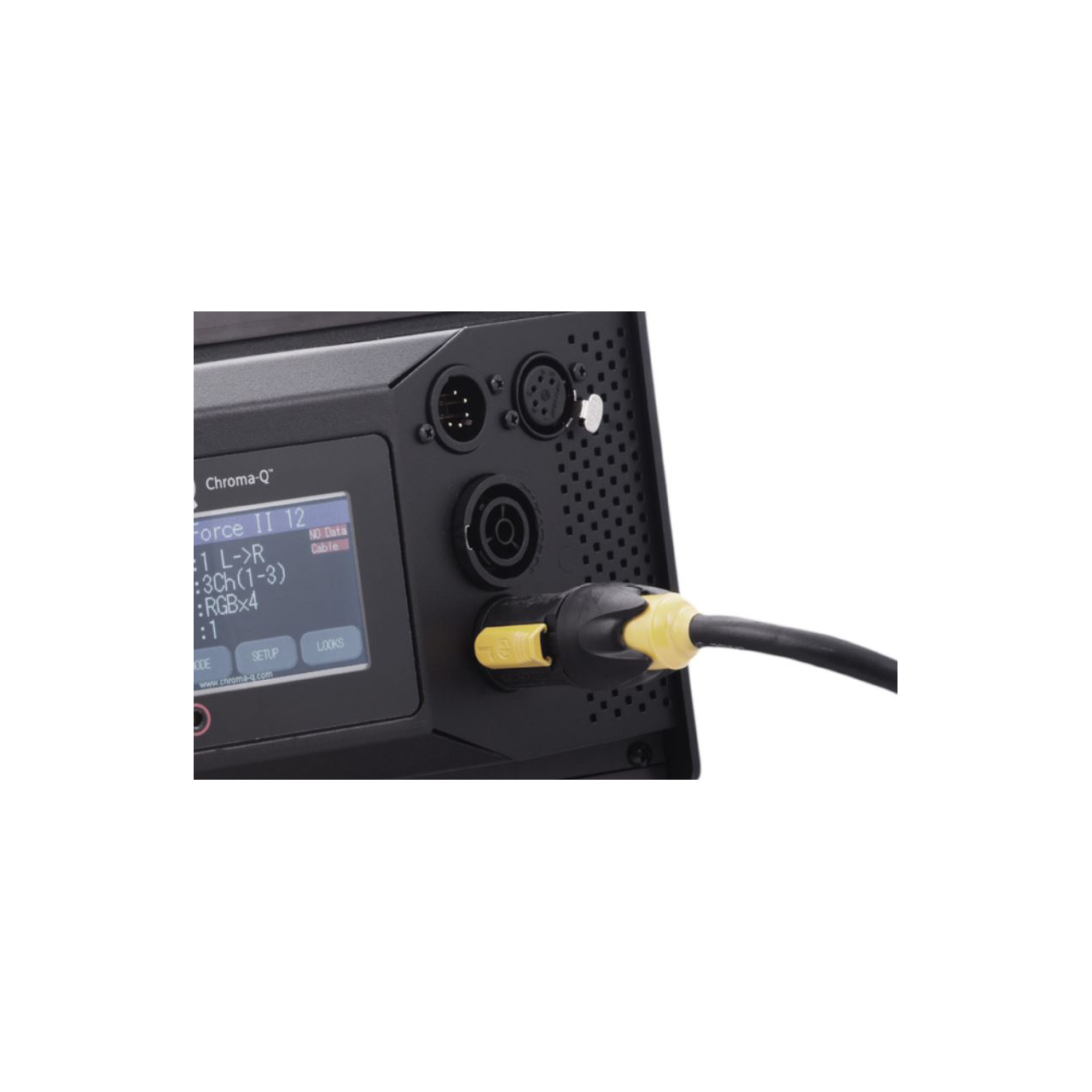

    • Power Connectors In/Out: Neutrik powerCON TRUE1
    • Data Connectors In/Out: Neutrik XLR 5-pin
    • Control Protocol: ANSI E1.11 USITT DMX 512-A
    • Cooling System: Forced
    • Operating Temperature: 0°C to 40°C
    • Construction: Anodised aluminium extrusion
    • Color: Black
    • Built-In Hardware: Quick release lever for tilt adjustment
    • IP Rating: IP20
  • Item Includes:

    • Chroma-Q Color Force II Plus 72 Fixture
    • TRUE 1 Power Cord
    • Trunnion mounting bracket
    • Safety Chain
    • Quick Start Guide
