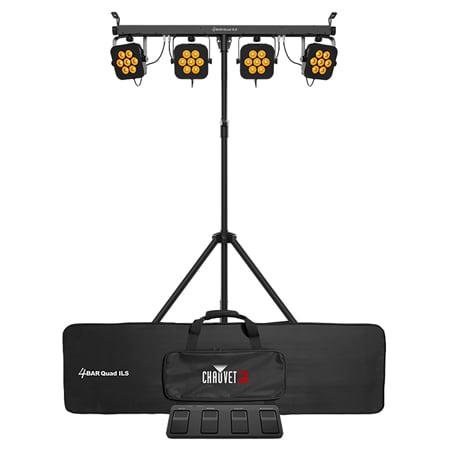

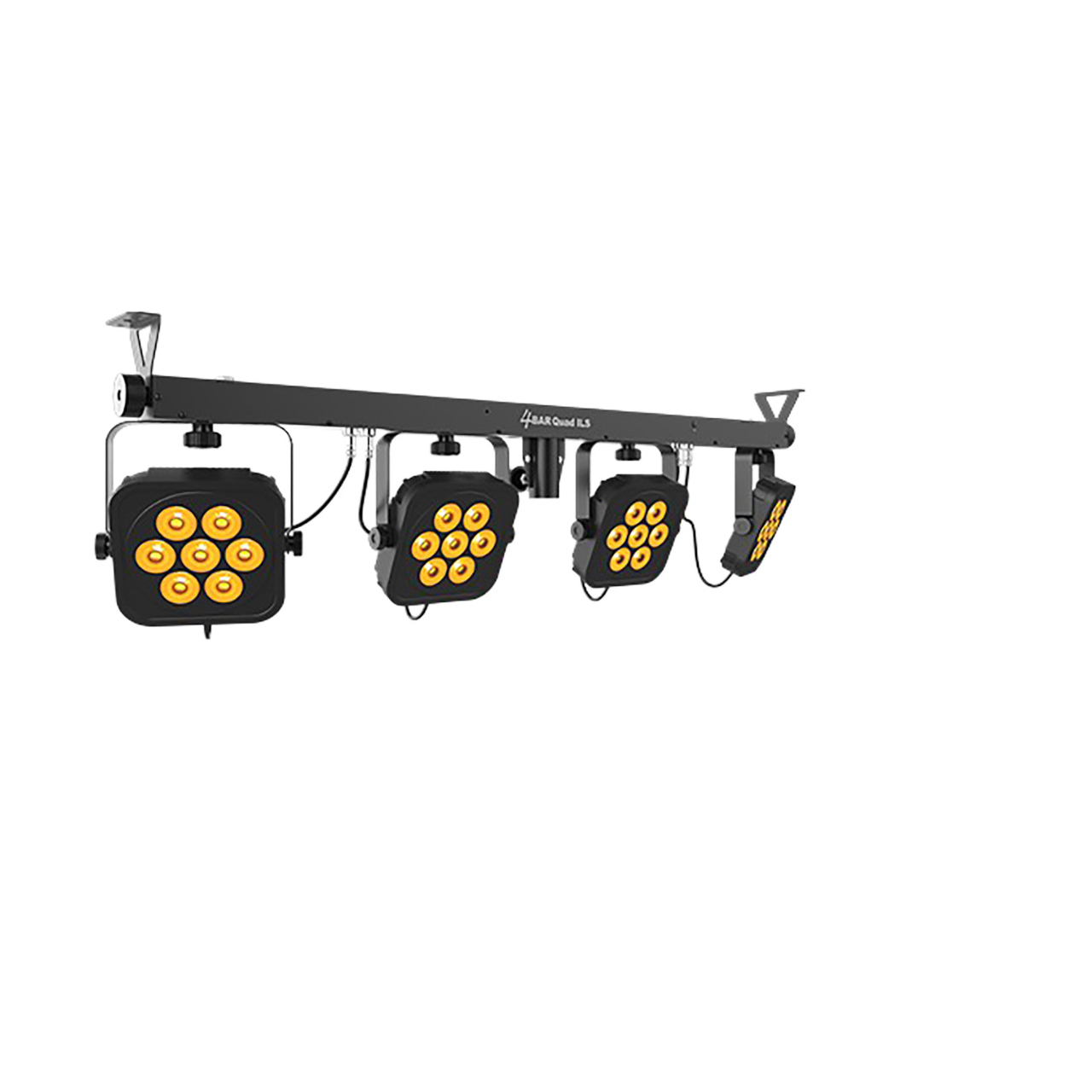

Chauvet 4BAR Quad ILS LED Lighting Fixture with Four Integrated RGBA Lights - Sound-Active Mode - DMX Control

4BARQUADILS - Overview

Complete wash lighting solution - Easy to set up and tear down!

• Features:

  • Fitted with high-intensity, quad-color (RGBA) LEDs
  • ILS compatibility for use in the ILS ecosystem
  • Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
  • Out of the box wireless control with included footswitch or optional IRC-6 controller
  • Easily transported with the included tripod stand and carrying bags
  • D-FiT USB compatibility for wireless Master/Slave or DMX control (D-FiT USB sold separately)
  • Achieve total room or stage coverage with 4 individually adjustable heads
  • Increase mounting options by safely mounting to truss using built-in bolts


• Specifications:

  • DMX Channels: 4, 6 or 19DMX
  • Connectors: 3-pin XLR
  • Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
  • Strobe Rate: 0Hz - 20Hz
  • Beam Angle: 14°
  • Field Angle: 23°
  • Illuminance: 2,353 lux @ 2m (per pod)
  • Input Voltage: 100V - 240VAC, 50/60Hz (auto-ranging)
  • Power and Current: 80W, 1.2A @ 120V, 60Hz, 78W, 0.6A @ 230V, 50Hz
  • Weight: 12.2lbs (5.5kg)
  • Size: 45.7" x 2" x 12" (1186mm x 50.8mm x 305mm)
  • Approvals: CE, RoHS, UKCA
  • Operating Frequency (D-Fi): 2.412GHz - 2.484GHz
  • Operating Frequency (foot switch): 433MHz
  • Max Unobstructed Distance (foot switch): 100ft (30.5m)
  • Footswitch Battery: 9V
  • Stand Height: 7ft 4" (2.2m)
  • Fits Tripod Sizes: 1.5" (36.80mm)
  • Bracket Mounting Hole: M10 (1.5mm pitch)
  • Weight (Controller): 1.2lbs (0.6kg)
  • Size (Controller): 16.5" x 5.2" x 1.5" (419mm x 132mm x 38mm)
  • Optional Controllers: IRC-6, D-Fi USB


• Item Includes:

  • 1x 4BAR Quad ILS
  • 1x Power cord
  • 1x Carrying bag
  • 1x Tripod
  • 1x Tripod Carry bag
  • 1x Wireless Footswitch
  • 2x L-brackets
  • 1x Quick Reference Guide


• GTIN:

  0781462223502
