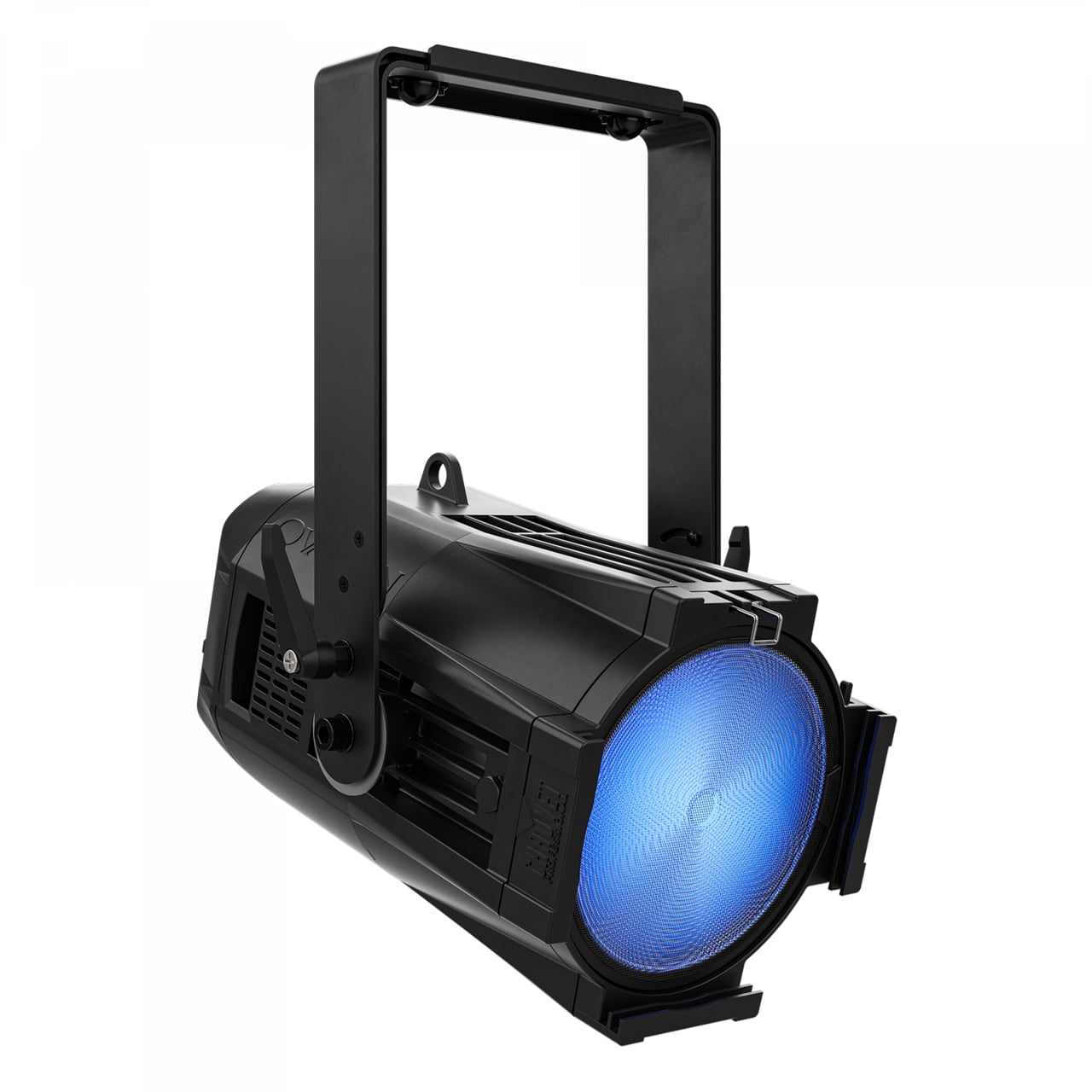

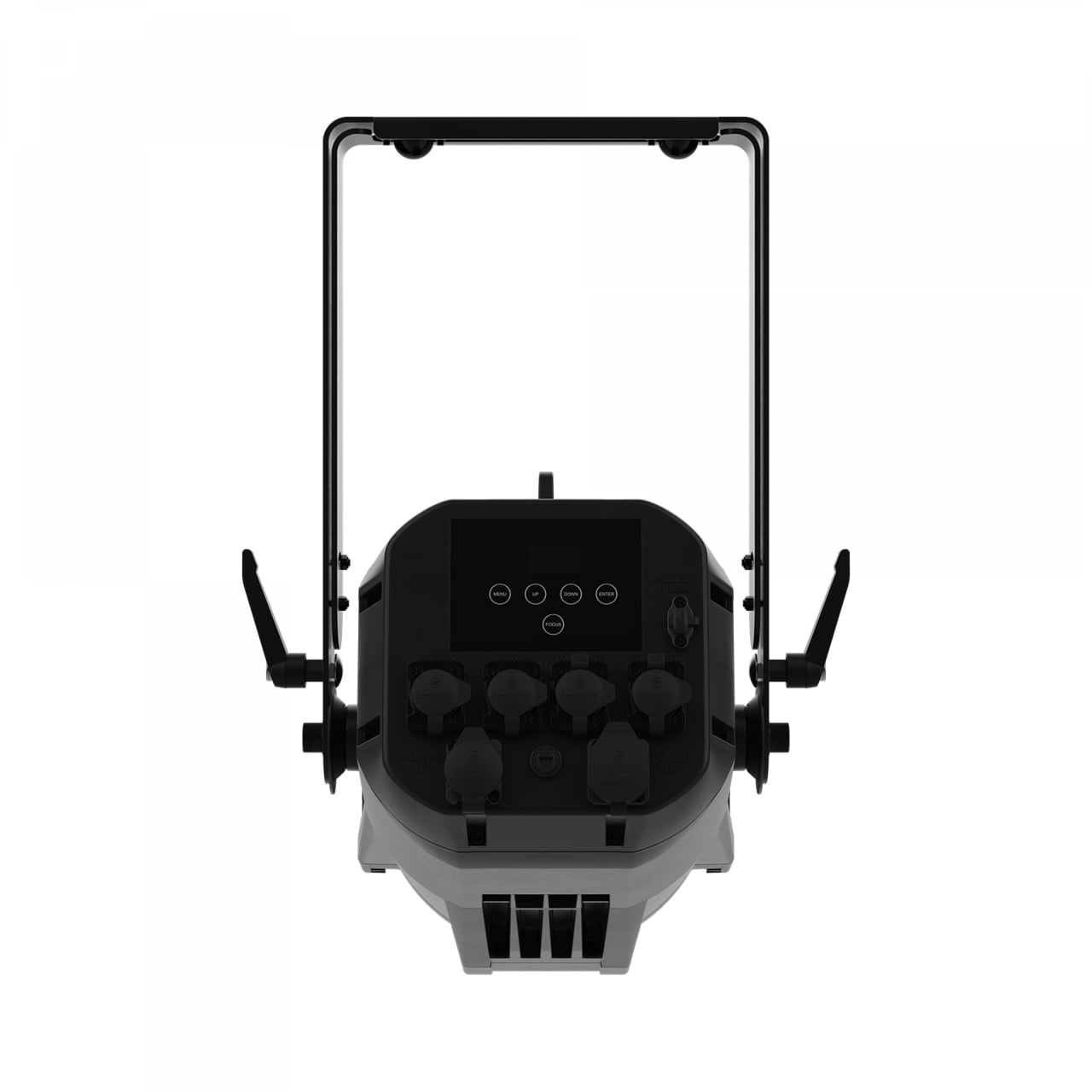

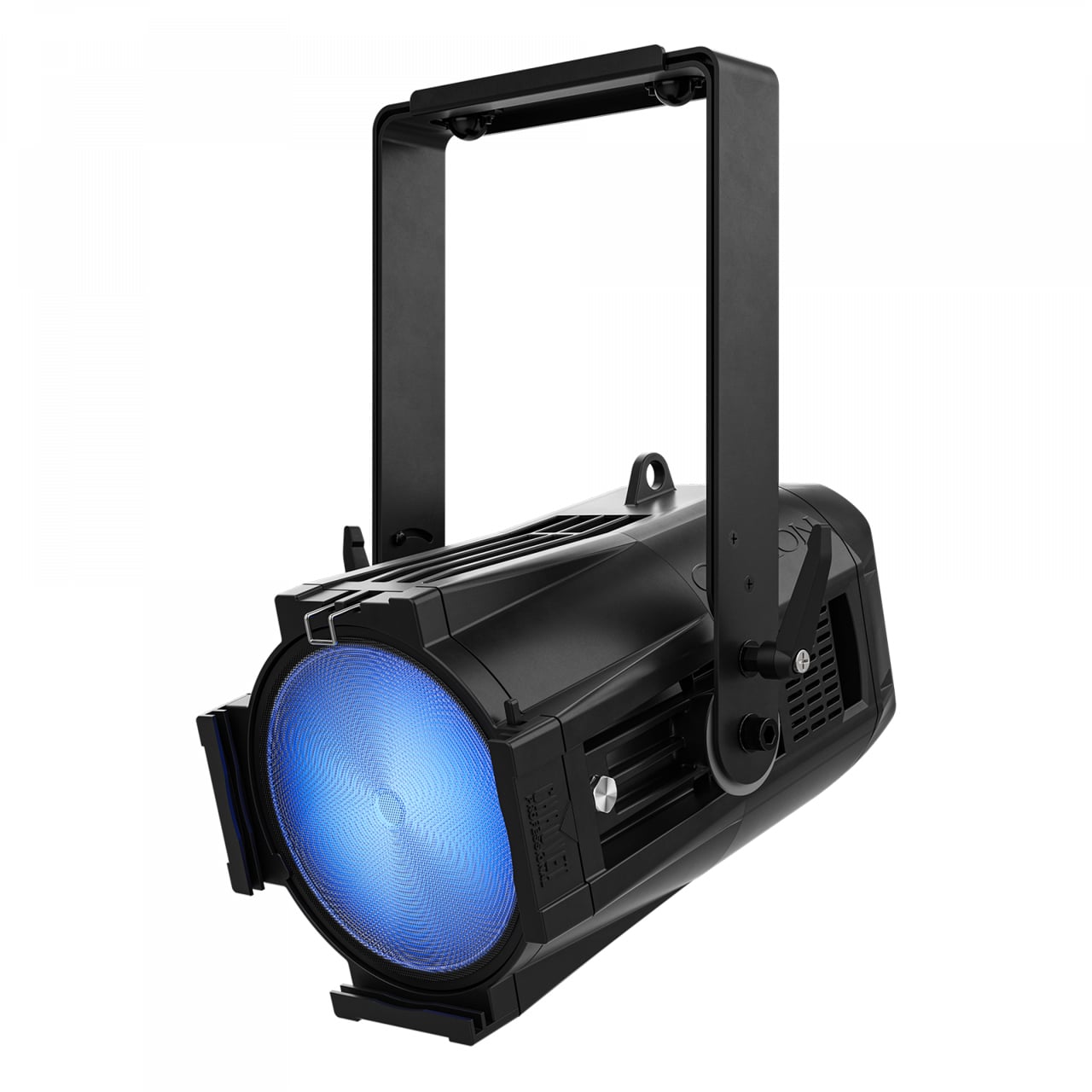

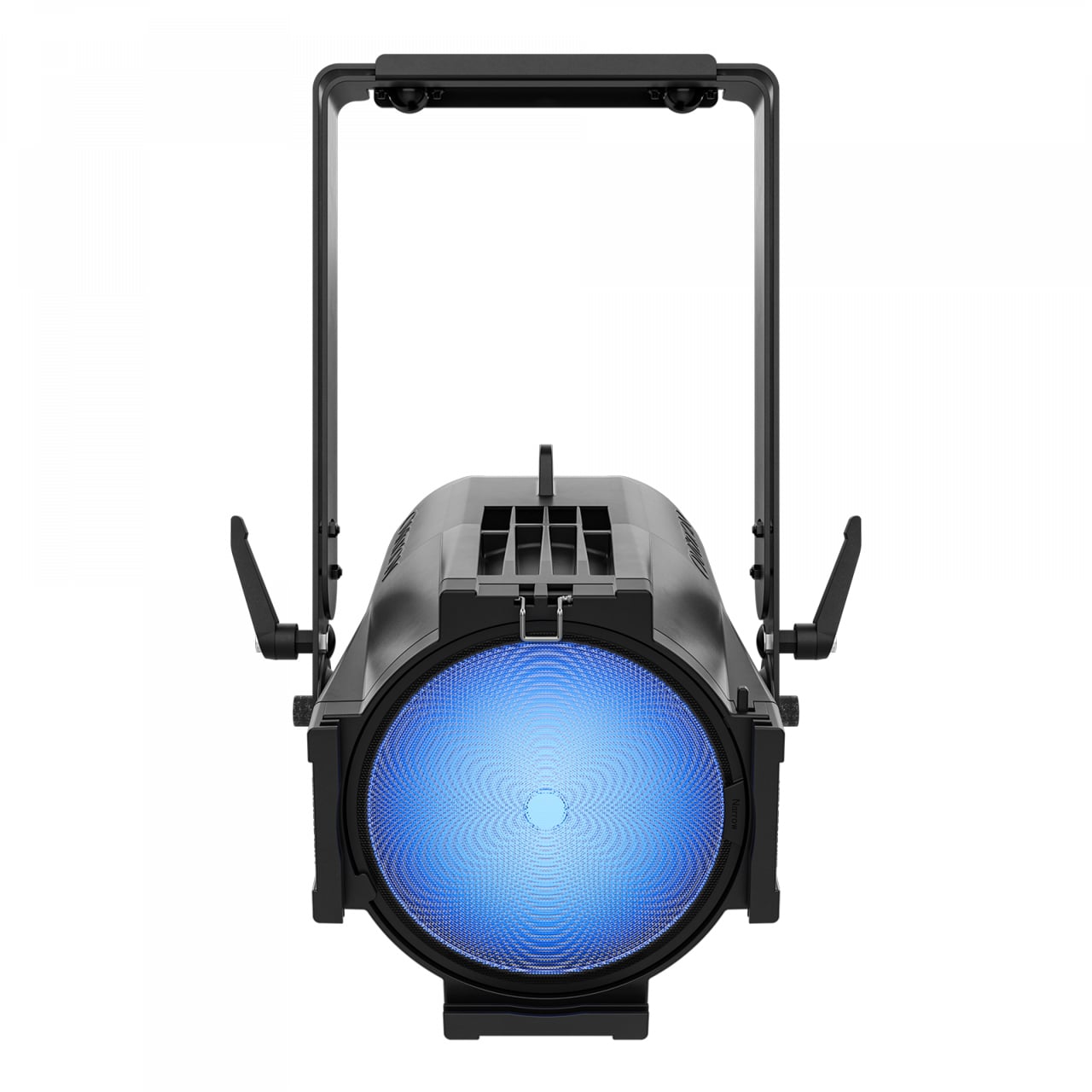

Chauvet Professional OVATIONREVEP3IP IP65-Rated Full-Spectrum Multi-Color Ovation Rêve P-3 LED Light Fixture

OVATIONREVEP3IP - Overview

Handle it all, from a narrow spot to a wide flood!

• Features:

  • Delivers linear color temperature presets from 2800K to 8000K with high CRI
  • Features a fully IP65-rated housing for dependable, all-weather use in any environment
  • Includes four interchangeable lenses to easily adapt beam angles from narrow spot to wide flood
  • Adjustable Pulse Width Modulation (PWM) ensures flicker-free operation for broadcast and film
  • Offers flexible integration with DMX and RDM control across nine operating personalities
  • An advanced RGBAM LED engine provides full-spectrum color mixing and superior white light


• Specifications:

  Optical
  • Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A). L70 rating: 55,000 hours under LED manufacturers test conditions (LM-80: 10,000hrs).
  • Color Temperature (range): 2800K - 8000K
  • Color Temperature (at full): 5399K
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25,000Hz
  • Narrow Lens:
    - Beam Angle: 11.9°
    - Field Angle: 20.8°
    - Lumens: 10,051
  • Medium Lens:
    - Beam Angle: 25.6°
    - Field Angle: 37.8°
    - Illuminance: 1,950 lux @ 5m
    - Lumens: 10,079
  • Wide Lens:
    - Beam Angle: 29.3°
    - Field Angle: 43.1°
    - Illuminance: 1,475 lux @ 5m
    - Lumens: 9,936
  • Very Wide Lens:
    - Beam Angle: 43.5°
    - Field Angle: 87.9°
    - Illuminance: 401 lux @ 5m
    - Lumens: 8,380

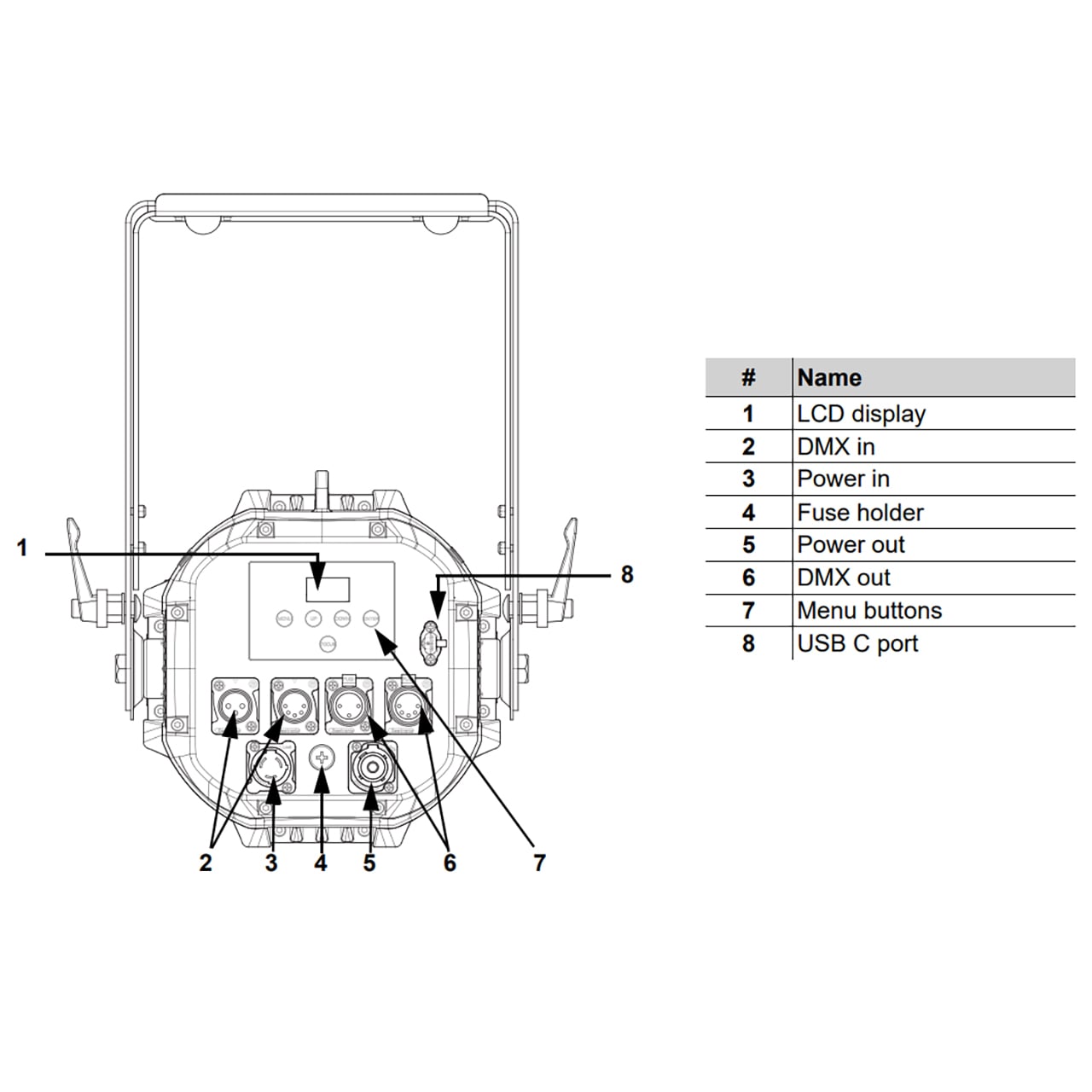

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5ft (1.5m)
  • Software Connection: USB

    Electrical
  • Input Voltage: 100V - 240VAC, 50/60Hz (auto-ranging)
  • Power Linking: 5 units @ 120V; 8 units @ 208V; 9 units @ 230V
  • Power and Current:
    - 274W, 2.31A @ 120V, 60Hz
    - 267W, 1.38A @ 208V, 60Hz
    - 265W, 1.25A @ 230V, 50Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0Hz - 25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-In Automated Programs: Yes

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

    Physical
  • Dimensions: 18.82" x 11.81" x 8.27" (478mm x 300mm x 210mm)
  • Weight: 21.4lbs (9.8kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast
  • Accessory Holder/Gel Frame Size: 7.5" (191mm)
  • Noise Levels:
    - Idle: 17.4dB(A) @ 1m
    - Auto: 30.7dB(A) @ 1m
    - On: 31.9dB(A) @ 1m
    - Off: 2.3dB(A) @ 1m
    - Silent: 11.3dB(A) @ 1m
  • Temperature (Ambient): -4°F - 113°F (-20°C - 45°C)

    Certifications
  • Certifications: CE, MET, FCC, UKCA
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve


• Item Includes:

  • 1x Ovation Rêve P-3 IP
  • 1x Seetronic Powerkon power cord
  • 1x Omega bracket with mounting hardware
  • 4x Lenses - Narrow, Medium, Wide, Very Wide
  • 1x Gel Frame
