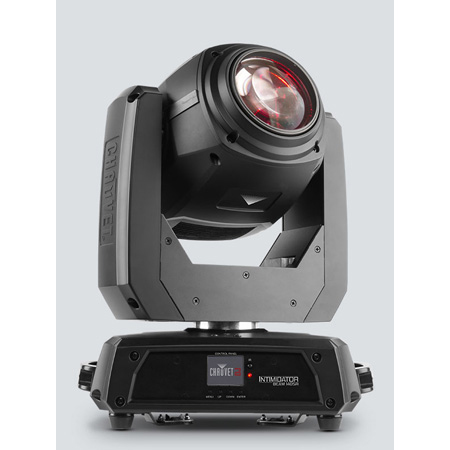

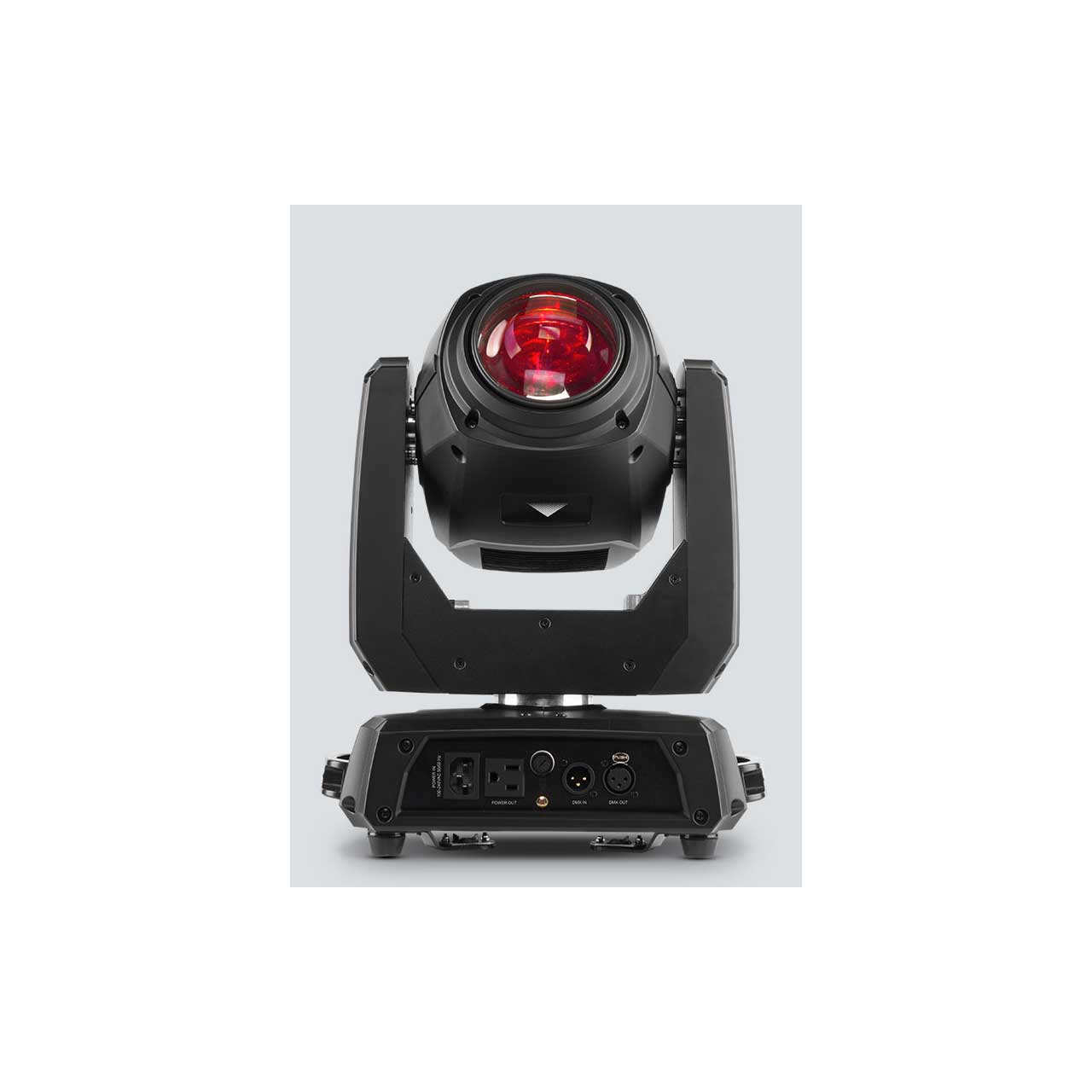

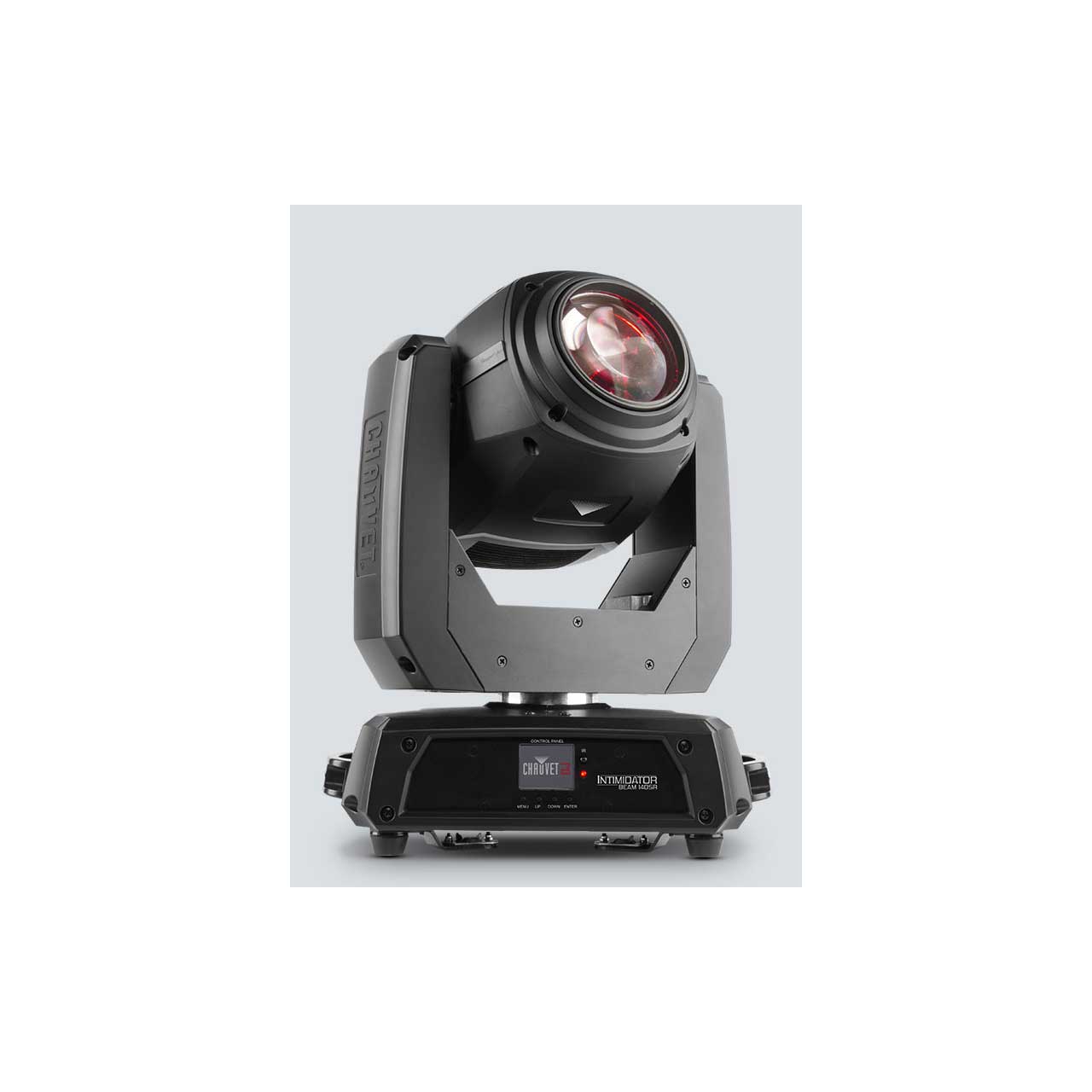

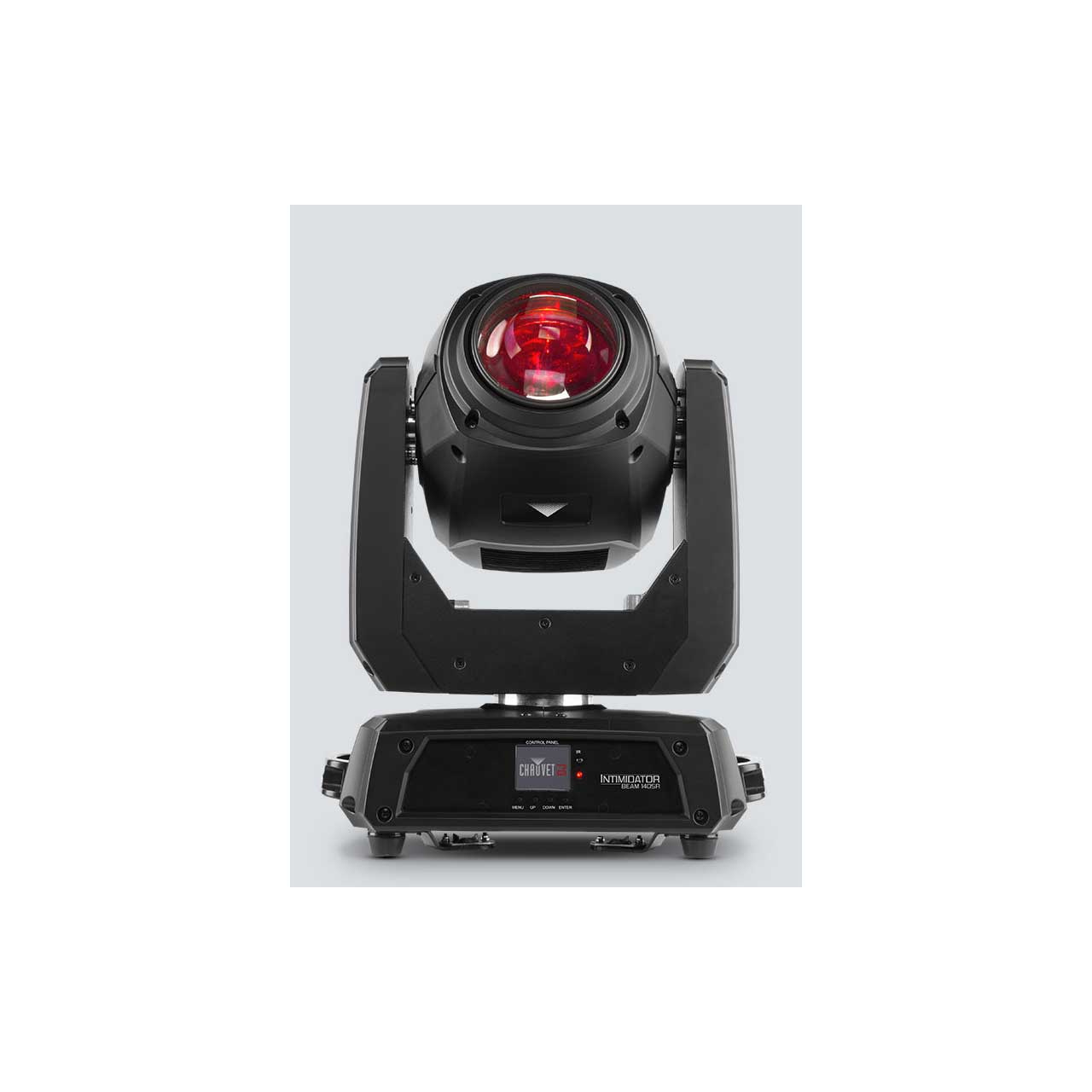

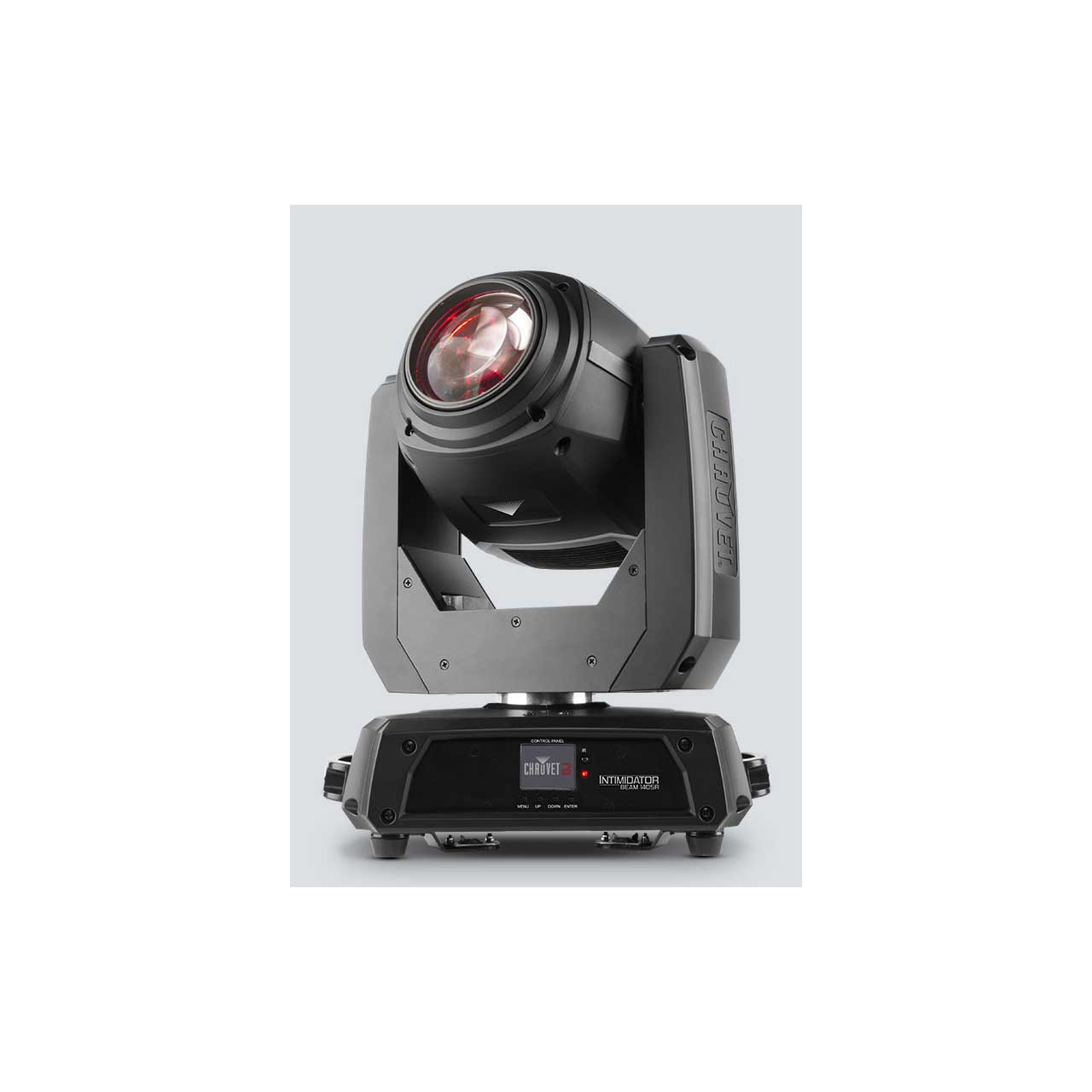

Chauvet DJ INTIMBEAM140SR Intimidator Beam 140SR

INTIMBEAM140SR - Overview

• Features:

  • Cutting-edge moving head beam fitted with an intense 140 W discharge light engine
  • Impressive 16-facet prism splits the beam and intensifies the excitement
  • Motorized frost filter converts the tight beam to a wide wash for different applications
  • Built-in totem mode keeps the light on and over the dance floor
  • Unique ¬-turn hanging bracket allows for single or dual clamp mounting options
  • Non-DMX control with the optional IRC-6 wireless remote
  • On-board power linking saves time running extension cords
  • Fits best in the CHS-50 VIP gear bag


• Specifications:

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors: 14 + white, split colors, continuous scroll at variable speeds
  • Gobos: 17 + open (all aluminum), fixed, continuous scroll at variable speeds
  • Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs) (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: (beam): 3° (frost): 21°
  • Illuminance: (5 m): 381,500 lux (15 m): 37,900 lux
  • Power Linking: 3 units @ 120 V; 6 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 228 W, 2 A @ 120 V, 60 Hz 224 W, 1.2 A @ 230 V, 50 Hz
  • Weight: 25.8 lb (11.7 kg)
  • Size: 12.7 x 8.6 x 16.5 in (322 x 220 x 420 mm)
  • Approvals: CE, MET
  • Optional Controllers: IRC-6


• Item Includes:

  • Power cord
  • Hanging bracket
  • Warranty card
  • Quick Reference Guide


• GTIN:

  0781462215798
