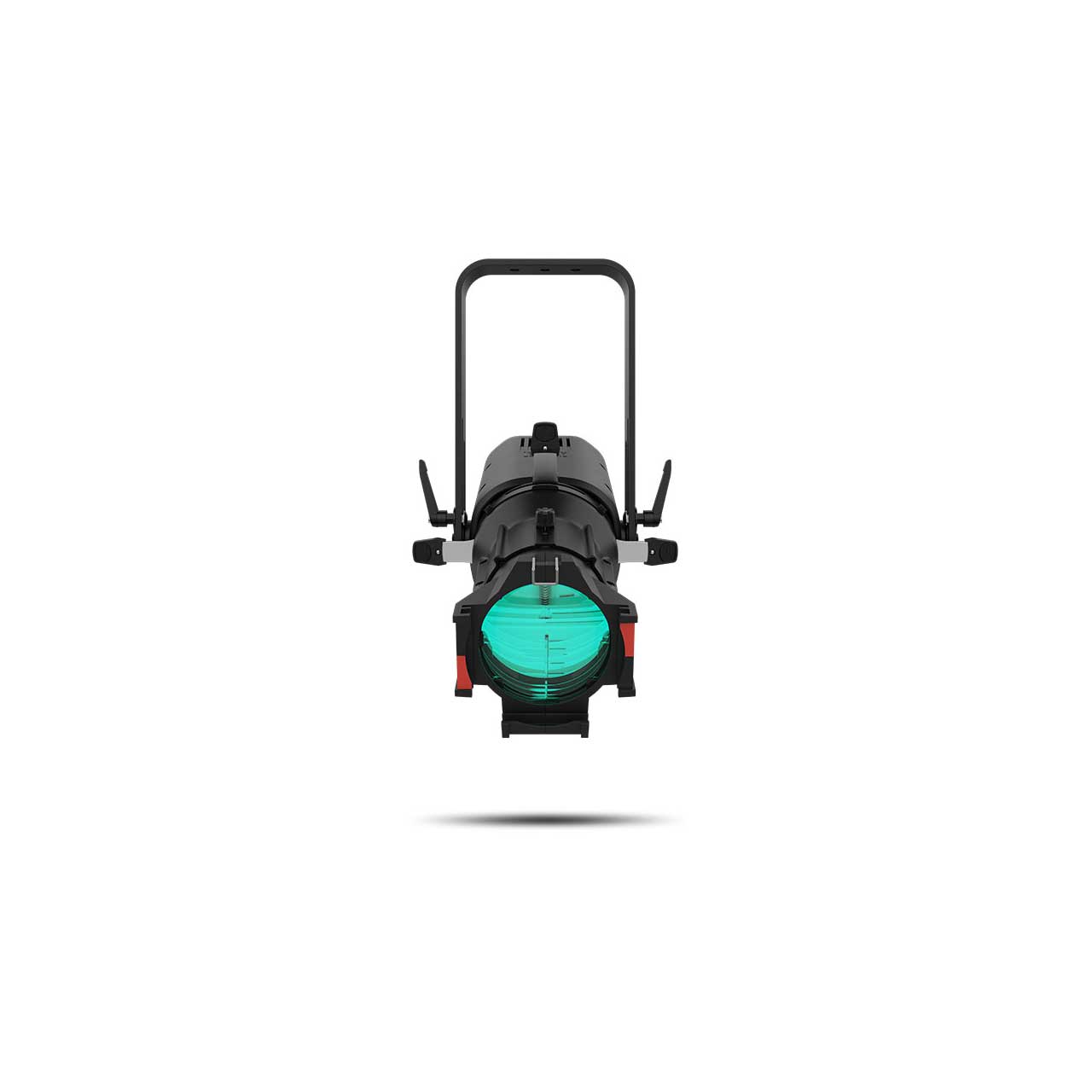

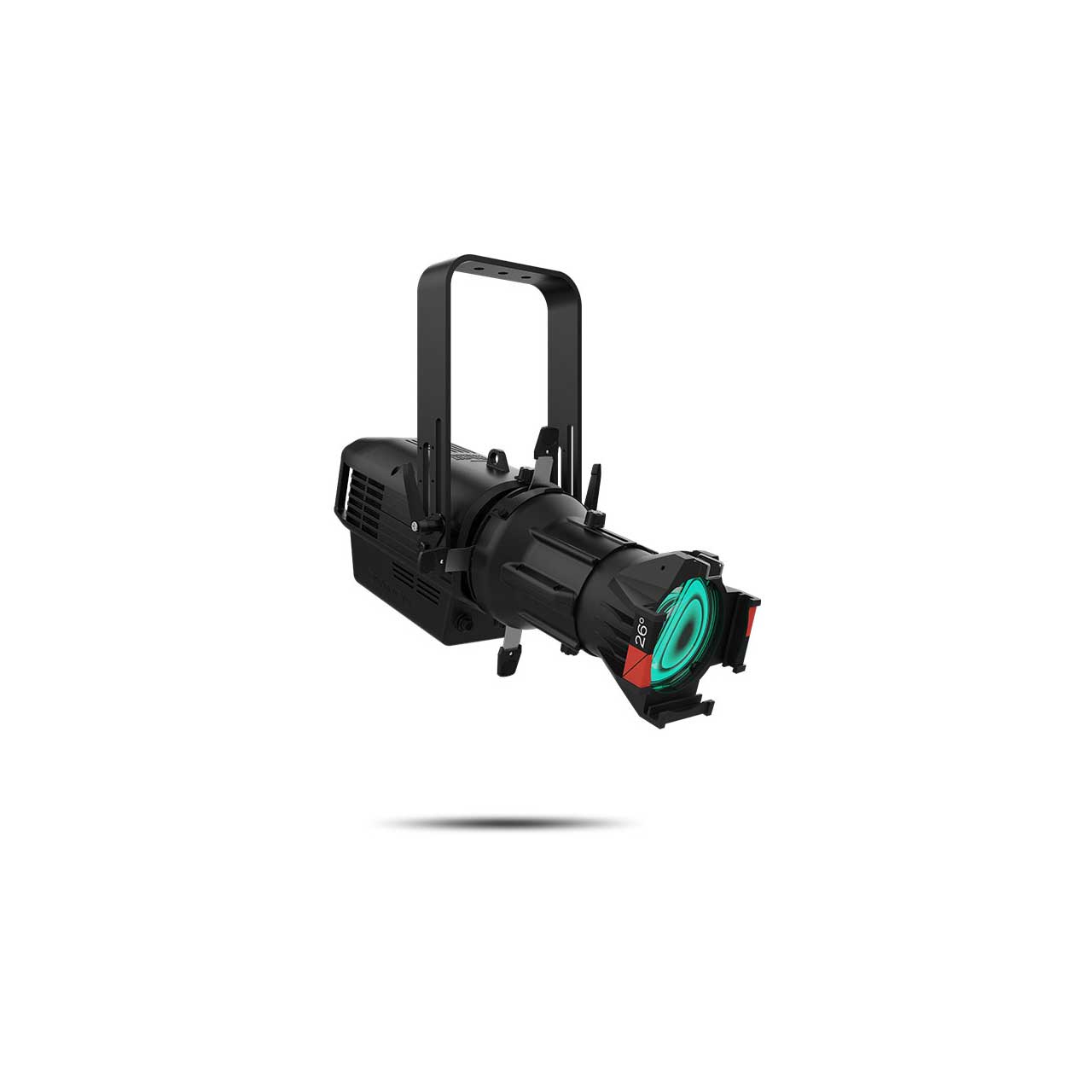

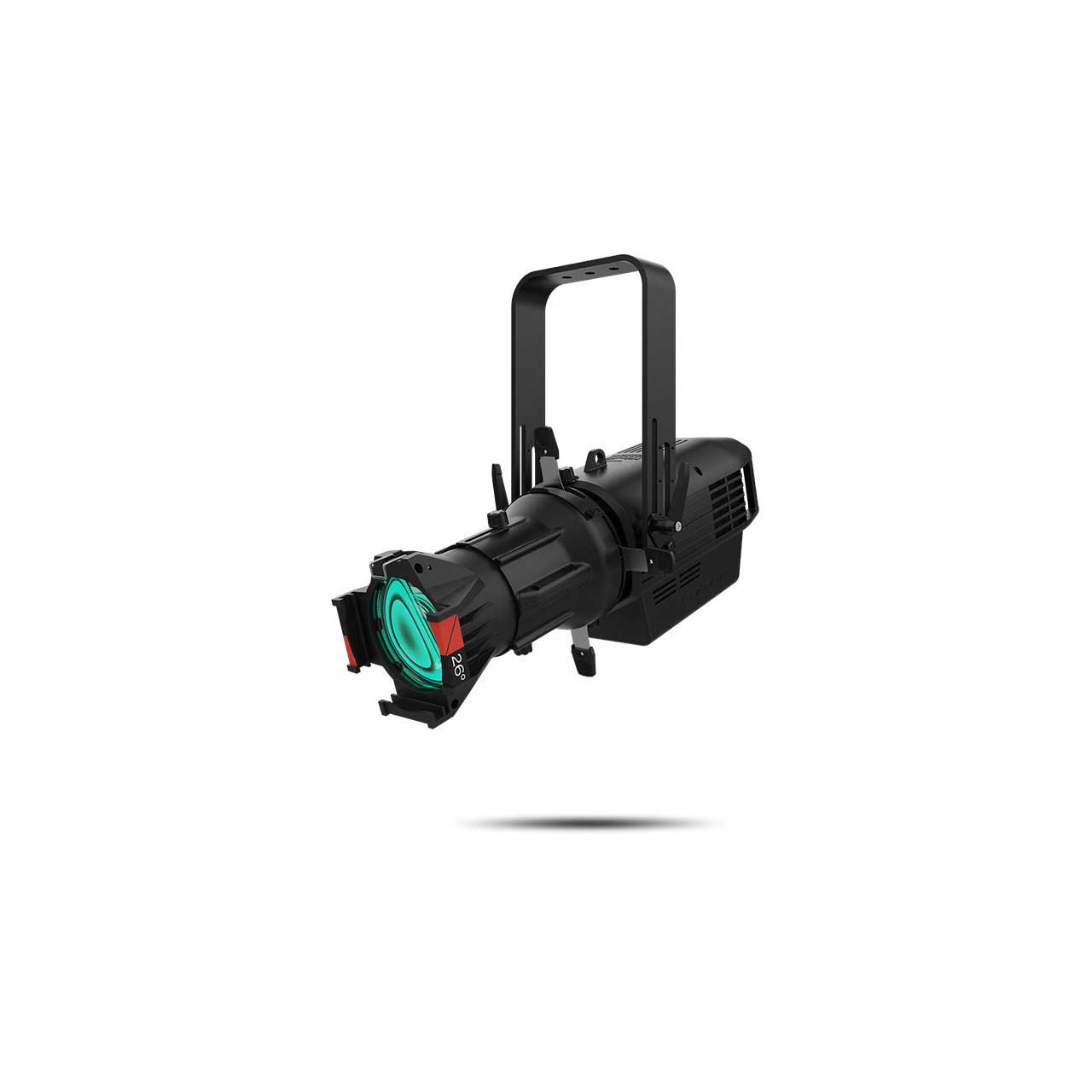

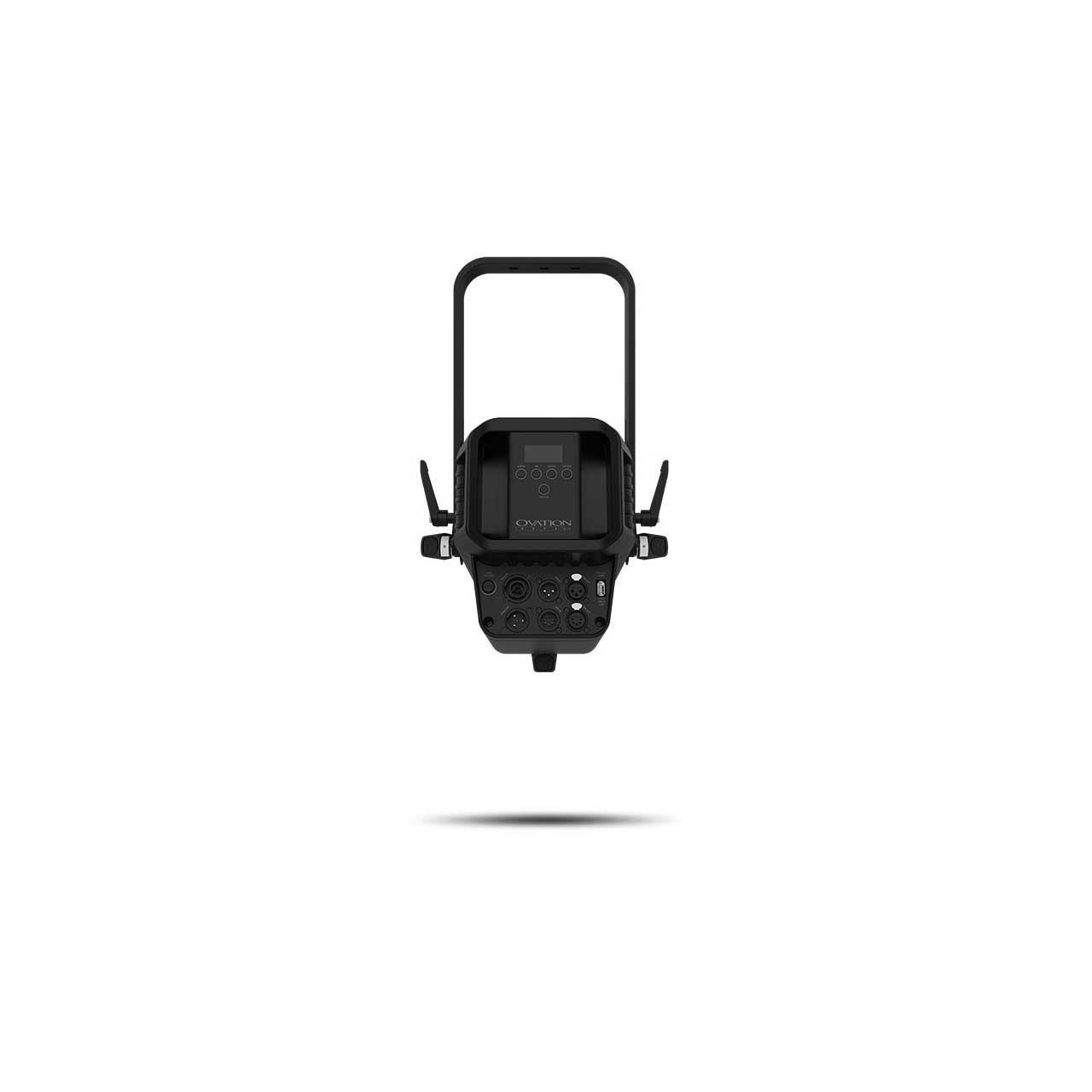

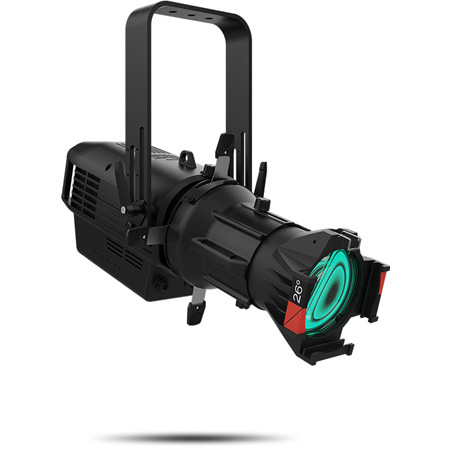

Chauvet Ovation Reve E-3 Multi-Color Ellipsoidal LED without Lens Tube

ITEM #: CHVT-OVATNREVEE3 MFG #: OVATIONREVEE3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,518.80

Our Price:

$2,235.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    OVATIONREVEE3 - Overview

    The Chauvet Ovation Rêve E-3 is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It's a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated "red shift" for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3 you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs, or buts. Simply and categorically unrivaLED.

    Required Lens Tubes: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°

    • Features:

      • Full-spectrum LED ERS-style lighting fixture for theatre, film and production
      • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
      • Virtual color wheel with color matched to popular gel colors
      • +/- Green adjustment and emulated red-shift via DMX or on-board control
      • RDM (Remote Device Management) for added flexibility
      • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
      • Virtually silent operation for use in studio, film and theatre applications
      • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme
      • Innovative adjustable yoke for mounting in low clearance areas
      • Direct power/data connection and control options for the Ovation GR-1 gobo rotator
      • USB port for fixture software updates

    • Specifications:

      • Optical
      • Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy
      • Color Temperature (range): 2800 to 8000 K
      • Color Temperature (at full): 5470K
      • CRI (3200 K): 95.4
      • Beam Angle (w/5° lens): 4.6°
      • Beam Angle (w/10° lens): 10°
      • Beam Angle (w/14° lens): 14.8°
      • Beam Angle (w/19° lens): 18.5°
      • Beam Angle (w/26° lens): 26°
      • Beam Angle (w/36° lens): 33.3°
      • Beam Angle (w/50° lens): 49.5°
      • Beam Angle (w/15° -30° lens)(Narrow): 13°
      • Beam Angle (w/15° -30° lens)(Wide): 28.5°
      • Beam Angle (w/25° -50° lens)(Narrow): 23.6°
      • Beam Angle (w/25° -50° lens)(Wide): 40.5°
      • Field Angle (w/5° lens): 5.6°
      • Field Angle (w/10° lens): 11.1°
      • Field Angle (w/14° lens): 16°
      • Field Angle (w/19° lens): 21.6°
      • Field Angle (w/26° lens): 29.6°
      • Field Angle (w/36° lens): 37.1°
      • Field Angle (w/50° lens): 55.7°
      • Field Angle (w/15° -30° lens)(Narrow): 15.4°
      • Field Angle (w/15° -30° lens)(Wide): 32.2°
      • Field Angle (w/25° -50° lens)(Narrow): 25.8°
      • Field Angle (w/25° -50° lens)(Wide): 44.1°
      • Lumens (w/5° lens): 5,076
      • Lumens (w/10° lens): 11,250
      • Lumens (w/14° lens): 12,179
      • Lumens (w/19° lens): 12,156
      • Lumens (w/26° lens): 13,300
      • Lumens (w/36° lens): 13,223
      • Lumens (w/50° lens): 12,216
      • Lumens (w/15° -30° lens): 12,057
      • Lumens (w/25° -50° lens): 14,355
      • Illuminance (w/5° lens): 31,856 lux @ 5m
      • Illuminance (w/10° lens): 18,924 lux @ 5m
      • Illuminance (w/14° lens): 9,284 lux @ 5m
      • Illuminance (w/19° lens): 5,635 lux @ 5m
      • Illuminance (w/26° lens): 3,378 lux @ 5m
      • Illuminance (w/36° lens): 2,085 lux @ 5m
      • Illuminance (w/50° lens): 870 lux @ 5m
      • Illuminance (w/15° -30° lens) Narrow: 9,292 lux @ 5m
      • Illuminance (w/15° -30° lens) Wide: 2,671 lux @ 5m
      • Illuminance (w/25° -50° lens) Narrow: 3,710 lux @ 5m
      • Illuminance (w/25° -50° lens) Wide: 1,527 lux @ 5m
      • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

        Dynamic Effects
      • Dimmer: Electronic
      • Shutter/Strobe: Electronic
      • Focus: Manual
      • Strobe Rate: 0 to 30 Hz
      • Standalone Color Mixing: Yes
      • Color Temperature Presets: Yes
      • Dim Modes: 4
      • Dim Curves: 4

        Construction/Physical
      • Fixture Only, Yoke Up: 20.44 x 13.07 x 20.53in
      • 5° lens extended, yoke up: 41.60 x 14.17 x 21.42in
      • 10° lens extended, yoke up: 32.87 x 13.07 x 20.01in
      • 14° lens extended, yoke up: 29.7 x 13.07 x 20.53in
      • 19°, 26°, 36° or 50° lens extended, yoke up: 26.83 x 13.07 x 20.53in
      • 15° -30° lens, yoke up: 33.02 x 13.52 x 20.53in
      • 25° -50° lens, yoke up: 25.74 x 13.52 x 20.53in
      • Weight (fixture only: 18.6lb
      • Weight (w/5° lens): 26lb
      • Weight (w/10° lens): 24lb
      • Weight (w/14° lens): 25.6lb
      • Weight (w/26° lens): 24.2lb
      • Weight (w/15° -30° lens): 32.3lb
      • Weight (w/25° -50° lens): 29.8lb
      • Exterior Color: Black

        Connections
      • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
      • Power Input: Seetronic Powerkon IP65
      • Power Output: Seetronic Powerkon IP65
      • Data Connectors: 3- and 5-pin XLR
      • Cable Length (power): 5 ft
      • Software Connection: USB

        Control
      • Control Protocol: DMX, RDM
      • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
      • Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)

        Electrical
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
      • Power and Current: 367W, 3.04 A @ 120 V, 60 Hz
      • Power and Current: 356W, 1.76 A @ 208 V, 60 Hz
      • Power and Current: 353W, 1.59 A @ 230 V, 50 Hz

        Certifications / Qualifications
      • CE, MET, FCC
      • IP Rating: IP20, dry location
      • Temperature Ambient: -4 °F - 113 °F

    • Item Includes:

      • 1x Ovation Reve E-3
      • 1x Seetronic Powerkon power cord
      • 1x Ovation Metal Gobo Holder
      • 1x Soft Focus Filter

    • GTIN:

      0781462220778
