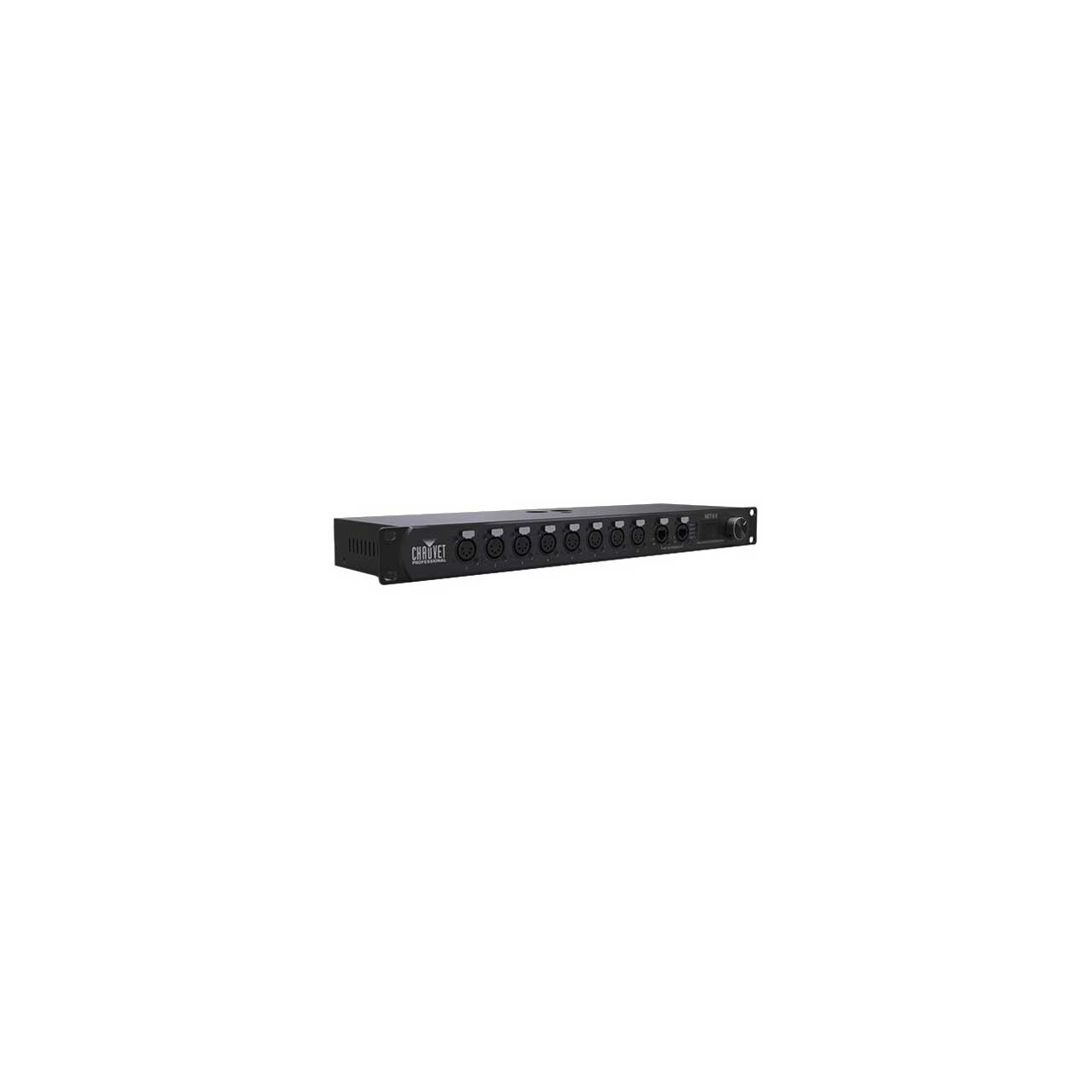

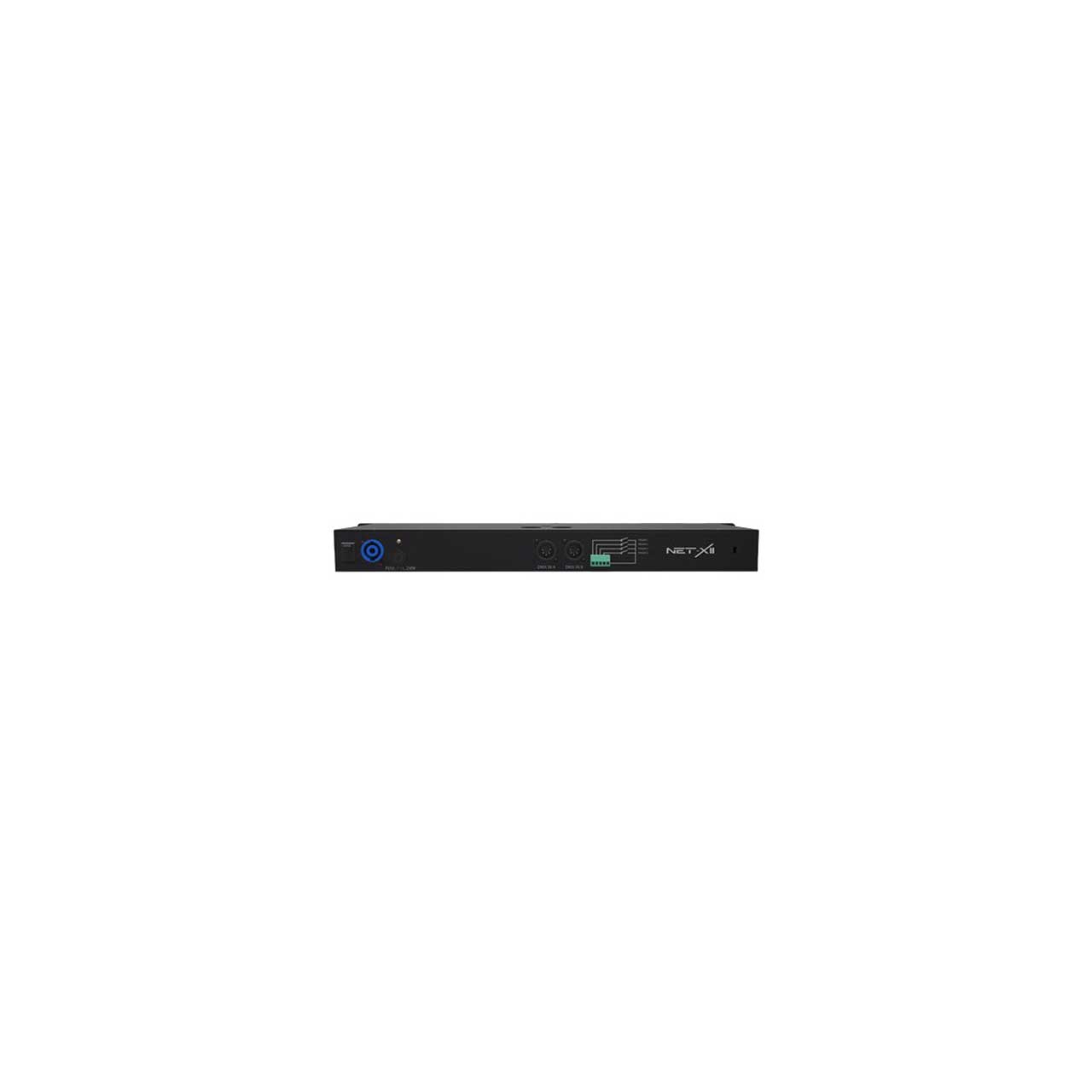

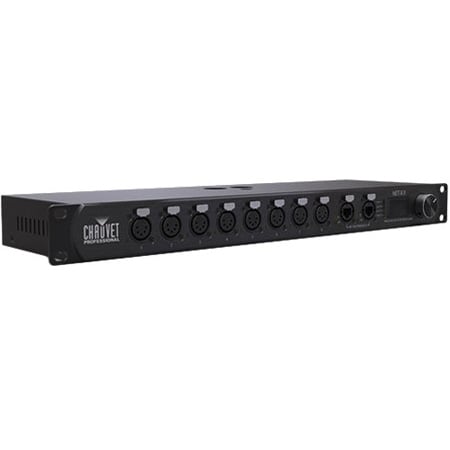

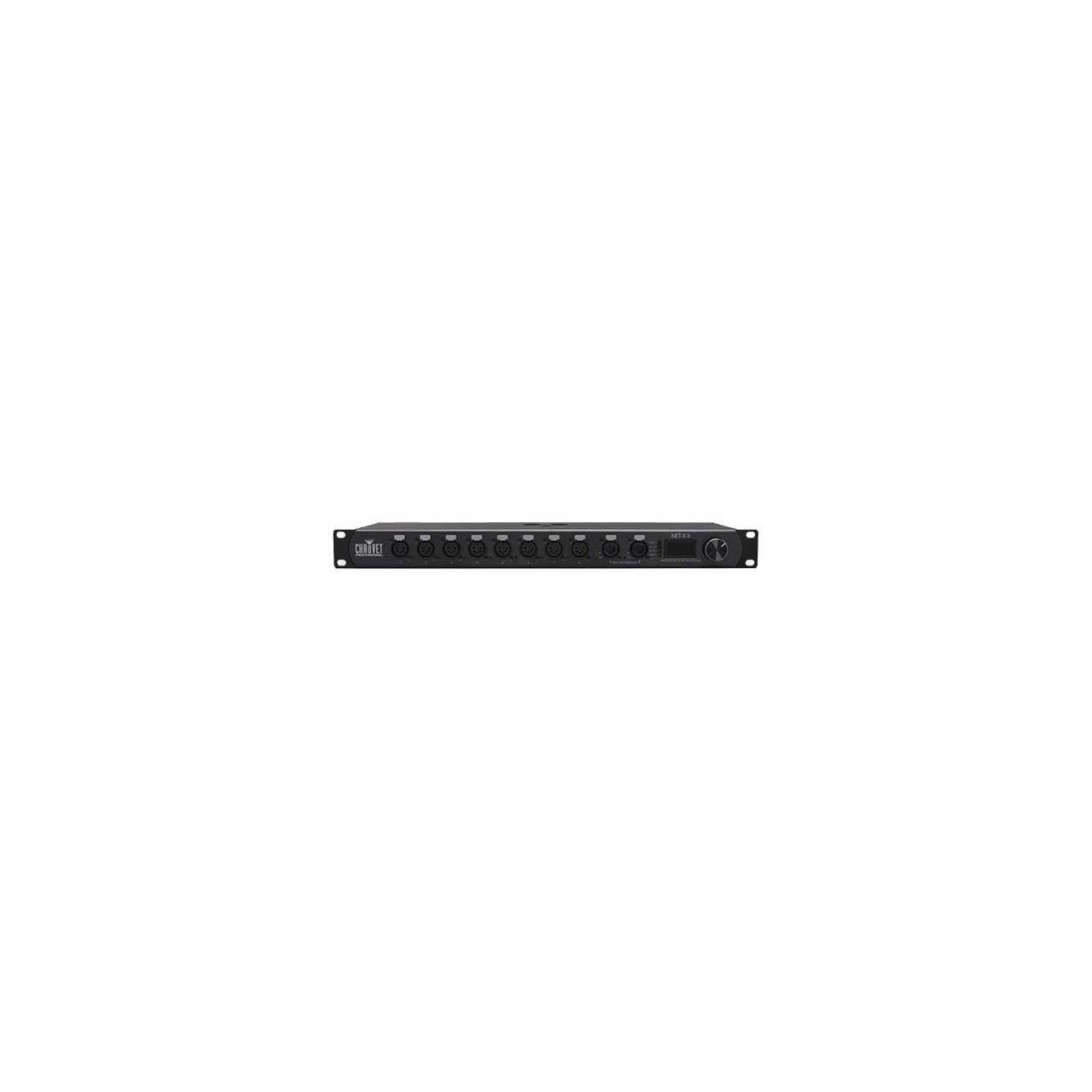

Chauvet NETXII Rack Mount Art-Net-to-DMX Adapter with Integrated Optical DMX Splitter


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    NETXII - Overview

    Chauvet NET-X II is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs - all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs or the Ethernet inputs to mix network inputs with DMX inputs in a single device. LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.

    • Features:

      • 5-pin DMX splitter/distributor
      • Art-Net/sACN to DMX converter, up to 8 universes
      • DMX to Art-Net/sACN converter, up to 8 universes
      • Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
      • HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
      • Backup settings and configurations with same or other NET-X IIs
      • Webserver supported for remote configuration and backup/update
      • Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones simultaneously using the 5-wire Phoenix cold contacts on the rear of the unit
      • Supports RDM over Art-Net
    • Specifications:

      • Dimensions: 19 in x 6.22 in x 1.73 in (483 mm x 158 mm x 44 mm)
      • Weight: 4.6 lb (2.1 kg)
      • Threaded Bolt: M12
      • Exterior Color: Black
      • Housing Material: SteelRackmount: 1U
      • Power Connection: Edison (Local) plug to Neutrik powerCON
      • Power Input: Neutrik powerCON
      • Device Data Inputs: Neutrik® etherCON® (1 total) and 5-pin XLR (2 total)
      • Device Data Outputs: 5-pin XLR (8 total)
      • Device Date Throughputs: Neutrik® etherCON® (1 total)
      • Cable Length (power): 5 ft (1.5 m)
      • Control Protocol: Art-Net, DMX, sACN
      • Merge Support: Yes
      • Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging); Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz; Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz; Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
    • Item Includes:

      • Net-X II
      • Neutrik powerCON power cord
      • Phoenix connector
    • GTIN:
