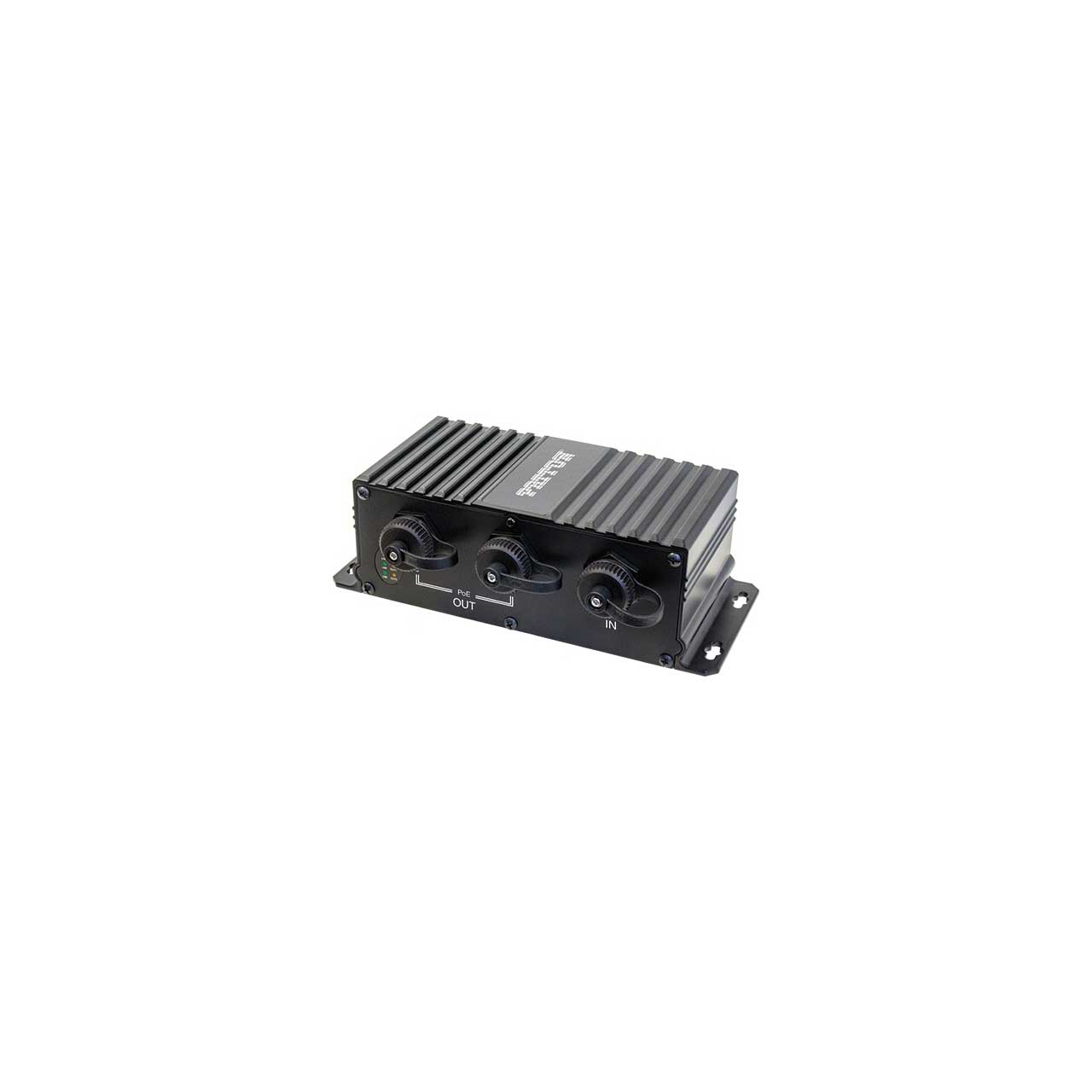

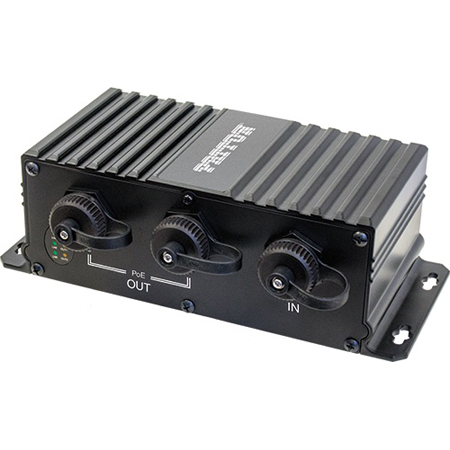

Patton CL1401E/BT60/PD95 CopperLink Industrial Gigabit PoE Booster - 60W - In-Line Repeater - Dual Port

CL1402EIP672BT60 - Overview

• Features:

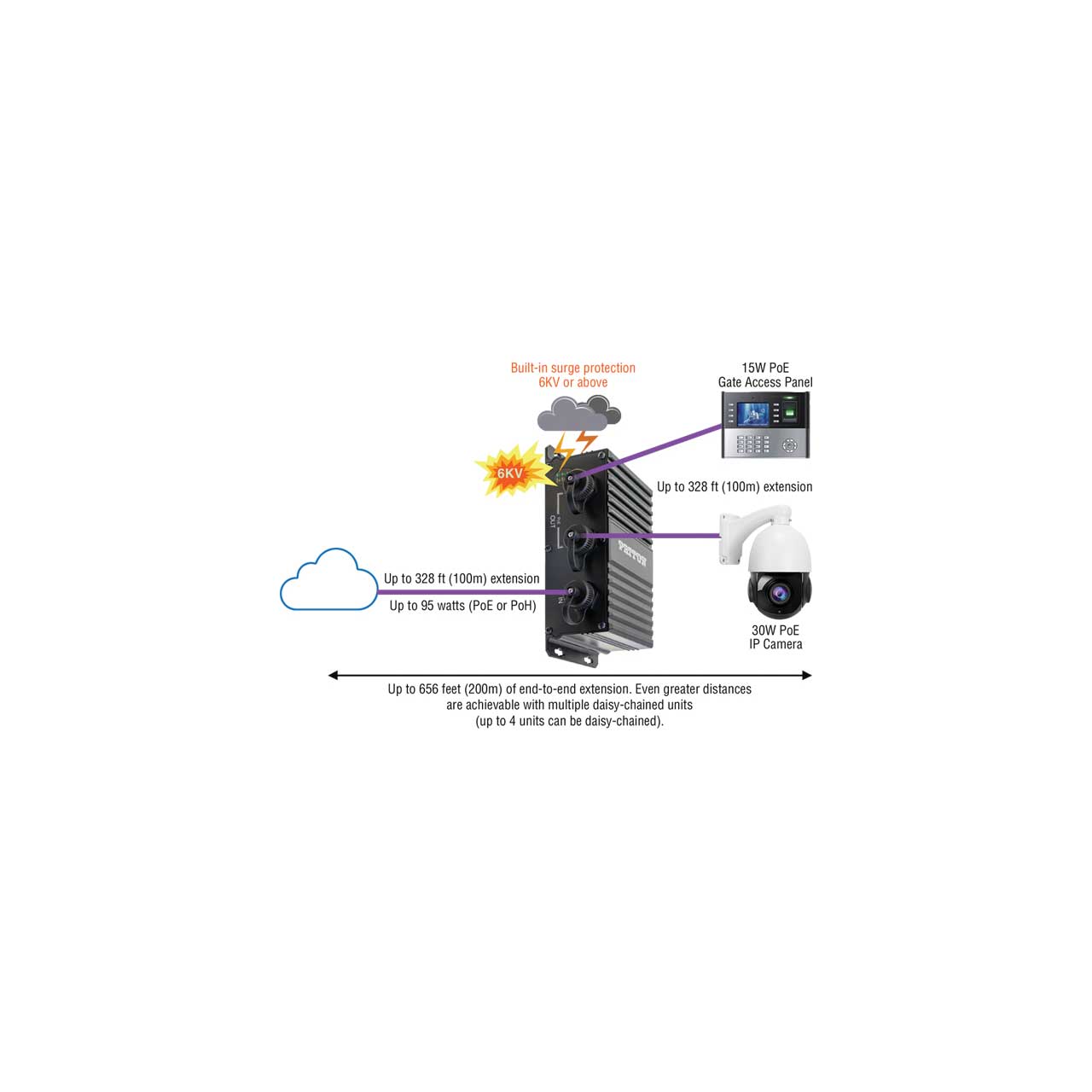

  • Ethernet and PoE Extension - Doubles 10/100/1000 Ethernet and PoE distance limit to 656 feet (200m). Multiple units can be daisy-chained for even longer extensions.
  • Compliant to all PoE Standards - Works from 802.3af (15 watts or less) up to 802.3bt (90 watts)
  • Operates over Cat 5e/6 - No special cable required; these extenders operate over standard networking cable.
  • Transparent LAN Operation - Completely transparent operation ensures maximum throughput, minimum latency, and best of all: interoperability with any network enabled device.
  • No External Power Required - Our device acts as a PD, meaning it takes power from any standards-based PoE switch, Injector or another CL1400.
  • TAA Compliant - Top-notch quality and reliability with local support.


• Specifications:

  • Ethernet Interfaces
  • 1x Water-resistant RJ-45 10/100/1000BaseT(X) Data/Power input (95W) PD
  • 2x Water-resistant RJ-45 10/100/1000BaseT(X) Data/Power output (60W) PSE
  • Auto MDI-X / MDI crossover
  • Auto Negotiation, 10/100/1000 Mbps
  • Auto-Negotiation, Full or Half Duplex

  • Line Protection
  • ESD: Air 8KV DC Contact: 6KV DC
  • Surge: 6KV

    Ethernet
  • Auto-Sensing 10/100/1000 Base-TX
  • Supports Flow Control (IEEE803.x)
  • Store-and-Forward Switching
  • Switch Fabric: 6 Gbps back- plane
  • Data Buffer: 1 Mbit
  • Jumbo Frame Support: 10 Kbit
  • MAC Address Table: 8 K; auto-learning

    IEEE Standards
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet
  • IEEE802.3af for PoE
  • IEEE802.3at for PoE+
  • IEEE802.3bt for high power PoE

    LEDs
  • IN (Amber): ON-Power is detected; OFF-Power not detected
  • OUT1 (Amber): ON-PSE activated & PD is detected; Flashing-PSE is detected PD
  • OUT2 (Amber): ON-PSE activated & PD is detected; Flash- ing-PSE is detected PD
  • LNK (Green): ON-TX port is detected; Flashing-TX data is transmitting/receiving

    Regulatory Approvals
  • EMC/EMS: CE, FCC 15B Class A, VCCI
  • Safety: UL UL 60950-1 (pending), IEC EN60950-1
  • Free Fall: EN60068-2-32
  • Shock: EN60068-2-27
  • Vibration : EN60068-2-6

    Power
  • PoE Input 50-57 VDC, 95 watts (max.)
  • Terminal Block (DC Input) 200 watts (max.)
  • Power Consumption: 3 W without PoE load
  • PoE: PD PoE Power Input (15-95W); PSE PoE Power Output 60W (max.)

    Physical

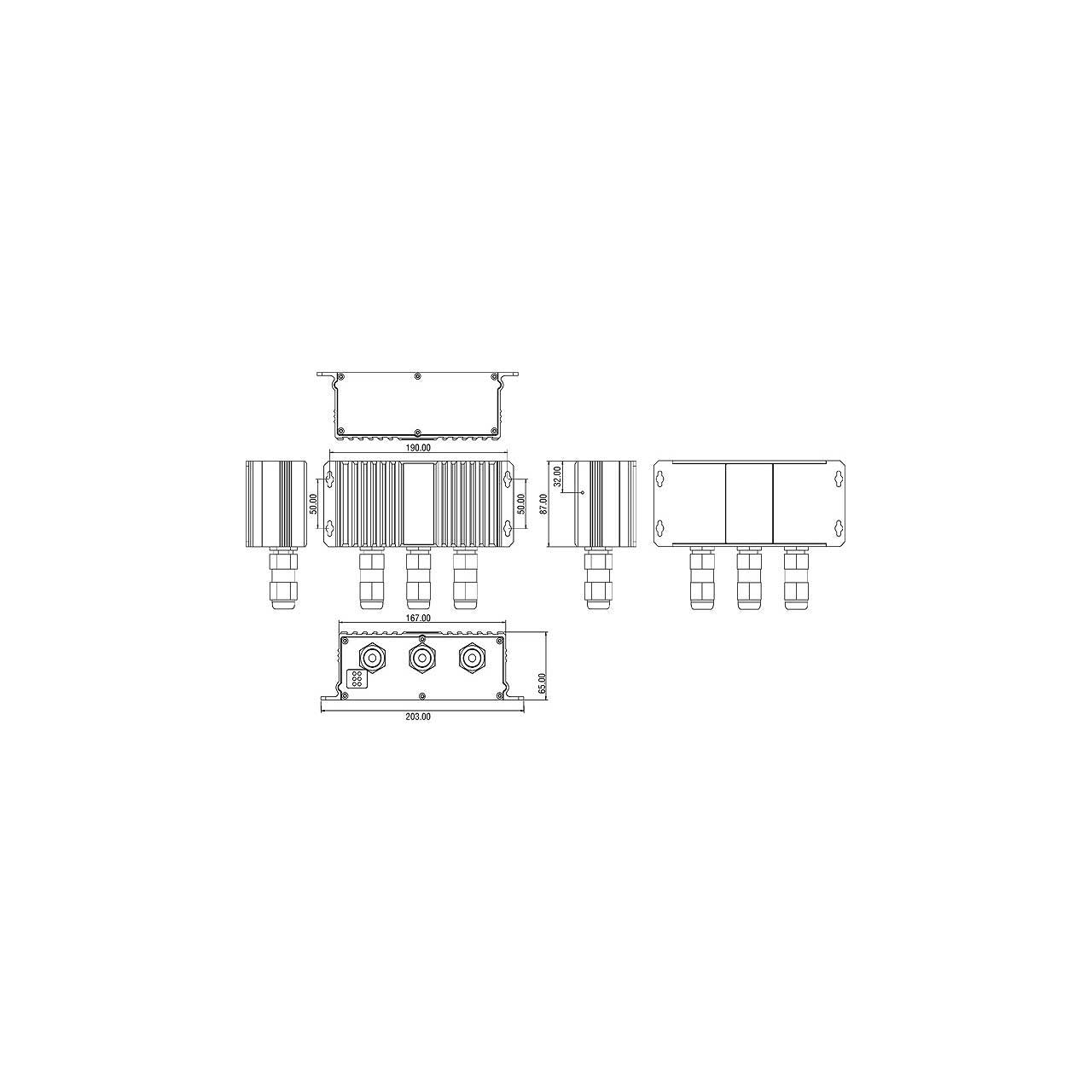

  • Dimensions (WxHxD): 1.19 x 4.28 x 3.36 in. (30.2W x 108.7H x 85.3D mm)
  • Weight: 1 lbs (0.45 kg)

    Environmental
  • Ambient
  • Operating Temperature: -40 to -167°F (-40 to 75°C)
  • Storage Temperature: -40 to -185°F (-40 to 85°C)
  • Relative Humidity: 5 to 95% non-condensing

  • Protection Class: IP67 (certified)


• Item Includes:

  • 1x Patton CL1402EIP67/2BT60/PD95 CopperLink Industrial 2 Port Gigabit PoE Booster - 60W - In-Line Repeater


• Warranty:

  • 1 Year
