CL2322R/SP/DC - Overview

Patton's rugged and reliable CopperLink CL2322R/SP/DC is an IP-40 rated Industrial Extender for Ethernet and RS-232 that delivers, speed, and distance for industrial networking. Supporting topologies including point-to-point, multi-point, daisy-chain, and ring the solution delivers ultimate flexibility for utilization of copper cable plant.

The product has two composite "line interfaces" on each unit. Those line interfaces can support pairing (local and remote) extensions in point-to-point extensions. They can also be used as north, south, east or west facing interfaces for daisy-chain, and ring networking.

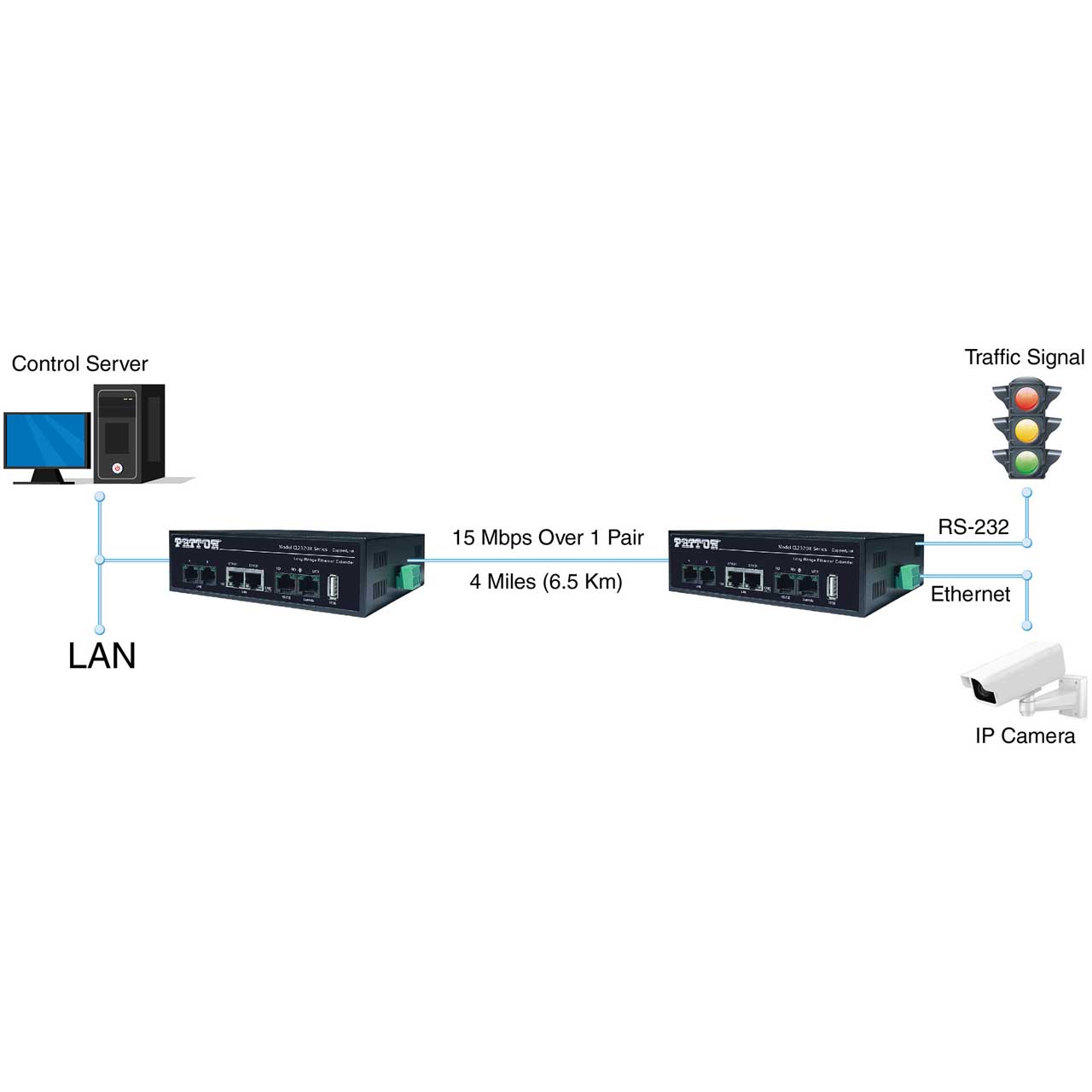

The unit extends Ethernet and RS-232 to remote devices LANs using current or legacy copper infrastructure. It supports distances of up to 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.

An embedded Serial-to IP-device server/converter transports RS-232 over UDP and TCP plus Telnet, Raw-IP, Message/Bloc, HNZ and MODBUS adaptation suitable for industrial data acquisition and control with master/slave multipoint modem emulation.

QoS Traffic Prioritization such as Rate Limiting and Priority Queuing enable prioritization of traffic types, such as time sensitive signaling or video streams. A store-and-forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfers..Its Ethernet ports have automatic MDI/MDIX and 10/100 Mbps speed detection.

Network access security is delivered using various standards for authentication and access control including STP, RSTP Secured Ring, 802.1X, and Radius. Configuration and management is performed using a local USB port (Host/Device), or via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.

The unit is packaged in a heavy-duty metal enclosure for durability and offers IP-40 level protection and operating temperatures from -20 to +70°C. It comes with DIN rail mounting kit for panel builds and can also be installed in a 19" rack.

Applications:

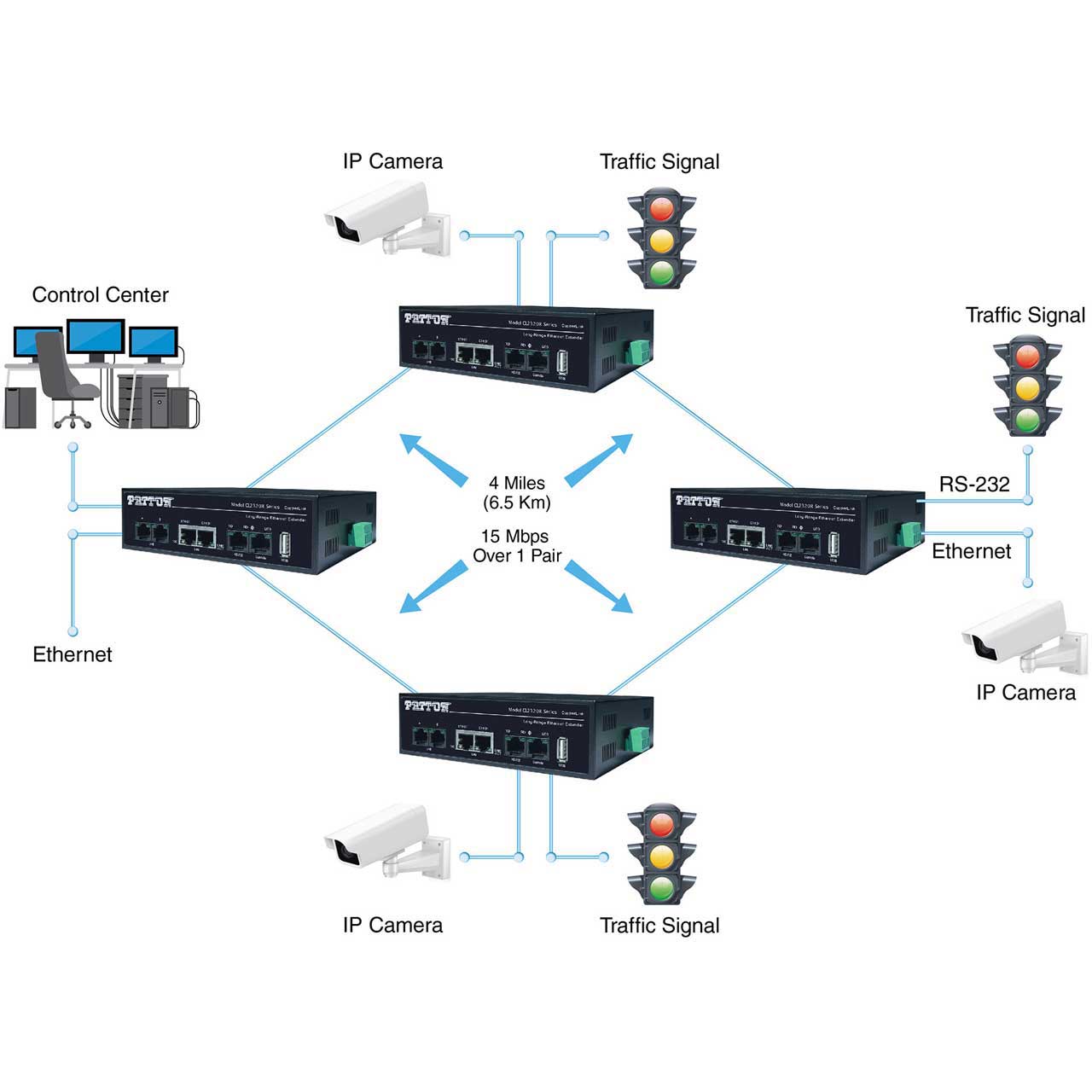

The CL2320 Series Ethernet Extenders deliver point-to-point, multi-drop (bus) or ring topologies. With Northbound and Southbound composite (extension) interfaces, the device allows Ethernet and RS-232 to be dropped at remote locations at distance over copper twisted pair. A built-in Device Server delivers serial RS-232 extension and/or connectivity to IP.

  • Features:

    • Ethernet and Serial - Ethernet and RS232 Extension and Distribution. Two 10/100 Ethernet Ports and One RS232 Async Port.
    • High Speed Transport - Achieves 15Mbps over 1 twisted pair. Symmetrical rates are automatically adapted to the copper line conditions (noise environment, wire gauge/type and length).

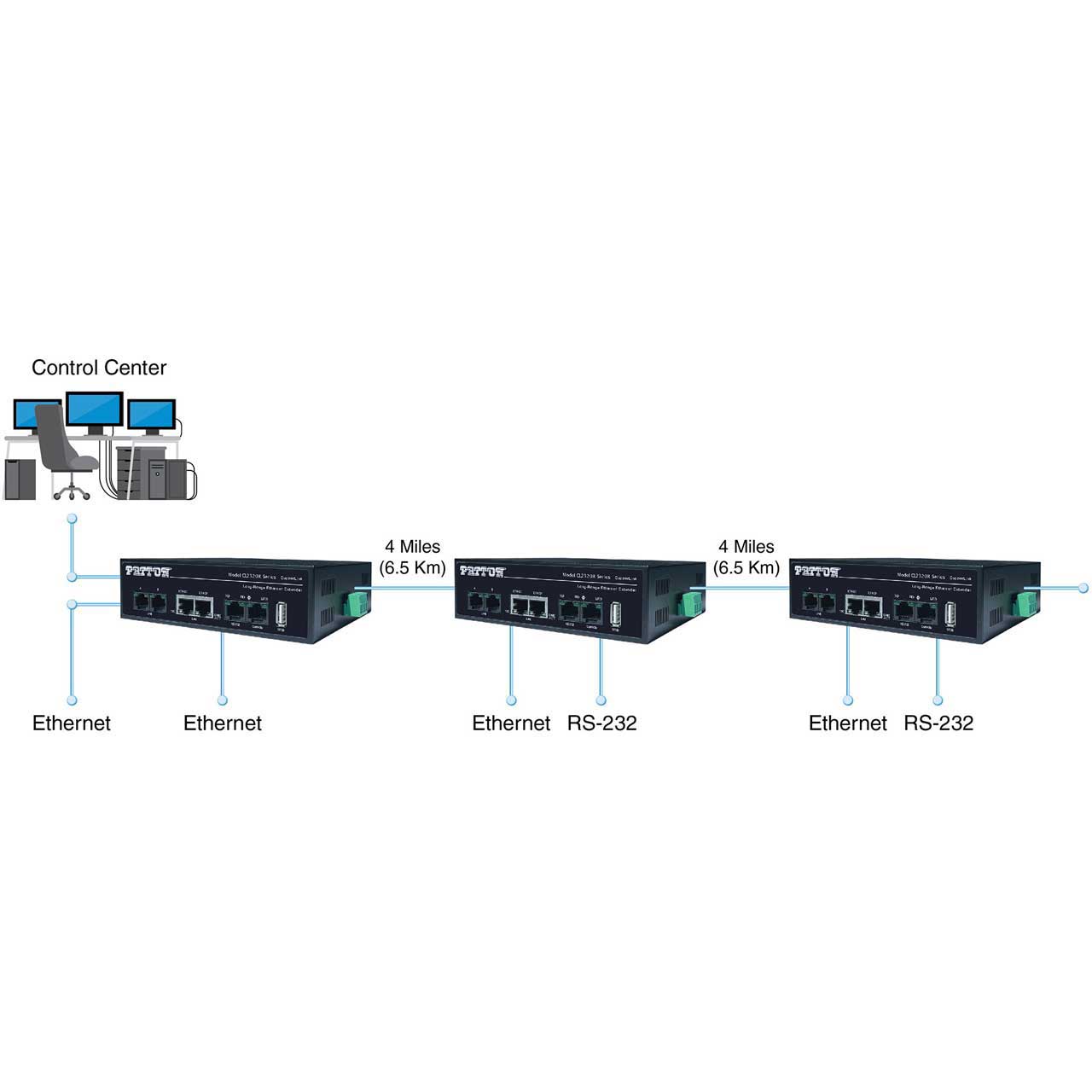

    • All Topologies - Supports point-to-point, multi-point, daisy-chain, and ring topologies.
    • Long Range - Supports distances of 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.
    • Serial Device Server - It has an asynchronous serial to IP converter function (encapsulation) over UDP and TCP plus Telnet, Raw-IP, Message/Bloc, HNZ and MODBUS adaptation suitable for industrial data acquisition and control. Serial Master/Slave multipoint modem emulation.
    • QoS Traffic Prioritization - Rate Limiting and Priority Queuing functions enable prioritization of traffic types, such as time sensitive signaling or video streams. IP/DSCP, VLAN 802.1Q, Priority Queuing.
    • Packet Forwarding - A store and forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfer.
    • Highly Secure - Network access is secured by various standards for authentication and access control. STP, RSTP Secured Ring, 802.1X, and Radius.
    • Management - via local USB port (Host/Device), via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.
    • Ruggedized - Built into sturdy metal enclosure offering operating temperatures from -20 to +70°C, without fans, so it works in industrial environments with hot, cold, or humid conditions.
    • Flexible Mounting - It comes with DIN rail mounting kit for panel builds and can also be installed in a 19" rack.


  • Specifications:

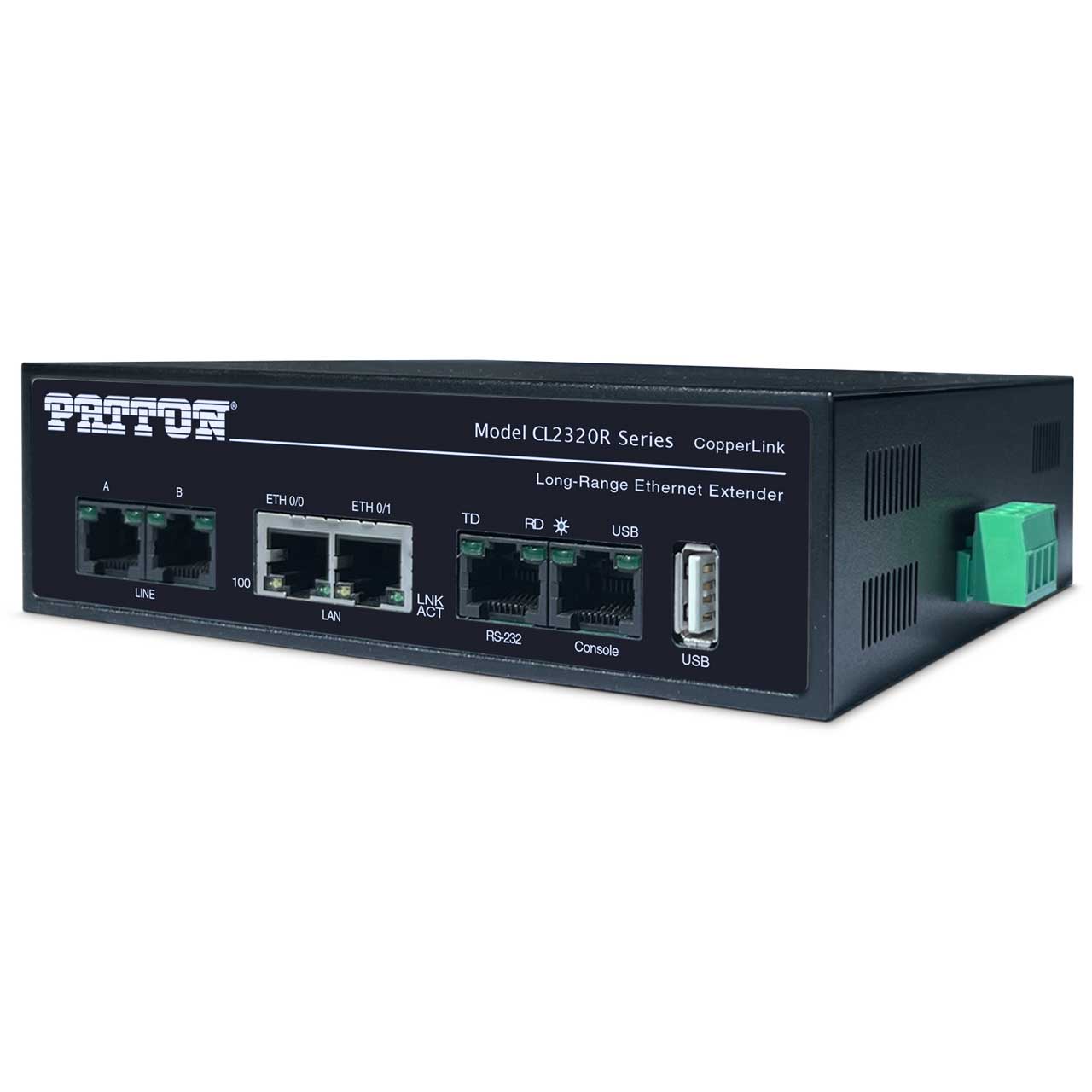

    • Transport Interfaces: Two RJ-45 (120 Ohms) Composite Line Interfaces. Local and Remote (for Point to Point) and Eastbound and Westbound for other topologies.
    • Ethernet Interfaces: 2x RJ-45 Copper Ethernet ports. 10/100 Mbps automatic speed adaptation. MDI/MDIX automatic detection. 802.1x Authentication. 10/100 BaseTX, IEEE 802.3. 8K MAC address memory. 1 MB Ethernet frame buffer. Sent and received frame counters and interface diagnostics statistics.
    • Switching and Traffic Control: Ethernet Switch, filtering bridge 802.3D. VLAN per Ethernet and Composite Line ports. 802.1Q VLAN. 802.3ad Bonding and Trunking. QoS priority queuing on VLAN and IP/DSP, 4x transmit priority queues per interface. Rate limiting. STP, RSTP. Secured Ring.
    • Serial Interface: Asynchronous V24/V28/RS232 interface on RJ-45. 1,200 to 115,200 bps. Serial to IP conversion over IP, UDP or TCP. Encapsulation modes, Raw-ip (transparent), HNZ, Bloc / message, multipoint modem emulation.

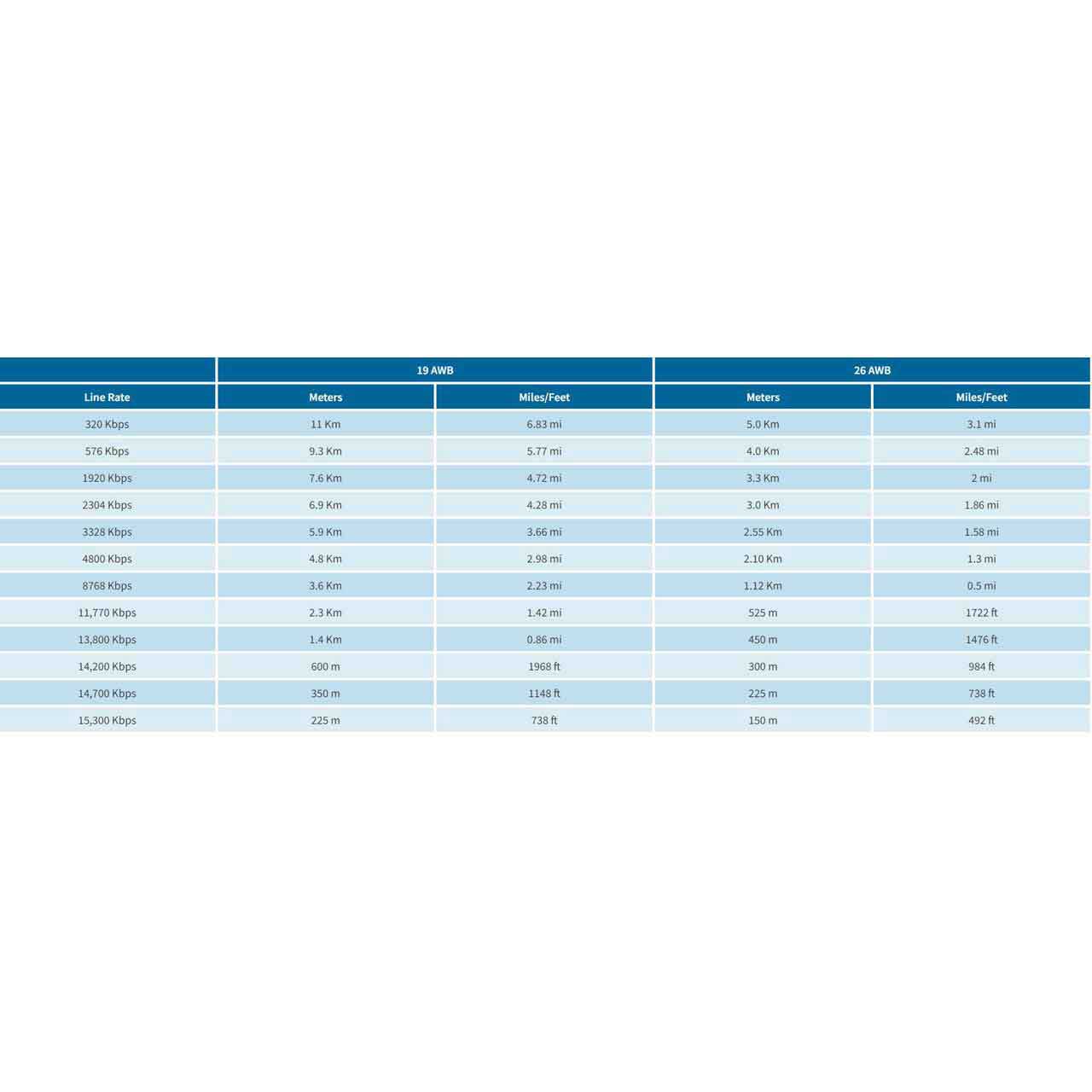

    • Distances: Based on no noise conditions using AWG26/0.4mm (See Table).
    • USB Host Port: Local console port for Command Line and Web interface. Configuration, firmware transfer and event logs to/from a USB memory stick.
    • LED Indicators: Power (administration in progress). Composite Line synchronization (2). Link/Act connection and traffic activity on the Ethernet interfaces (2). Ethernet interface speed (2). TD/RD data transmission on the serial interface (1).
    • Management: TCP-IP : Telnet, HTTP, SSH, HTTPS, FTP, Web GUI. Command Line via SSH and local USB console port. Dying Gasp. SNMP V2, SNMP V3.
    • Diagnostics: Ping and traceroute. Composite interface diagnostics and counters. Transmission statistics on each interface. Status and diagnostics on each interface. LLDP (Link Layer Discovery Protocol) 802.1ab.
    • Power Input: 2x power inputs. Input range 9-55 VDC. Max power consumption 10 W.
    • Environmental: Metal enclosure with Desktop, DIN rail and 19" mounting options. IP-40 Protection (like NEMA 1)
    • Physical: Dimensions 6.06" x 5.67" x 1.73". Weight: 1.54lb
    • Temperature: Operating: -20 to +70°C, fan less. Relative Humidity: 85% condensing.
    • Compliances: Safety: EN-60950. EMC: EN-55022, EN-55024, IEC-61850-3


  • Item Includes:

    • 1x CopperLink Long Range Ethernet+RS-232 Extender with 2x 10/100 Ethernet, 2x RS-232 (1 Device Server, One Console), 2x 1-Pair (2-Wire) line interfaces for Local, Remote, Repeater or Multi-Point installation. Primary Surge Protection included. 9-55 VDC Power
