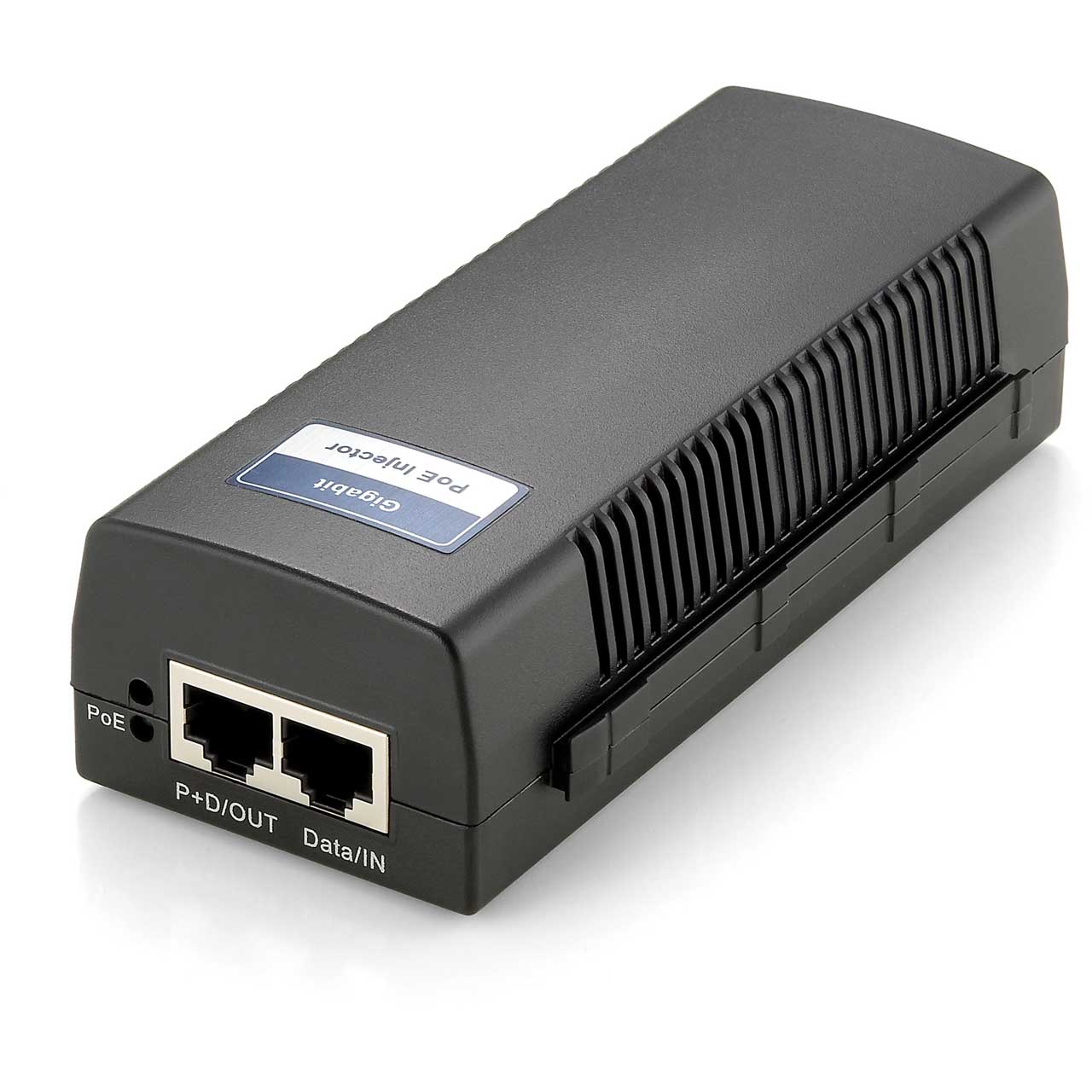

LevelOne POI-2001 Gigabit PoE Injector - 802.3af PoE - 15.4W

ITEM #: LVL1-POI-2001 MFG #: POI-2001

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$74.36

Our Price:

$67.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    POI-2001 - Overview

    Advanced PoE Solution

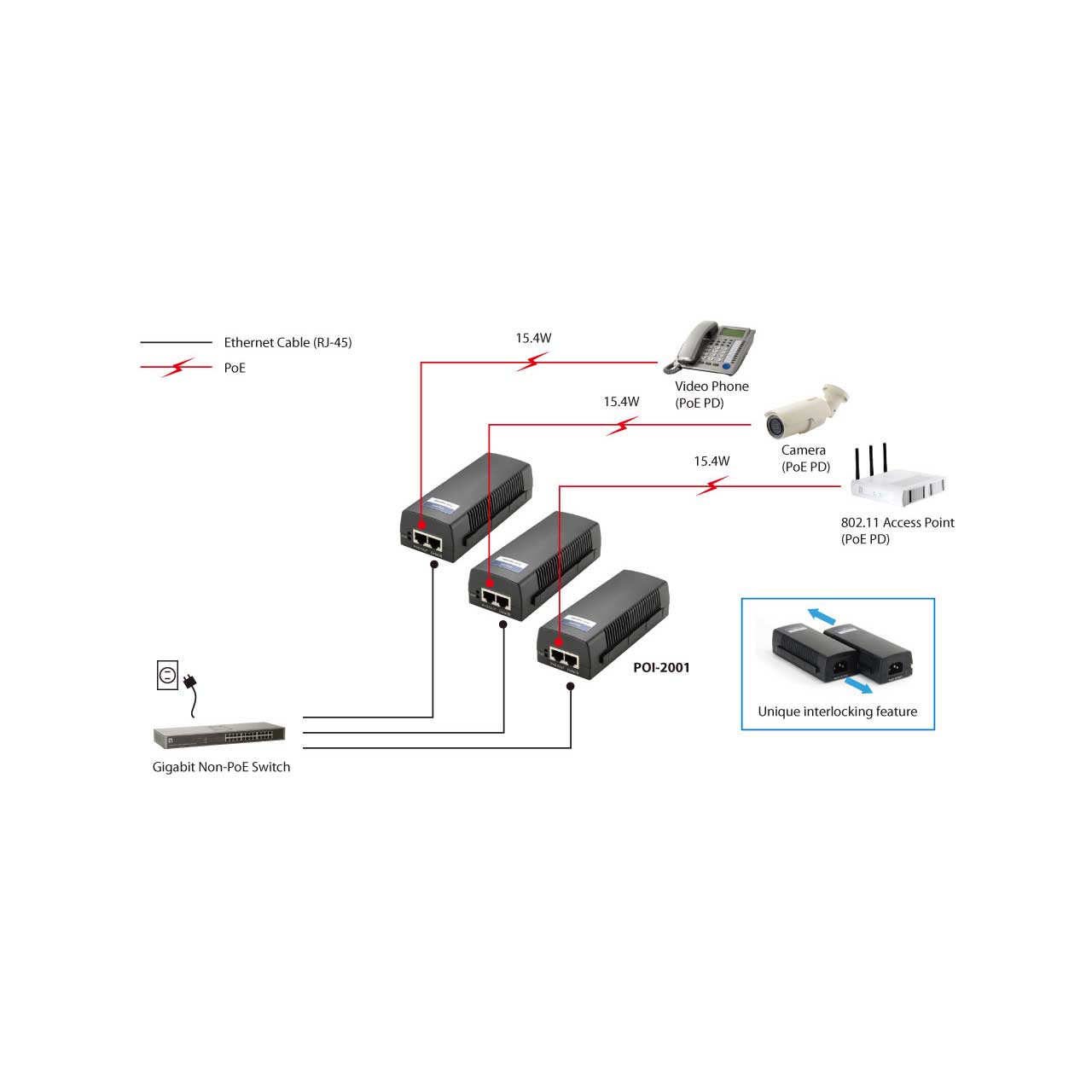

    The LevelOne POI-2001 is a single port, PoE PSE solution for remote PoE PD devices. Generating up to 15.4W, the POI-2001 supplies remote power for new applications such as wireless access points, IP cameras and videophones. It complies with the IEEE 802.3af PoE standard.

    It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. With all the functions featured in POI-2001, people can get the benefit of flexible network installation at lower cost and less downtime. It also provides a high-bandwidth pipe to the network.

    • Features:

      • 10/100/1000Mbps wire speed transmission and reception
      • IEEE 802.3af PoE PSE with 15.4W power budget
      • Auto-detection and protection of non-standard PoE devices
      • Unique interlocking feature for easy installation

    • Specifications:

      • Standards Compliance
      • IEEE 802.3 10Base-T Ethernet
      • IEEE 802.3u 100Base-Tx Fast Ethernet
      • IEEE 802.3 af Power over Ethernet

      • Connector: RJ-45 10/100/1000 Mbps

        PoE Power Output
      • Pin Assignment and Polarity: 1/2(+), 3/6 (-)
      • Output Power Voltage: 52 Vdc Maximal
      • Power: 15.4 Watts Maximal

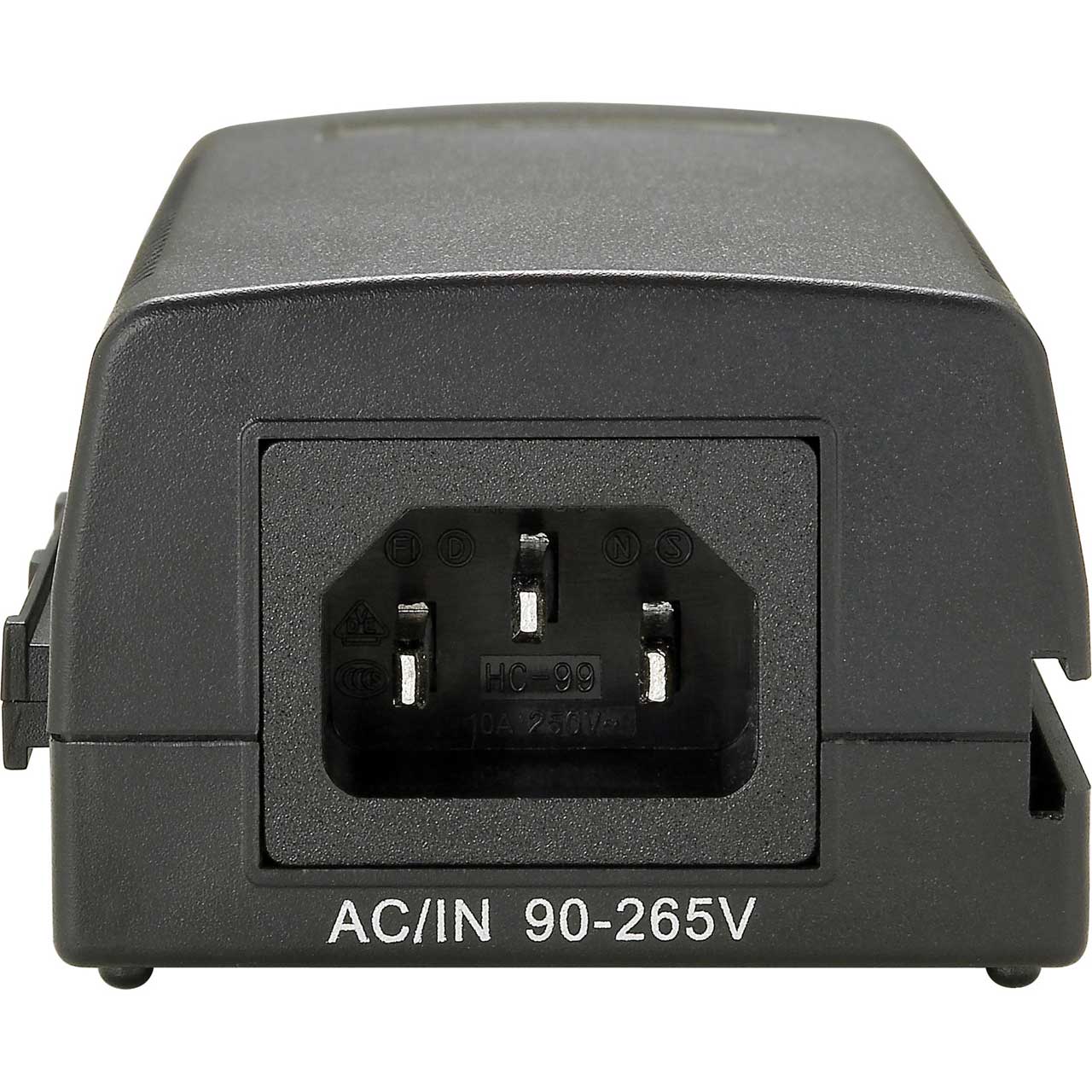

      • Input Power AC Input Voltage: 100~240 VAC
      • Requirements AC Input Current: 0.8A@ 100-240 VAC
      • AC Frequency: 50~60 Hz

      • Dimensions (L x W x H) / Weight
      • 143mm x 51mm x 38mm (5.62in x 20in x 1.49in)
      • 350g (0.77lbs)

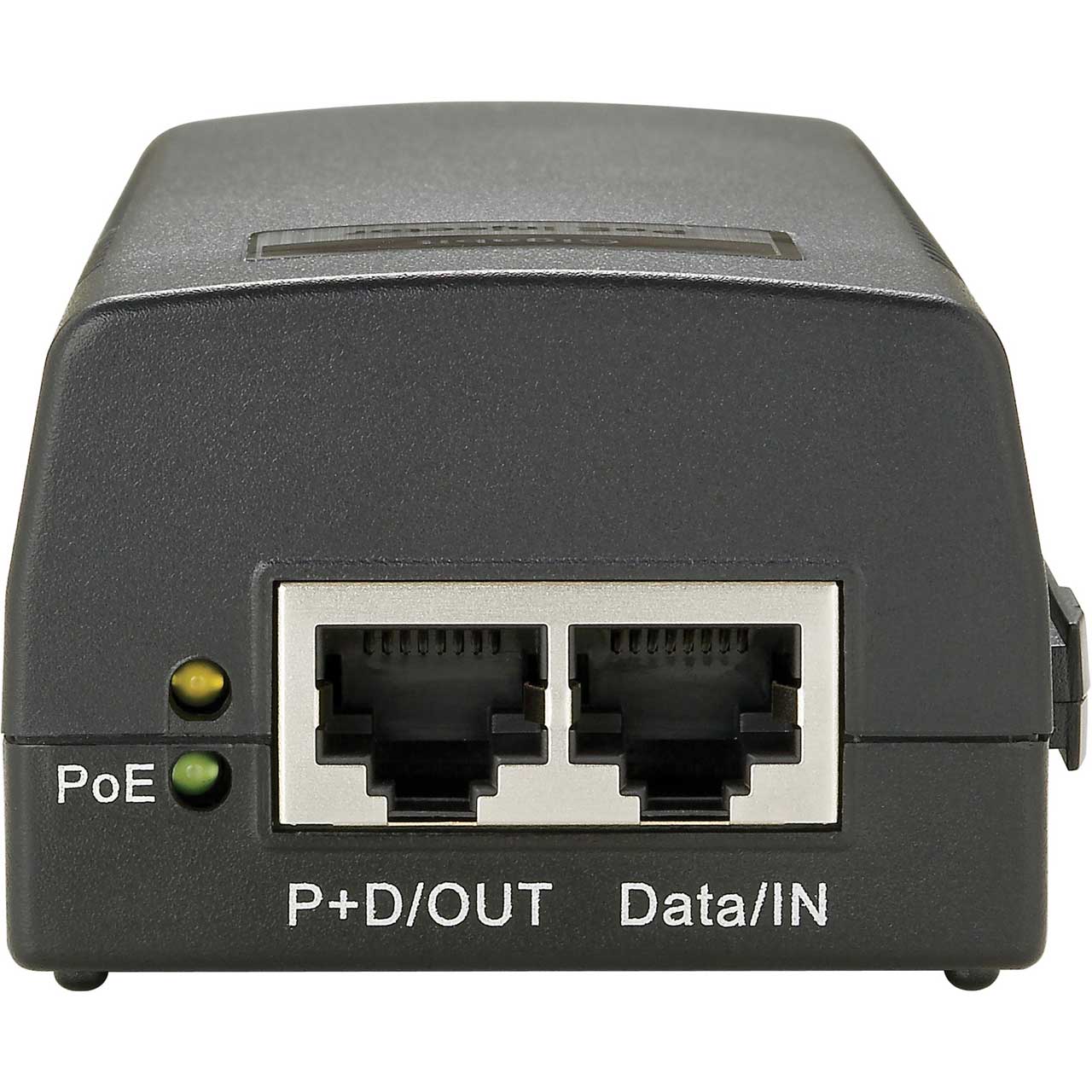

      • Indicators: AC Power (Orange) / PoE (Green)

        Environmental Conditions
      • Operating Temperature: 0~45°C
      • Storage Humidity: Maximum 95%, Non-condensing

      • Regulatory: RoHS Compliant, CE/FCC
      • Safety Approvals: EN 60950:2006

    • Item Includes:

      • x1 POI-2001
      • x1 Quick Installation Guide
      • x1 Power Cord

    • GTIN:

      0846359001721
