Clear-Com FreeSpeak Cell LTE & 5G Multi-Channel Duplex Digital Wireless Intercom Beltpack - 4-Pin XLR Male & BT

ITEM #: CLCM-FSC-BP-C-X4 MFG #: FSC-BP-C-X4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FSC-BP-C-X4 - Overview

More Capacity. More Range. Introducing FreeSpeak Cell™ - Break Free from RF Congestion with 4G LTE/5G Cellular Networks!

Because Big Events Need Bigger Networks
Clear-Com FreeSpeak Cell Beltpack is a rugged, water-resistant multi-channel device designed for wide-area, interference-resilient communication over 4G LTE and 5G cellular networks. Powered by a global 4G LTE/5G radio, the beltpack delivers lowlatency, full-duplex audio and reliable roaming across private on-site networks or public cellular infrastructure.

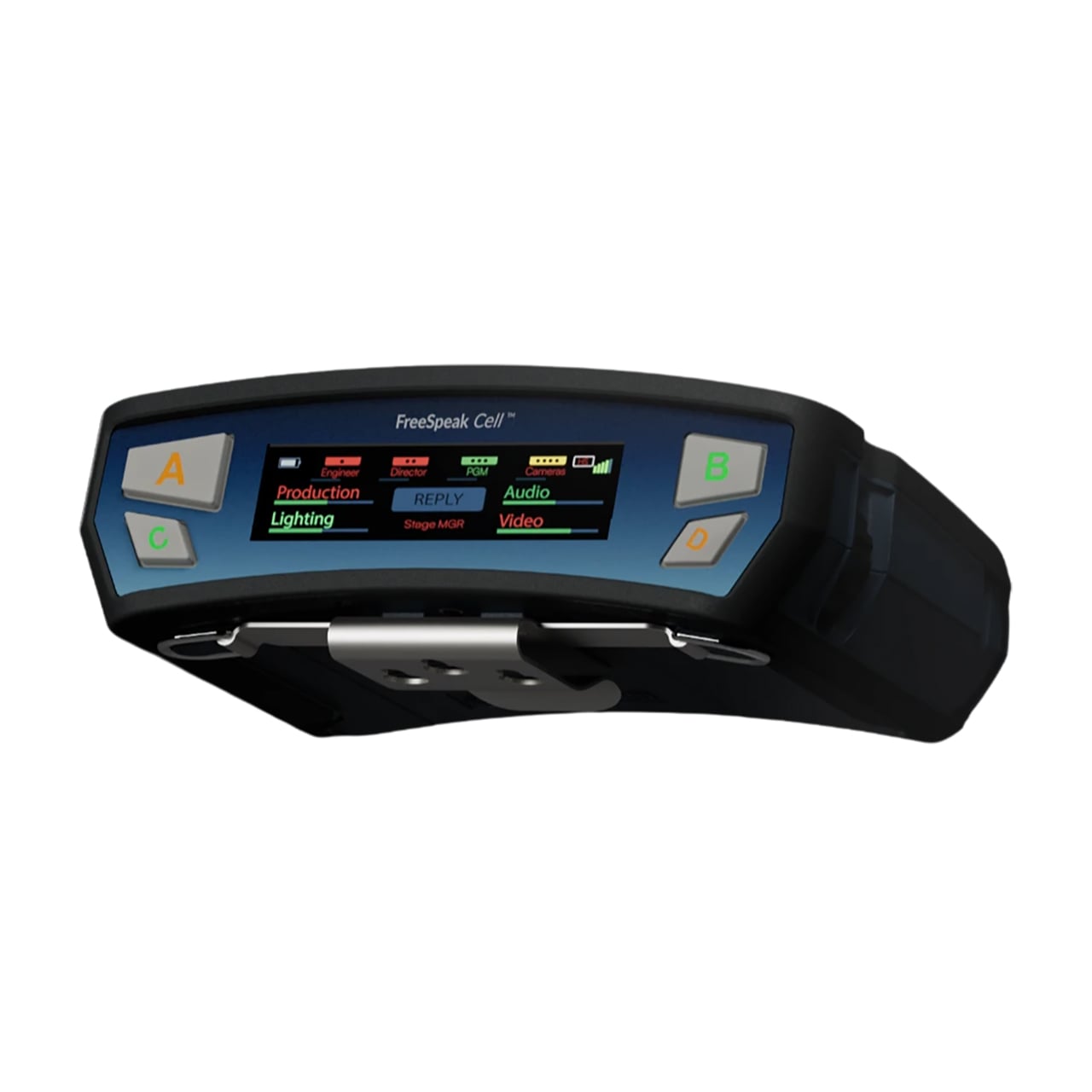

Its ergonomic design features a large color display, nine assignable keys for flexible talk/listen workflows, dedicated level controls, and an integrated mic and speaker for quick station-style operation. FreeSpeak Cell beltpacks scale to 400+ active users (network-dependent) and integrate directly with Eclipse HX (through EHX v15), providing a powerful new option alongside FreeSpeak II.

The system preserves the audio quality and reliability crews expect, while dual SIM support gives users the freedom to switch seamlessly between public and private 4G LTE/5G networks. The result is reliable performance with more control, coverage, and adaptability for every production environment.

Interference-Free
Bypasses DECT entirely, ideal for large-scale events-no transceivers needed.

Massive Scalability
Supports hundreds of beltpacks while running alongside existing DECT beltpacks.

Production Ready
The most reliable cellular intercom for large, complex broadcast operations on 4G LTE/5G cellular networks, proven in the industry's most demanding environments.

Applications:
• Sports
• Award Ceremonies
• Live Shows
• Stadiums

Tested at the Top End of Live Production and Critical Communications
FreeSpeak Cell performs in environments that demand absolute reliability, clarity, and control!

  • Features:

      Beltpack
    • Functions with Eclipse HX via E-IPA cards
    • Supports hundreds of beltpacks on a single system
    • TFT color display (120x480)
    • 9 buttons (8 programmable and 1 reply)
    • Rotary controls on both sides and up/ down level controls
    • Main volume control on bottom
    • BLE (Bluetooth Low Energy) Radio
    • Supports Bluetooth 5.3
    • Built-in mic and speaker
    • Built-in flashlight
    • Drop-in and USB-C charging
    • eSIM & SIM card slot
    • Dual SIM operation (switch between Private and Public cellular)

      Connectivity
    • Designed for operation on 4G LTE and 5G Cellular networks (regional availability varies)
    • USB-C port for beltpack pairing and firmware updates and charging

      Mechanical
    • Curved shape fits to body
    • IP54 rating for wet and dusty conditions

  • Specifications:

      Audio
    • Audio Bandwidth: 100Hz - 7.5kHz
    • No. of Full-Duplex Audio Paths: Up to 9 keys
    • Mode of Operation: Full duplex on all routes

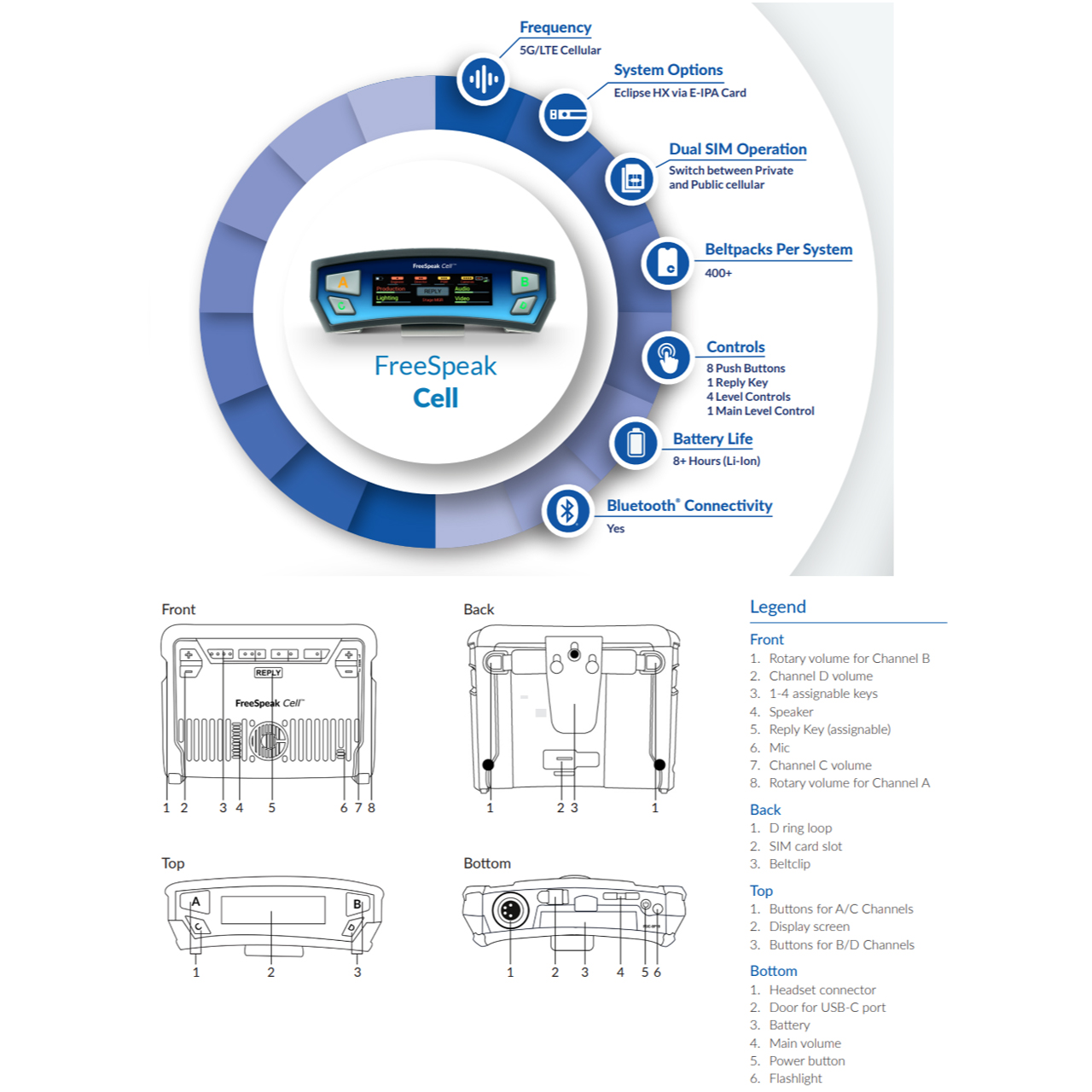

    • Level/Talk Controls:
      - 9x buttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons)
      - 1x reply button
      - 2x rotary encoders
      - 2x level up/down controls
      - 1x (reprogrammable) main level control
    • Bluetooth: 5.3 Headset Profile
    • Bluetooth Codec: MSBC using HFP (Hands Free Profile)
    • Radio: Red Cap 4G LTE/5G SA
    • Channel Bandwidth:
      - 5G FR1: 5, 10, 15, 20MHz
      - 4G LTE: 1.4, 3, 5, 10, 15, 20MHz
    • Supported Bands**:
      - 5G SA: n1/2/3/5/7/28/48/66/77/78
      - 4G LTE: B1/2/3/4/5/7/12/13/20/28/48/66
      **Note: Hardware is designed for global band support. Additional bands are frequently added via regulatory updates

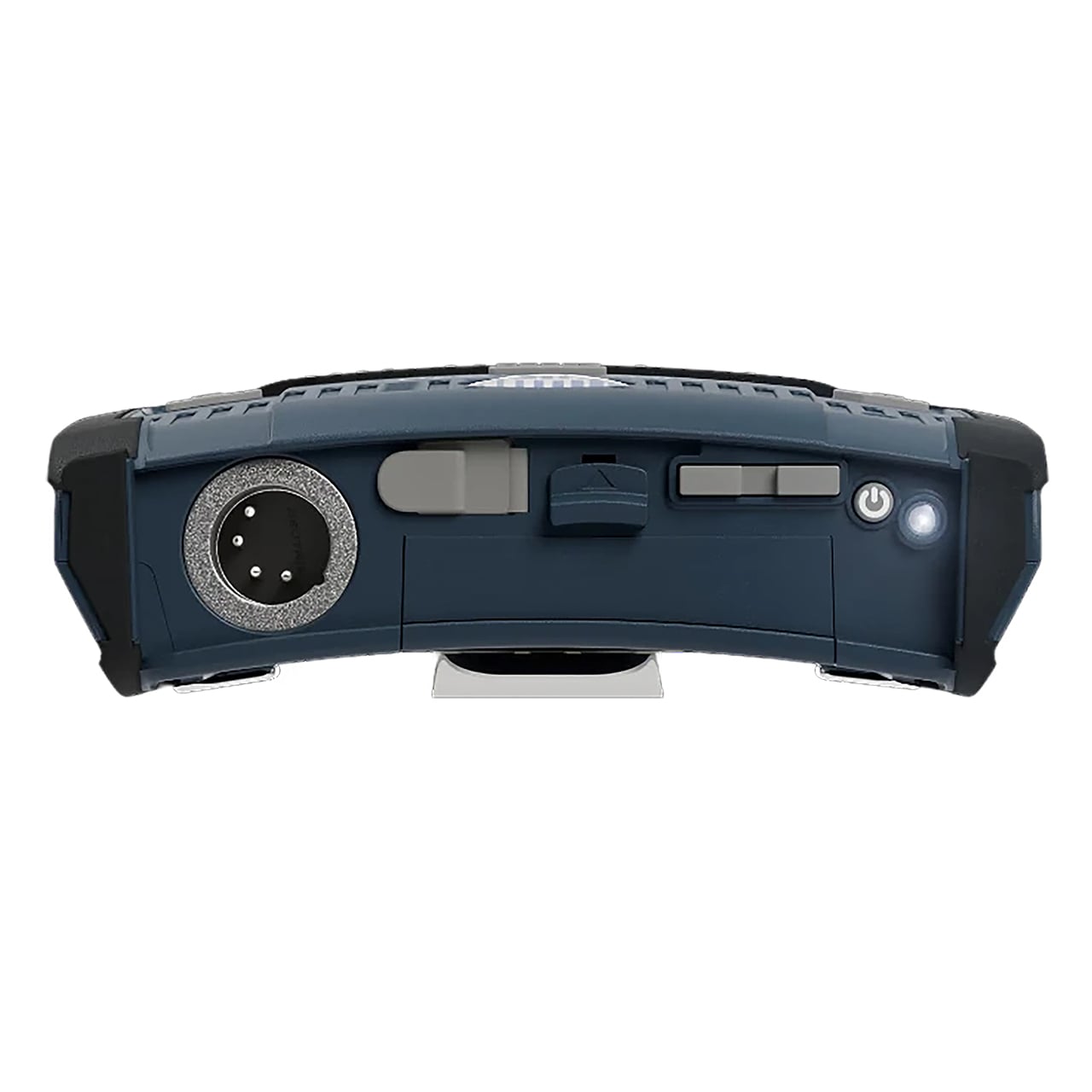

      Connectors
    • Headset Connector: 4-pin male, Clear-Com standard
    • Headset Voltage: Maximum of ~+8dBu as set by firmware
    • Microphone Type: Electret and Dynamic, selectable in beltpack menu
    • Microphone Voltage:
      - Electret Mic: -40dBu Mic bias for Electret mode is 4.4V
      - Dynamic Mic: -55dBu Mic bias for Dynamic mode is 1.8V
    • Headset Limiter: Selectable from beltpack menu

      Power
    • Battery: Li-Ion
    • Battery Charging: Drop-in charger (AC80) or local USB
    • Battery Life: 8+ hours

      Environmental
    • IP54 water and dust resistance
    • Operating: 14°F - 125°F (-10°C - 50°C)
    • Storage: -22°F - 150°F (-30°C - 70°C)
    • Humidity: Between 20% and 90%, NonCondensing

      Physical
    • Dimensions (WxHxD): 5.31" x 4.27" x 1.92" (134.87mm x 108.46mm x 48.77mm)
    • Weight:
      - Without Battery: 0.77lbs (349g)
      - With Battery: 1.02lbs (460g)
    • Regulatory Model: BP5GC1

  • Item Includes:

    • 1x Clear-Com FreeSpeak Cell LTE & 5G Multi-Channel Duplex Digital Wireless Intercom Beltpack - 4-Pin XLR Male & BT
