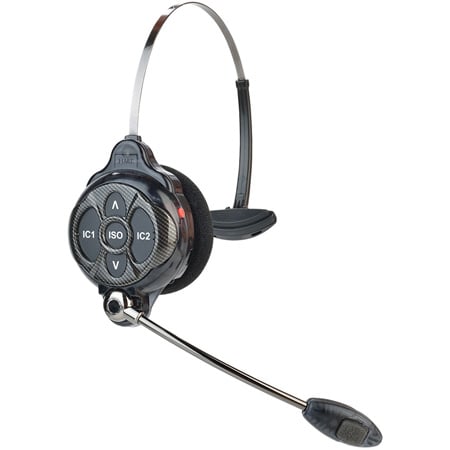

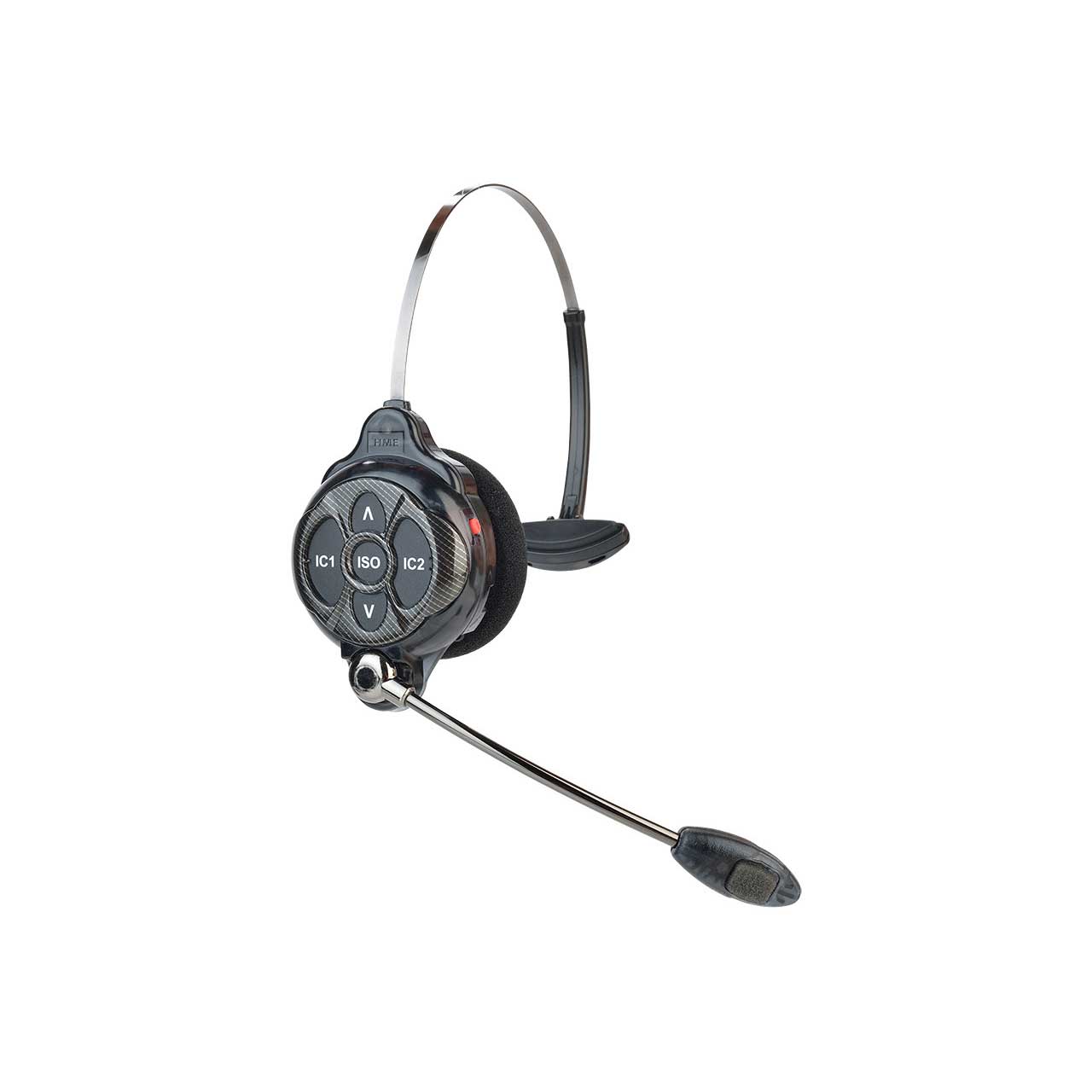

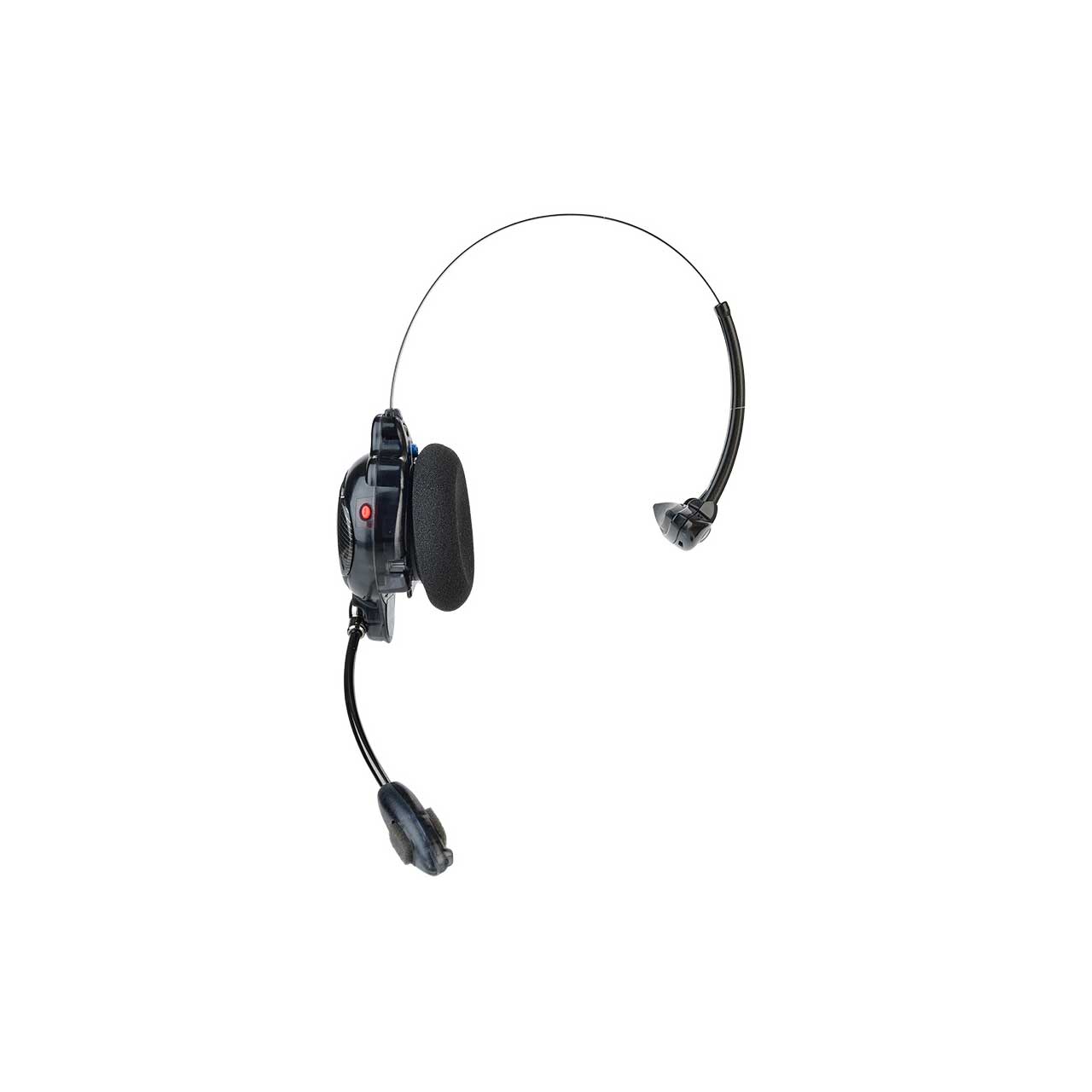

Clear-Com WH220 2.4GHz Single Ear Wireless Intercom Headset with Wide Band Audio

ITEM #: CLCM-WH220 MFG #: WH220

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    WH220 - Overview

    The Clear-Com WH220 is a light-weight, single-ear, all-in-one wireless headset that operates in the license-free 2.4GHz frequency range. This headset is used with ClearCom DX100, DX121, DX200 and DX210 wireless systems. The WH220 uses the BAT50 Li-Ion Batteries and AC50 Battery Charger.

    Single-channel operation allows any four all-in-one Clear-Com WH220 headset users to engage in simultaneous, full-duplex communication. In dual-channel operation, three users may be in full-duplex with up to 12 users is in listen-only mode.

    The Clear-Com WH220 has a rugged, reinforced casing and long lasting keypads with no mechanical switch. The WH220 has a lightweight, balanced design and wire-free steel headband for all day comfort.

    Battery Life and Charging
    Using the BAT50 Li-Ion battery, the WH220 has up to 12 hours of battery life. The AC50 charges up to 4 BAT50 batteries at a time and includes storage slots for 4 additional batteries. Charging time is 2.5 hours.

    • Features:

      • 2-Channel All-in-One Wireless Headset
      • Single- or Two-channel operation
      • 2.4GHz frequency range
      • Hands-free communications
      • 5 kHz wide band audio
      • Single-ear, light-weight design
      • Rugged and reliable
      • Up to 12 hours of battery life
      • 3.5 kHz wide band audio
      • Up to 15 beltpacks and/or all-in-one headsets on a single system
    • Specifications:

      • Audio
      • Channels: 2 audio channels
      • Frequency Range: 2400MHz - 2483.5MHz
      • Frequency Response: 200Hz -3.5kHz
      • Antenna: Internal, horizontal/vertical diversity
      • Headset Connector: 4-pin, mini-DIN
      • Microphone: Electret
      • Headset Output: 160mW into 32 Ohms
      • Communication Security: 64-bit encryption
      • System Distortion: <2%
      • Controls: Power, Volume-Up, Volume-Down, IC1, IC2, ISO
      • Indicators: Dual-color LED (red/green)
      • Battery Requirements: 3.6V lithium-ion
      • Battery Life: Up to 12 hours

      • Internal

      • Type: Frequency Hopping, Spread Spectrum (FHSS)
      • Transmit Power: 100mW burst
      • Modes: Momentary or Latch
      • Type: Gaussian filtered FSK, TDMA
      • Frequency Stability: 13 ppm
      • Harmonics/Spurious: Exceeds FCC and ETSI specifications

      • Type: Frequency Hopping, Spread Spectrum (FHSS)
      • RF Sensitivity: <-90dBm w 10-3 BER
      • Frequency Stability: 13ppm
      • Distortion: <2%

      • 32° to +122°F
      • (0° to +50°C)
