Clear-Com CZ11516 BS210 Intercom Base Station ONLY without accessories

ITEM #: CLCM-CZ11516 MFG #: BS210

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$5,040.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    BS210 - Overview

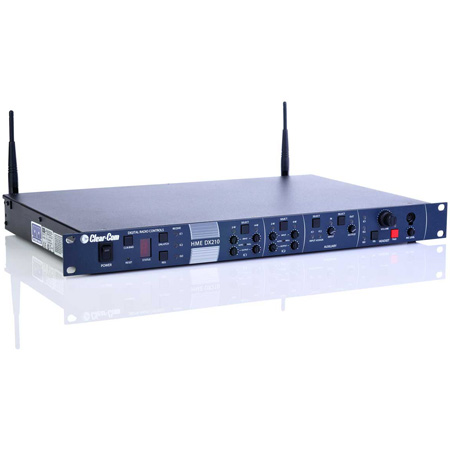

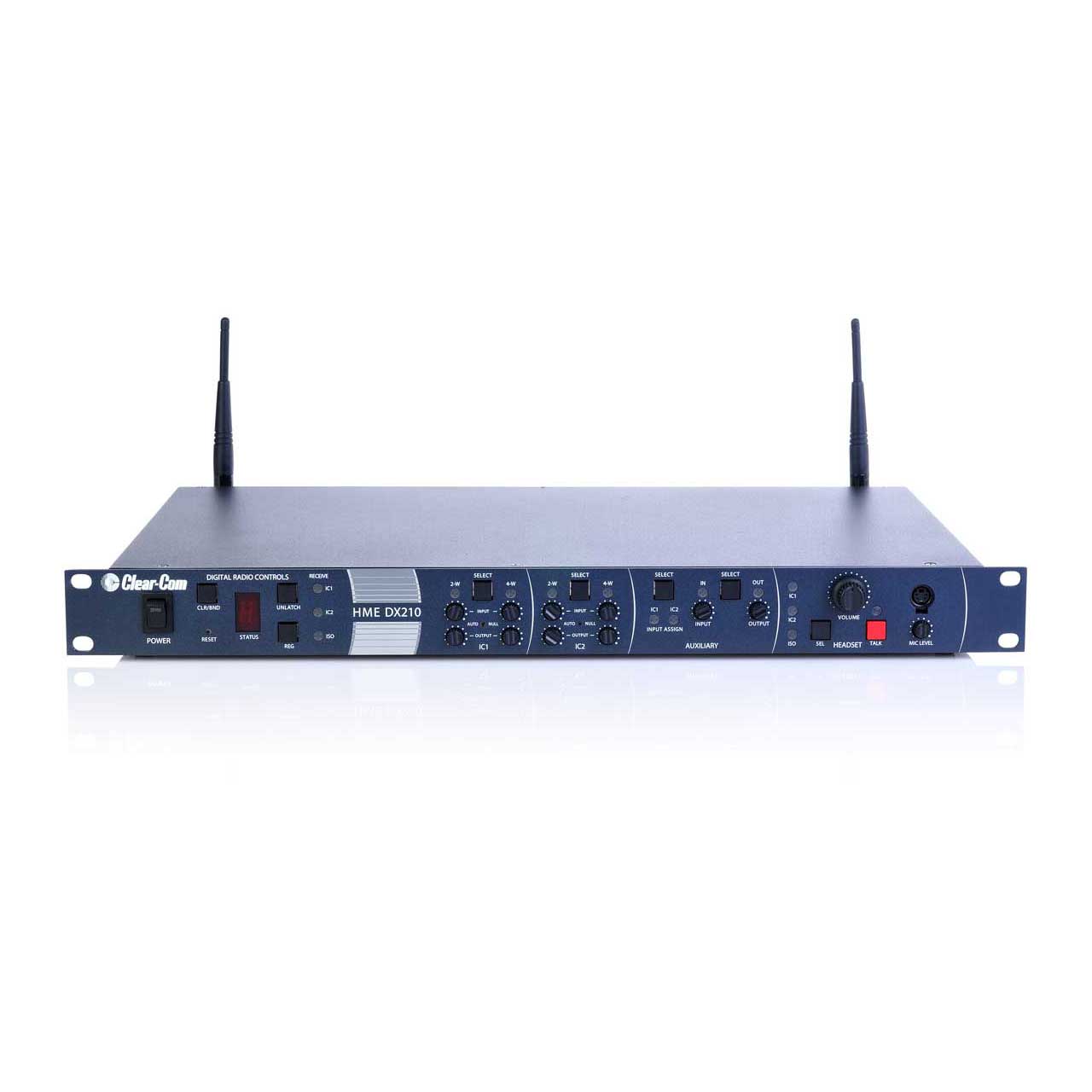

    The CZ11516 is the Clear-Com BS210 Intercom Base Station ONLY without accessories is a key part of the Clear -Com DX210 system offering the perfect blend of performance, expanded connections and ease of use for reliable communications. Operating in the 2.4GHz band, the BS210 delivers exceptional sound clarity and enables interference free communications for highly demanding productions.

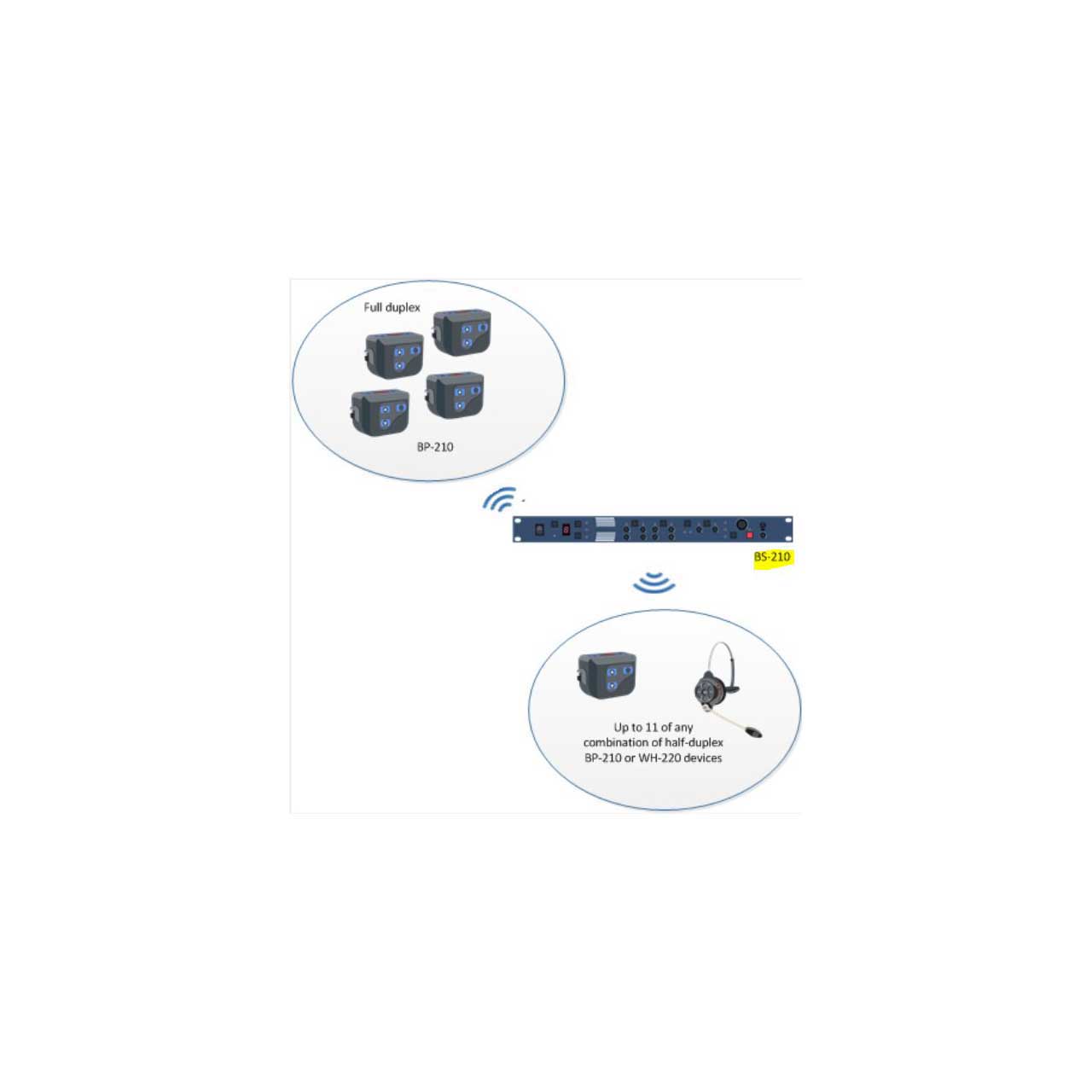

    The Clear-Com DX210 Digital Wireless Intercom Systems feature the BS210 Base Station. The BS210 is a 2-channel base station that supports up to 15 beltpacks or all-in-one headsets (sold separately) in any combination. Using the BS210 in 2-channel mode, any 3 of the 15 beltpacks and all-in-one headsets can transmit simultaneously. In the single-channel mode, any 4 Beltpacks or all-in-one headsets can transmit simultaneously. This number can be increased by connecting to 3 additional base stations. The BS210 has 4-wire and auxiliary audio connections and supports both Clear-Com and RTS cabled 2-wire intercom systems. The DX210 operates in the 2.4GHz band and has provisions for "Spectrum Friendly" co-existence with other devices in the same band.

    • Features:

      • 2-Channel 2.4GHz Base Station
      • 2-channels of communications
      • 2.4GHz license-free operation
      • Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets

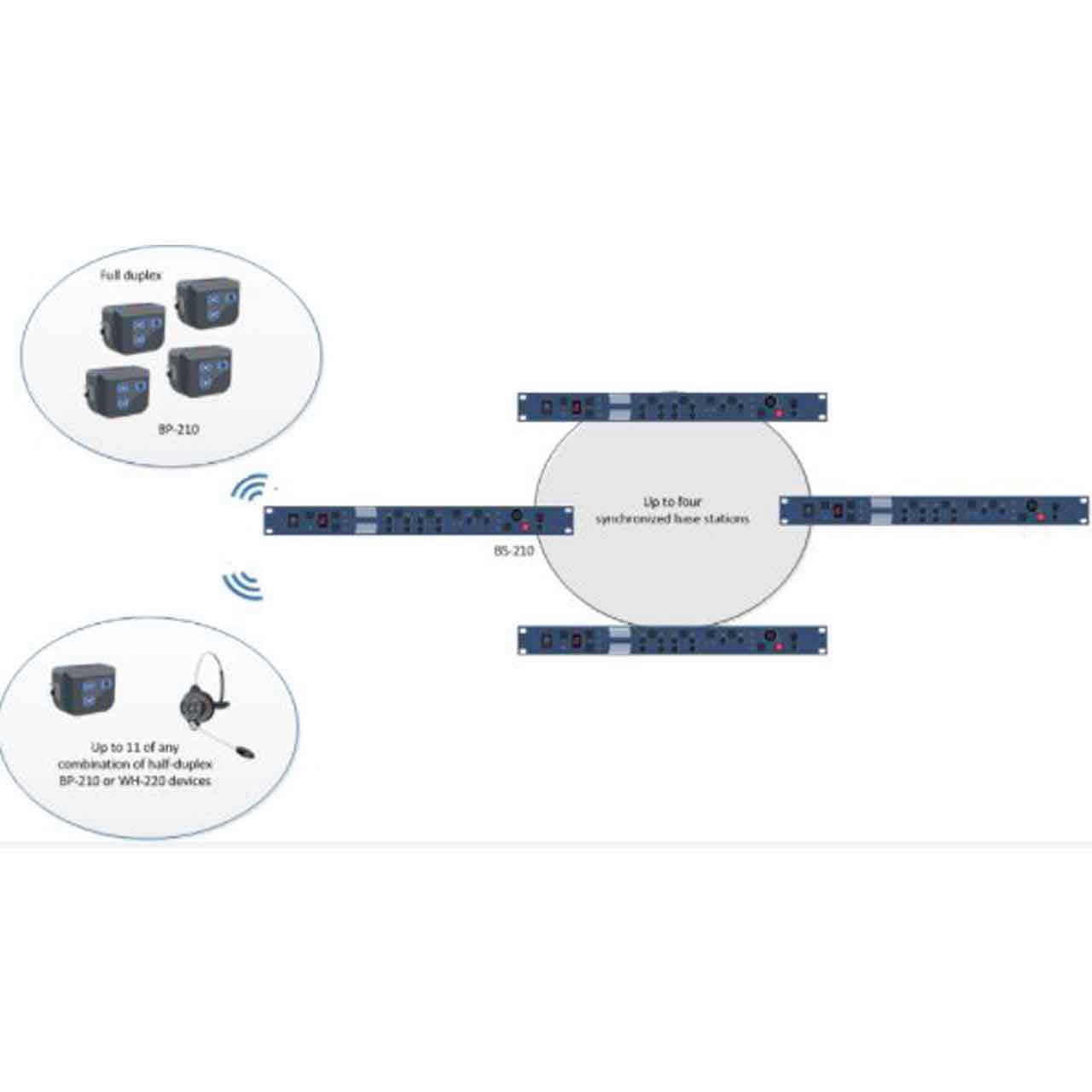

      • Link up to 4 co-located base stations
      • Two separate 2-wire and 4-wire interconnections
      • Digital auto-nulling
      • Wireless ISO talk-around
      • Relay (GPIO) actuation with ISO function
      • Feedback protection for un-terminated 2-wire channels
      • Triple diversity (space, time and frequency) operation

    • Specifications:

      • TX & RX Antenna: ½-Wave, Dual Diversity Dipole

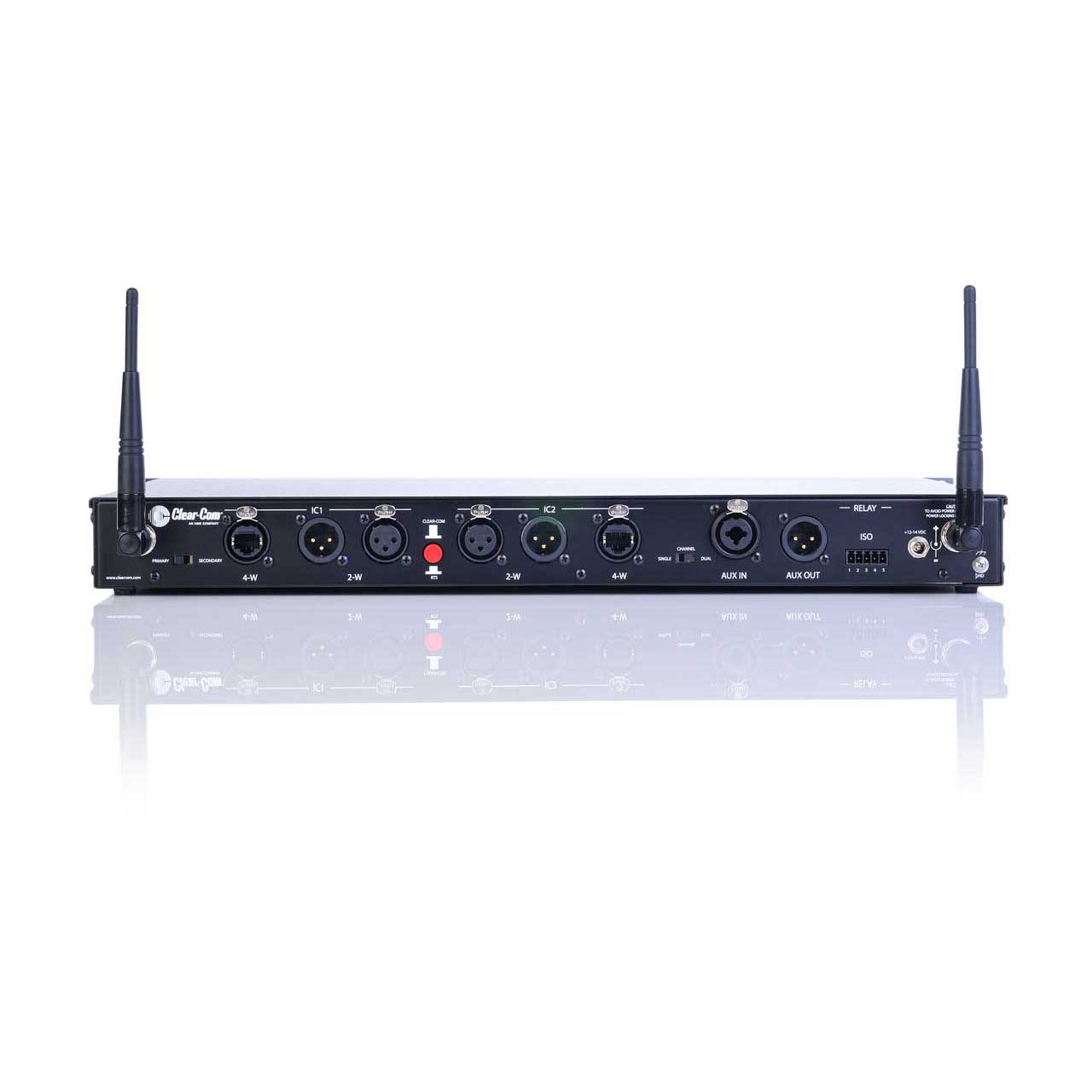

        4-Wire I/O: RJ-45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)

        2-Wire I/O: XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω , Level Adjustable, Null Adjustable

        Auxiliary Input: XLR-3F & 1/4 inch Phone Combo Jack, 600Ω Balanced, Level Adjustable

        Auxiliary Output: XLR-3M, 600Ω Balanced, Level Adjustable

        Headset I/O: N/A

        Headset Connector: 4-Pin Mini-DIN

        Headset Output: 250mW into 32Ω

        Size: 19 x 1.72 x 13.50in (1-RU) (48.26 x 4.37 x 34.29cm)

        Weight: 9.0lb (4.1kg)

        Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC

    • Item Includes:

      • DX210 Base Station
      • (2) Antennas
      • 15-230 VAC power supply
      • Power cord
      • Manual

    • GTIN:

      0609385477362
