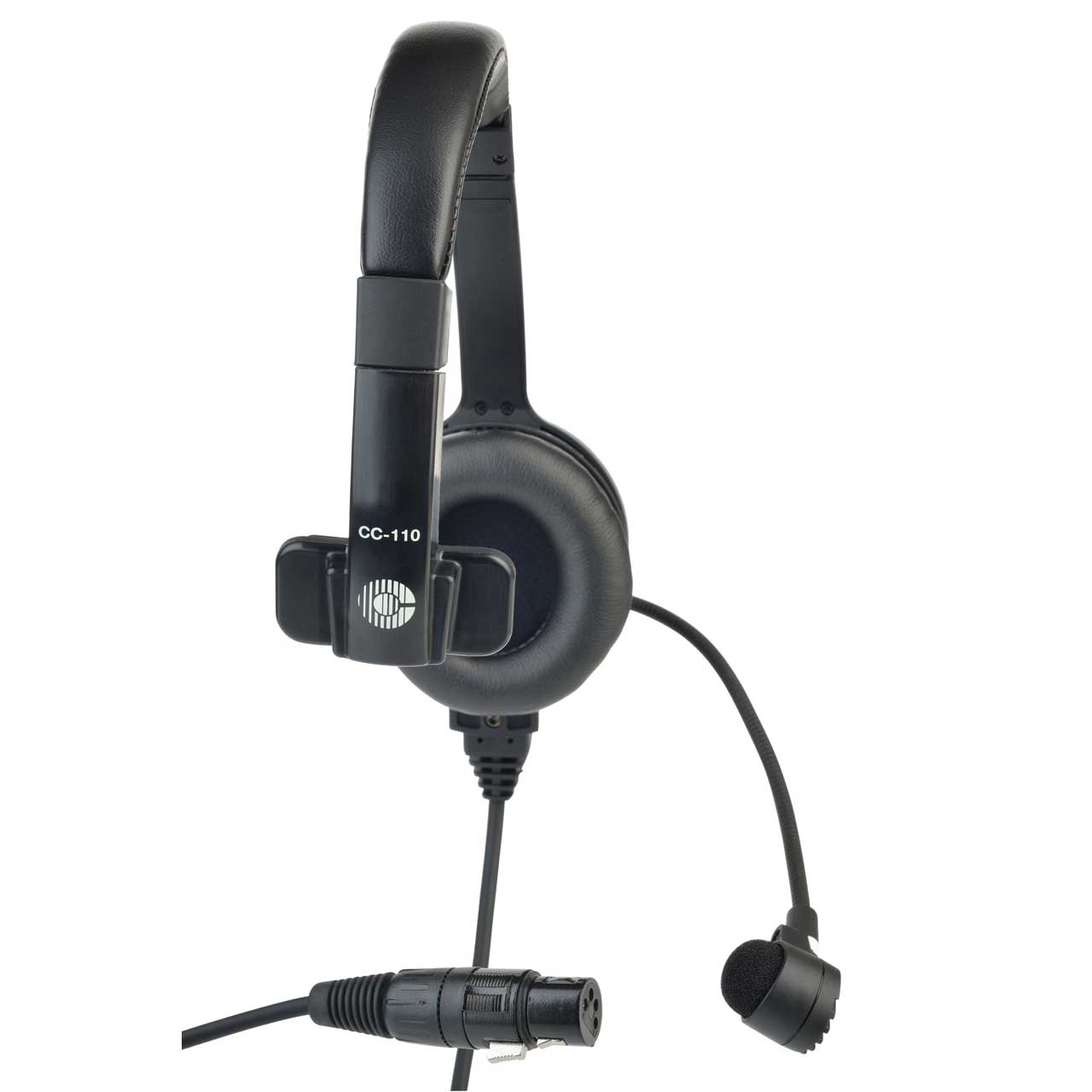

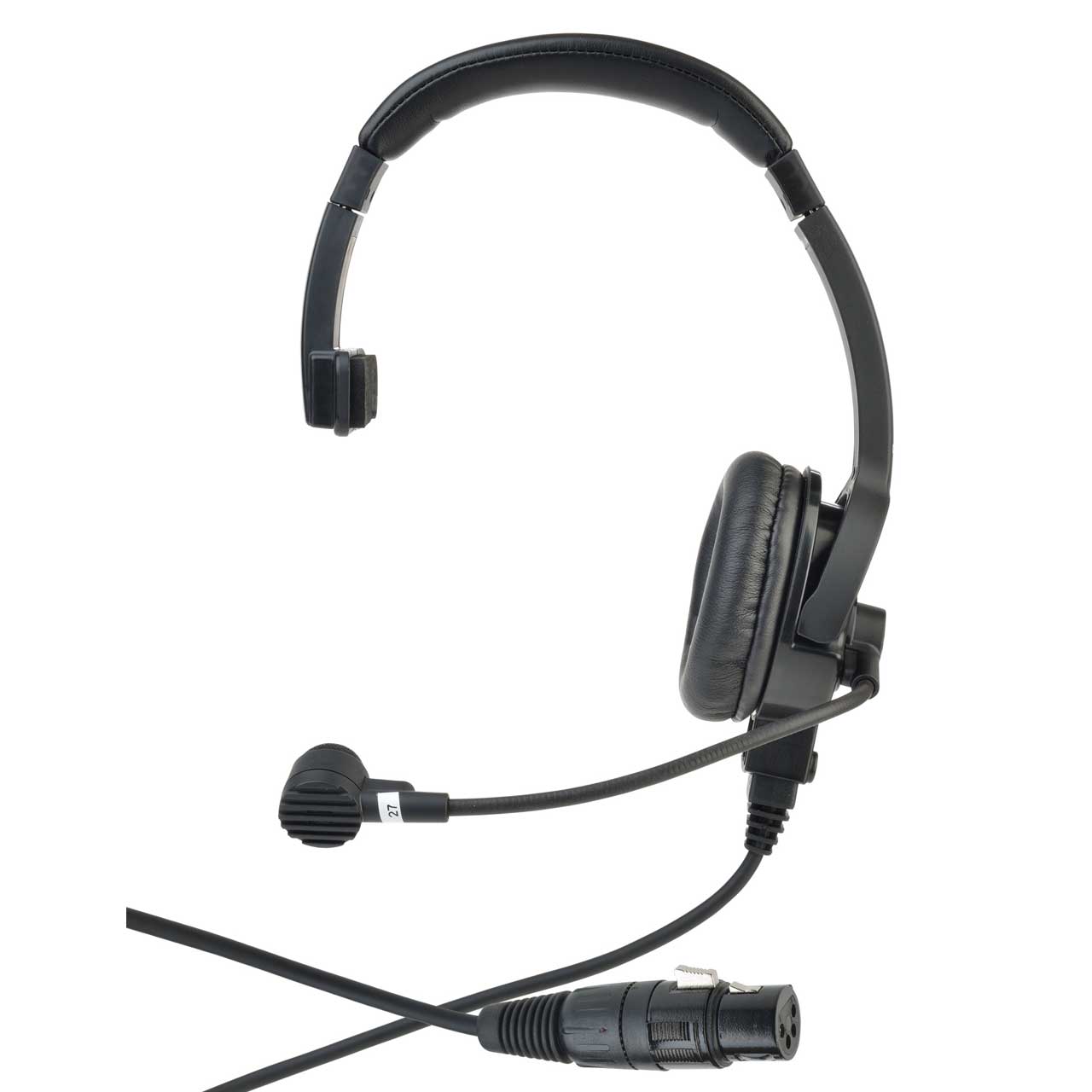

Clear-Com CC-110-X4 Lightweight Single On Ear Intercom Headset with Dynamic Mic and Four-pin Female XLR connector

ITEM #: CLCM-CC-110-X4 MFG #: CC-110-X4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$295.00

Availability: In Stock
iAvailability Description Popup


    CC-110-X4 - Overview

    The CC-110-X4 is a premium lightweight, single-ear intercom headset terminated with a 4-pin female XLR connector that interfaces with ClearCom Encore and Freespeak beltpacks. The CC-100 features high performance headphones and a cardioid dynamic microphone that provide high quality audio. The CC-110 headset can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. You can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette with foam padding, the headphones sit on the ear to provide a comfortable fit, a rotating, flexible gooseneck is included for optimal positioning.

    The CC-110 headset microphone can be turned on and off by simply moving the microphone boom! To turn ON the microphone, pull the boom gently downwards, past the10 o'clock/2 o'clock position. To turn the microphone OFF, push the boom gently upwards, above the 10 o'clock/2 o'clock position. The CC-110 has also been designed so that the cabling and connector type can be adapted quickly on site. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.

    • Features:

      • Single-ear premium light-weight headset
      • High quality dynamic cardioid microphone
      • 20Hz -20KHz frequency response
      • Choice of earpads: leatherette or foam
      • Flexible gooseneck microphone positioning
      • Boom rotation ON/OFF switch for quick microphone muting
      • Interchangable cabling for easy connector change and repair
      • Fully serviceable headset
      • Rugged design

    • Specifications:

      • Headphone
      • Type: Closed-back
      • Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
      • Frequency Response: 20Hz v- 20kHz

        Microphone
      • Element: Dynamic
      • Driver: 15mm, neodymium magnet
      • Polar Pattern: Cardioid
      • Frequency Response: 250Hz - 20kHz

        Sensitivity
      • Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical
      • 99 dB ±3 dB (SPL); at 1kHz typical

        Power
      • Maximum: 500mW

        Impedance
      • 400 ohms ±30%; at 1kHz typical

        Connector
      • Cable: 5ft (1.55m) long with 8-pin connector at
      • headset end; 4-pin Female XLR

    • GTIN:

      0609385496103
