Cloud Electronics MX141M 1RU Media Mixer with Bluetooth and FM Tuner

ITEM #: CLE-MX141M MFG #: MX141M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$305.00

Our Price:

$274.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MX141M - Overview

    The Cloud MX141M is a cost-effective, rackmounting (1U) stereo audio mixer/media player ideal for use in all types of commercial premises. It is simple to install and operate and provides a useful range of features and configuration options. It combines an audio mixer for one of four stereo music sources plus a microphone: one of the music sources is an on-board media player which incorporates both Bluetooth® wireless technology and an FM tuner. The MX141M is the perfect centerpiece for commercial sound systems in hospitality and fitness centre applications.

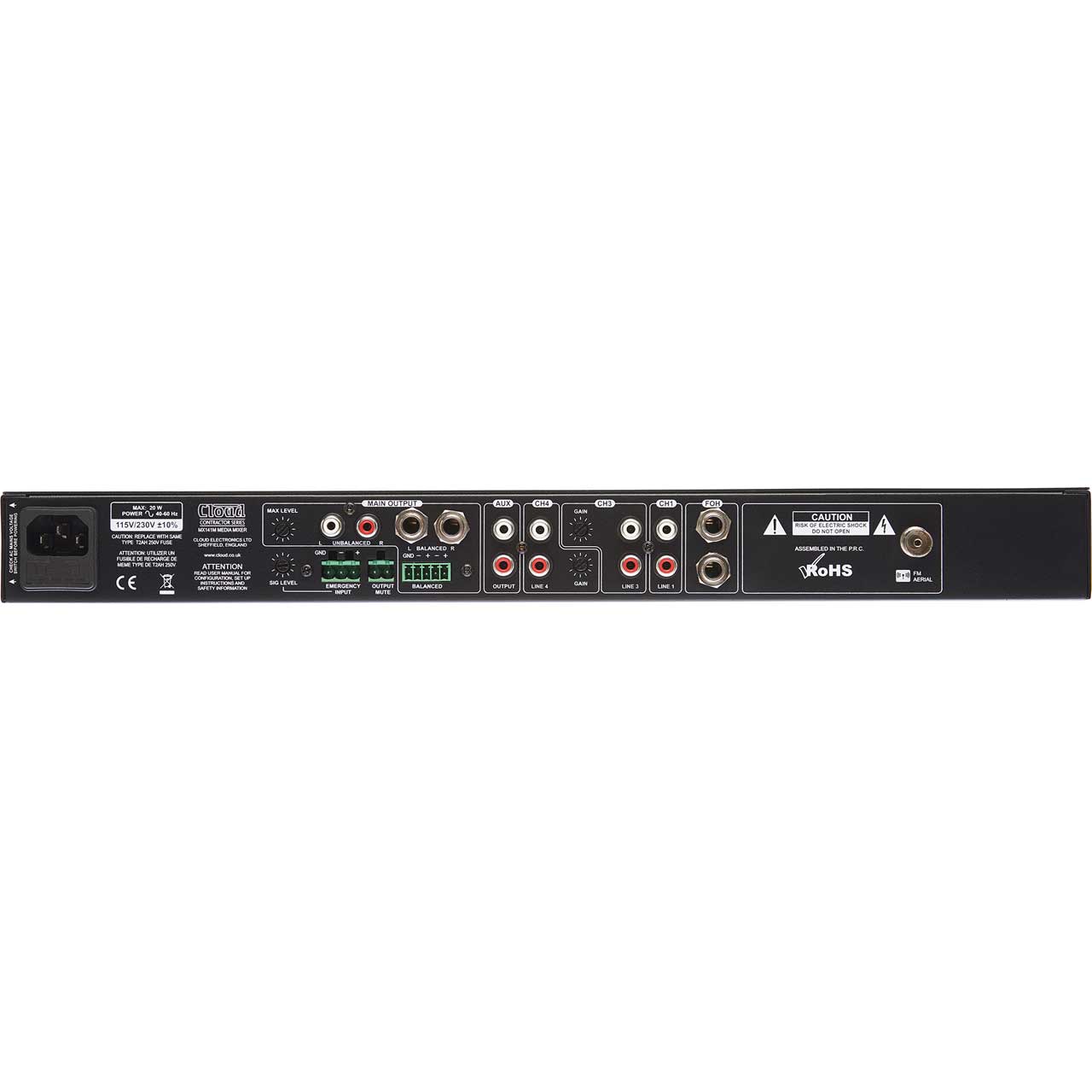

    The mixer has three unbalanced pairs of line inputs for external stereo music sources with connections on the rear panel: Input 1 also has a 3.5 mm TRS jack input on the front panel allowing easy connection of tablets, laptops, etc. Input 2 is dedicated to the internal media player/FM tuner. Input 4 is provided with an alternative, balanced pair of inputs, to permit the unit to be fed from a mixing console or other part of a separate sound system. A front panel switch selects the active line input.

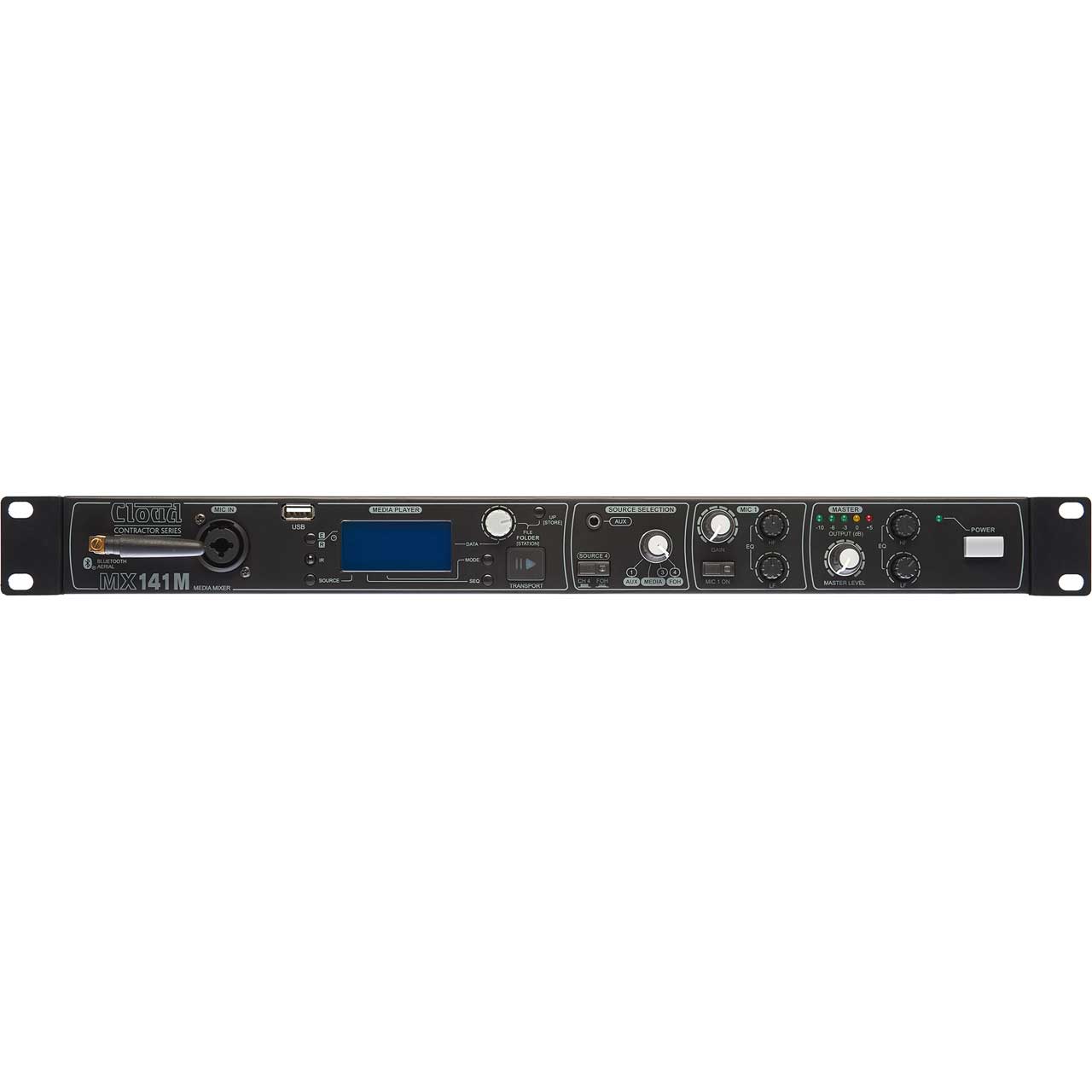

    The MX141M has a single mic input on the front panel in the form of a "Combi type” socket which can accept either XLR or 1/4" TRS jack plus. The mic signal is mixed with the selected music source; controls for level, mic on/off and HF/LF EQ are on the front panel. 12 V phantom power is available at the mic input, enabled by an internal jumper.

    • Features:

      • 3 Line Level Inputs (RCA)
      • 1 x Slave FOH Input (Stereo TRS)
      • 1 Media Input (Bluetooth®, USB, FM)
      • 1 Mic Input (Combo XLR & TRS)
      • Single Output (Euro Con or RCA or TRS)
      • EQ Control for Mic & Master Output
      • IR Remote for Media Player Functions
      • Emergency Line Level Input
      • Music Mute Contact (NO only)

    • Specifications:

      • Inputs
      • Mic input: Balanced, 40 dB gain; Combi-type connector
      • Line inputs (Chs1, 3 & 4): Unbalanced stereo, 0 dB gain, 2 x RCA jacks (phonos)
      • Aux input (Ch 1 only): Unbalanced stereo, 0 dB gain, 3.5 mm TRS jack
      • FOH input: Balanced stereo, 0 dB gain; 2 x 1/4" TRS jacks
      • Emergency input: Balanced mono, 0 dB gain; plug-in multipin connector

        Outputs
      • Main output: Balanced stereo: max. output level +18 dBu, plug-in multipin connector and 2 x 1/4" TRS jacks Unbalanced stereo: max output level +18 dBu, 2 x RCA jacks (phonos)
      • Aux output: Unbalanced stereo, 0 dBu typical, 2 x RCA jacks (phonos)

        Equalization (outputs)
      • LF: +/-10 dB @ 50 Hz
      • HF: +/-10 dB @ 10 kHz

        Mic equalization
      • LF: +/-12 dB @ 60 Hz
      • HF: +/-12 dB @ 12 kHz

        Performance
      • Signal-to-noise ratio: >80 dB (line inputs)
      • Crosstalk: >70 dB (line inputs)
      • THD: <0.07% (output <+18 dBu)
      • Frequency response: 20 Hz to 22 kHz, +0/-3 dB
      • Channel balance: <3 dB

        General
      • Power input Selectable: 115 VAC or 230 VAC; 50/60 Hz
      • Power consumption: 13 W max.
      • Fuse details: 5 x 20 mm, 2 A, type T2AH
      • Dimensions (W x H x D): 1RU 19" (16.8" without rack ears) x 1.75" x 6.0" / Shipping: 21.3" x 3.5" x 10.3"
      • Weights: 5.83lb / Shipping: 10.4lb

    • Item Includes:

      • 1x Cloud Electronics MX141M 1RU Media Mixer with Bluetooth and FM Tuner
