Community R.5-96MAX Full-Range 2-Way 12 Inch Grey 90 X 60 High Broadband Output

ITEM #: CMTY-R5-96MAX MFG #: R.5-96MAX

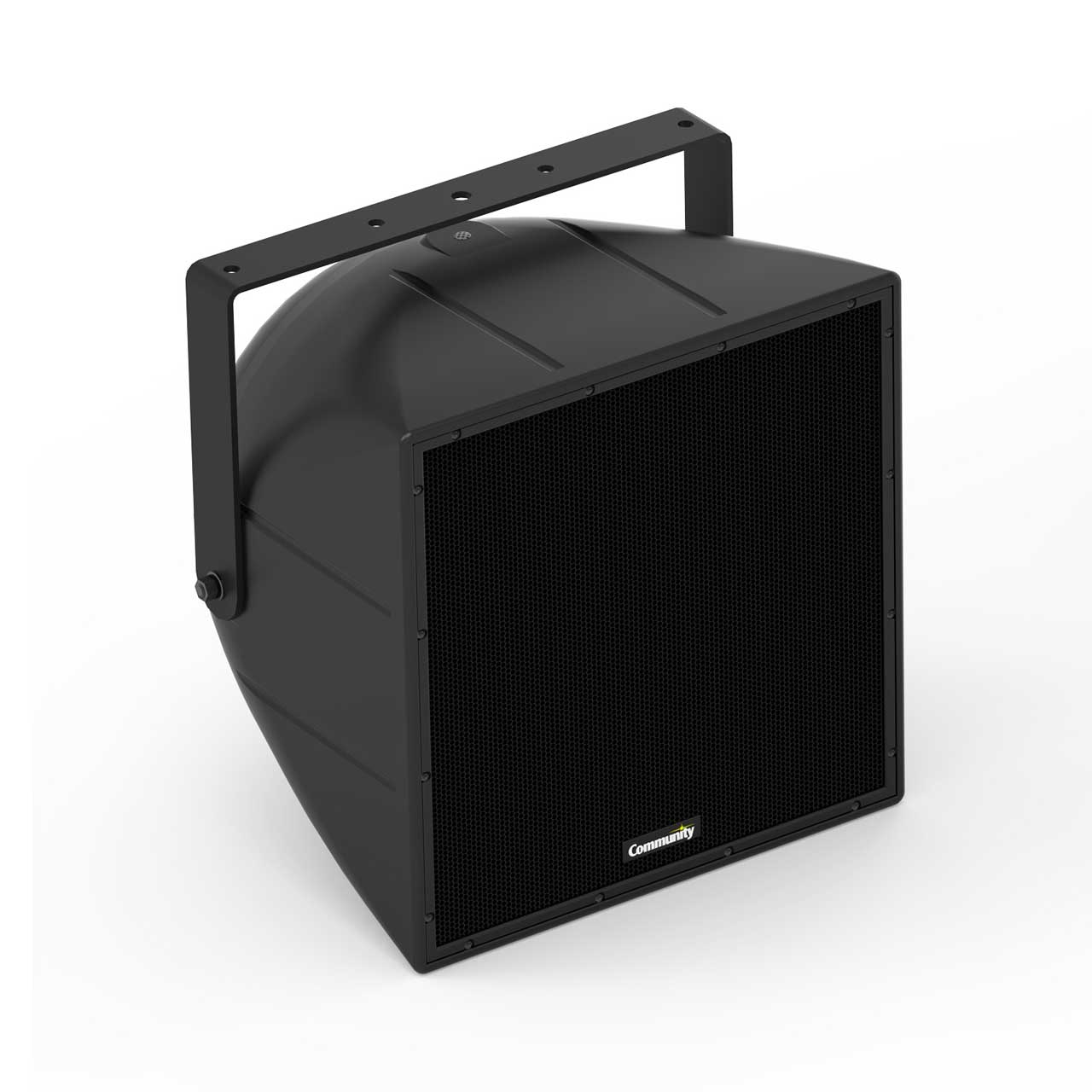

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,082.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    R.5-96MAX - Overview

    Premium musical performance and extremely high broadband output with a flat passive frequency response. Two-way, 70 Hz - 20 kHz; drivers: LF 1 x 12", HF 1 x 1.4" exit. Weather/UV-resistant rotomolded LLDPE plastic enclosure, 12ft (3.6m) SJOW #16 gauge input cable, five 3/8-16 rigging points, three-layer Weather-Stop grille, steel zinc-rich epoxy dual-layer powder-coated yoke mounting bracket included. Available in standard light grey, black, or white finish. Horn pattern is noted in the model name H° x V°.

    • Specifications:

      • Operating Range: 70 Hz to 20 kHz (-10 dB)
      • Frequency Response: 95 Hz to 19 kHz (-3 dB)
      • Max Input Ratings: 600W RMS, 1200W Program 69 volts RMS, 138 volts momentary peak
      • Maximum Output without EQ3:131 dB (137 dB Peak)
      • Sensitivity (1W / 1m) 103 dB (125 Hz - 10 kHz)
      • Crossover Frequency: 900 Hz
      • Recommended Processing: DSP with CONEQ power response correction
      • Recommended Amplifier: 1200W to 1800W at 8 ohms
      • Mounting/Rigging Provisions: (5) 3/8"-16 rigging points
      • Steel zinc-rich epoxy dual-layer powder-coated bracket
      • Aluminum aiming strap to secure angle

    • Item Includes:

      • Yoke Bracket

    • GTIN:

      0617174029791
