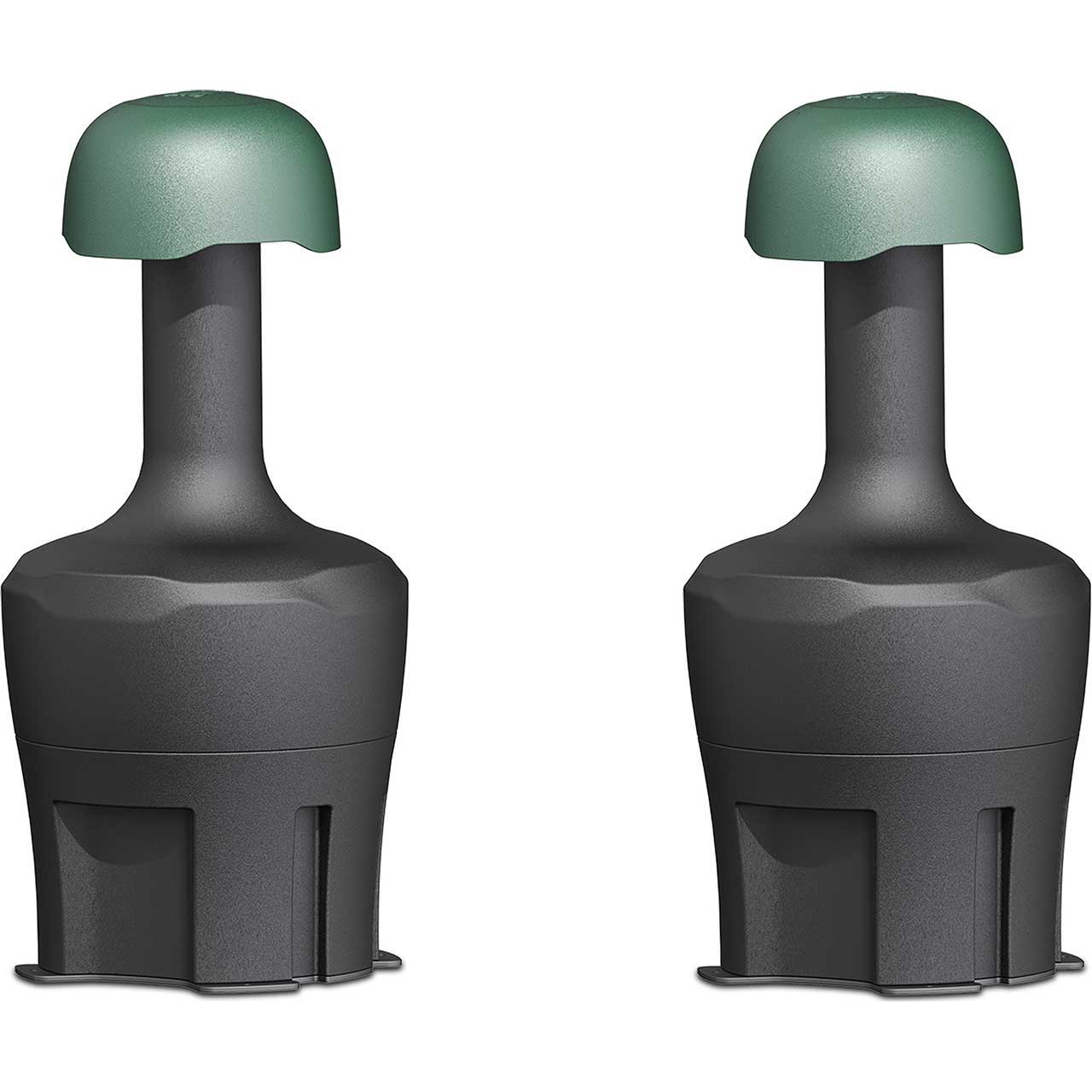

JBL GSB12-GN In-Ground Landscape Subwoofer 1800W Peak - Hunter Green - Pair

ITEM #: JBL-GSB12-GN MFG #: GSB12-GN

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,732.00

Our Price:

$1,386.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    GSB12-GN - Overview

    In-Ground Landscape Subwoofer
    The JBL GSB12 in-ground 12-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces.

    The GSB12 focuses on fidelity, with true subwoofer extension down to 30 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

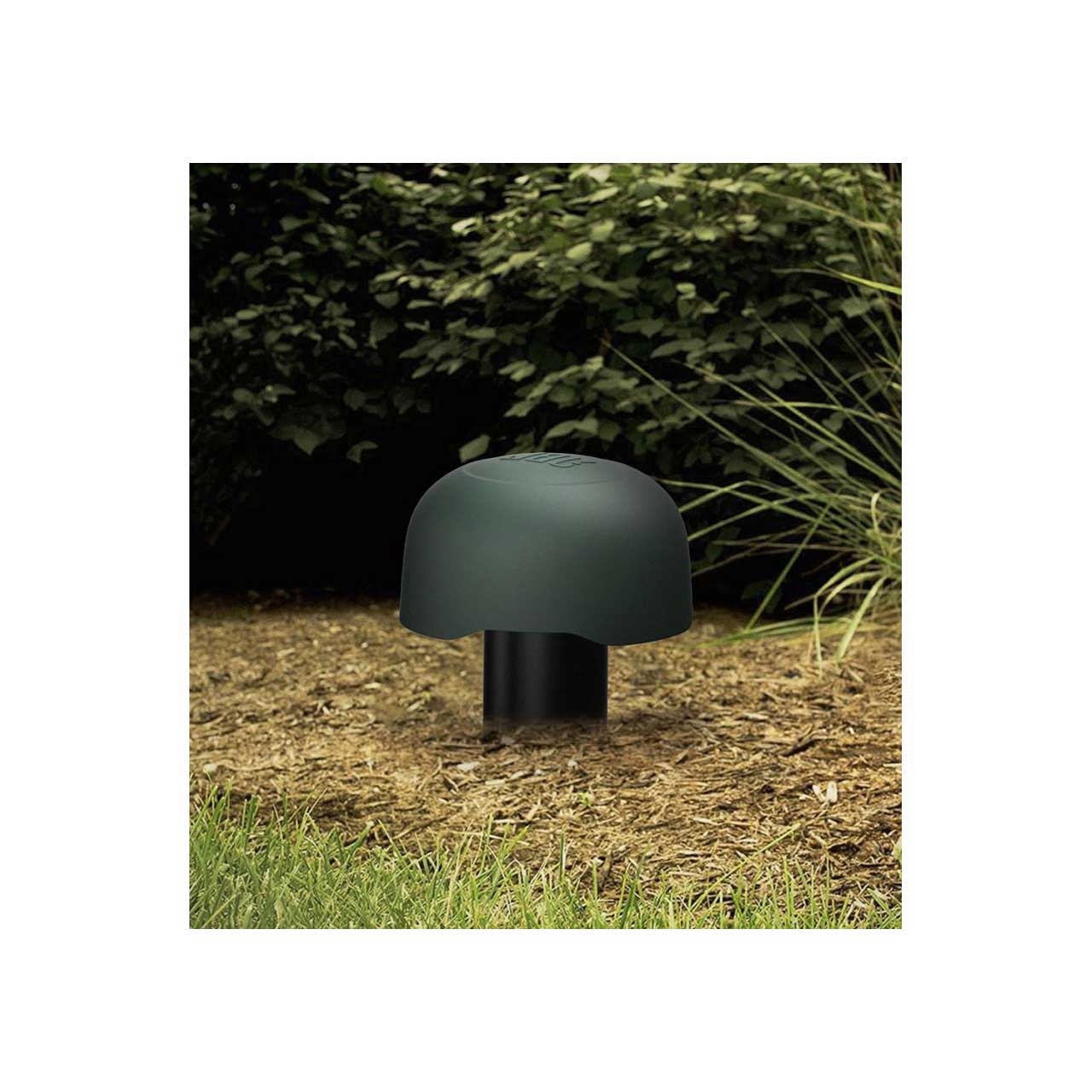

    This sleek, ultra-low-profile speaker-winner of international design awards for industrial design excellence-installs underground, with only the audio port visible. It's designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.

    Add the GSB12 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

    • Features:

      • Transducer: GSB12: 305 mm (12") polypropylene driver, 50mm (1.5") voice coil on Kapton former
      • True subwoofer performance down to 30Hz
      • Built-in steep, multiple-slope lowpass filter
      • Low-impedance direct operation, plus premium-grade subwoofer-band transformer for use in 70V/100V systems
      • Forms a complete system with JBL GSF full-range landscape speakers

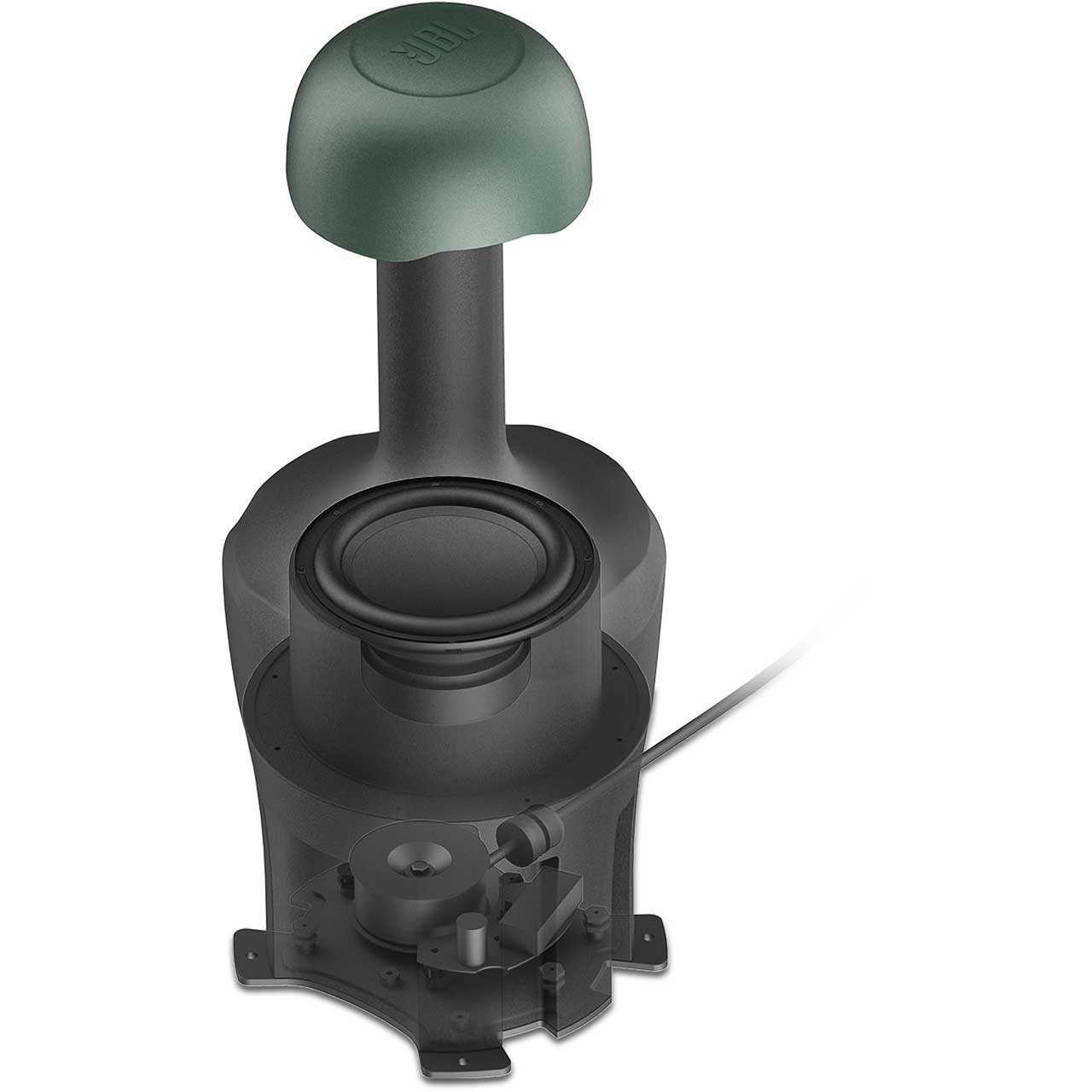

      • Chamber oriented directly below opening to prevent accidental damage from landscaping
      • Grab handles allow easy installation
      • Anchor points for securing cabinet to block or anchors
      • Available in hunter green or tan finishes to fit a wide variety of landscapes
      • Dimensions: 866 mm Height x 402 mm Diameter (34 x 16 in)

    • Specifications:

      • Frequency Range (-10dB): 30 Hz - 120 Hz
      • Frequency Response (+/-3 dB): 39 Hz - 107 Hz
      • Power Rating: 900 W Continuous Program (2 hrs), 450 W (1800 W Peak), Continuous Pink Noise (2 hrs), 300 W (1200 W Peak), Continuous Pink Noise (100 hrs)
      • Sensitivity: 85.5 dB (ave. 40 Hz - 105 Hz)
      • Maximum SPL: 118 dB peak (111 dB continuous, 2 hr) @ 1m
      • Coverage Pattern: Omnidirectional
      • Nominal Impedance: 6Ω (at 6Ω tap)
      • Transformer Taps: 70V: 200 W, 100 W, 50 W, 100V: 200 W, 100 W
      • Driver: 305 mm (12-inch) driver, polypropylene injection cone, thermoplastic vulcanizate surround, 50 mm (2-inch voice coil on glass fiber former
      • Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 7 wires with 14 AWG)
      • Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout
      • Color: Hunter Green (RAL 6018) or Tan (RAL7004)
      • Dimensions: 842 mm Height x 400 mm Diameter (34.2 x 15.8 in)
      • Net Weight: 16.2 kg (35.7 lbs)

    • Item Includes:

      • 7x wire nuts

    • GTIN:

      0691991039355
