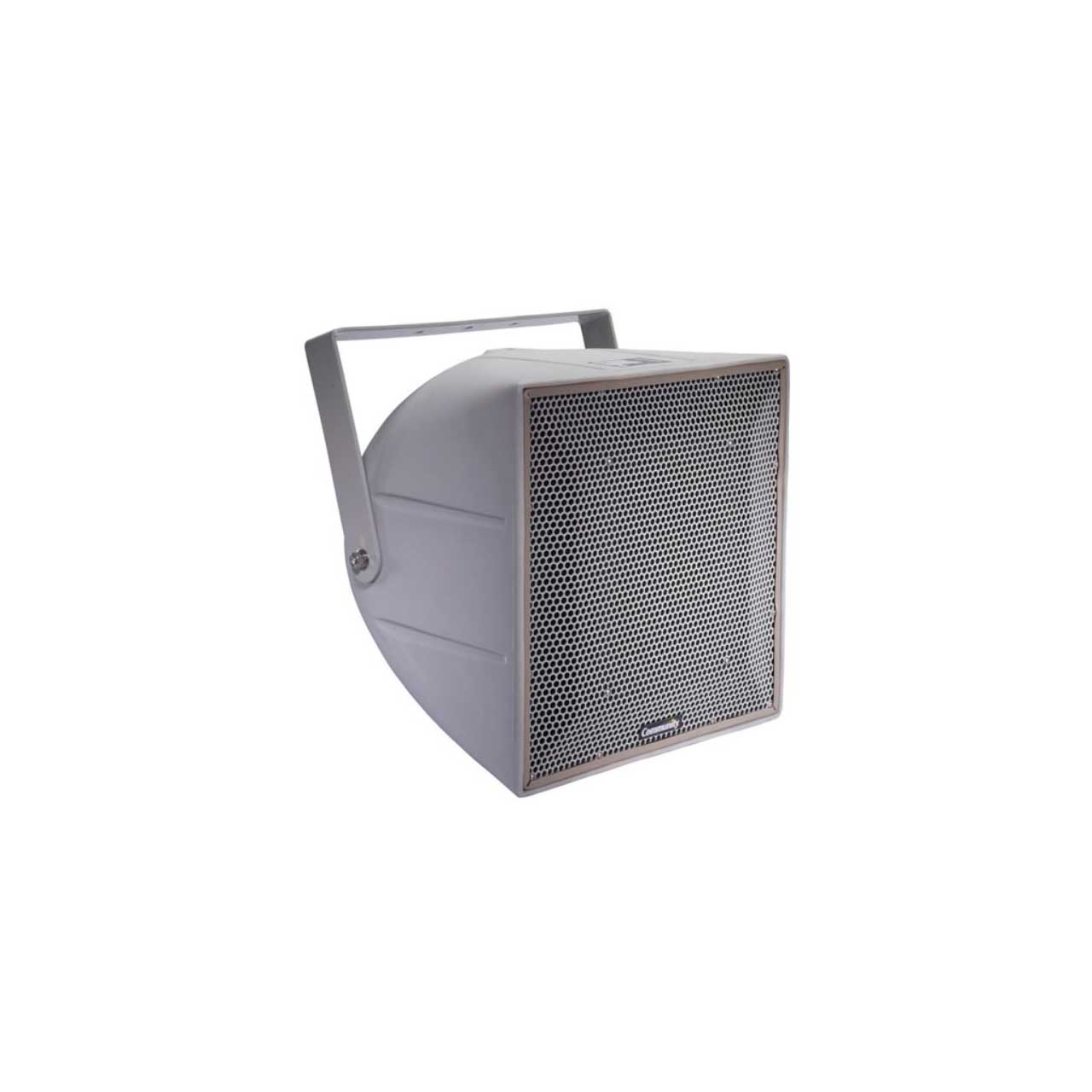

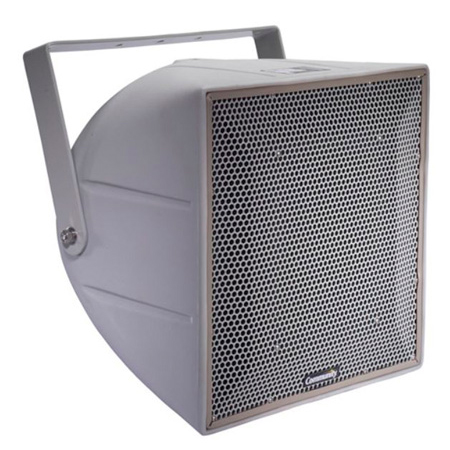

Community R.5HPT 3-Way Horn Loaded Weather-Resistant Full-Range 200W Loudspeaker

ITEM #: CMTY-R5HPT MFG #: R.5HPT

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,476.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    R.5HPT - Overview

    The R.5HPT is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously. Each system is backed by Community's five-year product warranty and fifteen-year enclosure warranty.
    APPLICATIONS
    Primary loudspeakers for stadia and athletic fields
    Outdoor background music / paging systems
    Theme and amusement parks
    Fairgrounds, rodeos, air shows
    Malls, cruise ships, skating rinks
    Swimming pools
    Convention centers
    Portable sound systems
    Racetrack catch fence systems

    • Features:

      • Weather-resistant, rotomolded UV enclosure
      • Weather-treated drivers and crossovers
      • Corrosion-resistant zinc-rich epoxy dual-layer powder
      • coated steel grille and yoke
      • Pattern control down to 630 Hz
      • High efficiency
      • Integral mounting points
      • High power passive crossover
      • Five-year product warranty / Fifteen-year enclosure warranty

    • Specifications:

      • Operating Range: 90 Hz to 16 kHz
      • 125 Hz to 12500 Hz (± 6 dB)
      • Max Input Ratings: 200W, 70/100V
      • Recommended Power
      • Amplifier:
      • 25W to 200W @ 70 Volts
      • 50W to 200W @ 100 Volts
      • Sensitivity (1W/1m): 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
      • 106 dB SPL (250 Hz to 4 kHz speech range)
      • Maximum Output on
      • 200W Tap: 128 dB SPL
      • 200W Nominal
      • Impedance: 25 ohms
      • 200W Minimum
      • Impedance: 12.1 ohms @ 11 kHz
      • Nominal -6dB
      • Beamwidth:
      • 60° H (+32° / -17°, 2 kHz to 10 kHz)
      • 40° V (+33° / -1°, 2 kHz to 10 kHz)
      • Axial Q / DI: 20.5 / 13.1, 2 kHz to 12.5 kHz
      • Crossover Frequency: 600 Hz / 4 kHz
      • Recommended Signal
      • Processing: 70 Hz high pass filter
      • Drivers:
      • LF (1) 12" weather treated, Ferrofluid-cooled
      • MF (1) M200, Ferrofluid-cooled
      • HF (1) 1" exit, titanium free, Ferrofluid-cooled
      • Driver Protection: None
      • Input Connection: 12 foot (4 m) UV-resistant #18 gauge
      • multi-conductor cable
      • Controls: None
      • Enclosure: Rotomolded LLDPE, light grey
      • Mounting/Rigging
      • Provisions: (5) 3/8-16 rigging points
      • Grille:
      • 3-layer WeatherStopT, light grey
      • (Zinc-rich epoxy dual-layer powder coated
      • perforated steel grille, foam, woven poly mesh)
      • Required Accessories: None
      • Supplied Accessories: (1) Yoke bracket, light grey
      • (1) Aiming strap
      • Optional Accessories: PMB Series pole mount brackets
      • Dimensions-Height: 16 inches (406.4 mm)
      • Width:16 inches (406.4 mm)
      • Depth:16.187 inches (411.15 mm)
      • Shipping Weight: 52 lbs (23.6 kg)

    • GTIN:

      0617174007164
