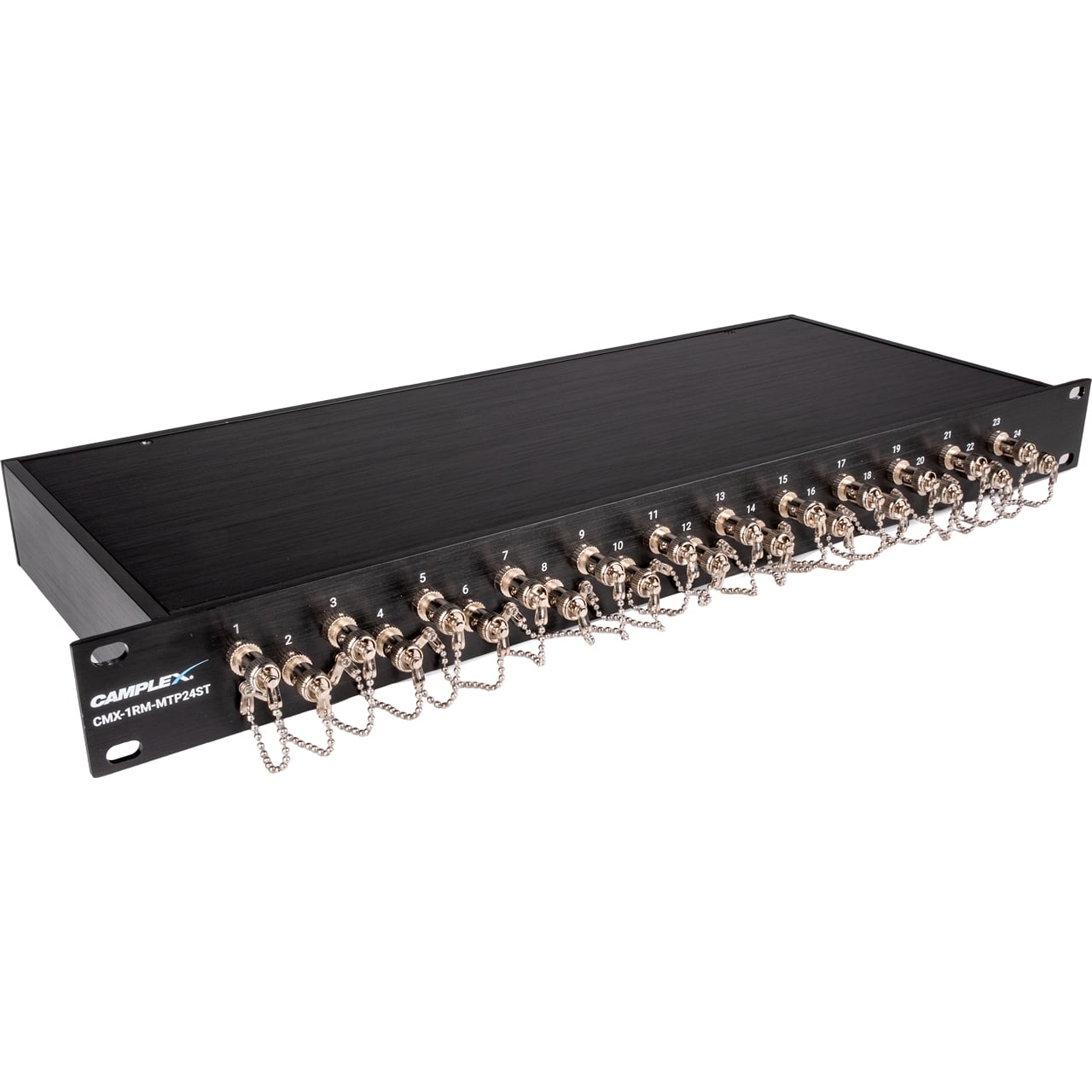

Camplex CMX-1RM-MTP24ST opticalCON APC MTP NO24FDW-A to (24) ST Female Single Mode Breakout Rack Mount

CMX-1RM-MTP24ST - Overview

• Features:

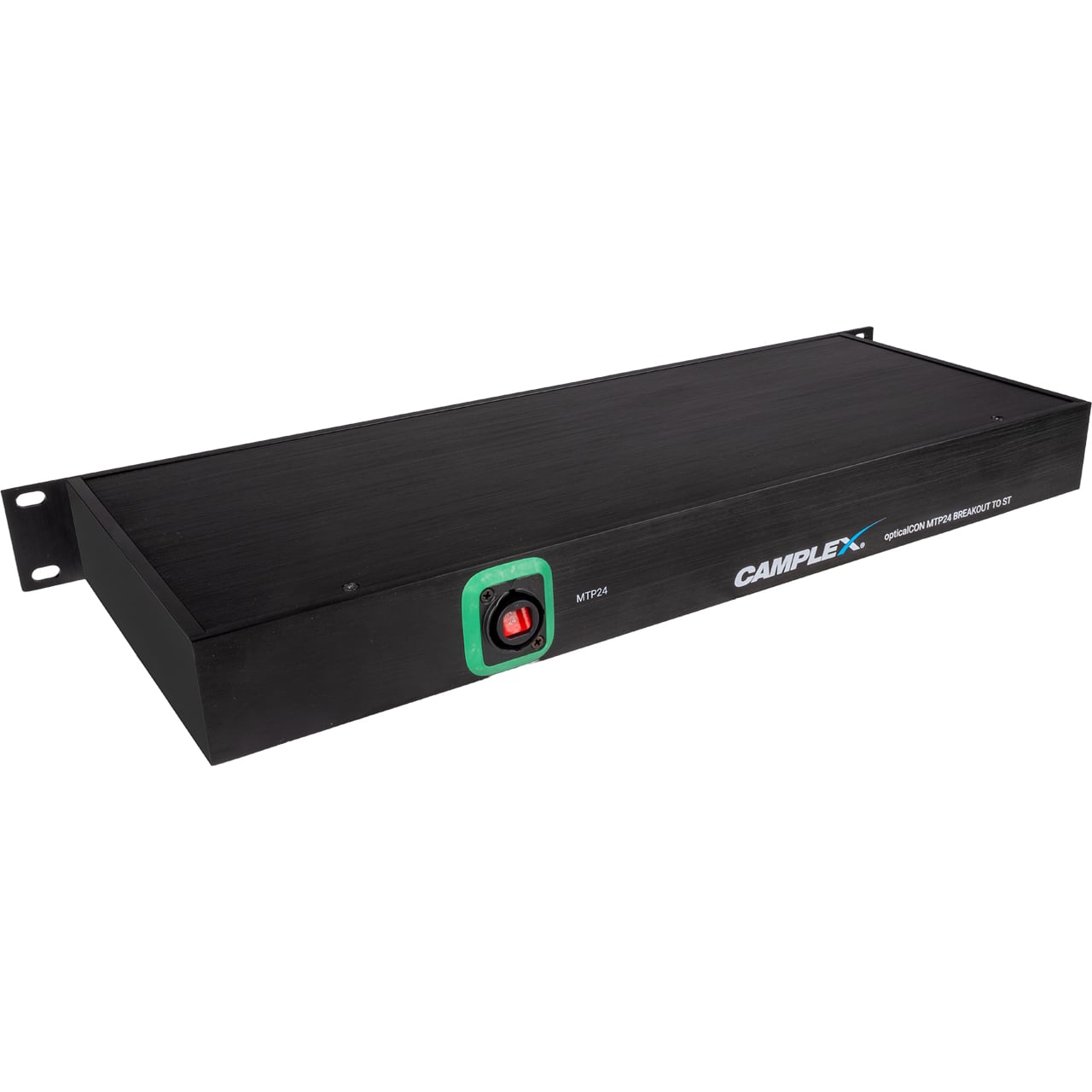

  • Lightweight 1RU Aluminum Enclosure
  • High-Quality Neutrik connector
  • Connector Gaskets are Color-coded According to Fiber Mode for Easy Identification
  • Low-Loss opticalCON MTP Connectors
  • Internal Camplex MTP Breakout Cable

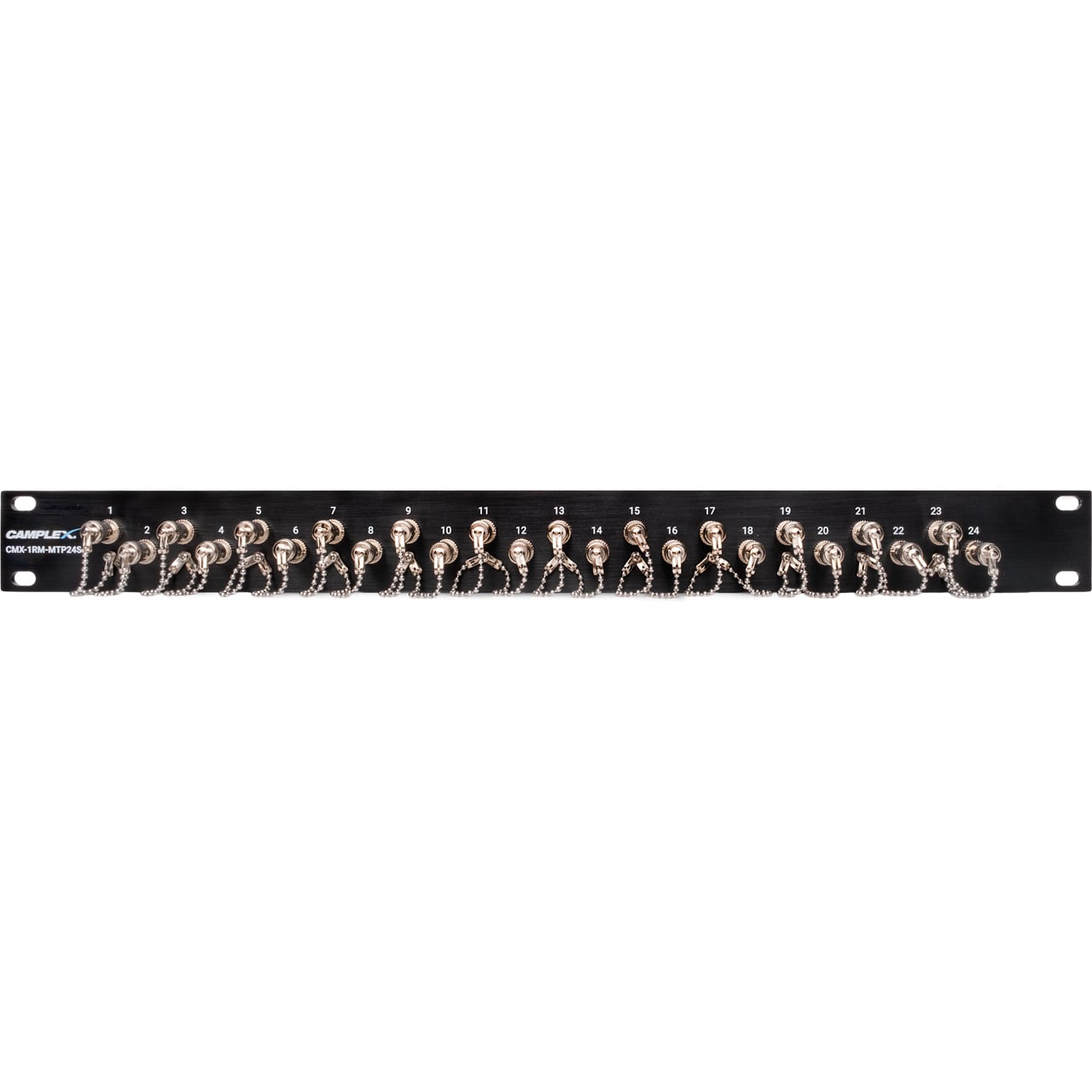

  • All Channels are Marked on the Front and Back of the Enclosure for Easy Identification


• Specifications:

  • Dimensions: 19"W x 9.125"D x 1.5"H


  Camplex Single Mode MTP APC Connector
  • Fiber Type: Single Mode
  • Core Cladding Diameter: 9/125µm
  • Insertion Loss (MTP): <0.35 dB
  • Return Loss (MTP): >60 dB
  • Insertion Loss (LC/ST): <0.3 dB
  • Return Loss (LC/ST): >50 dB
  • Max. Attenuation (1310/1550nm): 0.34/0.20 dB/km

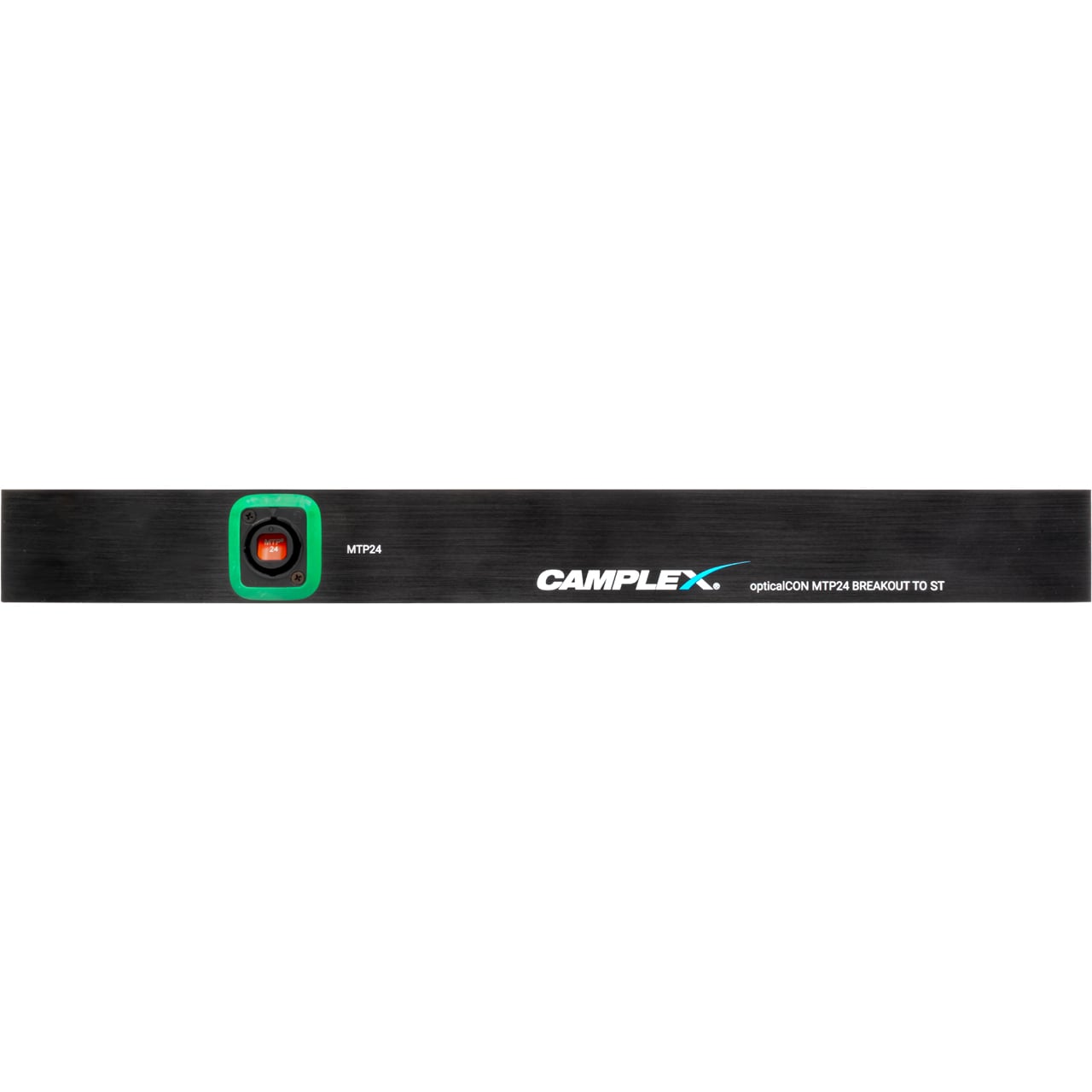

    Neutrik MTP NO24FDW-A Connector
  • Insertion Loss: < 0.9 dB / connection
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Locking Force: 1,000 N
  • Locking Device: Push-Pull
  • Lifetime: 2,500 mating cycles
  • Protection Class: IP65 in mated condition in combination with SCDP-*

    Camplex ST Connector
  • Insertion Loss: <0.5dB
  • Lifetime: 1000 Mating Cycles


• Warranty:

  • Limited Lifetime
