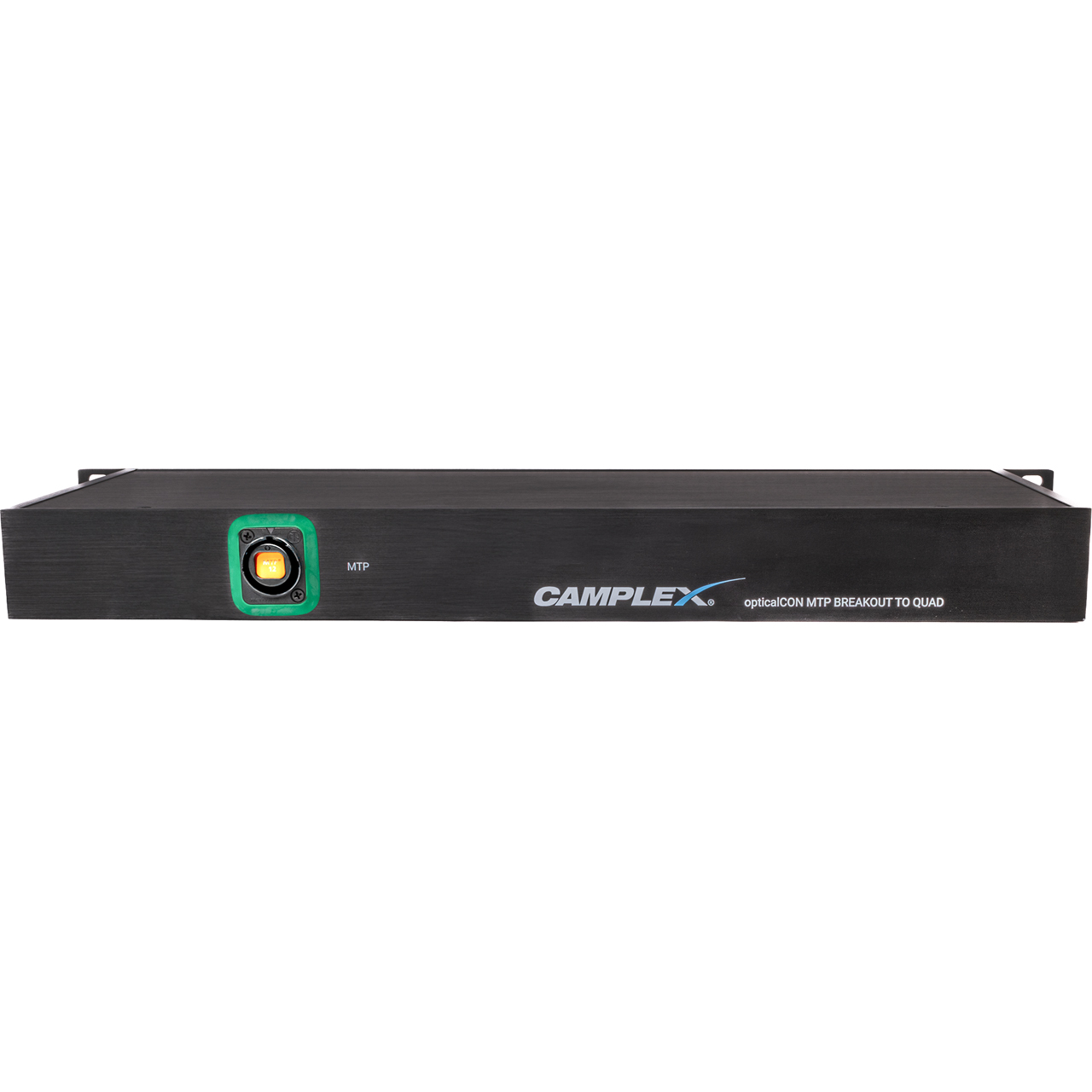

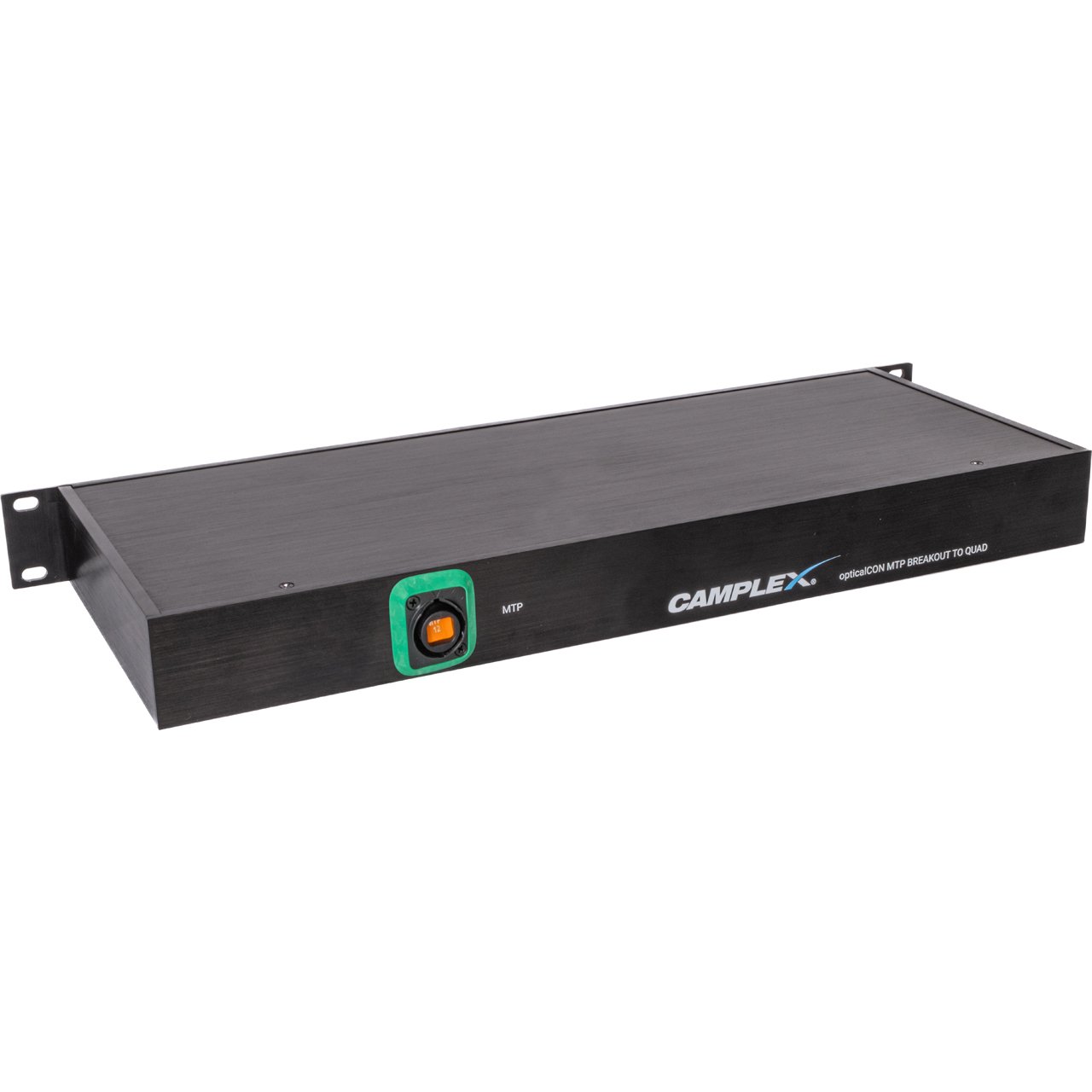

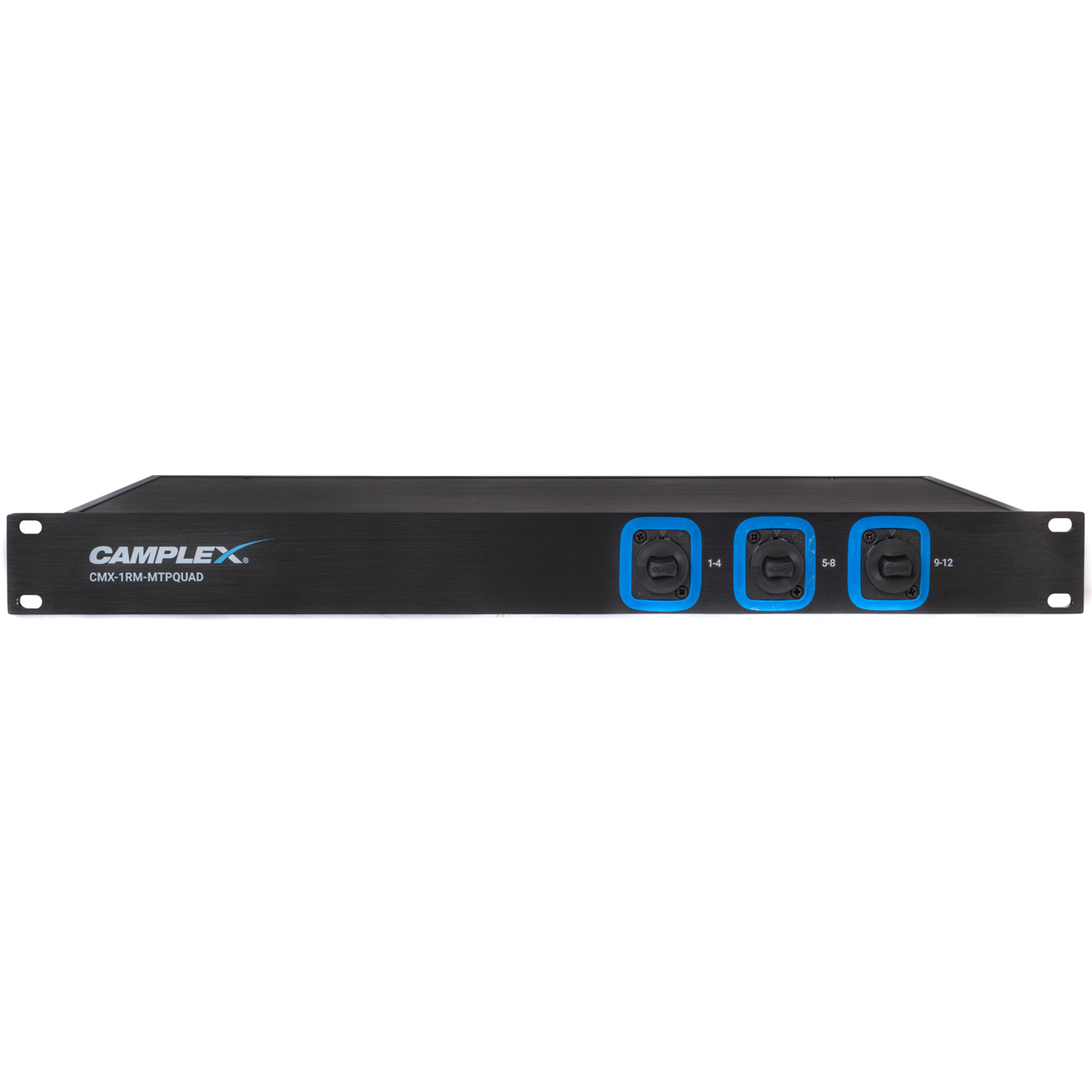

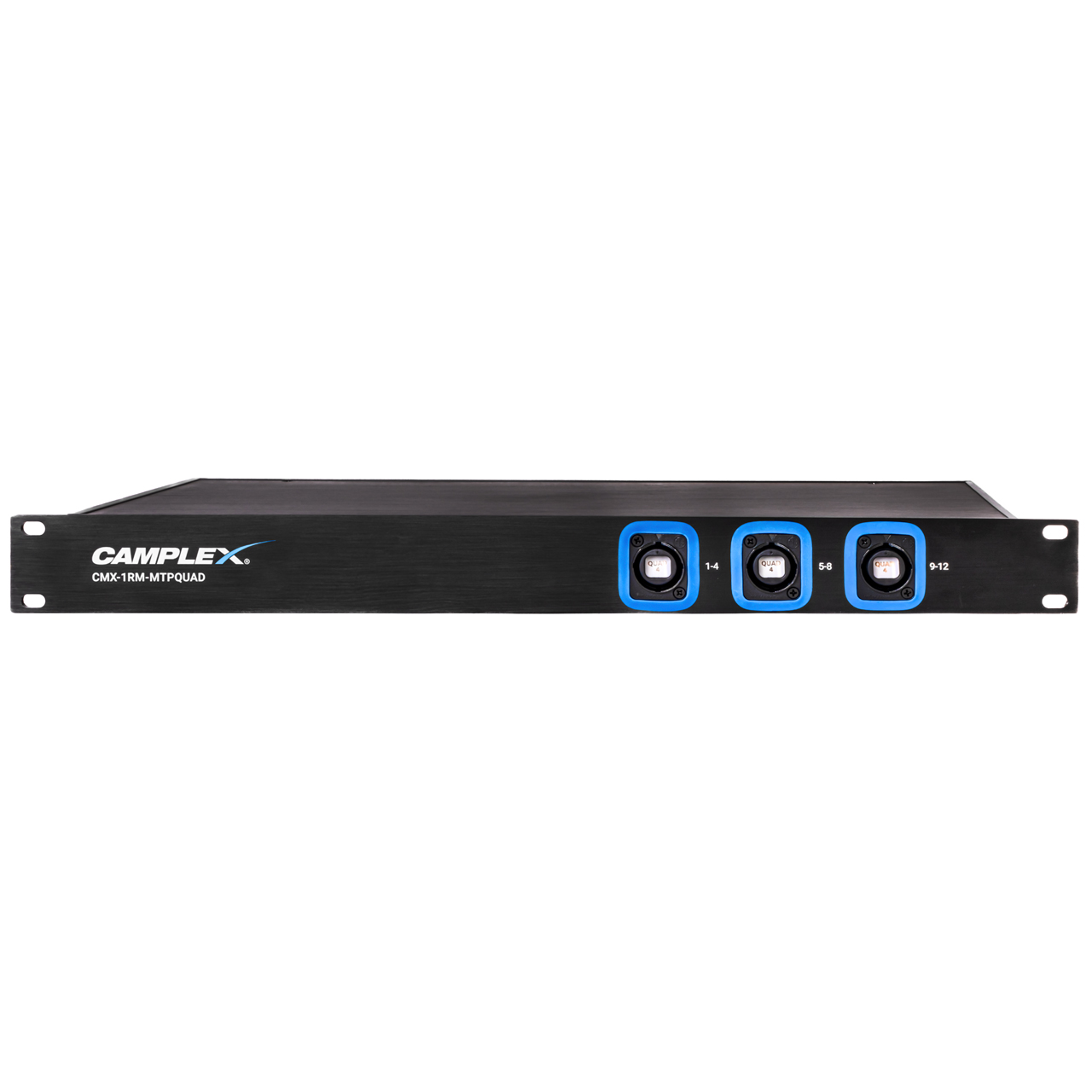

Camplex opticalCON MTP NO12FDW-A to (3) SM QUAD NO4FDW-A Rack Mount

CMX-1RM-MTPQUAD - Overview

• Features:

  • Lightweight 1RU aluminum enclosure
  • High-Quality Neutrik connectors
  • Connector gaskets are color-coded according to Fiber Mode for easy identification
  • Low-loss opticalCON MTP connectors

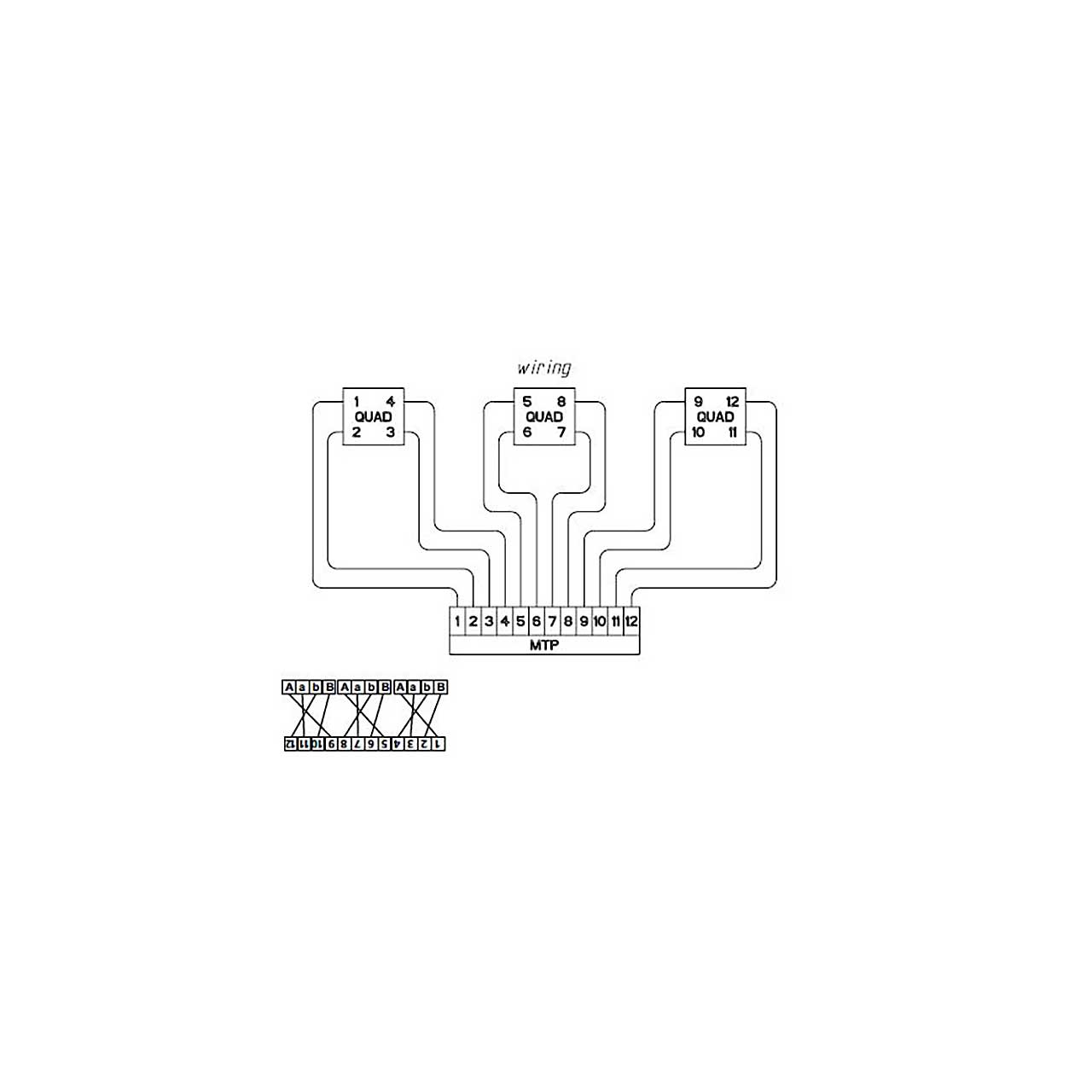

  • Internal Camplex MTP breakout cable
  • All channels are marked on the front and back of the enclosure for easy identification


• Specifications:

  • Dimensions: 19"W x 9.125"D x 1.5"H

    Camplex Single Mode MTP APC connector
  • Insertion Loss: <0.35dB
  • Return Loss: >60dB

    Neutrik NO12FDW-A Connector
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: 2500 Mating cycles
  • Locking Force: 1000 N
  • Locking Device: Push-Pull
  • Insertion Loss: < 0.9 dB / connection

    Neutrik NO4FDW-A
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: 5000 mating cycles
  • Locking Device: Push-Pull


• Warranty:

  • 1 Year
