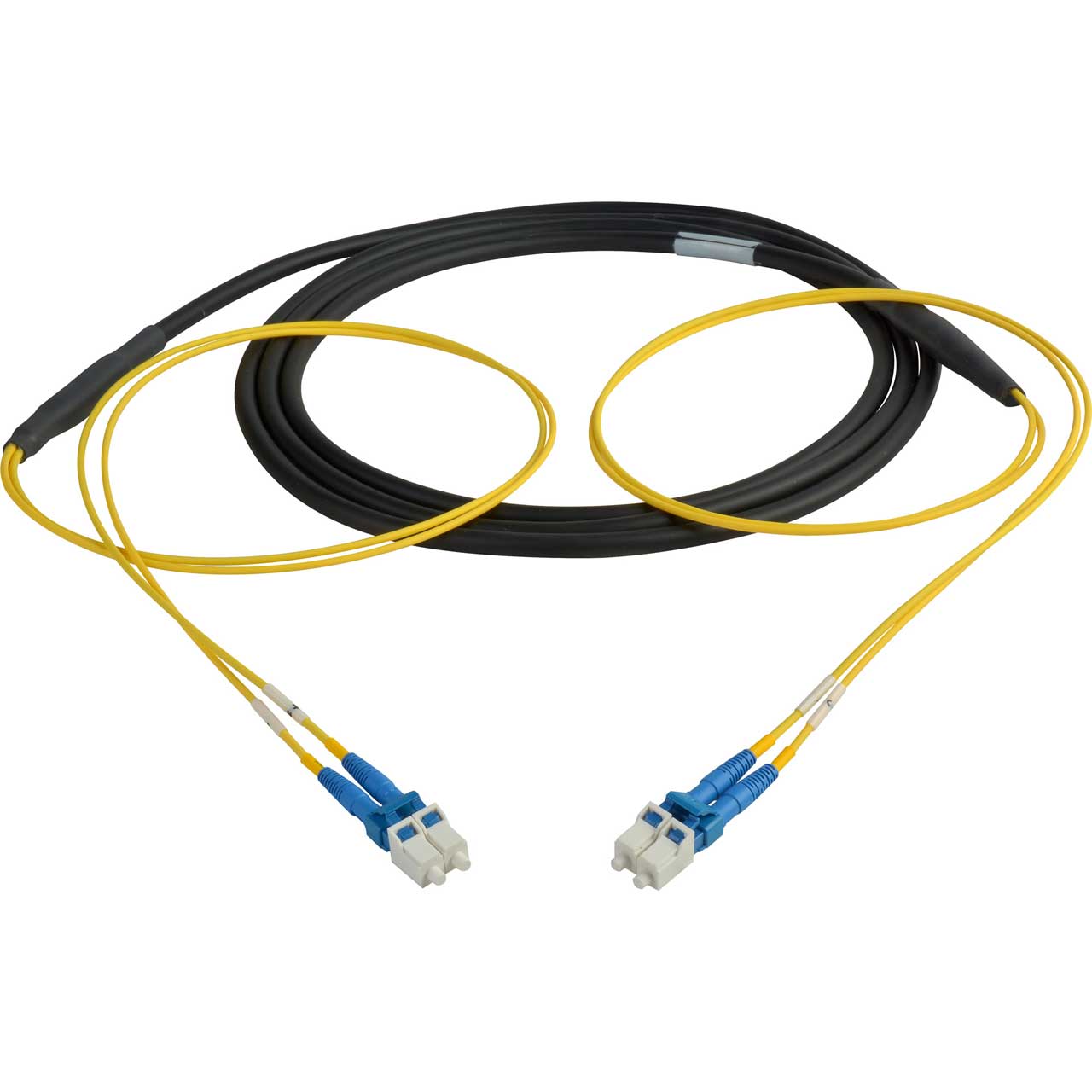

Camplex 2-Channel LC Single Mode Fiber Optic Tactical Snake 25 Foot

ITEM #: CMX-TS02LC-0025 MFG #: CMX-TS02LC-0025

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$101.49

Our Price:

$92.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CMX-TS02LC-0025 - Overview

    Flexible and Crush Resistant Outdoor Fiber Cable

    High quality and cost-effective Camplex CMX-TS series tactical fiber cables are designed for broadcast and pro-AV deployment applications and meet all tactical needs for applications requiring an outdoor rated crush and impact resistant design. The tough thermoplastic polyurethane core-locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field.

    Camplex CMX-TS ruggedized multi-channel fiber optic cables are designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. All products are 100% tested and a complete set of test documentation of your cable is available upon request.

    Featuring Senko LC or ST premium fiber connectors and 2, 4, 8 or 12 channels. Custom Lengths & Configurations Available.

    • Features:

      • Indoor/Outdoor rated jacket.
      • Wide temperature range (typically -55°C to 85°C)
      • 500um primary acrylate buffer with 900um secondary hard buffer
      • Excellent crush and impact resistance due to their polyurethane core-locked outer jacket
      • Designed to withstand crush and impact after deployment
      • Strong, lightweight and extremely durable cable

    • Specifications:

      • Typical RL <-55dB and IL<0.25dB
      • Industry Standard Designation: SMF-28
      • Core/Cladding Diameter (um): 9/125
      • Wavelength (nm): 1310/1550
      • Maximum Cabled Attenuation (dB/km): 0.5/0.5
      • Primary Coating Diameter (um): 500
      • Secondary Buffer Diameter (um): 900
