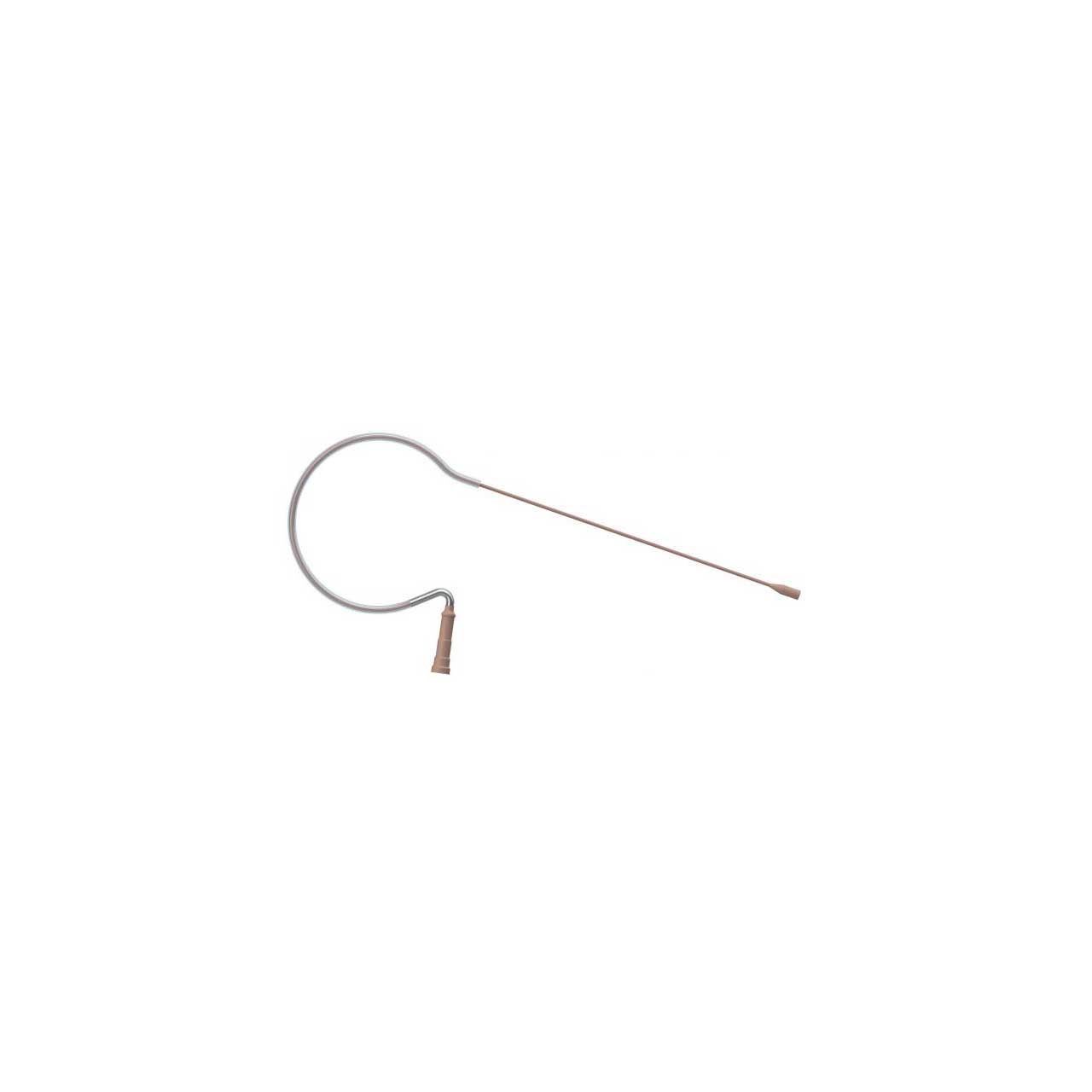

Countryman E6DW5T2AX E6 Directional Earset for Shure TA4F Wireless Beltpack - Tan

ITEM #: CNTR-E6DW5T2AX MFG #: E6DW5T2AX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$650.00

Our Price:

$452.70

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


E6DW5T2AX - Overview

Their most popular microphone, the extremely low-profile Countryman E6 Earset delivers beautifully uncolored audio while rejecting surrounding noise and feedback. An ultra-miniature electret condenser element is held close to the mouth by a thin boom and comfortable earpad. Three sensitivity options cover general speaking applications through extremely powerful vocals. Four colors allow you to match the E6 to your skin tone for minimum visibility. The element is available as a water- and wind-resistant omnidirectional microphone or as a pattern-changeable directional microphone for maximum isolation and gain before feedback. The boom adjusts for a custom fit and is available in their classic springy style, the extremely flexible "i" style, or the Flex style providing a soft boom in front and a springy ear section.

  • Features:

    • Nearly Invisable: Countryman Earsets are the smallest, lightest, and least visible head-worn microphones.
    • Rugged and Reliable: The E6 Earset's stainless steel, boom is incredibly tough and can be bent and re-bent many times to fit different performers. The E6 is highly resistant to makeup, sweat and moisture when used with the supplied protective caps. The aramid-reinforced cable and braided RF shielding are ready for years of service in demanding environments.
    • Future-Proof: The E6 detachable connector makes cable or transmitter changes easy.
    • Ultra Lightweight: With a weight of .07 oz the E6 Earset is as light as it gets! You`ll forget it's even there.

  • Specifications:

    • Frequency Response
    • Omnidirectional: 20 Hz to 20 kHz
    • Directional: 30 Hz to 15 kHz

    • Operating Current: 500 uA
    • Operating Voltage: 1 to 2 Volts

      Power Supply Voltage
    • +3V with 2.7 kOhm load
    • +5V with 6.8 kOhm load
    • +9V with 15 kOhm load

      Sensitivity
    • Omnidirectional W5 (no band): 7.0 mV/Pascal
    • Omnidirectional W6 (blue band): 2.0 mV/Pascal
    • Omnidirectional W7 (purple band): 0.7 mV/Pascal
    • Directional W5 (no band): 6.0 mV/Pascal
    • Directional W6 (blue band): 1.9 mV/Pascal
    • Directional W7 (purple band): 0.6 mV/Pascal

      Equivalent Acoustic Noise
    • W5: 24 dBA
    • W6: 29 dBA
    • W7: 39 dBA

      Overload Sound Level
    • Omnidirectional W5: 120 dB SPL
    • Omnidirectional W6: 130 dBA SPL
    • Omnidirectional W7:140 dBA SPL
    • Directional W5: 125 dBA SPL
    • Directional W6: 135 dBA SPL
    • Directional W7: 145 dBA SPL

    • Weight: 0.07 oz (2 g)
    • Cable Length: 5 Feet

  • Item Includes:

    • 1x E6 Earset microphone
    • 1x Detachable cable.
    • 1x Black and White Single Tie Cable Clips
    • 1x Omnidirectional Protective Caps (+0, +4, and +8 included with Omnidirectional Earsets)
    • 1x Directional Protective Caps (Hypercardioid and Cardioid included with Directional Earsets)
    • 1x Windscreen
    • 1x Carrying Case

  • Warranty:

    • 1-Year Limited Warranty
