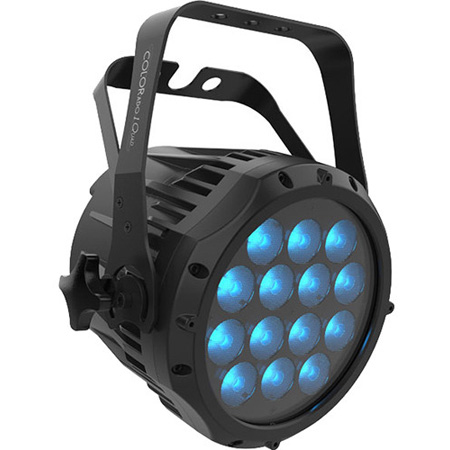

Chauvet COLORado 1 Quad IP65 Indoor/Outdoor Solo IP Wash Lite with 14.5 Watt RGBW LEDs

COLORADO 1-QUAD - Overview

• Features:

  • RGBW LED wash for touring, rental, and production, indoors or out
  • All environment operation with IP rated power and DMX connections
  • Color temperature presets, from 3200 K to 10000 K
  • Selectable, smooth dimming curves for programming versatility
  • LED display with password protection
  • M12 GORE® valve for assured internal equalization
  • Simple and complex DMX channel profiles for programming versatility
  • Double-bracket yoke doubles as floor stand


• Specifications:

  • Optical
  • Light Source: 14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10,000 K
  • Beam Angle: 13°
  • Field Angle: 26°
  • Lumens: 1,633
  • Illuminance (total): 1510 lux @ 5 m

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 14 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

    Construction / Physical
  • Dimensions: 11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)
  • Weight: 9.8 lb (4.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol:DMX, RDM
  • DMX Channels: 4, 5, 6, 7, 9, 10, 13 or 15
  • Modes/Personalities (RGB): 3 personalities (TOUR, TR16, AR1.D)
  • Modes/personalities (RGBW): 6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
  • Power and Current: 109 W, 0.892 A @ 120 V, 60 Hz
  • Power and Current: 110 W, 0.529 A @ 208 V, 60 Hz
  • Power and Current: 112 W, 0.492 A @ 230 V, 50 Hz

    Certifications / Qualtifications
  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


• Item Includes:

  • COLORado 1 Quad
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder (7.5 in/191 mm accessories)


• GTIN:

  0781462218782
