Contemporary Research QIP-YPB-2 IPTV Encoder

5115-001 - Overview

• Features:

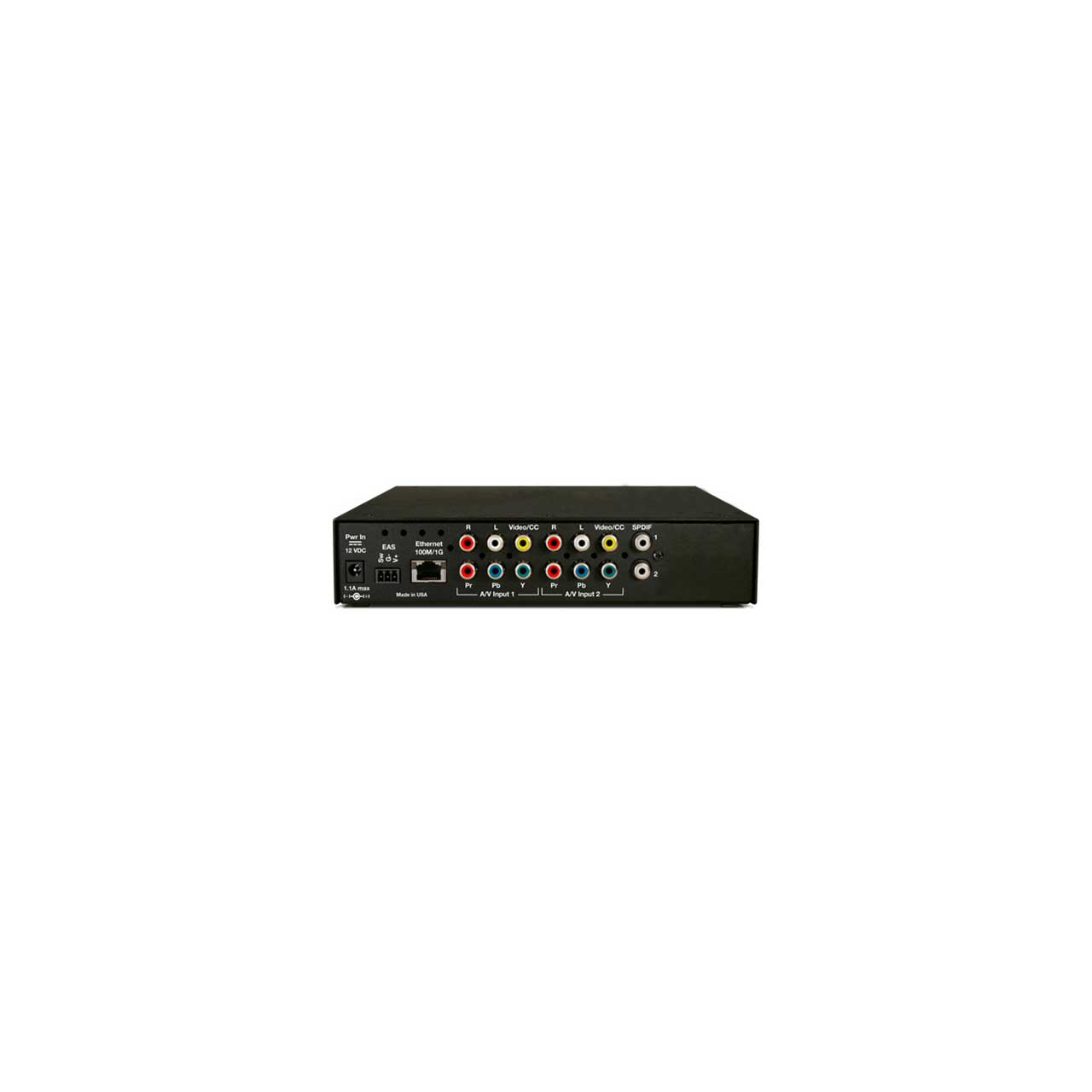

  • Two Component inputs, supporting from 480p to 1080p video
  • Two Composite/CC video inputs for encoding, captioning, or EAS use
  • Two analog Stereo and two SPDIF coax audio inputs
  • Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
  • Converts stereo and PCM to stereo AAC or MP12, passes through or AC-3
  • Can create SAP dual-language audio for each program
  • Embedded captioning from Line 21 data on composite video inputs.
  • Dual hardware scalers accept up to1080p video, including 60/30 Hz, and PAL formats, and can deliver programs at a scaled or native resolution

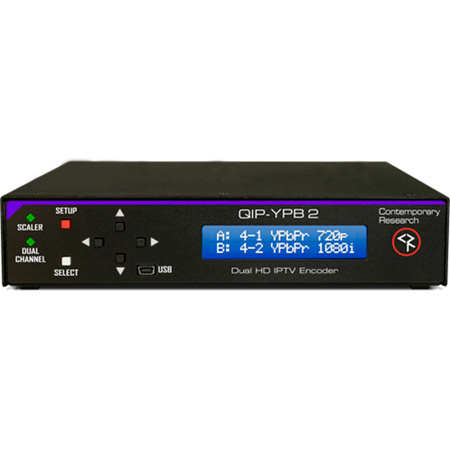

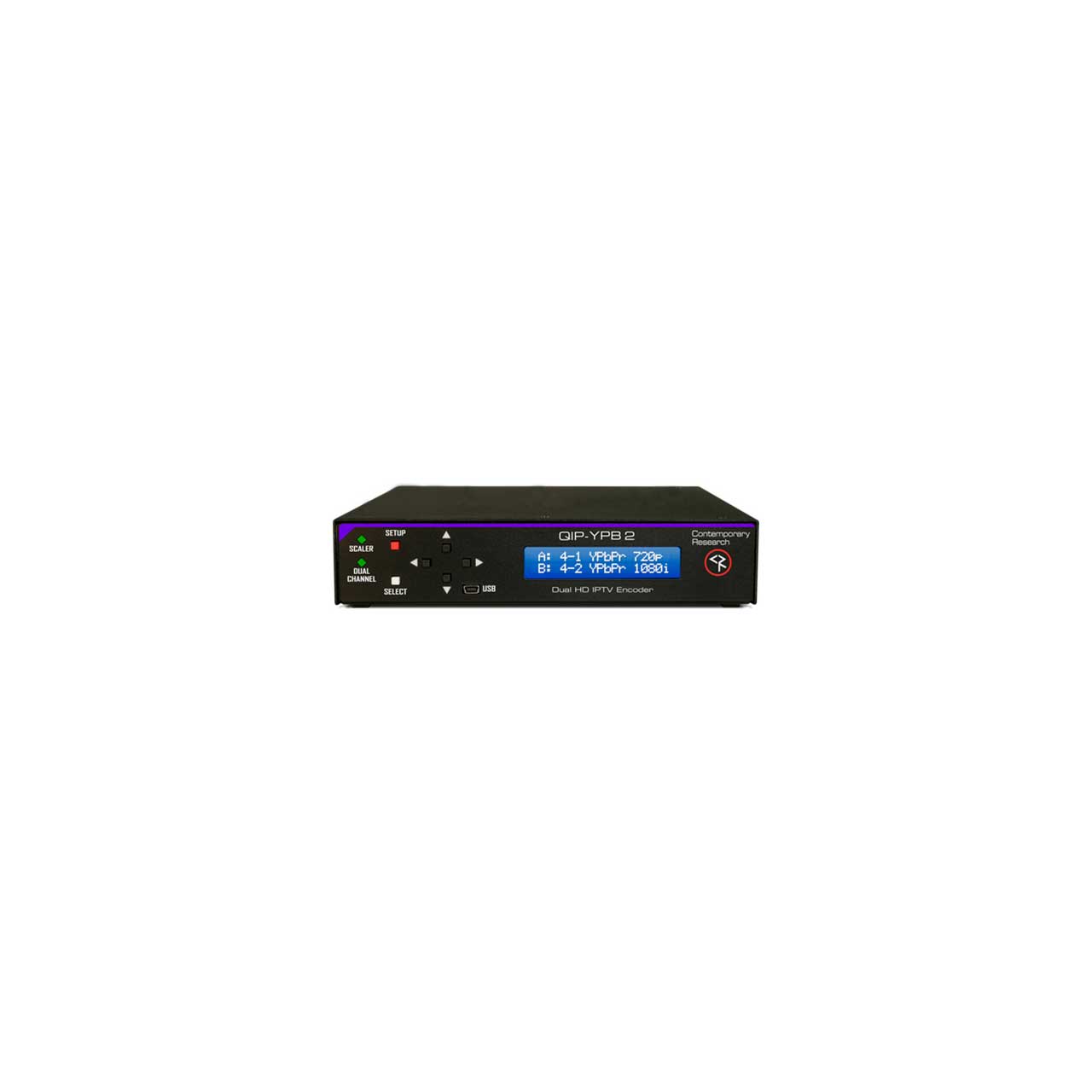

  • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
  • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
  • Updates firmware via USB and Ethernet
  • Fan cooled, with variable speed
  • Saves power and rack space using efficient design
  • Includes compact switching power supply
  • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
  • Meets RoHS safety and California energy standards
  • Dual-program operation is standard


• Specifications:

  • Size (HWD): 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
  • Weight: 1.5 lbs [0.68kg]
  • Operating Temperature: +32° to 122° F
  • Mounting:Rack mounting for one or two units side-by-side optional (RK1, RK2EZ) For HRF Half-Racks, use the RK2EZ kit to mount each tuner
