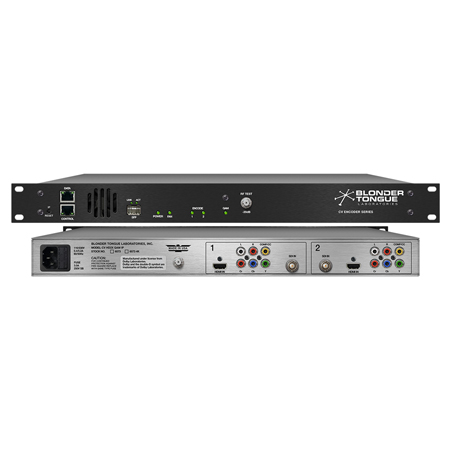

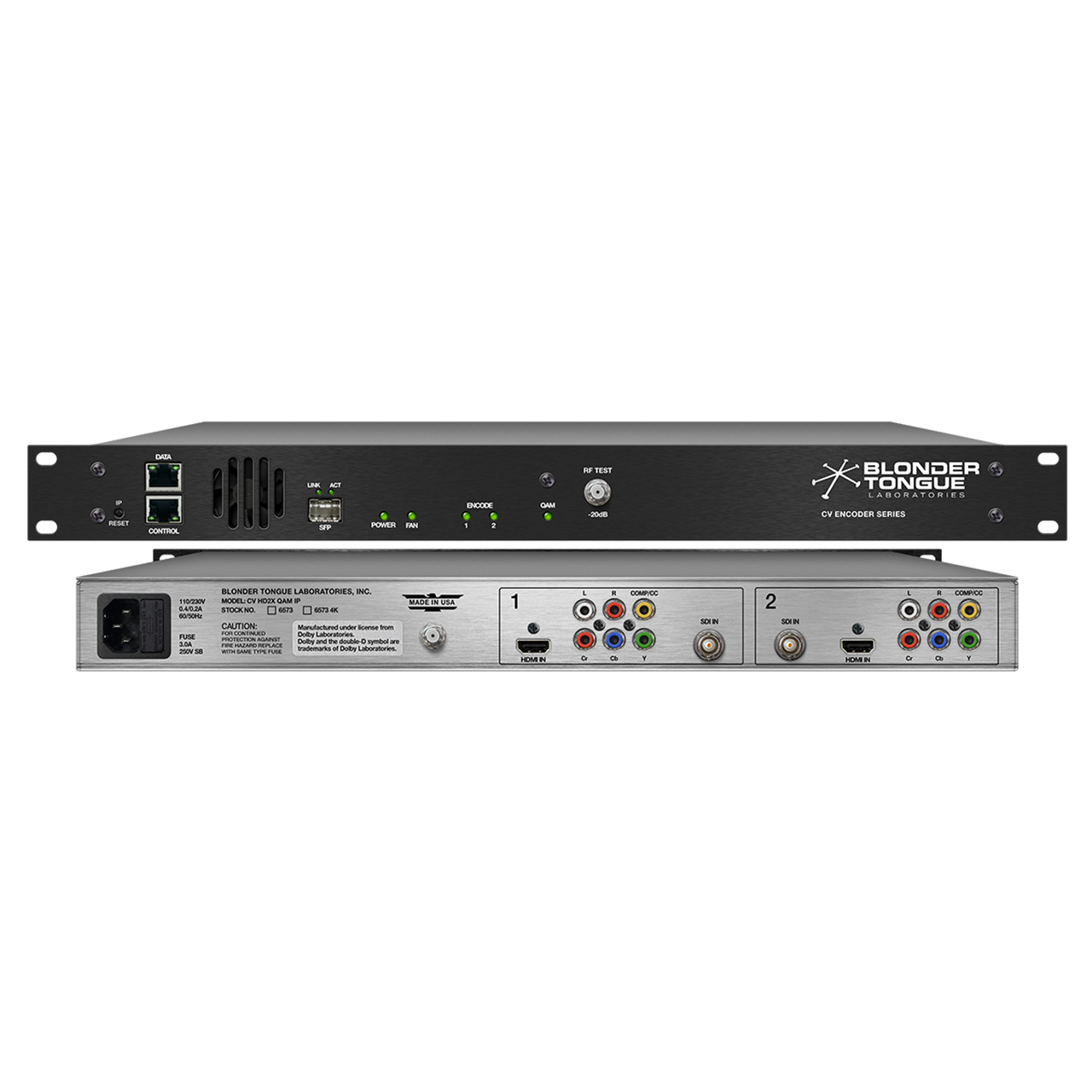

Blonder Tongue HCV HD2X QAM/IP 1RU 2-Channel Video Encoder with QAM & IP/SRT Streaming - HEVC/H.264 & MPEG-2

ITEM #: BT-CV-HD2X-QAMIP MFG #: 6573

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blonder Tongue
Free Shipping with $49 Minimum Order

Our Price:

$4,472.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

6573 - Overview

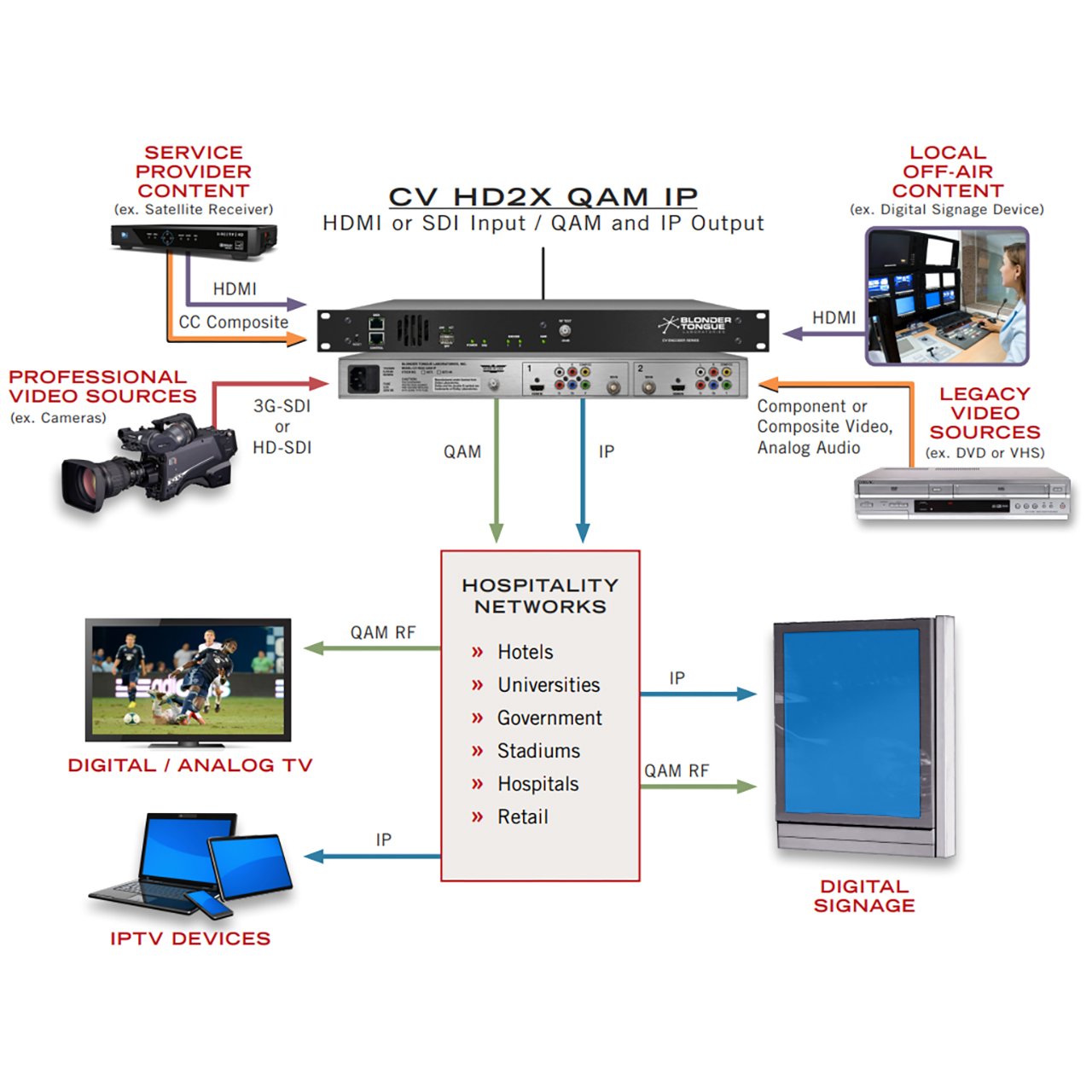

The Blonder Tongue CV HD2X QAM IP advanced video encoder accepts two programs from any two sources, including two files for streaming, or via HDMI, 3G/HD-SDI, Component, or Composite input connectors. QAM output channel supports multiplexing and PSIP creation for direct digital TV discovery, including digital signage applications.

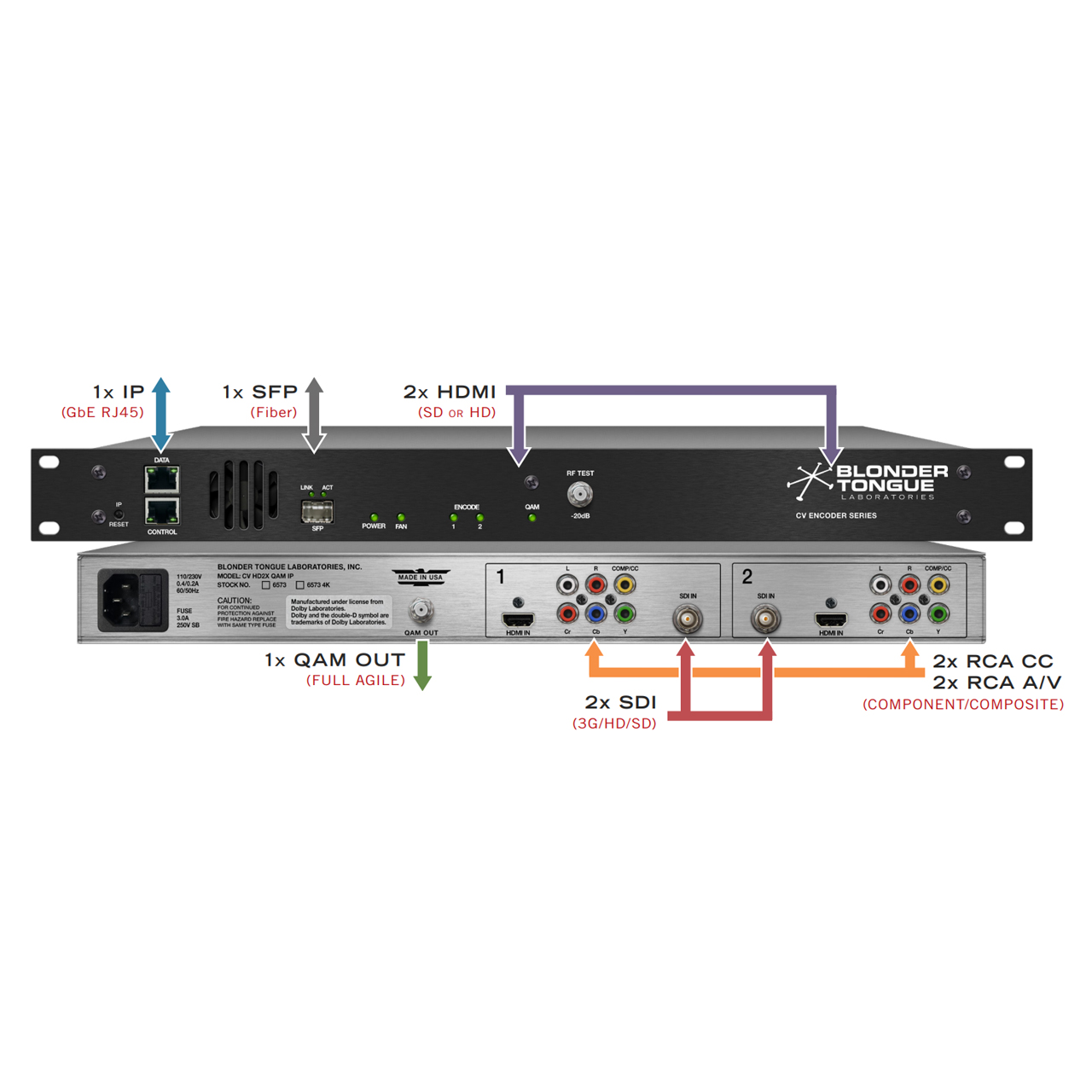

The CV HD2X QAM IP can also output two SRT or as Unicast/Multicast MPEG SPTS format. IP Output support via SFP Fiber adapter or RJ45 Ethernet with separate RJ45 for control port. Convenient IP Reset switch on front panel for admin support.

Input Formats:
• File Streaming (Transcode or Passthrough)
• SD/HD/3G-SDI
• HDMI
• Component/Composite
• Closed Captioning

Note: Output to QAM is not supported for certain video file input modes.

  • Features:

    • HEVC, H.264 and MPEG-2 in CBR, SPTS or MPTS
    • QAM Modulator with PSI Creation for Digital TV Display
    • 2x IP/SRT or Unicast/Multicast SPTS IP Outputs
    • Remote Setup, Management & Monitoring Capability
    • Appliance-based 24/7 x 365 High Reliability Design


  • Specifications:

    • Input Connector Type(s):
      - IP (RJ45)
      - HDMI v2.0b (Type A)
      - SDI (BNC)
      - Component (RCA)
      - Composite (RCA)
    • Input Video Codec(s):
      - MPEG-2
      - H.264 (AVC/MPEG-4)
      - H.265 (HEVC)
    • Input Video Format(s):
      - HDMI (no HDCP)
      - 3G-SDI
      - HD-SDI
      - Component
      - Composite
    • Input Audio Format(s):
      - L-PCM (PCM Raw)
      - Dolby® Digital AC3
      - AAC
      - MP3
    • IP Transport Stream: SPTS
    • IP Protocol(s):
      - UDP
      - RTP
      - SRT
    • Output Connector Type(s):
      - IP (RJ45)
      - QAM (F-Type)
      - Fiber Optic (SFP)
    • Output Video Format(s):
      - IP (clear)
      - IP (encrypted)
      - QAM (clear)
    • Output Video Codec(s):
      - MPEG-2
      - H.264 (AVC/MPEG-4)
      - H.265 (HEVC)
    • Output Audio Format(s):
      - AAC
      - Dolby® Digital AC3
    • Weight: 10lbs
    • Dimensions: 8.5" x 19" x 1.75"


  • Item Includes:

    • 1x CV HD2X QAM IP Encoder
    • 1x Power Cord with IEC C13 line socket and 3-pin type "B" NEMA 5 plug
