Contemporary Research QIP-HDMI 2 Dual HDMI IPTV Encoder with H.264 - Composite / Analog Stereo & SPDIF Inputs

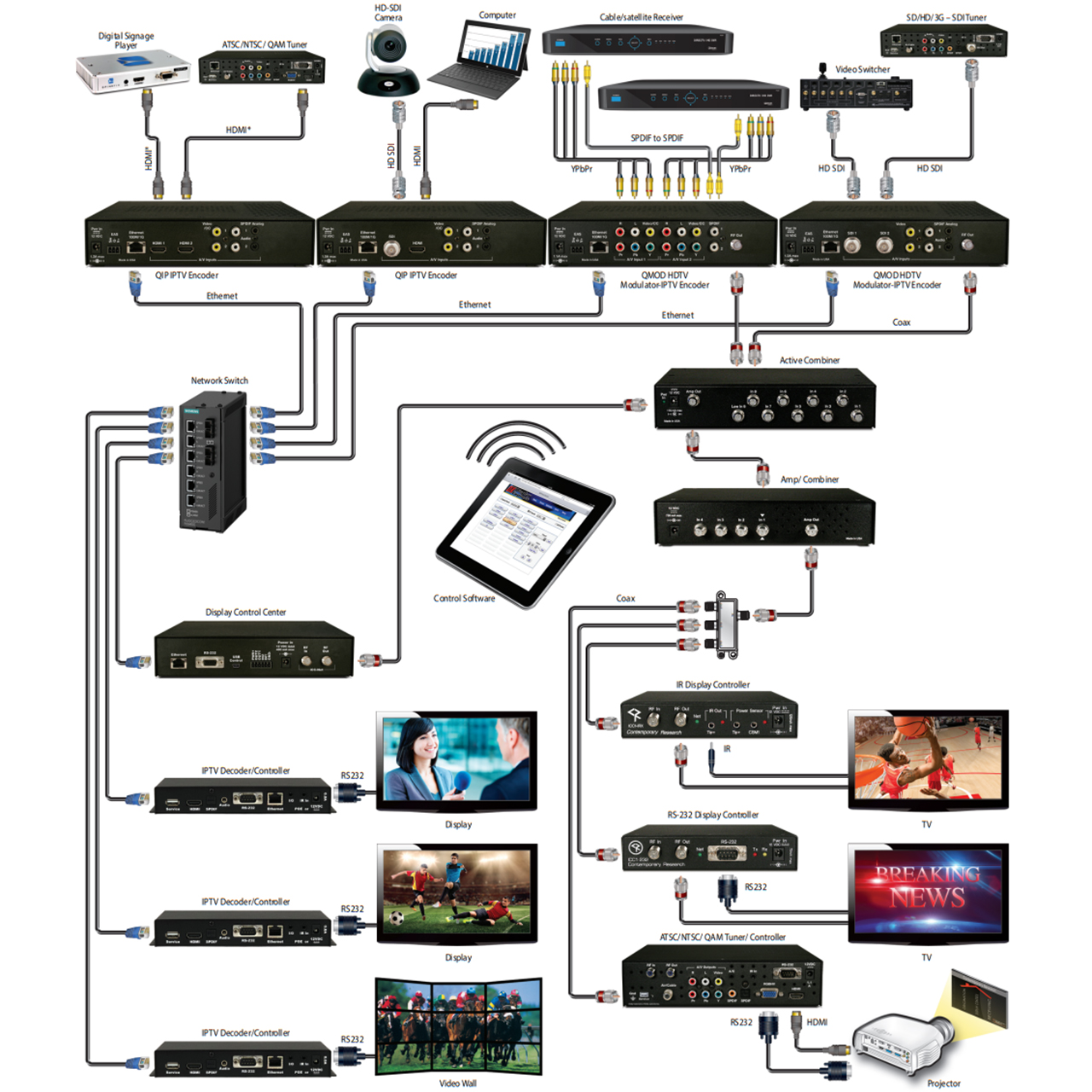

QIP-HDMI2 - Overview

• Features:

  • 2x HDMI inputs (non-HDCP), 480p to 1080p, embedded PCM audio, pass-through AC-3
  • 2x Composite/CC video inputs for encoding, captioning, or EAS use
  • 2x analog Stereo and two SPDIF coax audio inputs
  • Creates up to two high-definition IPTV streams, encoded as H.264 or MPEG-2
  • Converts stereo and PCM to AC-3, AAC, or MP12, passes through AC-3
  • Can create SAP dual-language audio for each program
  • Accepts 608/708 embedded captioning or Line 21 captioning from composite video inputs
  • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a scaled or native resolution
  • Dual-program operation is standard
  • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
  • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
  • Fan cooled, with adjustable speed
  • Saves power and rack space using efficient design
  • Meets RoHS safety and California energy standards


• Specifications:

  Scaling
  • Dual hardware scalers
  • Accepts 1080p - 480i and common PC graphics resolutions, 29.97 - 60 Hz US and PAL refresh rates
  • Edge to edge presentation with zoom, shrink and X/Y axis positioning
  • Auto-sync or scales to fixed output resolution

    Encoding
  • H.264 or MPEG-2 for HD, MP@ML for SD, 1080i, 720p, 576i, 480p, and 480i output resolution
  • MPEG-2 Video Encoding bitrate 10-20 Mbps, HD, 4-8 Mps 480i, or variable bitrate
  • H.264 Video Encoding bitrate 5-10 Mbps, HD, 2-4 Mps 480i, or variable bitrate
  • PCM or analog audio outputs MPEG-1 Layer2 or AAC
  • Pass-through AC-3 audio

    Front Panel
  • Select and directional buttons for menu setup
  • Menu LCD, Blue with 2 lines of 20 white characters each

    Back Panel
  • Power:
    - 2.1mm coaxial jack (inside center conductor positive)
    - 1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
  • EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
  • Ethernet: RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page
  • HDMI: Two (non-HDCP), up to 1080p, embedded PCM and AC-3 audio
  • Composite Video/CC Inputs: RCA female NTSC/PAL (480i/576i), 29.97 Hz, supplies line 21 Captioning
  • Audio Inputs:
    - Two coax SPDIF digital audio inputs
    - Analog L and R: 2 stereo mini jacks
    - Inputs assignable to video inputs

    Physical
  • Dimensions: 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
  • Weight: 1.5 lbs [0.68kg]
  • Temperature: +32° to 122° F operating temperature
  • Rack mounting for one or two units side-by-side with included RKU or optional (RK1, RK2EZ)
  • For HRF Half-Racks, use the RK2EZ kit to mount each tuner
  • Fan cooled, with variable speed


• Item Includes:

  • 1x 5403-001, PS12-2 Power Supply
  • 2x 5061-007, 3.5mm to RCA Audio Cables
  • 1x 5008-025, Universal Rack Mount Kit
