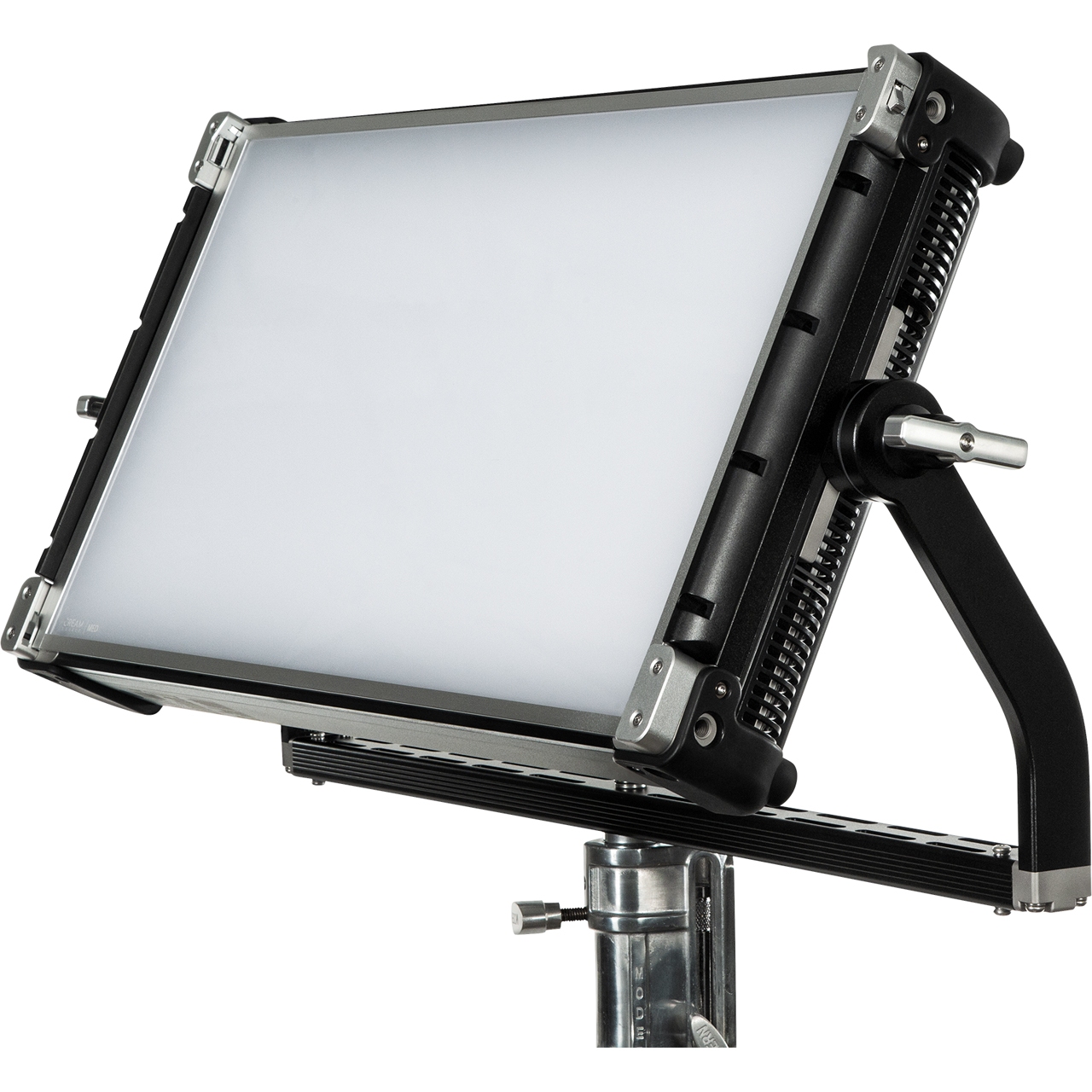

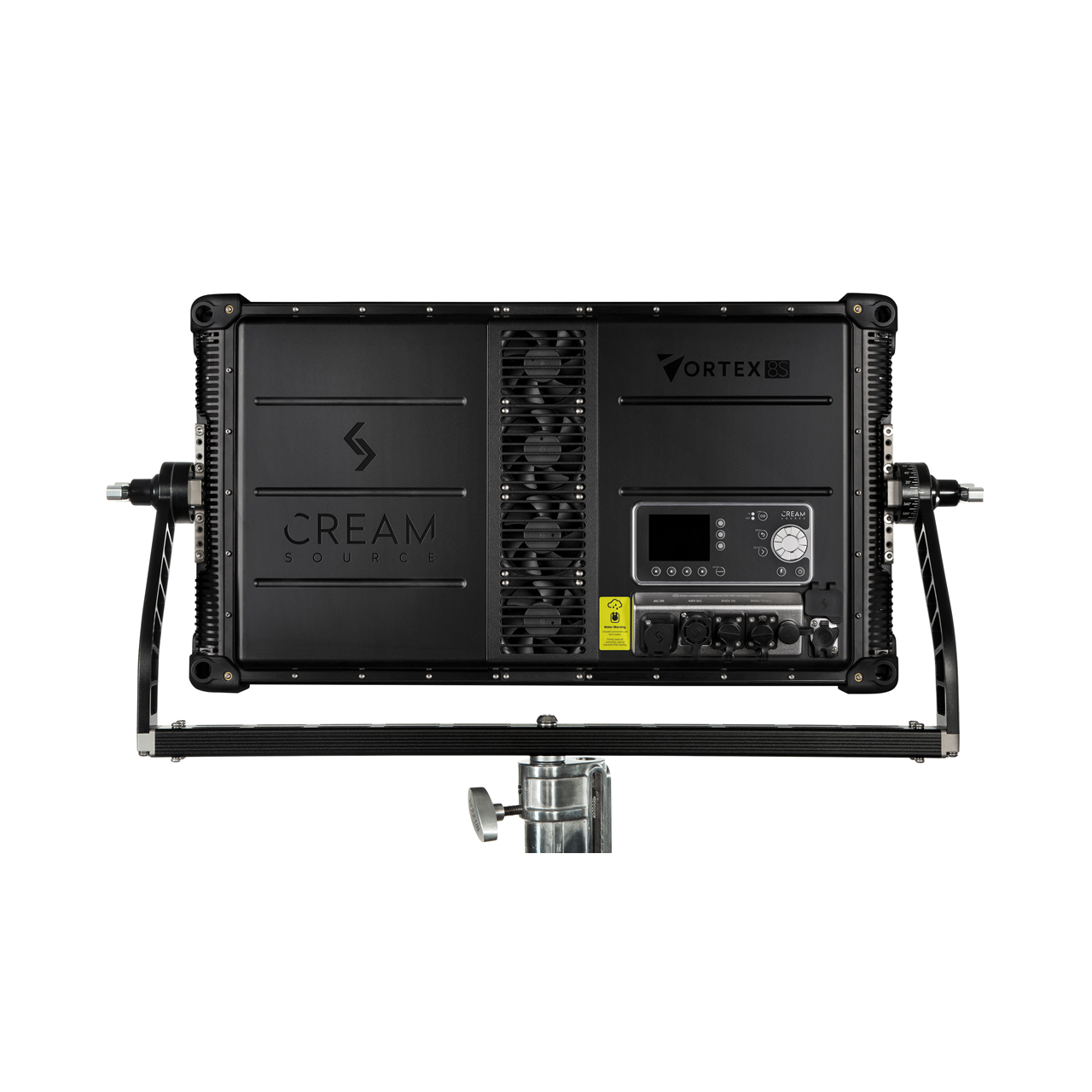

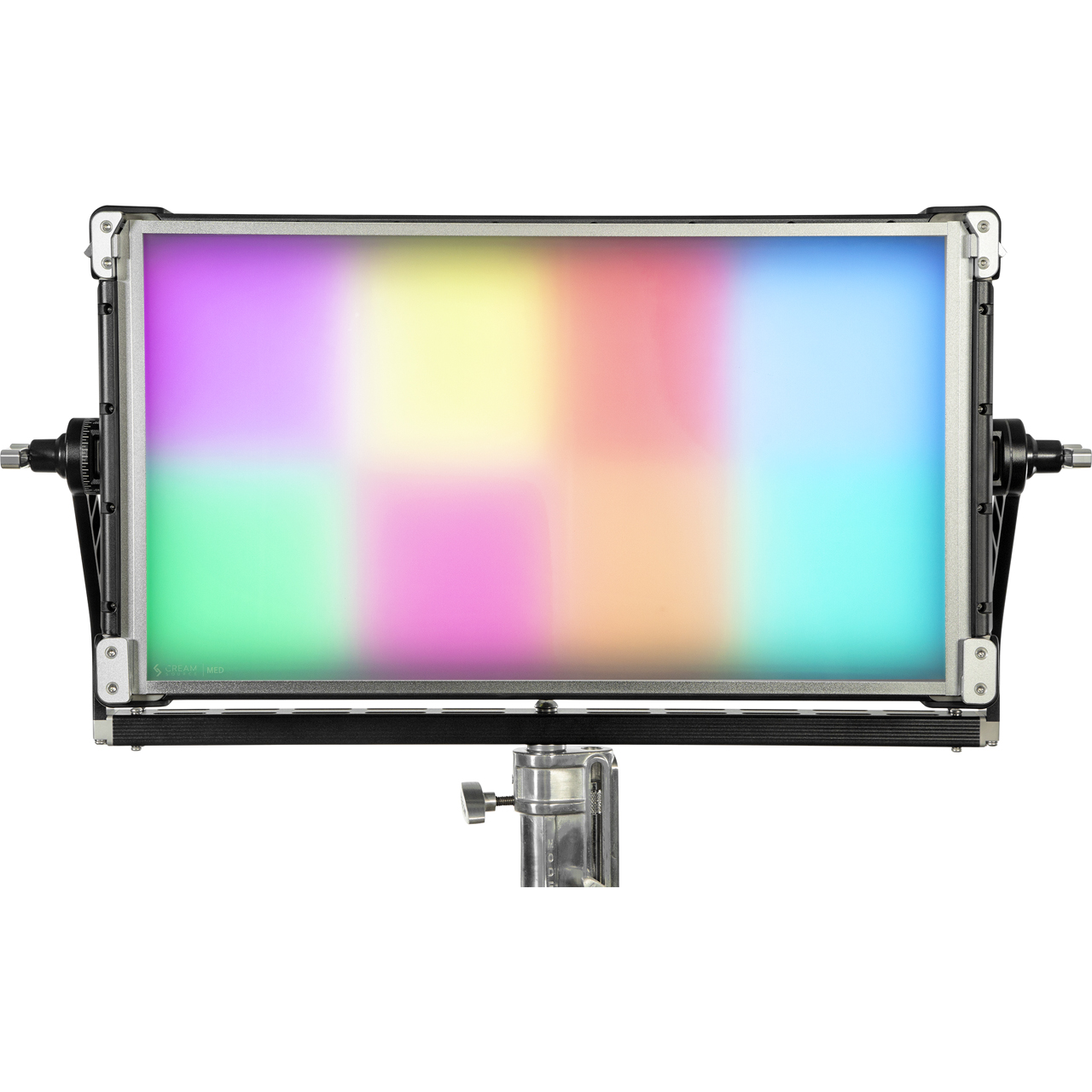

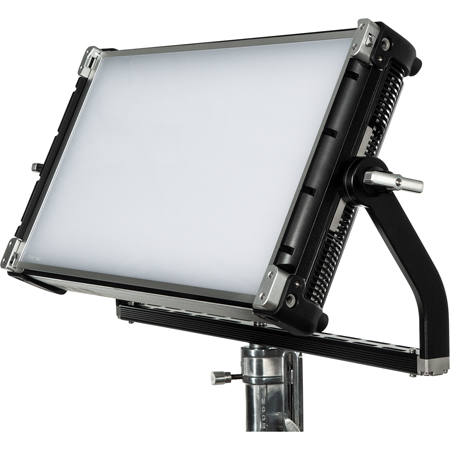

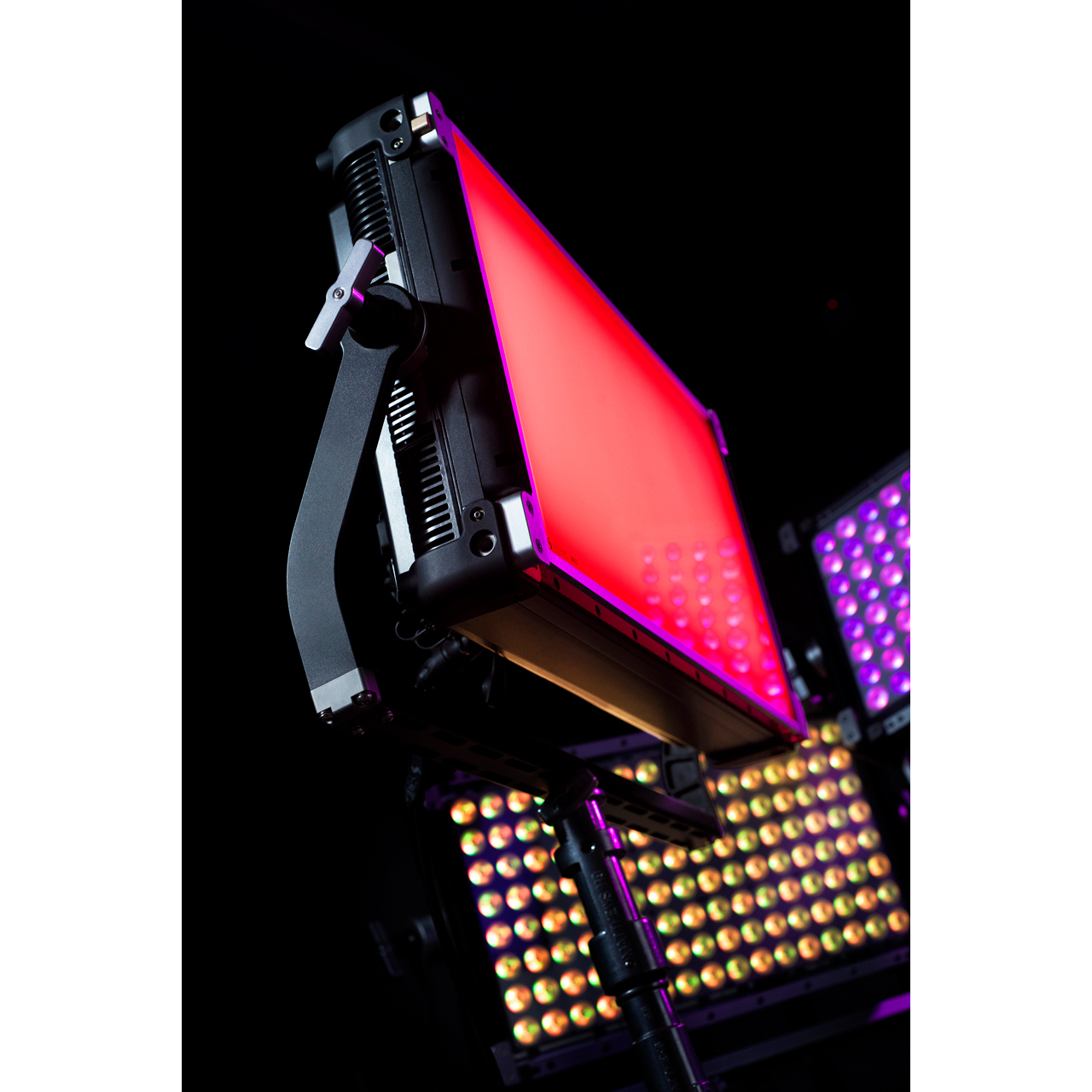

Creamsource K-CSV-8S-ESS Vortex8 Soft 650W 2x1 RGBW LED Light Panel with Yoke - 2200K to 15000K Range

ITEM #: CRM-K-V-8S-ESS MFG #: K-CSV-8S-ESS

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSV-8S-ESS - Overview

The Creamsource Vortex8 Soft K-CSV-8S-ESS is a 2x1 LED lighting system that offers unparalleled versatility and superior quality for professionals. As the softer counterpart to the Vortex8 hard panel, this LED light is engineered with the same exceptional build quality and intuitive user interface. It seamlessly integrates an advanced RRGBBW color engine, power supply, and antennas into a sleek, robust design.

The Vortex8 Soft boasts a 110-degree beam that generates a remarkable 58,200 lumens and 2,340 lux at 3 meters (5600K, Open Face). It offers a comprehensive CCT range from 2200k to 15000k and features eight independently controllable zones for maximum flexibility.

This dedicated soft source combines efficiency and performance with its powerful 650W output, bathing your space in beautiful full-spectrum soft light. It's the perfect lighting solution for both space-constrained studio setups and challenging outdoor broadcasts.

The Vortex8 Soft's 48V DC input ensures a smooth transition to battery power when you need to move off-grid. Constructed to withstand the rigors of any shooting environment, this LED light is resilient and dependable, with an IP65 rating that guarantees performance even in less-than-ideal weather conditions.

Powered by the innovative CreamOS, the Vortex8 Soft integrates seamlessly with other Vortex products for consistent control and easy incorporation into your existing setup.

The Vortex8 Soft is designed to endure all weather conditions with its IP65 water resistance rating. It features an ultra-quiet fan-based system with optimal thermal efficiency. The fan system and heatsink placement allow for the core electronics to be sealed and isolated, ensuring longevity. Only premium waterproof connectors are used in this series, allowing all functions to operate flawlessly in all weather conditions.

The new Vortex Series is built on a new software architecture, supporting a host of new features, protocols, and connectivity mediums, making the future evolution of CreamOS incredibly exciting. The Vortex8 Soft pushes the boundaries of creativity with the ability to control and map eight zones. This new feature set is wrapped into a new user interface, enhancing the user experience and making it a must-have for professionals seeking a versatile and high-quality lighting solution.

  • Features:

    • Photometrics Open Face 110 Degree Beam
    • Advanced special effects, for frame rates up to 5,000fps
    • Build small two units or large arrays- limited only by your ability to lift the rig
    • A premium high-powered 2x1 LED fixture designed for heavy use in all conditions
    • IP65 water-resistant with a built-in power supply and all the advanced connectivity for professional use
    • Optimized for a range of applications with RRGBBW, a wide CCT range, and high speed modes for shooting up to 5000fps
    • Sync Input for Triggering and Syncing to Camera Shutter

  • Specifications:

      Physical
    • Dimensions:
      - Excluding Yoke: 27.2 x 15 x 4.8" (690 x 380 x 121mm)
      - Including Yoke: 32.7 x 21.7 x 6.4" (831 x 551 x 164mm)
    • Weight:
      - Excluding Yoke: 30.9lbs (14kg)
      - Including Yoke: 35.3lbs (16kg)
    • Fixture Mount:
      - 1x 1-1/8" Stud (Via Yoke Mount)
      - 8x 3/8"-16 Female Thread
      - Proprietary

      Light Fixture
    • Number of Heads/Lights: 1x
    • Fixture Type: LED Light Panel
    • Color Accuracy Standard: CRI/TLCI 95
    • Color Temperature: RGB, Daylight, Tungsten
    • Color Temperature Range: 2200-15000K
    • Display: LCD
    • Beam Angle: 110° (Half Peak Angle)
    • Cooling System: Fan
    • Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode
    • Water Resistance/IP Rating: IP65

      Photometrics
    • 3200K:
      - 1811 fc/19,500 Lux at 3.3'/1m
      - 222 fc/2400 Lux at 9.8'/3m
      - 85 fc/920 Lux at 16.4'/5m
    • 5600K:
      - 1774 fc/19,100 Lux at 3.3'/1m
      - 217 fc/2340 Lux at 9.8'/3m
      - 83 fc/900 Lux at 16.4'/5m

      Power
    • Power Source: AC/DC
    • Power Consumption: 650W
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 6.6 A
    • DC Input Power: 48 VDC at 13.75 A

      Inputs and Outputs
    • 1x powerCON TRUE1 AC Power Input
    • 1x Unspecified Power Input (48 VDC at 13.75 A)
    • 1x XLR 5-Pin DMX Input
    • 1x XLR 5-Pin DMX Output
    • 1x etherCON/RJ45 Network Input
    • 1x USB-A Service Input
    • 1x Unspecified Remote Input

  • Item Includes:

    • 1x Vortex8 Soft LED Light Panel
    • 1x Yoke
    • 1x Flat Diffuser Panel
    • 1x Power Cable

  • Warranty:

    • 3-Year Limited Warranty
