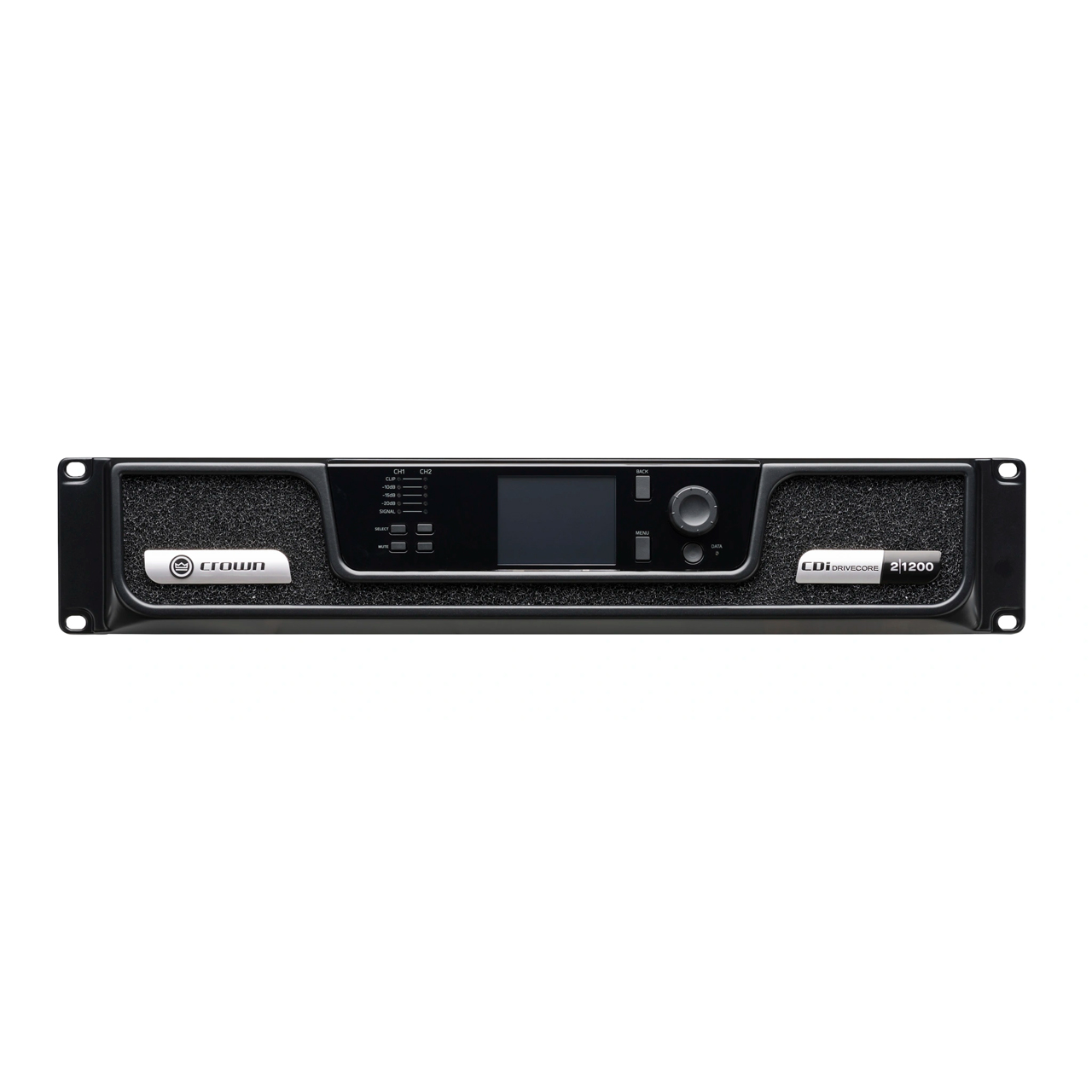

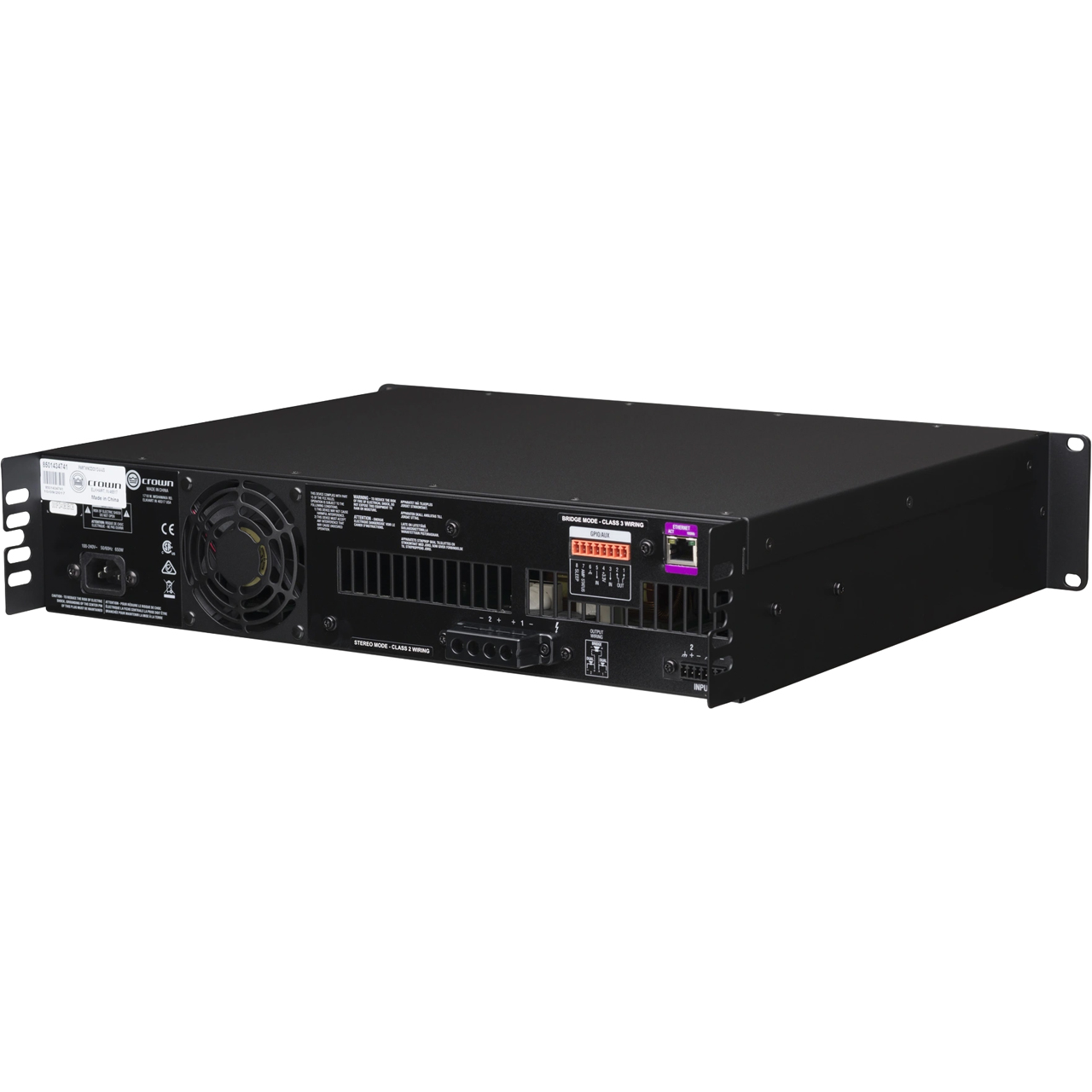

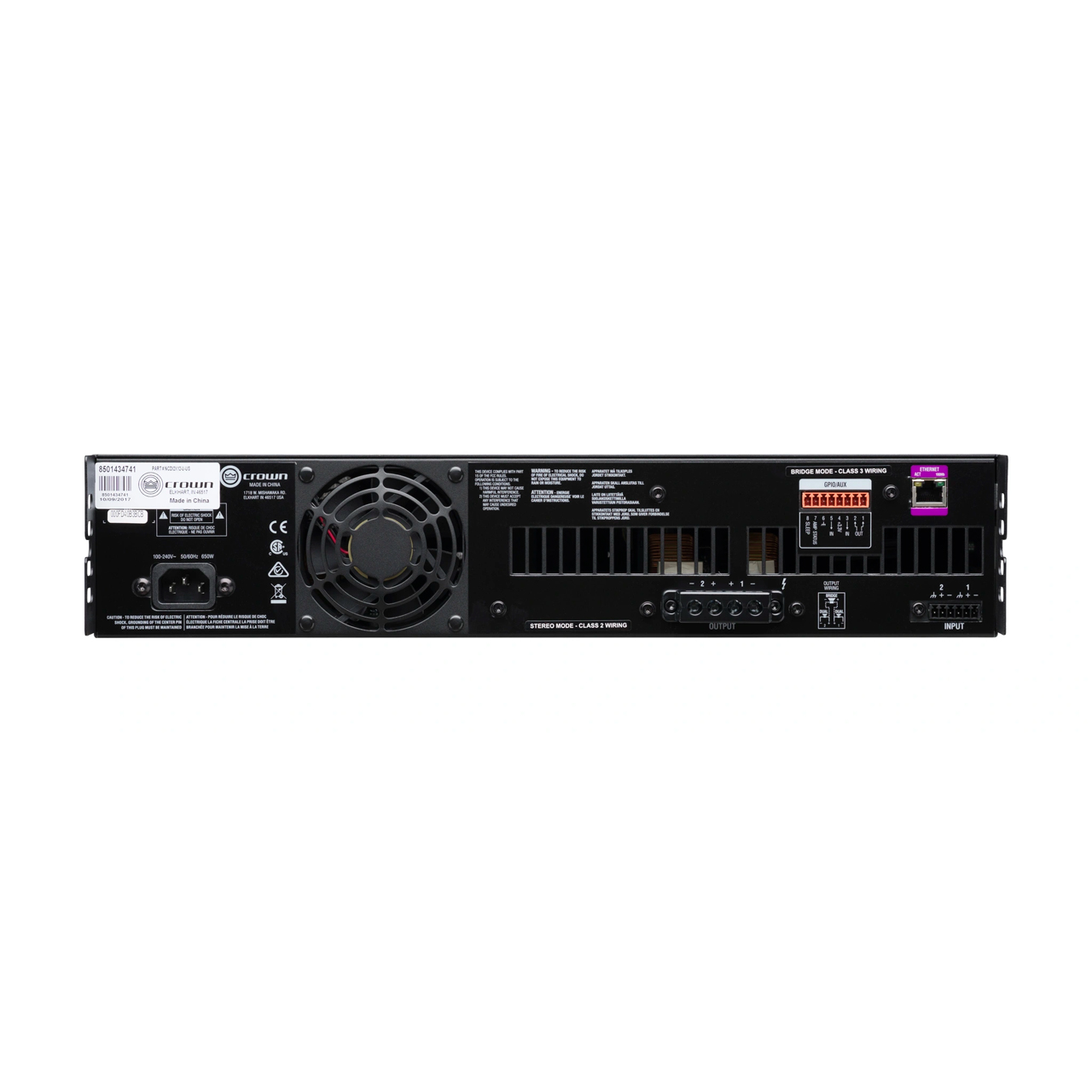

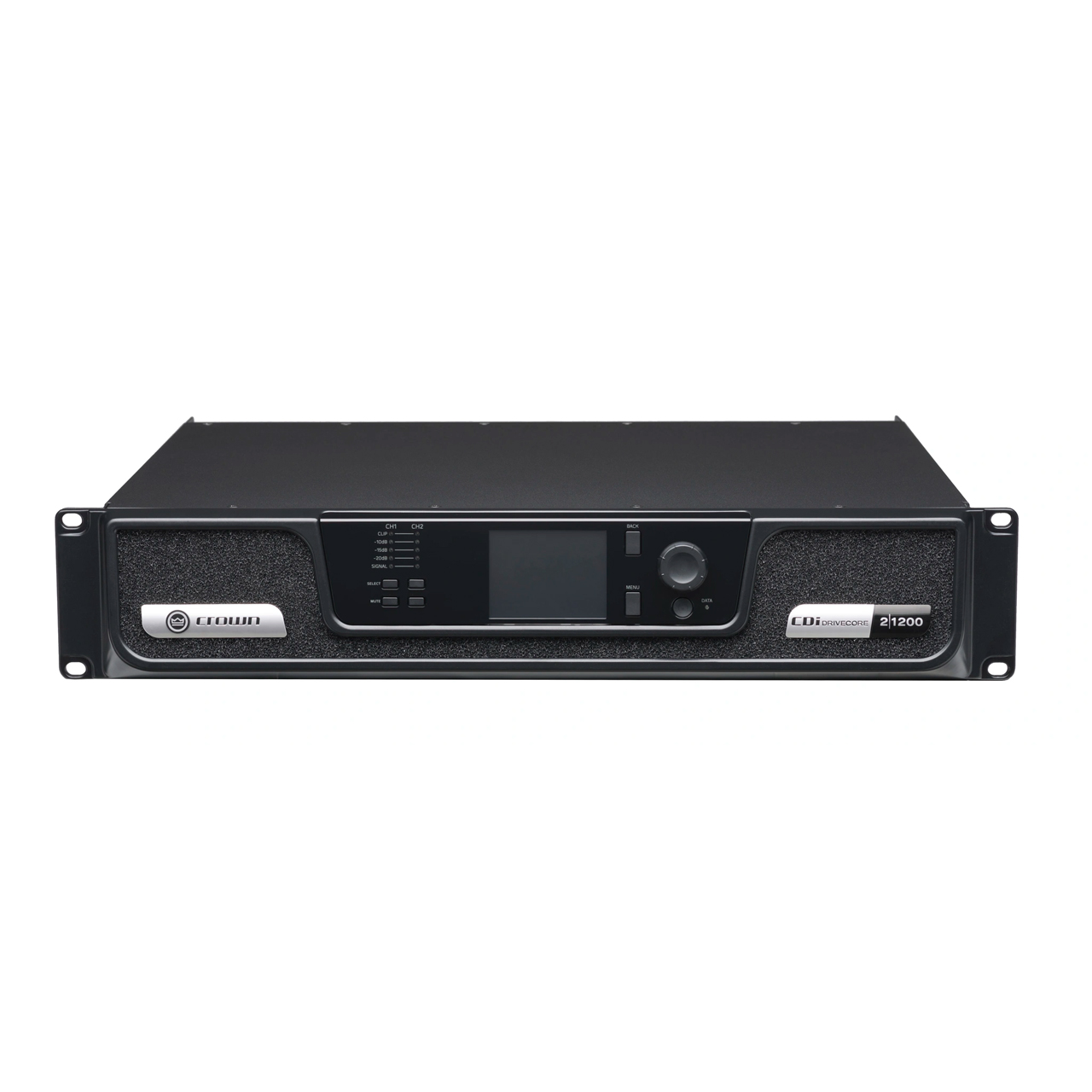

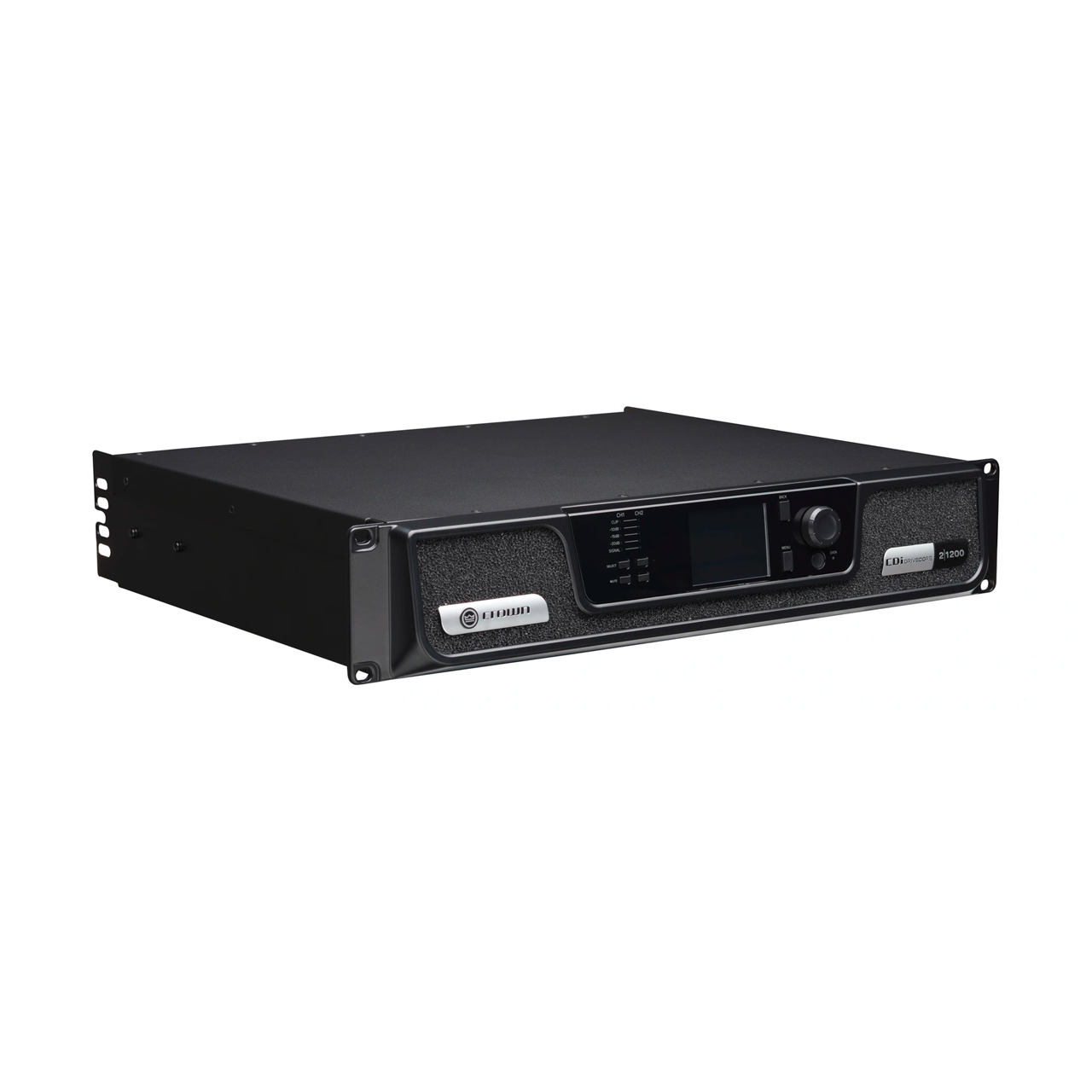

Crown CDi2x1200 DriveCore Series 2 Channel High Level DSP Amplifier with 1200W Per Output Channel

ITEM #: CROWN-CDI2X1200 MFG #: CDI2X1200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Crown International
Free Shipping with $49 Minimum Order

Our Price:

$3,456.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

CDI2X1200 - Overview

The Crown International CDi 2|1200 is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from Crown International's flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

  • Features:

    • DriveCore Technology: Crown's proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.
    • Network Control and Monitoring: Through HARMAN's HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.
    • DSP: On-board Digital Signal Processor in each amplifier allows for custom configuration and includes these integrated features:
      - Input Router
      - Input Delay - Up to 1000ms
      - Input Parametric EQ - 8 band
      - Crossover
      - Output Parametric EQ - 8 band
      - Output Delay - Up to 100ms
      - LevelMAX Limiter
    • Direct Drive 70/100Vrms Output: Each output channel is capable of providing either 70V or 100V for high impedance applications.
    • Front-Panel Interface: Completely configure the amplifier using an intuitive front-panel interface.
    • GPIO/AUX Port: Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.
    • Pre-loaded Speaker Tunings: For quicker and easier setup and installation.


  • Specifications:

    • BLU Link: No
    • Channels: 2
    • Sensitivity (for full rated power at 8Ω): 0.7V RMS
    • Rated Power Output (per channel @ 4Ω): 1200W
    • Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8Ω: > 104dB
    • THD (full rated power, 20Hz - 20kHz): 0.35%
    • Damping Factor (20Hz - 100Hz): > 1000
    • Frequency Response (8Ω, 20Hz - 20kHz): ±0.25dB
    • Crosstalk (below rated power) 20Hz - 1kHz: > 80dB
    • Input Impedance (nominally balanced, nominally unbalanced):
      - 20kΩ balanced
      - 10kΩ unbalanced
    • Dimensions (WxHxD)(depth not including 1.3" front panel protrusion): 19" x 3.5" x 14.71"
    • Weight: 17.2lbs (7.8kg)
    • Power Supply Connector: 15A IEC connector, 100V - 240V


  • Item Includes:

    • 1x CDi 2|1200


  • Warranty:

    • 3 Year Limited Warranty
