Core SWX HLX-150MXAG Helix9max 14.4v/28.8v - 147wh 3-Stud Camera Battery Pack with LCD/ptap/USB & 3-Stud - 20A Max Load


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    HLX-150MXAG - Overview

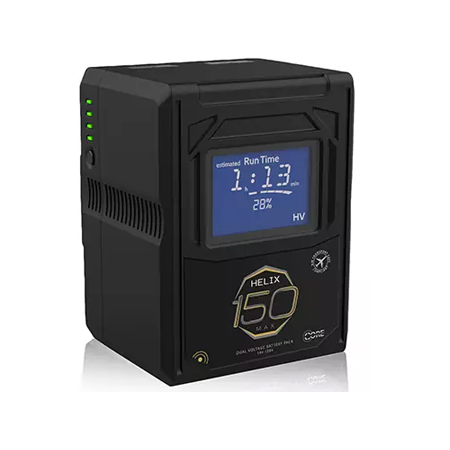

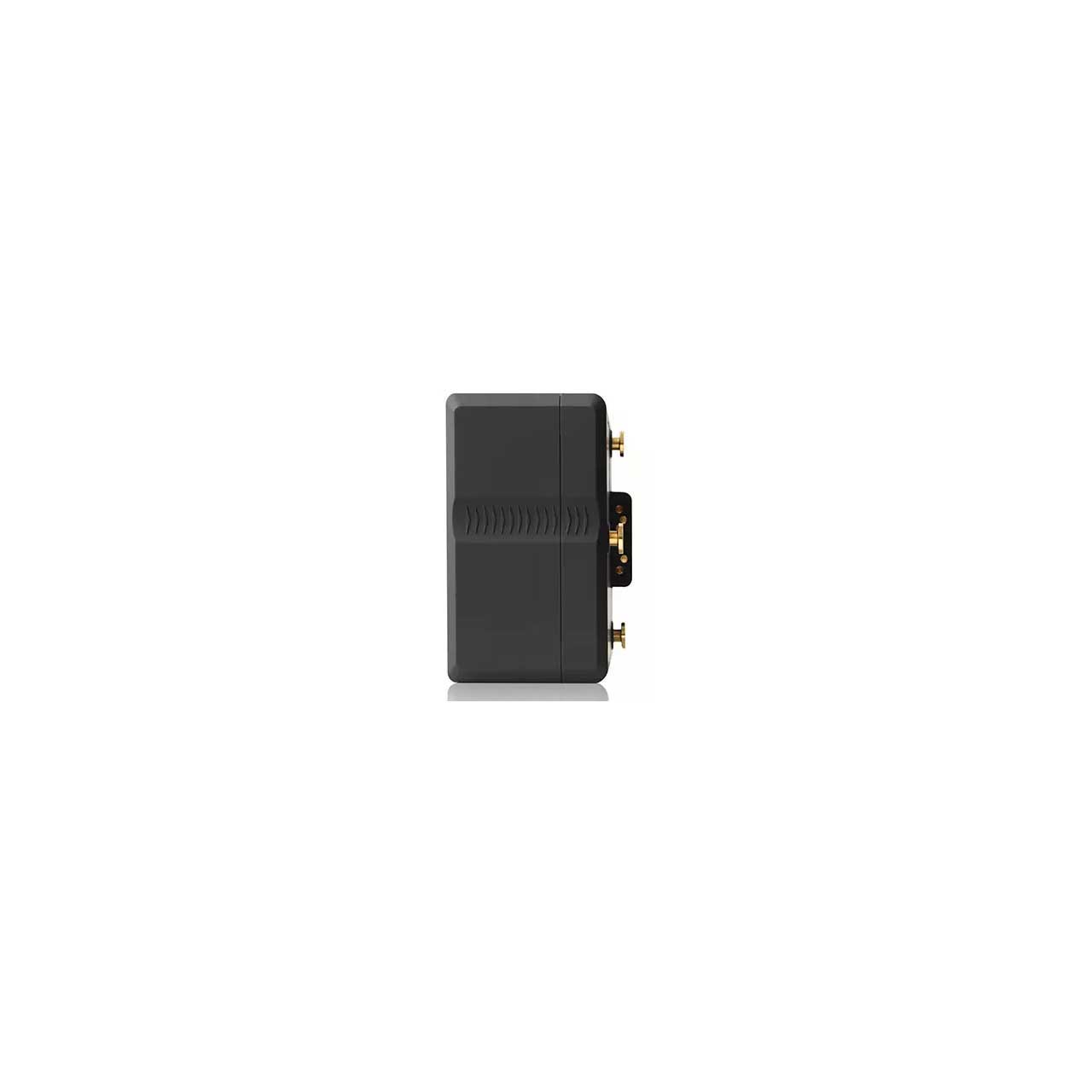

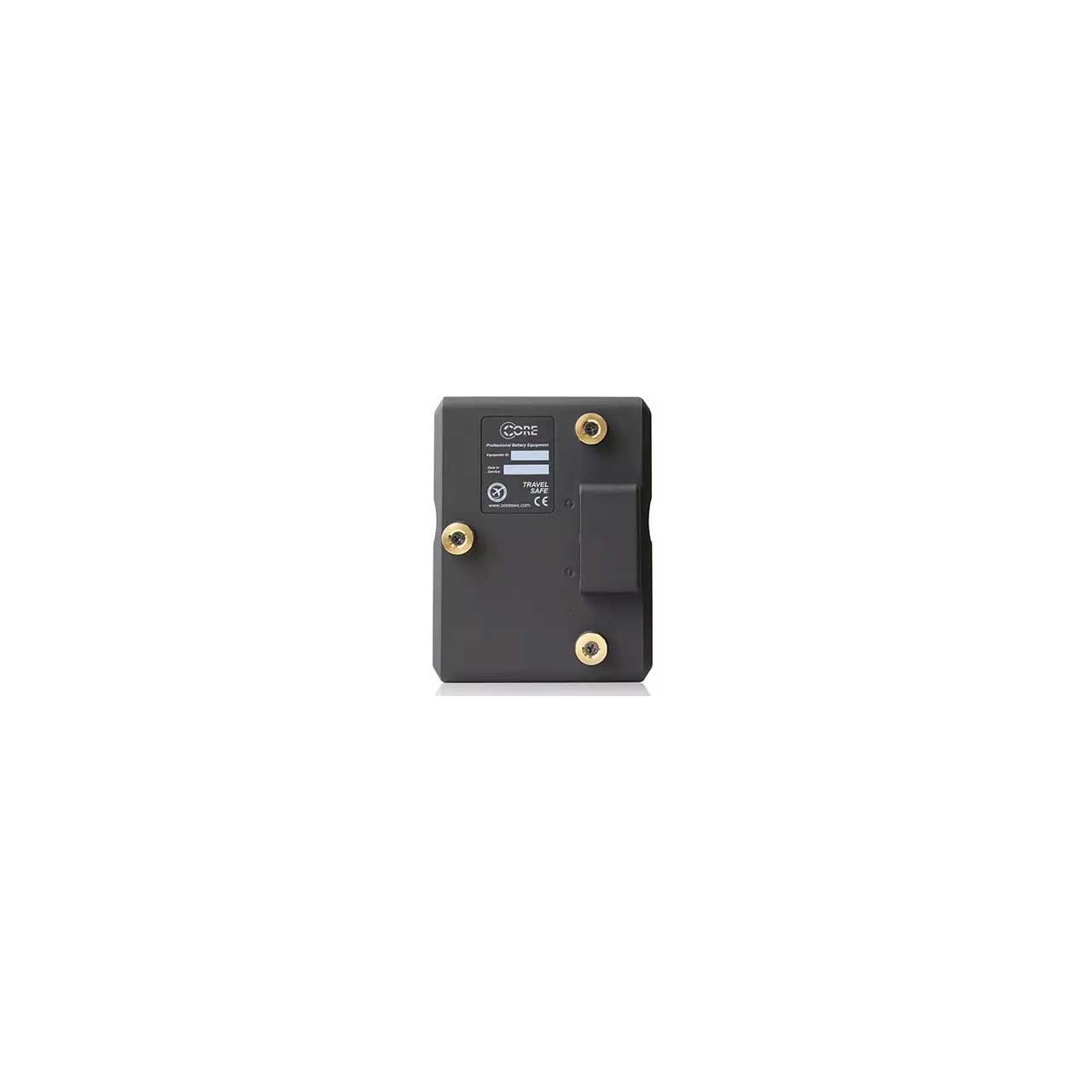

    Core SWX HLX-150MXAG is a Helix9max 14.4v/28.8v, 147wh 3-stud camera battery pack with LCD/ptap/USB & 3-Stud with a 20A Max load.

    Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.

    Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix's unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.

    Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 148wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.

    • Specifications:

      • Capacity: 10Ah, 148wh
      • Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
      • Size: 3.54" x 4.65"x 2.72"
      • Weight: 2.2lbs.
      • Load: 20A @ 16.8v, 10A @ 33.6v
    • GTIN:
