Core SWX 15mm Rail Mount Cheese Plate with Hotswap V Mount Battery Adapter with 18in 6p RED LEMO


free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    RM-GPTS-DSMC2 - Overview

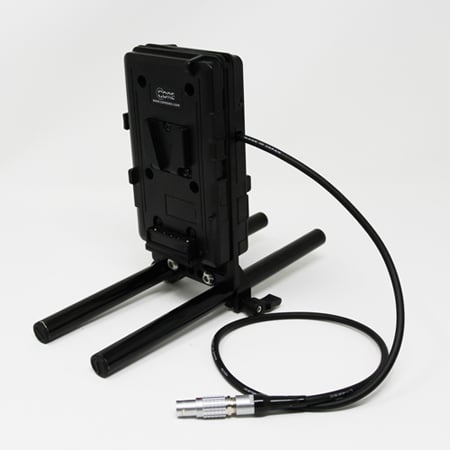

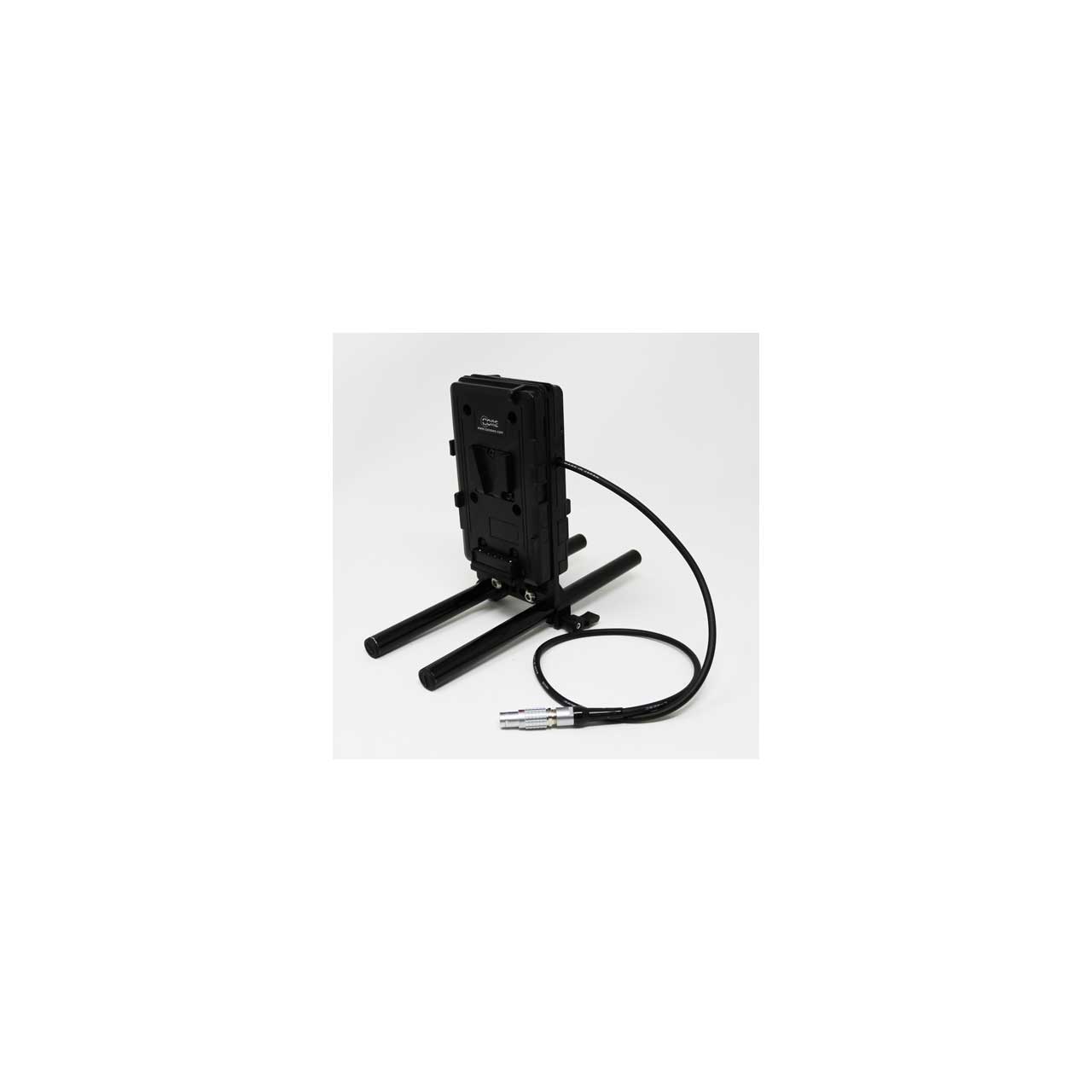

    The Core SWX RM-GPTS-DSMC2 is a 15mm rod mount bracket with dual v-mount battery plates allow for continuous battery operation and hot swapping packs on the fly. By having two v-mount battery packs mounted you can easily remove the depleted battery while the leaving the other battery connected so that there is no down time.

    The bracket is compatible with all v-mount battery packs to provide a secure mounting surface for your rig setup. The system is terminated with a 18" 6-pin RED LEMO to power your RED DSMC2 as well as one P-Tap output for powering accessories.

    The cheese plate features many 1/4-20 thread mounting points for attaching devices, arms, etc.

    Please Note: RODS NOT included

    • Features:

      • Please Note: RODS NOT included
    • Specifications:

      • Mount Input: DC 11-17v
      • Cabled Output: 11-17vdc Unregulated Parallel
      • P-Tap Output: 11-17vdc Unregulated
      • Dimensions: 7 x 4.25 x 2.25"
      • Weight: 1.2Lbs
    • GTIN:
