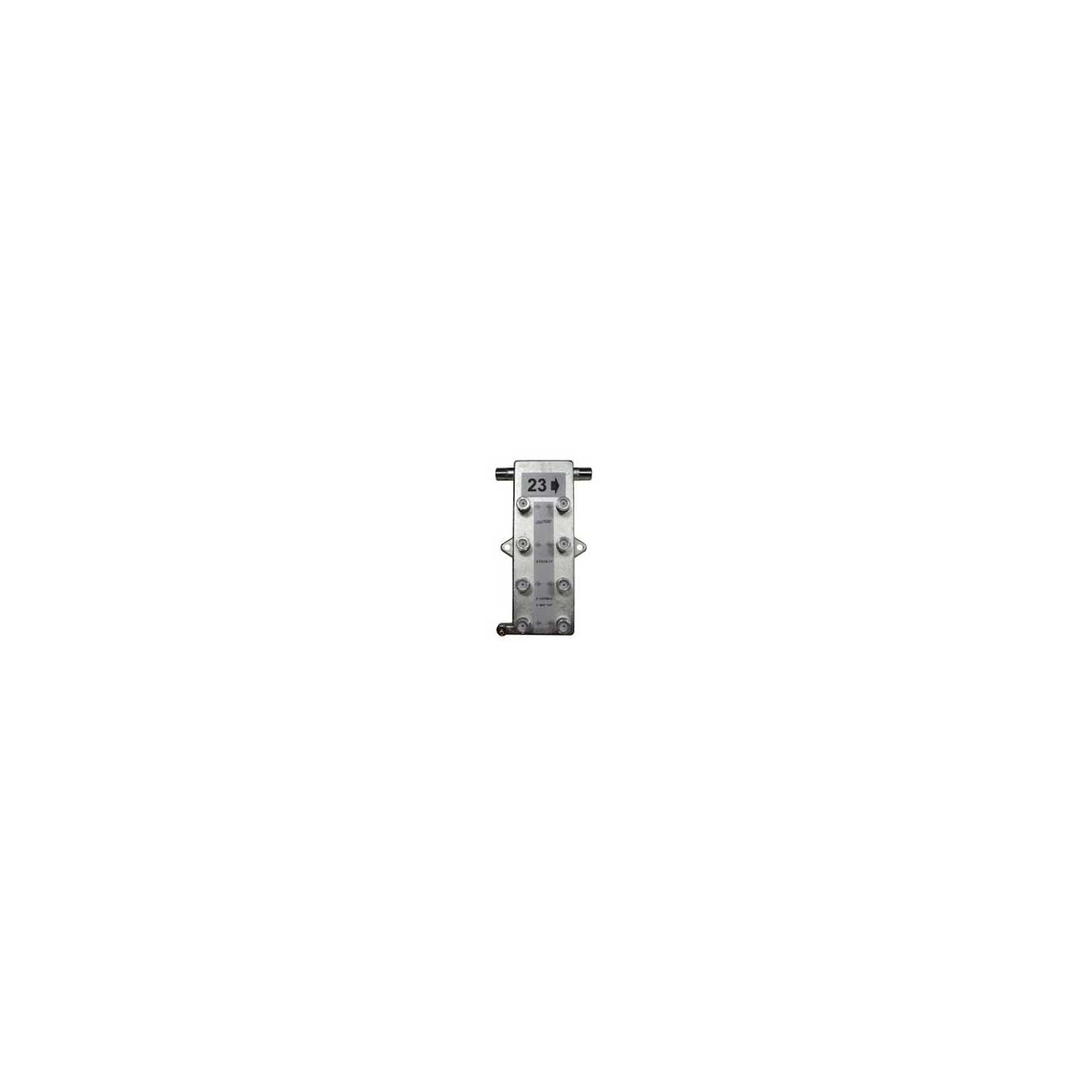

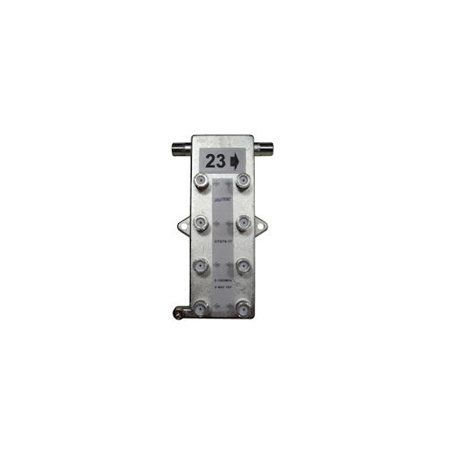

Cabletronix CTGT4-16 23dB Coaxial Tap with Eight Ports

CTGT8-23 - Overview

• Features:

  • Solder back for excellent shielding
  • 5-1,000 MHz Frequency range
  • Integrated grounding screw
  • Wall mounting screws included
  • High Isolation


• Specifications:

  • Insertion Loss:
  • 5-50 MHz: 0.8 dB
  • 50-450 MHz: 1.0 dB
  • 450-750 MHz: 1.2 dB
  • 750-1000 MHz: 1.4 dB

    Return Loss (In/Out):
  • 5-10 MHz: 18 dB
  • 10-50 MHz: 20 dB
  • 50-450 MHz: 20 dB
  • 450-750 MHz: 18 dB
  • 750-1000 MHz: 16 dB

    Return Loss (Tap):
  • 5-50 MHz: 18 dB
  • 50-750 MHz: 20 dB
  • 750-1000 MHz: 18 dB

    Isolation (Tap/Tap):
  • 5-50 MHz: 22 dB
  • 50-450 MHz: 26 dB
  • 450-750 MHz: 25 dB
  • 750-1000 MHz: 22 dB

    Isolation (Out/Tap):
  • 5-10 MHz: 36 dB
  • 10-50 MHz: 36 dB
  • 50-450 MHz: 33 dB
  • 450-750 MHz: 30 dB
  • 750-1000 MHz: 26 dB

    Tap Tolerance (+/-):
  • 5-450 MHz: 1.0 dB
  • 450-750 MHz: 1.5 dB
  • 750-1000 MHz: 2.0 dB
