Belden 1505A CMR Rated 6G-SDI RG59 75 Ohm Digital Coaxial Video Cable 20AWG - Black - Per Foot

ITEM #: BL-1505A MFG #: BL-1505A

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$0.97

Our Price:

$0.65

Availability: In Stock
iAvailability Description Popup


    BL-1505A - Overview

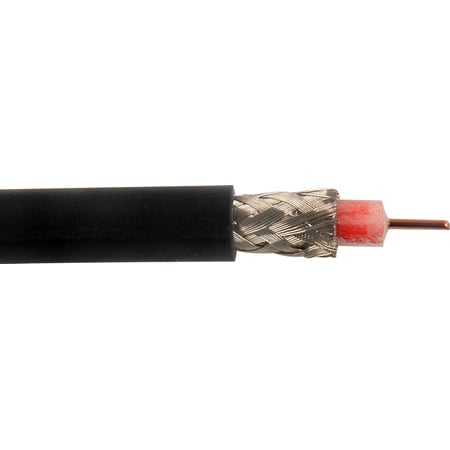

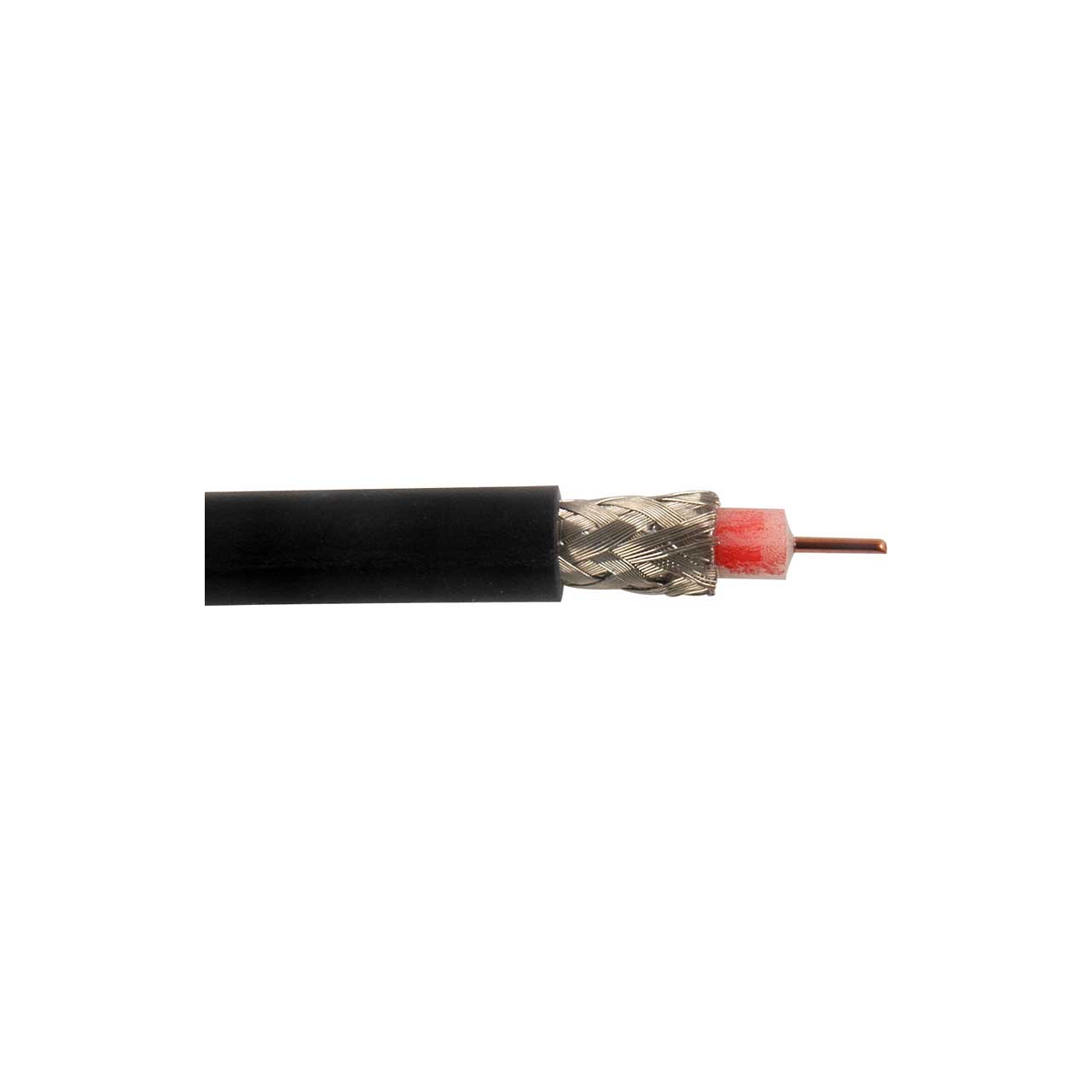

    Belden 1505A is a 75 Ohm 6G-SDI Coaxial RG-59 Video Cable, 20 AWG with a Solid Bare Copper Conductor, PE Insulation, Foil plus 95% Tinned Copper Braid Shield in a CMR rated PVC Jacket.

    Belden’s premium multi-channel 6D-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

    Applications
    Digital and Analog Video
    6 Gb/s UHDTV
    HD-SDI 1080p
    Broadcast Trucks
    ENG News Set-ups
    Electronic Field Production

    • Features:

      • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
      • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

    • Specifications:

      • Number of Coax: 1
      • RG Type: 59/U
      • Overall Cable Diameter (Nominal): 0.233 in (5.92 mm)Conductor Size AWG: 20
      • Conductor Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
      • Outer Shield Material Trade Name: Duofoil
      • Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Plenum (Y/N): N
      • Plenum Number: BL-1506A
      • Nom. Characteristic Impedance: 75 +/- 1.5O
      • Nom. Conductor DCR: 10 Ohm/1000ft
      • Nom. Outer Shield DCR: 3.8 Ohm/1000ft
      • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
      • Nom. Impedence: 75 Ohm
      • UL Voltage Rating: 300 V (CMR, CMG)
      • UL Rating Temp: 60°C
      • Operating Temp: -20°C to +75°C
      • Bulk Cable Weight: 31 lbs/1000ft
      • Max. Pull Tension: 52 lbs
      • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance
      • Sustainability: CA Prop 65
      • Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4

    • Item Includes:

      • 1505A Digital Coaxial Video Cable 20AWG - (per foot) Black

    • Warranty:

      • Limited 10 Year Warranty
