    CT-FAN3-QTRK-B - Overview

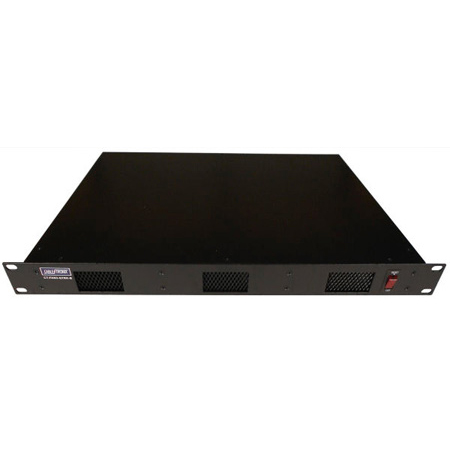

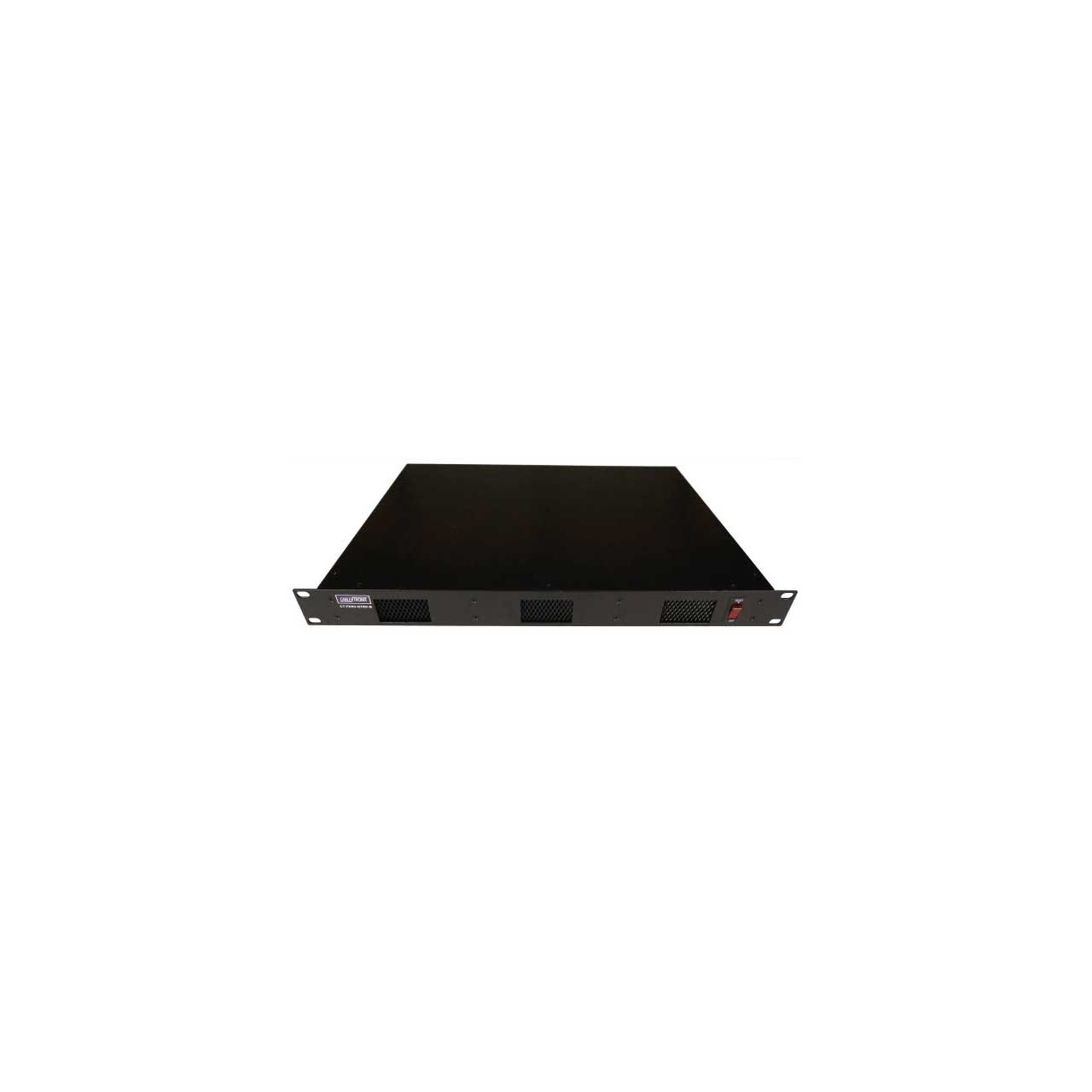

    19 Inch rack mountable high velocity triple fan blower. Draws air in from the bottom of the chassis and out the front of the chassis. 1RU (1.75 Inch) high, front panel power selector switch, ultra quiet model.

    The CT-FAN3-QTRK-B is a rack mountable ventilation system that incorporates 3 individual fans in a single rack space (1.75") housing. A single power output is attached to all three fans to minimize the number of outlets needed. The fans draw air in from the bottom of the chassis and out through the front of the chassis. The CT-FAN3-QTRK-B operates with a very low amount of noise while maintaining a high volume of air movement. Each individual fan rotates at 2300 revolutions per minute (+/- 10%) for a combined 6,900 RPM of air flow.

    The CT-FAN3-QTRK-B is highly recommended above any chassis mounted modulator set. One CT-FAN3-QTRK-B should be used
    with each bank of modulators even when the chassis is not completely full.

    • Features:

      • Three individual Ultra Quiet fans in 5.25" of rack space (3 rack spaces)
      • Reversible fans for air intake or exhaust
      • Low noise, High volume
      • Black powder coat finish
      • All three fans are tied into 1 AC plug
    • Specifications:

      • Fan number 3
      • AC input 110/120VAC
      • Rated power 17W
      • Operation voltage 90VAC -130VAC
      • Power cord length 3'
      • Maximum Capacity 276 CFM (Cubic Feet Per Minute)
      • Operating temperature 14°F - +176°F
      • Weight 4.85 Lbs.
      • Dimensions 19" W x 5.25" H x 3.8" D
