Channel Vision CVT-2/8WB 2 In x 8 Out Amplified Splitter

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

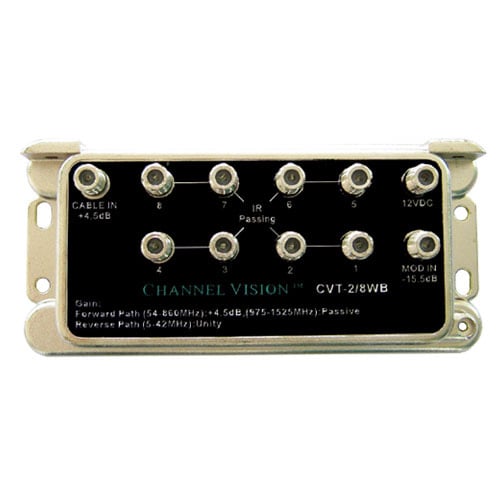

    Channel Vision CVT-2/8WB 2 In x 8 Out Amplified Splitter

    Item #: CVT-2-8WB   •   MFG #: CVT-2/8WB



    List Price:$193.50
    Our Price:$106.43

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      Channel Vision's 2x8 Bi-Directional Cable TV Amplified Splitter Wideband is designed with a built in combiner for modulated signals. They allow IR signals to pass through the modulator input to the TV outputs, making it a perfect match for the E2200IR, E3200IR or E4200IR. The amplified splitter is designed to mount directly on any flat surface. With 8 amplified outputs you can connect multiple TV's including: HDTV, cable boxes, or cable modems.


      • Features

        • 8 Amplified outputs: 4.5dB gain
        • Amplified return path from 5-42MHz
        • Compatible with Advanced Wide Bandwidth Digital CATV systems
        • Supports one (1) modulator input
        • Allows IR pass through on the modulator input port

      • Specifications

        • CATV Forward Path
        • Frequency Range: 54-860/ 975-1525MHz
        • Gain: 54-800MHZ (Min. 5.0dB, Type 6.0dB, Max. 7.0dB), 800-860MHz (Min. 4.0dB, Type 5.0dB, 6.0dB), 975-1525MHz (Min. -14dB, Type -17dB, Max. -20dB)
        • Flatness: ±1.0dB
        • Return Loss: >14dB
        • Isolation: >18dB
        • Noise [email protected]° F: 7.5dB
        • Group Delay: 54 to 66MHz/ 60ns, 66 to 88MHz/ 22ns, 88 to 100MHz/ 12ns
        • Composite Second Order Distortions: 64dBC
        • Composite Triple Beat Distortions: 74dBC
        • Cross Modulation Distortions: 60dBC
        • Second Hum Modulation: 60dBC
        • Rated Output Level: @160 channels, 6MHz each/ +23.0dBmV
        • Power Consumption: 180mA

        • CATV Return Path
        • Frequency Range: 5-42MHz
        • Gain: 5-40MHz (Min. -1.0dB, Type 0dB, Max. 1.0dB), 40-42MHz (Min. -1.5MHz, Type -1.0dB, Max. 0dB)
        • Flatness: ±1.0dB
        • Return Loss: >14dB
        • Isolation: >20dB
        • Noise Figure @70° F: 20dB
        • Group Delay: 5 to 10MHz | 36MHz to 42MHz/ 55ns, 10 to 36MHz/ 36ns
        • Composite Second Order Distortions: 55dBC
        • Composite Triple Beat Distortions: 56dBC
        • Cross Modulation Distortions: 56dBC
        • Second Hum Modulation: 58dBC
        • Rated Output Level: +43.0dBmV
        • Power Consumption: 65mA
