Clark Wire & Cable CW1622 Electrical Cable for SMPTE 311M Systems - 1000 Feet

ITEM #: CWC-CW1622-1000 MFG #: CW1622 1000FT

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CWC-CW1622-1000

CW1622 1000FT - Overview

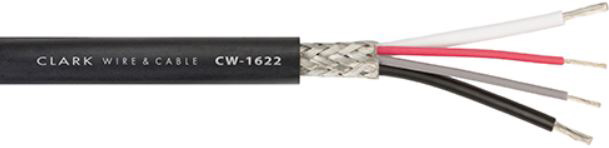

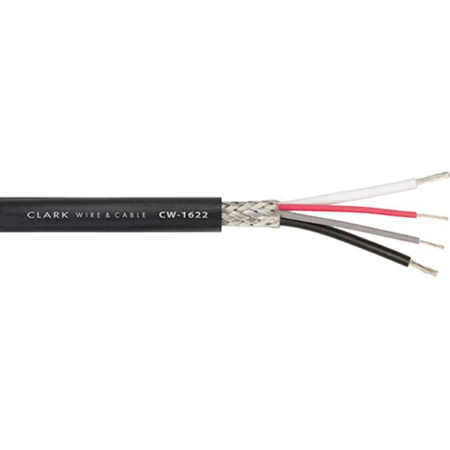

The CW1622 is a riser rated multi-conductor cable for SMPTE camera applications in permanent installation environments. The shielded 22AWG signal and 16AWG aux elements provided the exact number and type of electrical conductors required for interconnecting all non-optical fiber elements between SMPTE 304M connectors mounted in panels or distribution boxes. UL rated type CMR, the CW1622 can be installed in most permanent installation applications.

  • Features:

    • 22AWG Signal Conductors - terminates to signal pins in SMPTE 304M connector breakouts
    • 16AWG Aux Conductors - terminates to auxiliary pins in SMPTE 304M connector breakouts
    • Color Coded for SMPTE Format - uses standard red, grey, black and white color code
    • Overall Braid Shield - provides low DCR for grounding between CCU and camera
    • Ideal for SMPTE Panels and Boxes - provides structured wiring between Clark ModBox systems
    • CMR Riser Rated - suitable for installation in riser applications


  • Specifications:

    • Signal Conductors: 22AWG (19x34) Stranded TC Conductors; Polyethylene Insulation, .015" wall
    • Aux Conductors: 16AWG (65x34) TC Conductors; Polyethylene Insulation, .020" wall
    • Overall Shield: 90% TC Braid
    • Overall Jacket: PVC, Black
