Clark Wire & Cable CW1622 Electrical Cable for SMPTE 311M Systems - per ft
  • Clark Wire & Cable CW1622 Electrical Cable for SMPTE 311M Systems - per ft
  • Clark Wire & Cable CW1622 Electrical Cable for SMPTE 311M Systems - per ft

Questions? Ask a Markertek Expert:
800-522-2025 Email

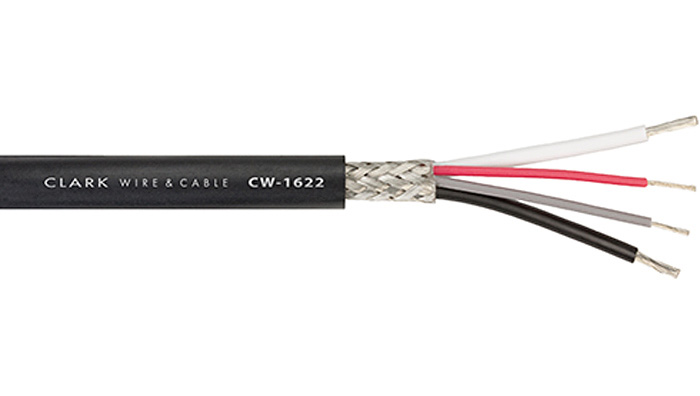

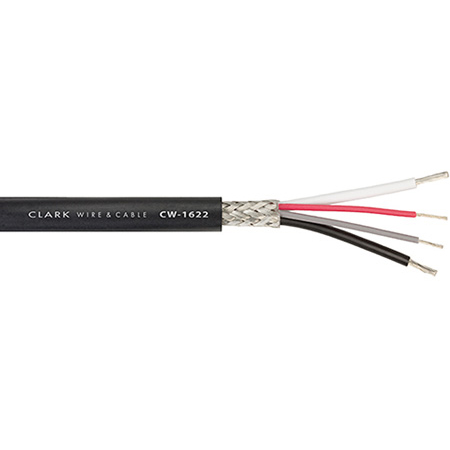

Clark Wire & Cable CW1622 Electrical Cable for SMPTE 311M Systems - per ft

Manufacturer: Clark Wire & Cable

Item #: CWC-CW1622   •   MFG #: CW1622



List Price:$7.45
Our Price:$1.15
Special Price:$0.90

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

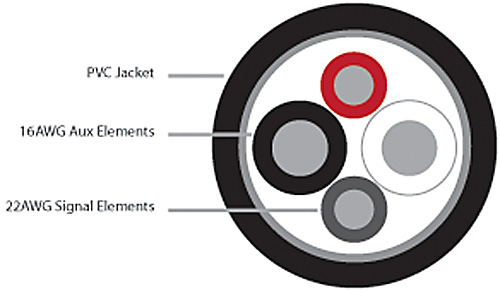

    The CW1622 is a riser rated multi-conductor cable for SMPTE camera applications in permanent installation environments. The shielded 22AWG signal and 16AWG aux elements provided the exact number and type of electrical conductors required for interconnecting all non-optical fiber elements between SMPTE 304M connectors mounted in panels or distribution boxes. UL rated type CMR, the CW1622 can be installed in most permanent installation applications.


    • Features

      • 22AWG Signal Conductors
      • 16AWG Aux Conductors
      • Color Coded for SMPTE Format
      • Overall Braid Shield
      • Ideal for SMPTE Panels and Boxes
      • CMR Riser Rated

    • Specifications

      • DC Resistance:Signal Conductor: 13.9 ω/Mft, Aux Conductor: 4.4 ω/Mft, Shield: 2.6 ω/Mft
      • Insulation Resistance: >10M ω/km
      • Standard Compliance: Compliant to electrical standards for SMPTE 311M camera cables
      • Operating Temperature: -20°C to 75°C
      • UL Rating: CMR
