Aviom D800 A-Net distributor with A-Net bridge input

ITEM #: D800 MFG #: D800

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,299.00

Our Price:

$2,149.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


D800 - Overview

The D800 and D800-Dante A-Net Distributors provide the link between the input module or console card and the personal mixers, providing power and a copy of the digital audio stream to your Aviom personal mixers, utlitizing standard Cat-5e cables.

Both units also integrate additional advanced options for delivering high-channel-count audio streams to your personal mixers, streamlining connections between A360s and transmitters for wireless in-ear monitors, and integrating the A360 Display iOS app.

Simple setup. Powerful performance.
On the most basic level, the D800 and the D800-Dante do an unglamorous but important job: get power and audio to your personal mixers. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.

Get more channels to your mixers
Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha), the D800 and D800-Dante combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom personal mixers. Mix channels can be individually selected for each A360 Personal Mixer, allowing each musician to mix exactly the sources they need.

Grow your system
If you need more than eight personal mixers, both the D800 and the D800-Dante include an A-Net Out port on the rear panel-perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors.

Network Mix Back for wireless in-ears
If you're using A360 Personal Mixers, the D800 and D800-Dante eliminate the need for running analog cables from A360s to the transmitter units for the in-ear monitors.

Extend the interface with iOS
The D800 and D800-Dante manage communication between A360 Personal Mixers and supported iOS devices, allowing users to run the A360 Display app alongside their A360.

  • Features:

    • Distributes power and audio to up to eight A360, A320, A-16II, and A-16R Personal Mixers
    • One Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 A-Net streams
    • Network Mix Back for streamlined connections to wireless IEM transmitters
    • Ethernet support for iOS devices over Wi-Fi
    • One Pro16e A-Net Out for thru connections
    • Heavy-duty locking connectors for all audio connections

  • Specifications:

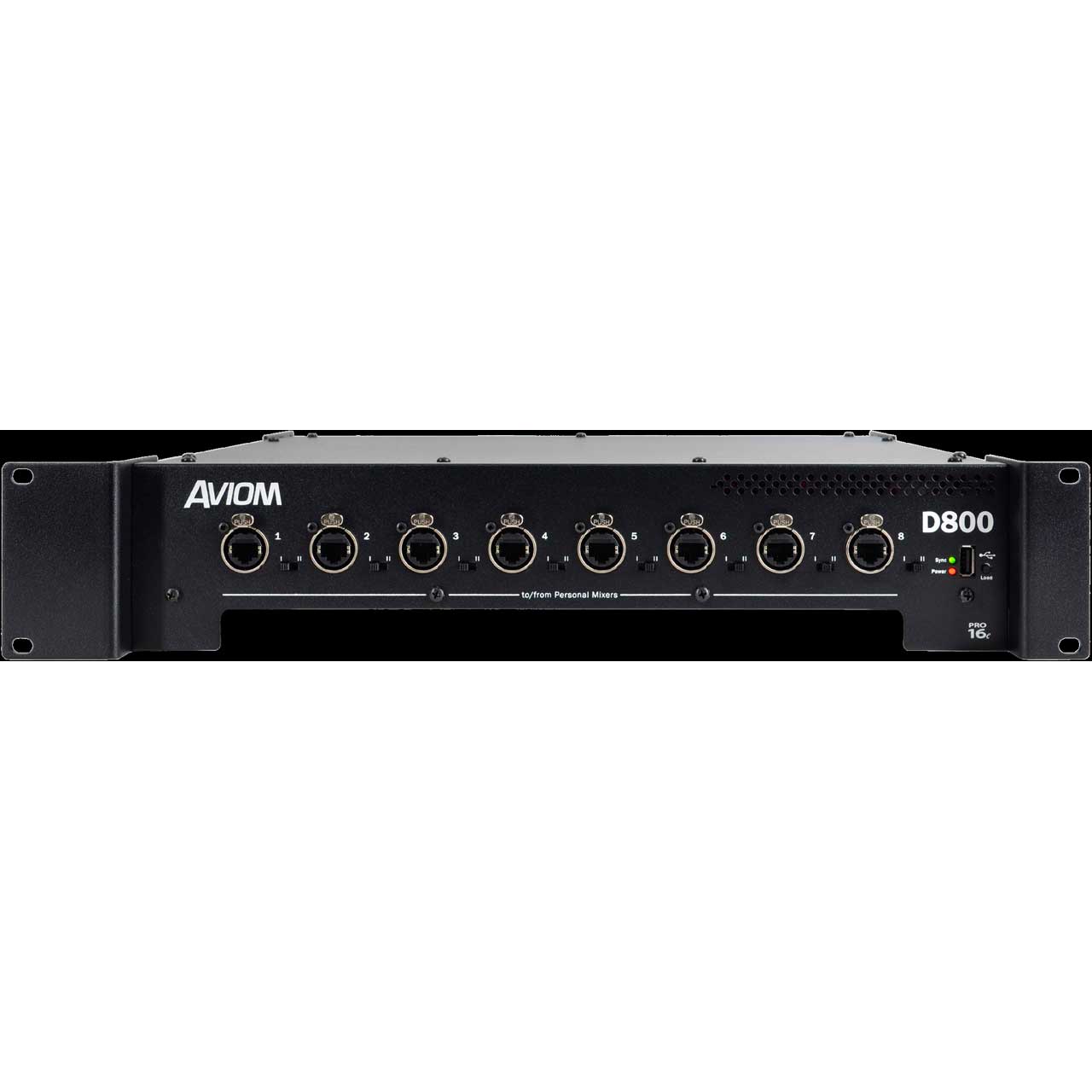

    • A-Net to/from Personal Mixers (front panel): Eight locking RJ45 connectors, powered; 2-position switch (I/II) accommodates A-16II (I) and the bidirectional A360 Personal Mixer (II).
    • A-Net In or A-Net Bridge In Accepts Pro16 or Pro16e A-Net; One locking RJ45 connector.

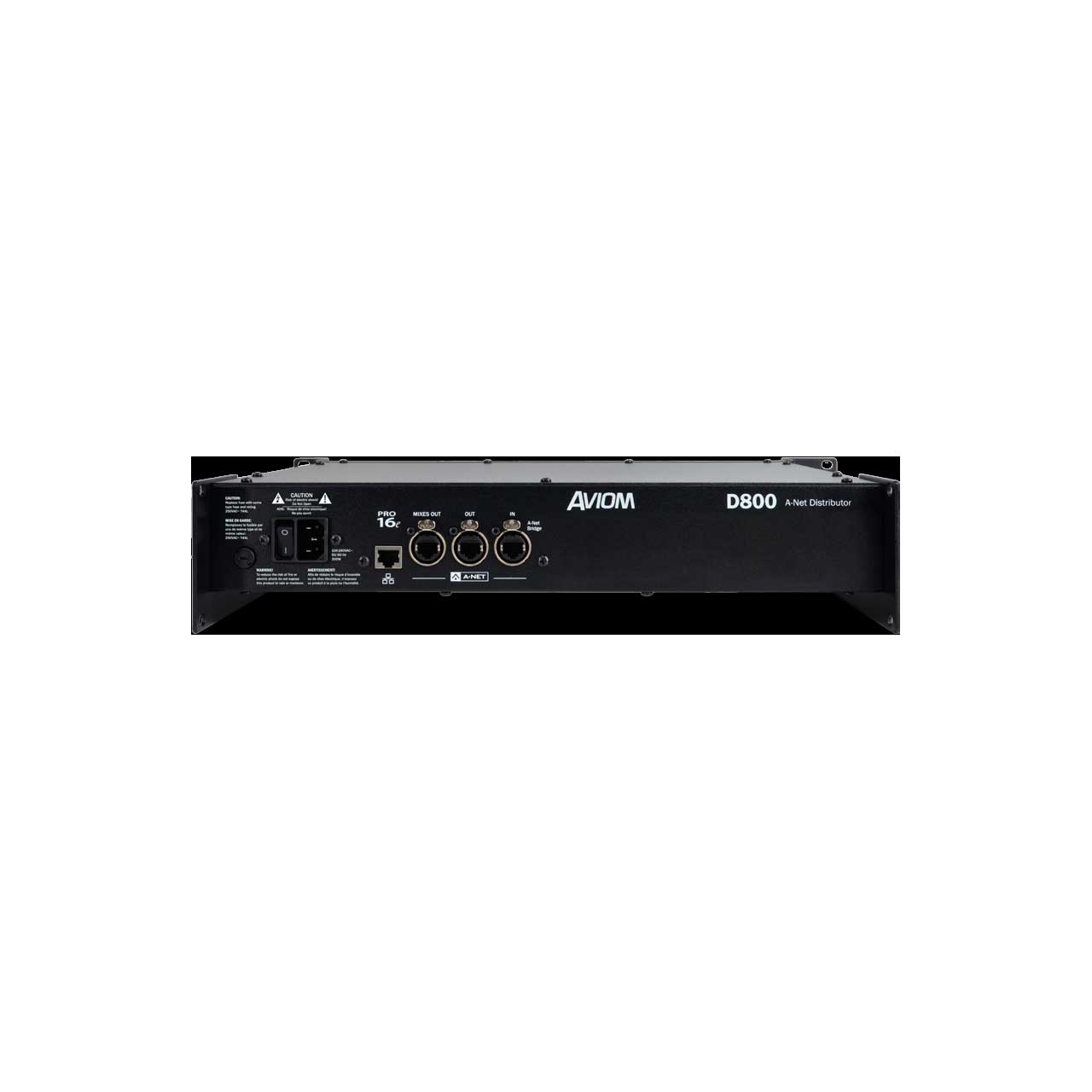

    • A-Net Out (rear panel) Pro16e A-Net; One locking RJ45 connector, unpowered.
    • A-Net Mixes Out: Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels of Network Mix Back data from up to eight A360 Personal Mixers.
    • A-Net Cables: Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections.
    • Output Voltage for Personal Mixers: 24VDC, 0.5 amp Transmitted over the Cat-5e cable.
    • Power Supply: Internal, universal switching type, IEC connector.
    • Input Voltage:100-240VAC, 50-60Hz, 300W Fuse - 250VAC - T4AL.
    • Dimensions: 19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high.
    • Weight: 12.0 lbs (5.44 kg).

  • Item Includes:

    • One D800 A-Net Distributor
    • Documentation

  • Warranty:

    • 1 Year
