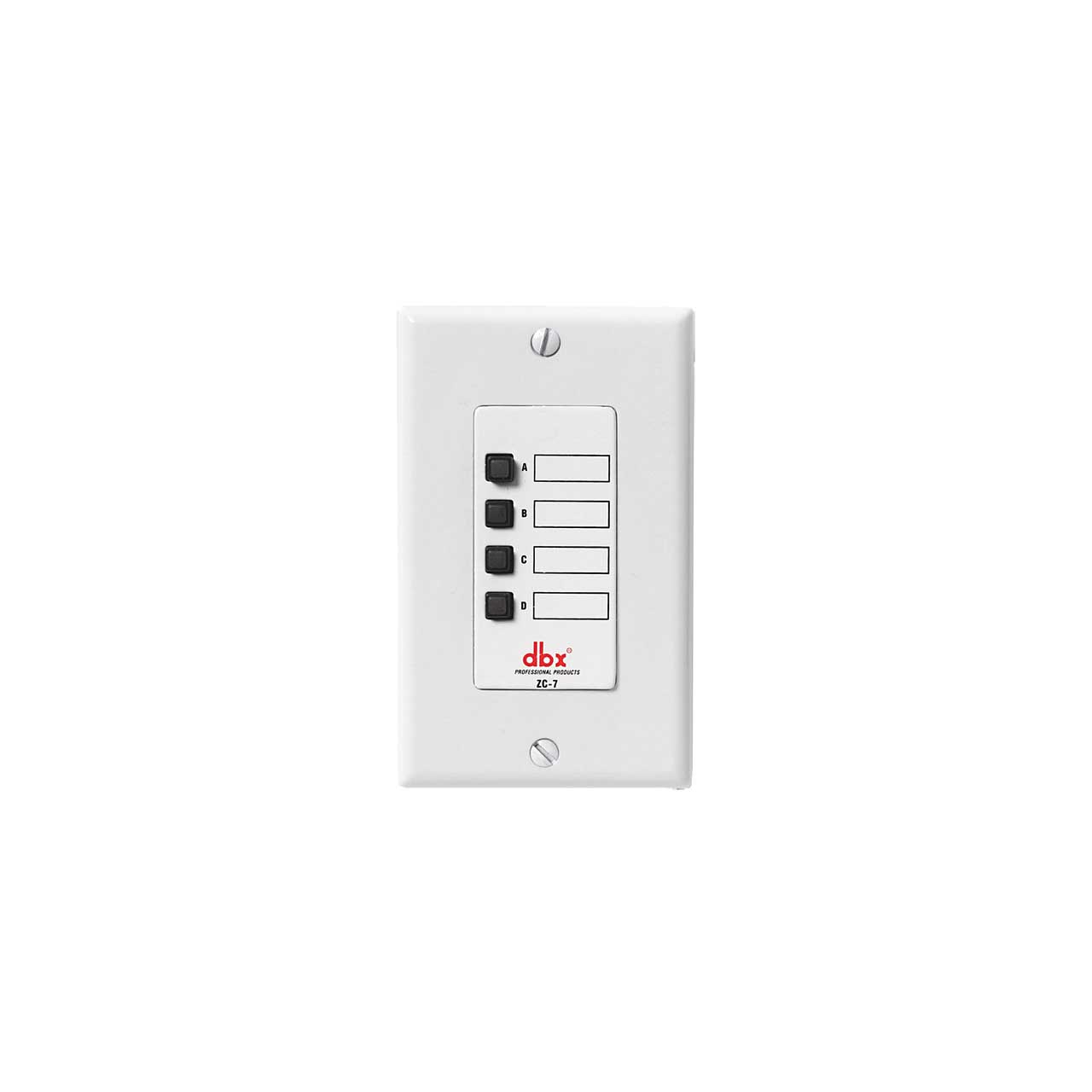

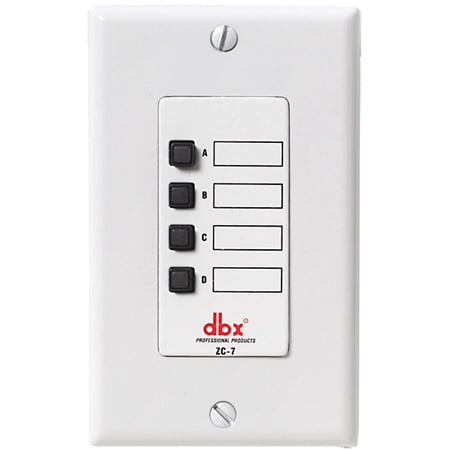

DBX ZC-7 Wall-Mounted Zone Controller with Push-To-Talk Page Assignment

ZC-7 - Overview

• Features:

  • Programmable Push-To-Talk paging
  • Up to 1000ft on CAT 5 cable


• Specifications:

  • Connectors: 2x RJ-45
  • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600ft. Six Zone Controllers: 300ft.
  • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000ft
  • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher


• GTIN:

  0691991400773
