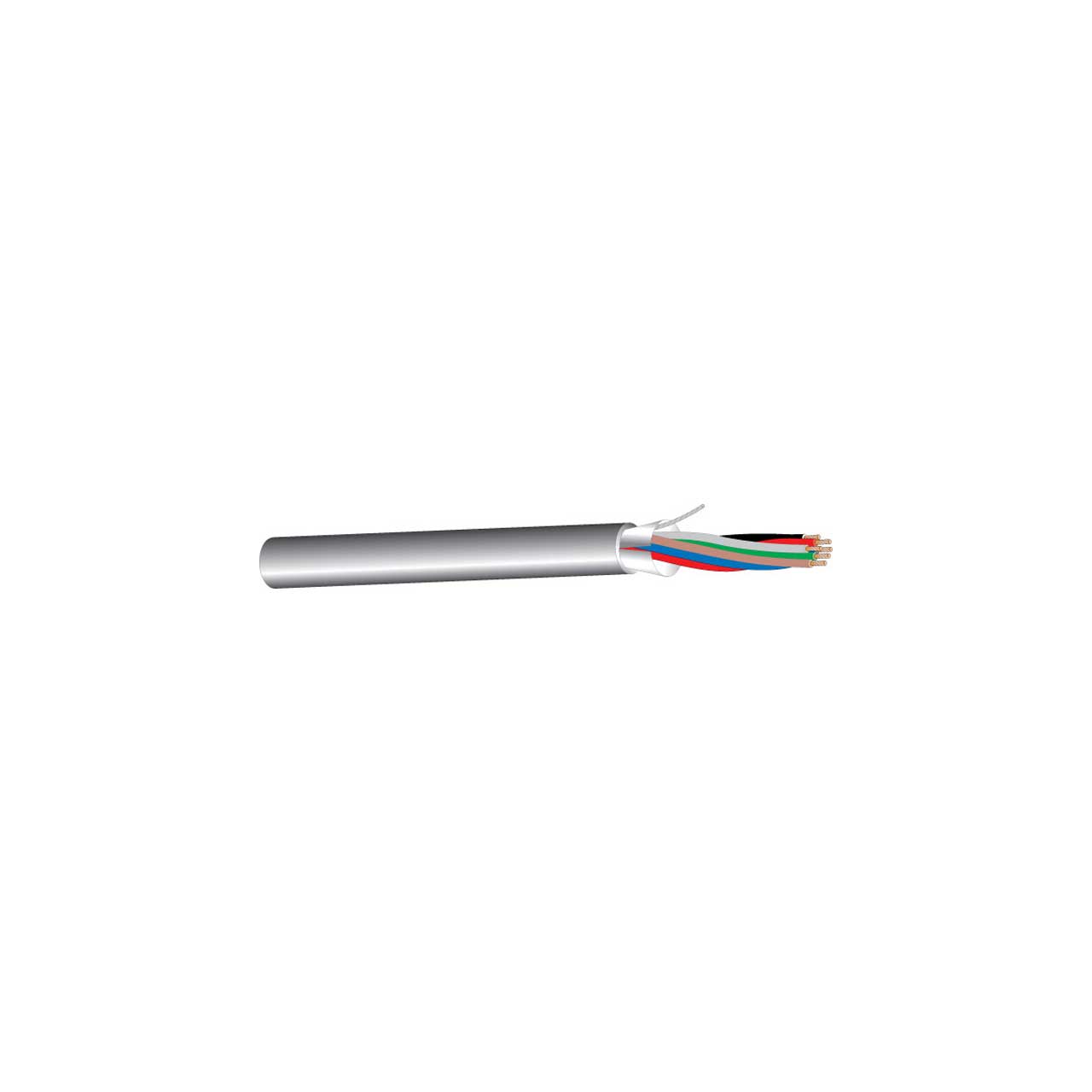

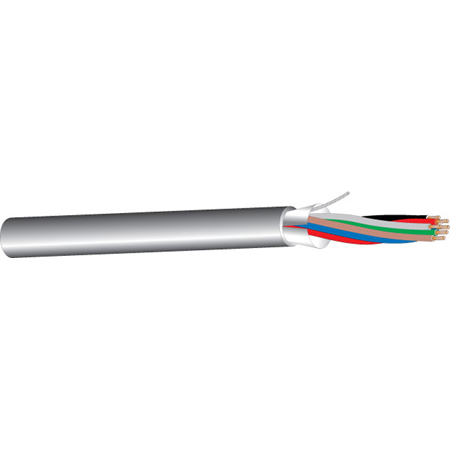

West Penn AQC3270GY 6 Conductor 22AWG 7x30 Control Shielded CM Rated Indoor/Outdoor - AquaSeal Cable - 1000 ft

ITEM #: WP-AQC3270-GY-1K MFG #: AQC3270GY1000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$300.50

Our Price:

$286.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AQC3270GY1000 - Overview

    West Penn Wire AQC3270GY1000 is an 22AWG shielded aquaseal, 6 conductor control & communication cable. 7x30 Control Shielded CM Rated Indoor/Outdoor Wet Location. Aquaseal water-resistant cables are available in more than 40 varieties to meet the specific requirements of direct-buried and in-conduit access control, audio, communications, fire alarm, intercom and video applications

    • Specifications:

      • Construction & Dimensions
      • Number of Conductors: 6
      • AWG Size: 22
      • Conductor Stranding: 7x30
      • Conductor Type: Bare copper
      • Nominal DCR: 17 Ohm/1000ft

        Insulation Parameter
      • Insulation Type: PVC
      • Insulation Thickness: 0.01 in
      • Insulation Color Code:
        1.Black
        2.Red
        3.White
        4.Green
        5. Brown
        6.Blue

        Shielding Parameter
      • Shield Type: Overall 100% Aluminum Foil
      • Shield Type 2: Aquaseal Water Blocking Tape
      • Drain Wire Type: Tinned Copper
      • Drain Wire AWG: 24 AWG

        Electrical Characteristics
      • Nom. Cap. Between Conductors: 68 pF/ft
      • Nom. Cap. Conductor to Shield: 122 pF/ft
      • UL Flammability: UL1685
      • Operating Range: -4° to 140°F (-20 to 60°C)
      • UL Voltage Rating: 300

        Overall Construction Parameters
      • Jacket Type: UV Resistant PVC
      • Jacket Thickness: 0.017"
      • Nominal Cable O.D.: 0.167"
      • Plenum: No
      • NEC UL Rating: CM
      • RoHS Compliant: Yes
      • TIA Test: TIA455-82 Water Penetration Test
      • Pull Tension: 63Lbs
      • Bend Radius: 1.5031"
      • Cable Weight: 29Lbs


    • GTIN:

      0612825062271
