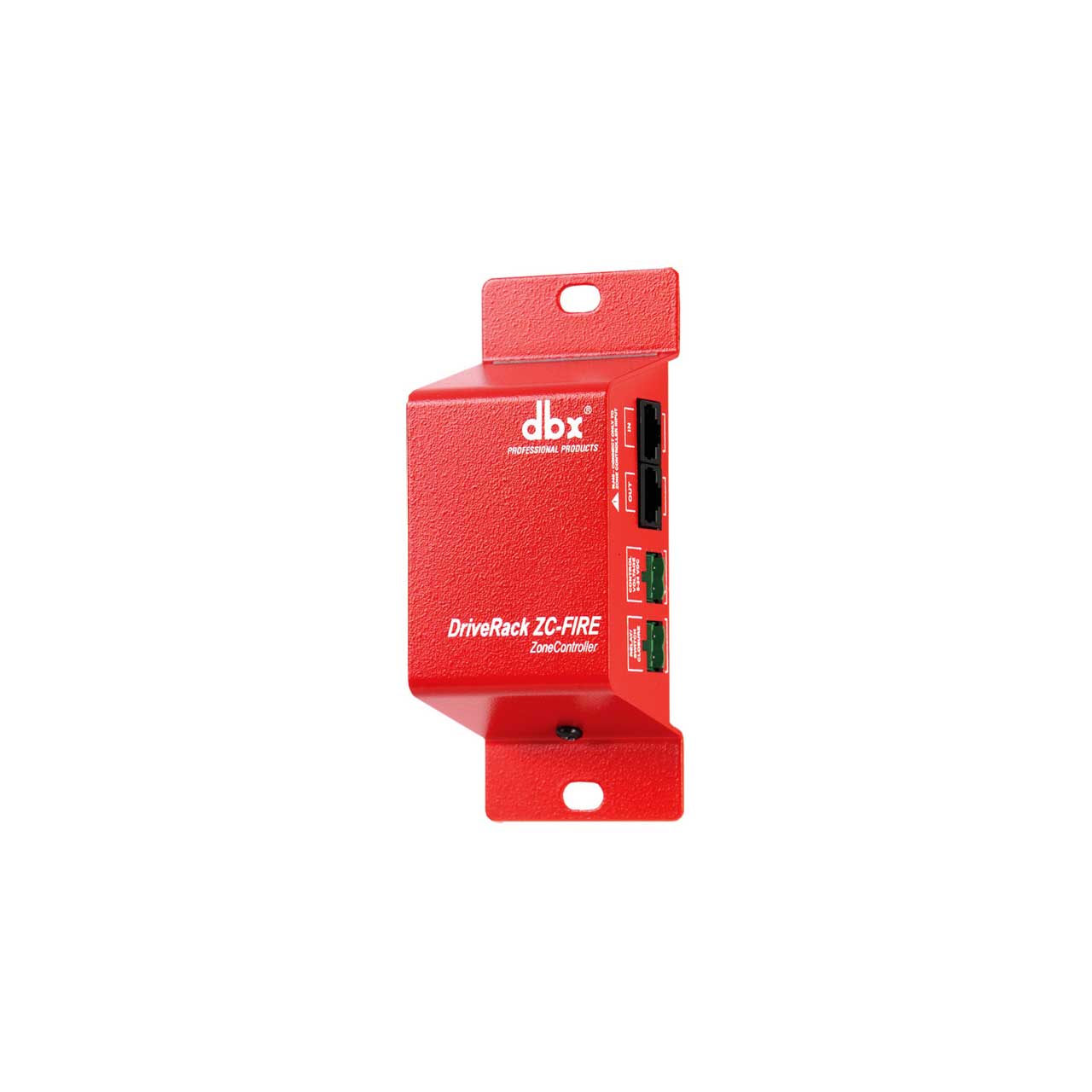

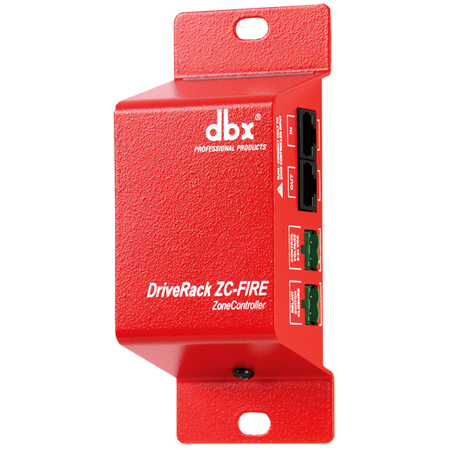

DBX ZC-FIRE ZonePRO Fire Safety Interface with Output Muting or Programmable Scene Selection

ITEM #: DBX-ZCFIRE MFG #: ZC-FIRE

Primary Image
DBX Professional Products
Free Shipping with $49 Minimum Order

List Price:

$119.00

Our Price:

$99.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

ZC-FIRE - Overview

The dbx ZC-FIRE ZonePRO Fire Safety Interface offers either output muting or programmable scene selection for the dbx ZonePro devices. Connection to the fire safety system shall be either through a relay or directly to the control voltage output. The remote device shall have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors.

  • Features:

    • Programmable contact closure interface
    • Up to 1000ft on CAT 5 cable


  • Specifications:

    • Connectors: 2x RJ-45, 2x 2-pin Phoenix
    • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600ft. Six Zone Controllers: 300ft.
    • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000ft
    • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher


  • GTIN:

    0691991400742
