Defender DEF-85304US Adapter for Defender Midi 5 to Common 5 Channel Dogbone Connections - Pair of 2

ITEM #: DEF-85304US MFG #: DEF-85304US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$62.65

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DEF-85304US - Overview

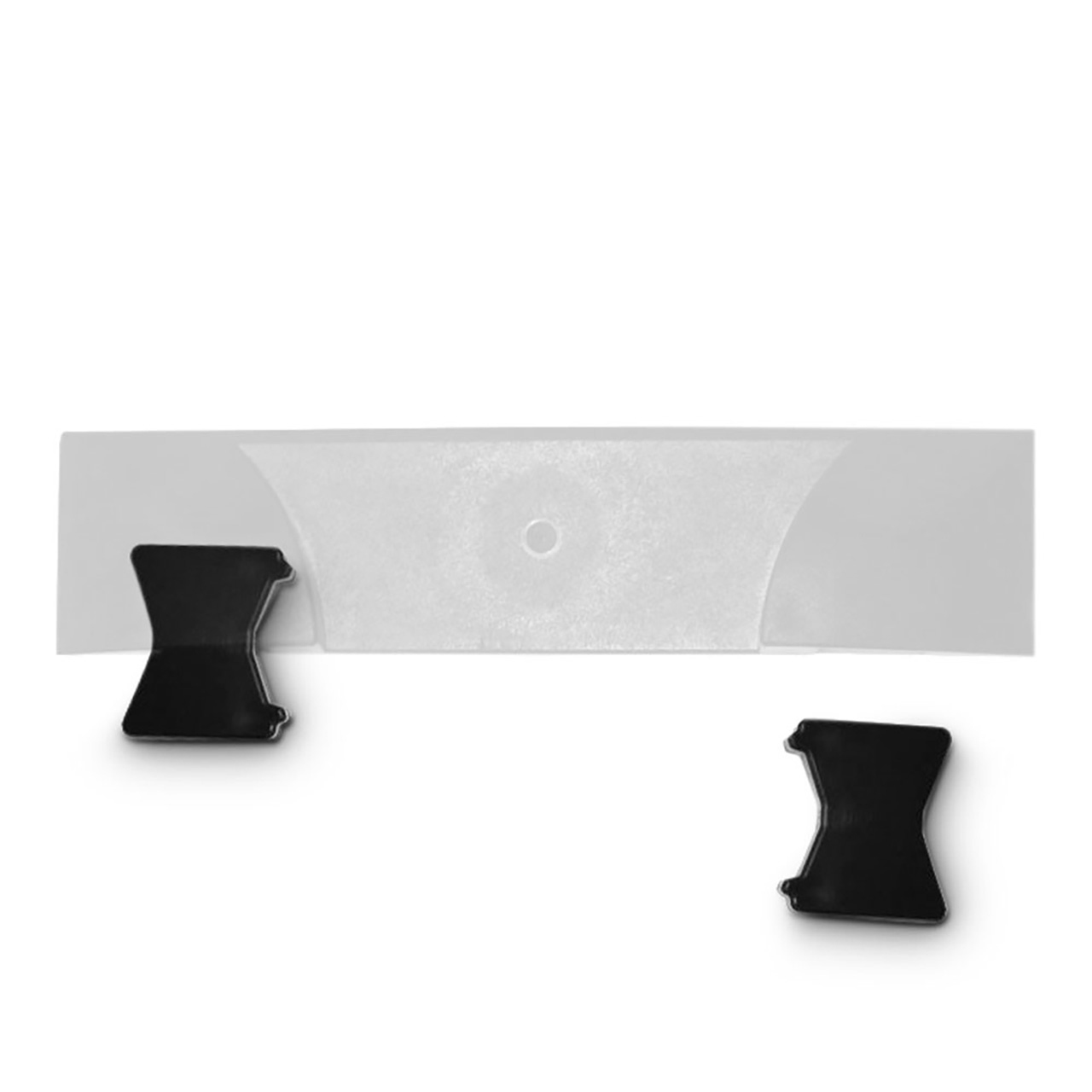

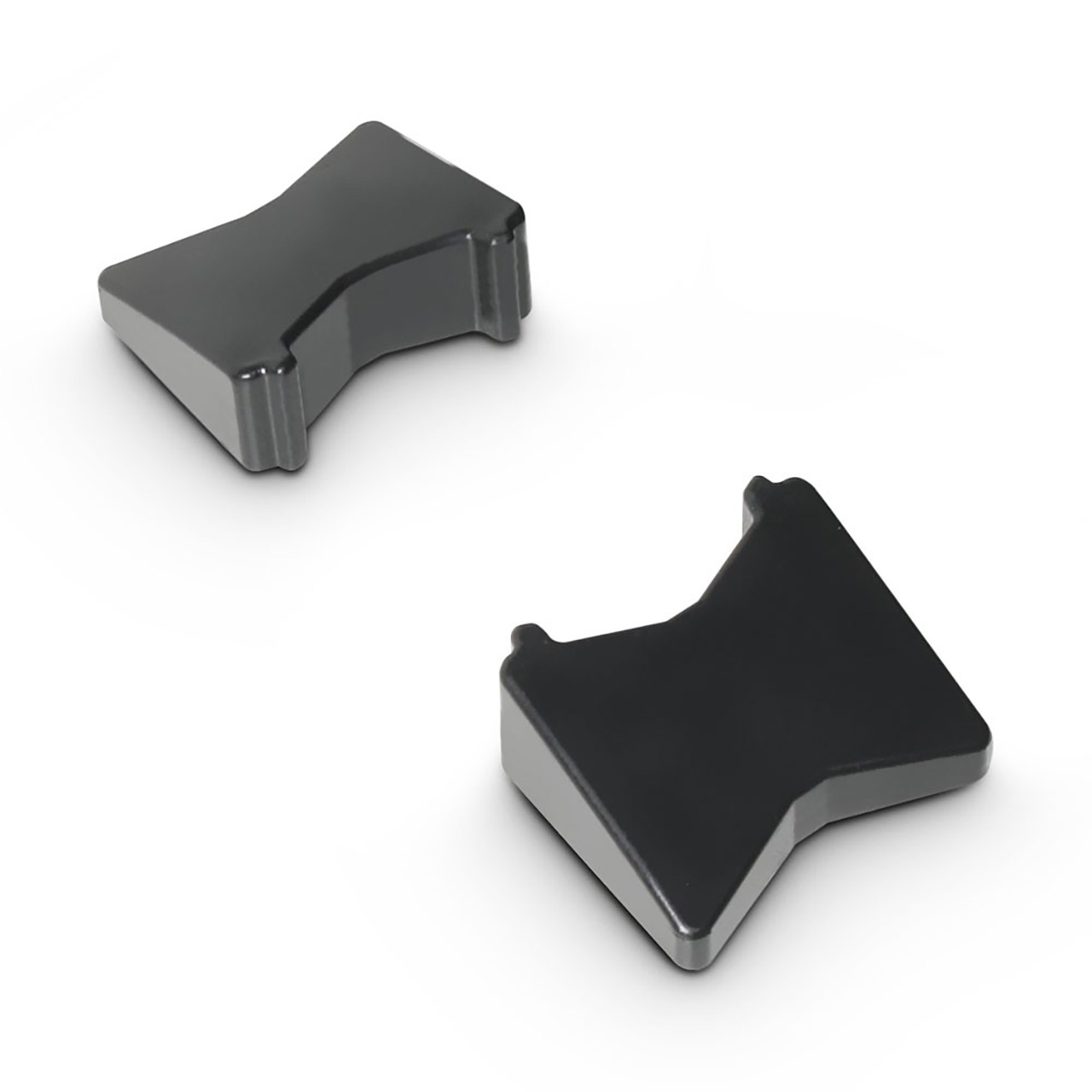

The robust Defender DEF-85304US adapter pair allows you to seamlessly integrate your DEFENDER® MIDI 5 cable protector into existing cable protection infrastructures with "dogbone" connections. This allows you to conveniently combine common 5-channel cable protection systems - such as the 5-channel Yellow Jacket, Guard Dog, or Cable Guard RED Line with MIDI 5 elements - without resorting to improvised transitions or trip hazards. The adapters, which are made of durable TPU (thermoplastic polyurethane), reliably transfer the high load capacity of the DEFENDER ® MIDI 5 Series to the transition point. They are designed to handle up to 11,023 lbs on an area of 9.843 x 11.811 inch (equivalent to 22,046 lbs of axle load) at a maximum crossing speed of 4.349 mph. Thanks to the compact 5.906 x 3.543 x 1.614 inch (L x W x H) dimensions, the transition remains short, clean, and inconspicuous - ideal for professional applications in the event, industrial, and trade fair sectors.

  • Features:

    • Robust TPU design for professional continuous use
    • Maximum load: 11,023 lbs across 9.84" x 11.81" (22,046 lbs axle load), at a maximum speed of 4.349 mph - suitable for areas with vehicles and forklift traffic
    • Compact: 5.90" x 3.54" x 1.61"; weighs only 1.102 lbs - short, clean transitions without requiring much space
    • Black design for inconspicuous integration into existing cable routes; quick, tool-free installation

  • Specifications:

    • Material: TPU (Thermoplastic polyurethane)
    • Color: Black
    • Maximum Load (on 25 x 30 cm): 5t
    • Load Per Axle: 10t
    • Maximum Passing Speed: 4.34 MPH (7 KPH)
    • Chemical Resistance:
      - Gasoline
      - Solvents (short-term contact)
      - Oil
    • Hardness Range (±4 Shore A): 88 Shore A
    • Duct Length (Effective Length): 34.25" (870 mm)
    • TSCA: Yes
    • CP65: Yes
    • Fire Protection Class Per DIN 4102-1: B2
    • Fire Protection Class Per EN 13501-1: E
    • Inflammability (UL 94): V-2, HB
    • Ambient Temperature: -22°F - 140°F (-30°C - 60°C)
    • Dimensions(LxWxH): 4.09" x 3.54" x 1.41"
    • Weight: .66lbs (.3 kg)

  • Warranty:

    • Limited 5 Year Warranty

  • GTIN:

    0406972413140
