Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate
  • Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate
  • Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate
  • Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate
  • Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate
  • Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate

Questions? Ask a Markertek Expert:
800-522-2025 Email

Delvcam 7in. Camera-Top SDI Monitor w/ Video Waveform and V-Mount Battery Plate

Item #: DELV-WFORM7SDIVM   •   MFG #: DELV-WFORM7SDIVM



List Price:$925.00
Our Price:$879.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

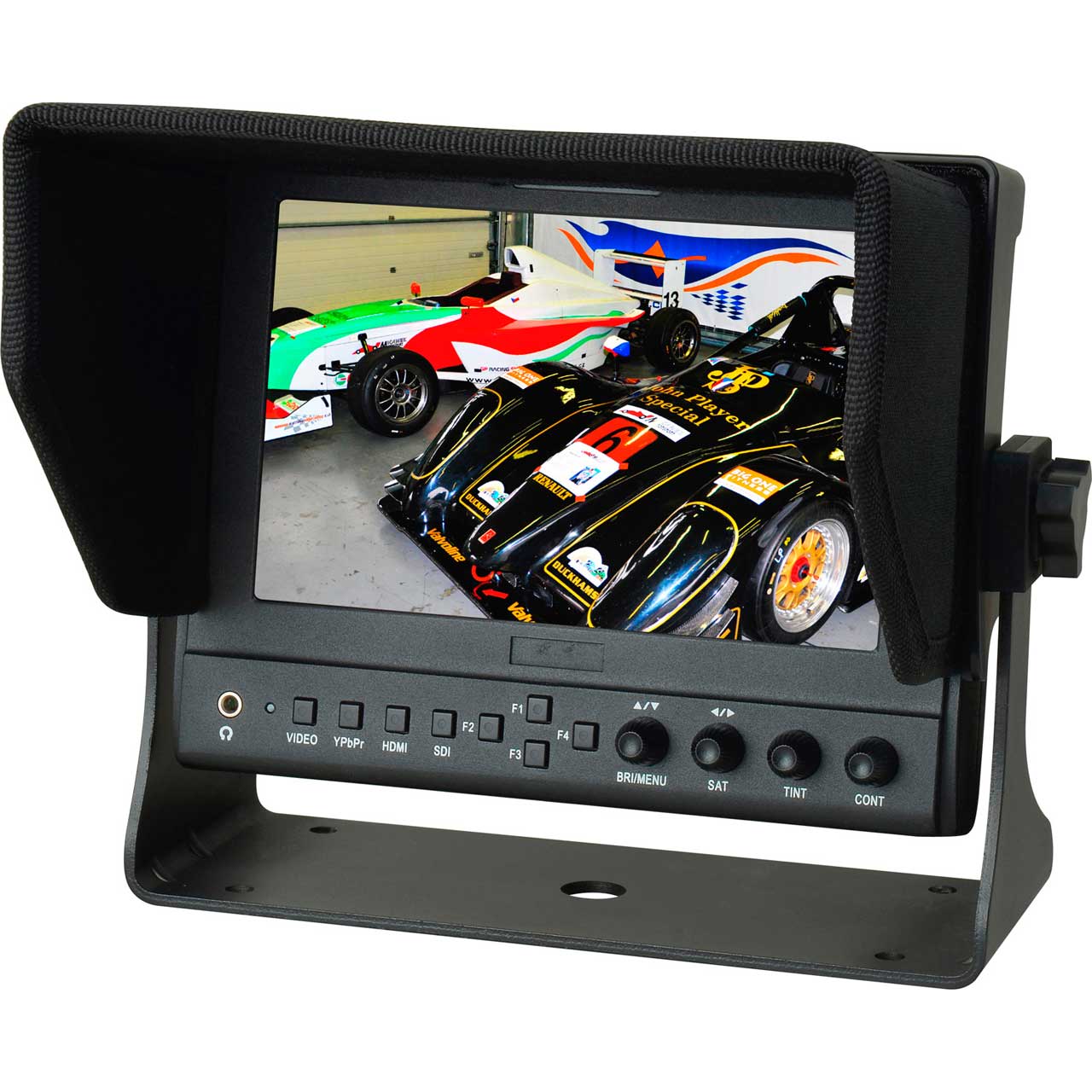

    DELV-WFORM-7SDIVM, with a V-Mount Battery Plate, is a 7 inch 16:9 metal framed LED field monitor with 3G-SDI, HDMI, YPbPr (via BNC), Composite video and a collapsible sun hood. It is optimized for full HD camcorders and provides advanced camera auxiliary functions: Color/RGB Histogram, Waveform, Vector Scope, Audio Level Meter, Peaking, False Color, Histogram & Exposure.

    Delvcam field monitors are great at displaying accurate images and the DELV-WFORM-7 makes shooting and recording even easier with its functionality.


    • Features

      • Color/RGB histogram, waveform, vector scope & audio level meter,
      • IPS panel 178° wide viewing angles,
      • High resolution: 1280x800,
      • High brightness: 400cd/m2,
      • High contrast: 800:1,
      • 3G-SDI input,
      • Metal housing,
      • POP-UP shortcut menu.3G-SDI, HDMI, and component and composite, via BNC Connectors.
      • Foldable sunhood and smart screen protector helps prevent screen scratches, and saves space in camera bags.
      • HDMI video output - no splitters needed.
      • LED-backlit display panel features higher physical resolution, and higher levels of detail and image accuracy.
      • 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate.
      • 4 programmable function buttons for shortcut operations, according to different needs.
      • Stunning 178 degrees viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing!

    • Specifications

      • Display:
      • Panel 7" IPS
      • Physical Resolution 1280x800, support up to 1920x1080
      • Aspect Ratio 16:9
      • Brightness 400cd/m2
      • Contrast 800:1
      • Viewing Angle 178°/178°(H/V)

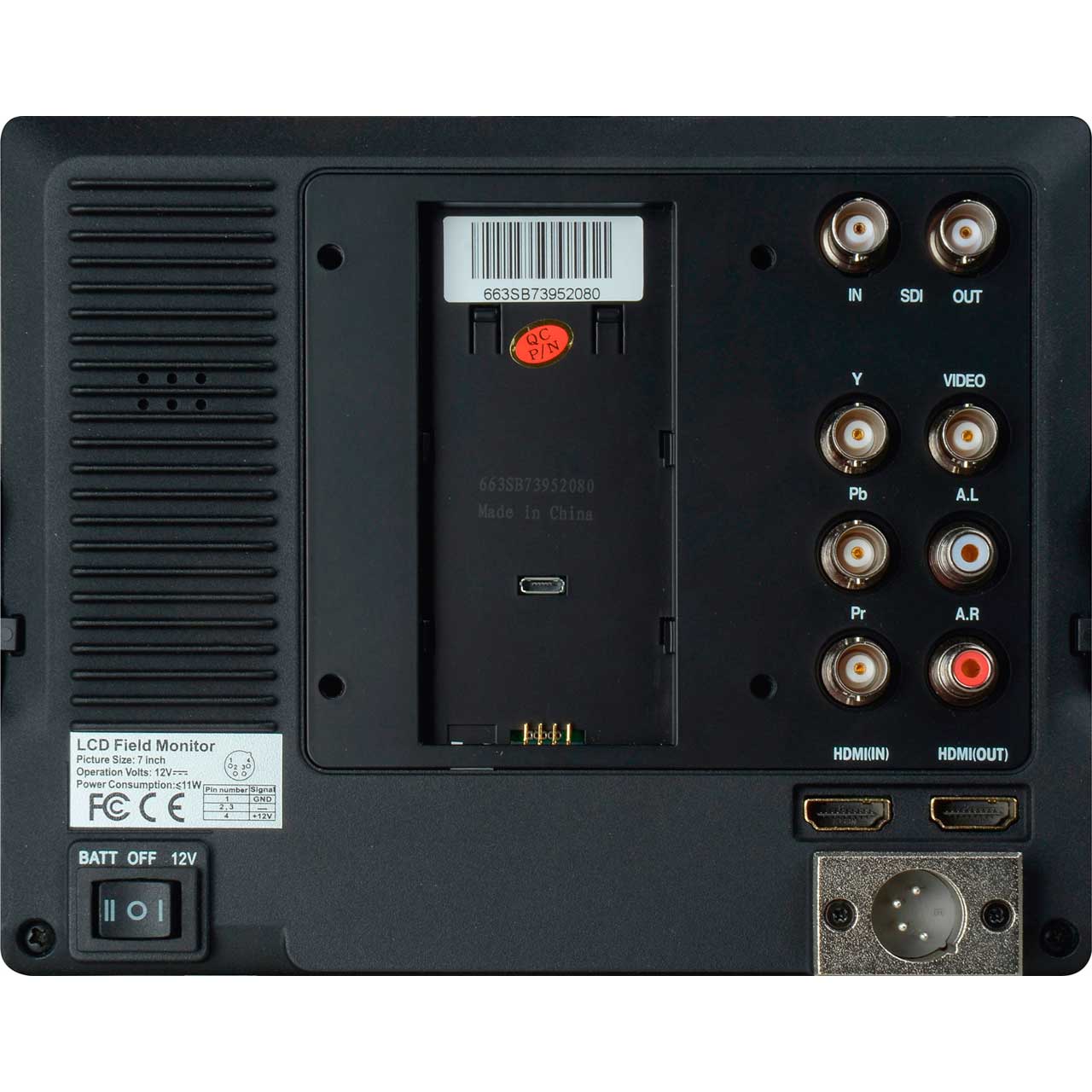

      • Input:
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • VIDEO 1
      • AUDIO 2(L/R)
      • Output:
      • 3G-SDI 1
      • HDMI 1
      • Audio:
      • Speaker 1 (built-in)
      • Ear Phone Slot 1
      • Power:
      • Current 900mA
      • Input Voltage DC 7-24V(XLR)

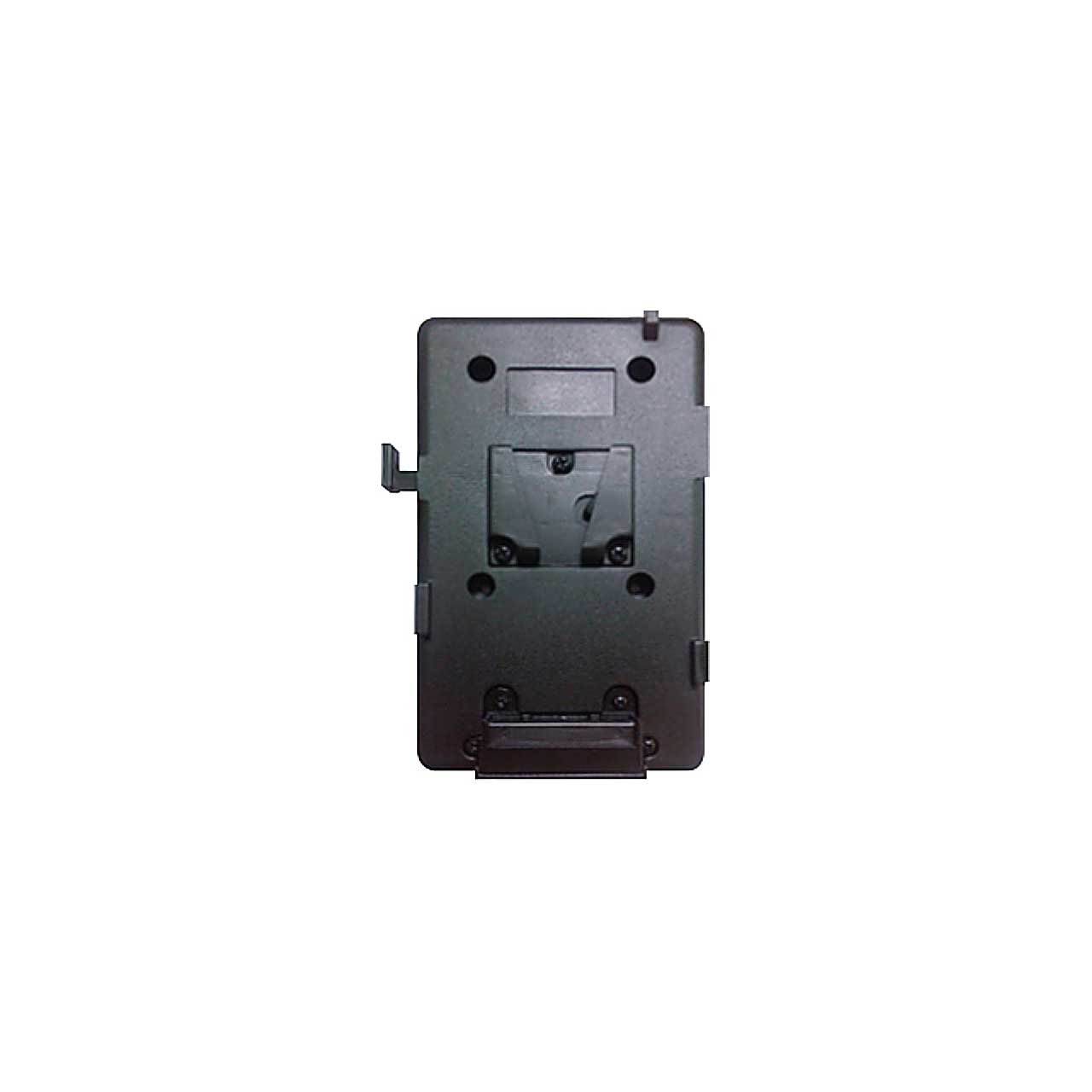

      • Battery Plate V-mount
      • Power Consumption =11W
      • Environment:
      • Operating Temperature -20?~60?
      • Storage Temperature -30?~70?
      • Dimensions:
      • (LWD) 191.5x152x31 / 141mm (with cover)
      • Weight 760g / 938g (with cover)/ 2160g (with suitcase)

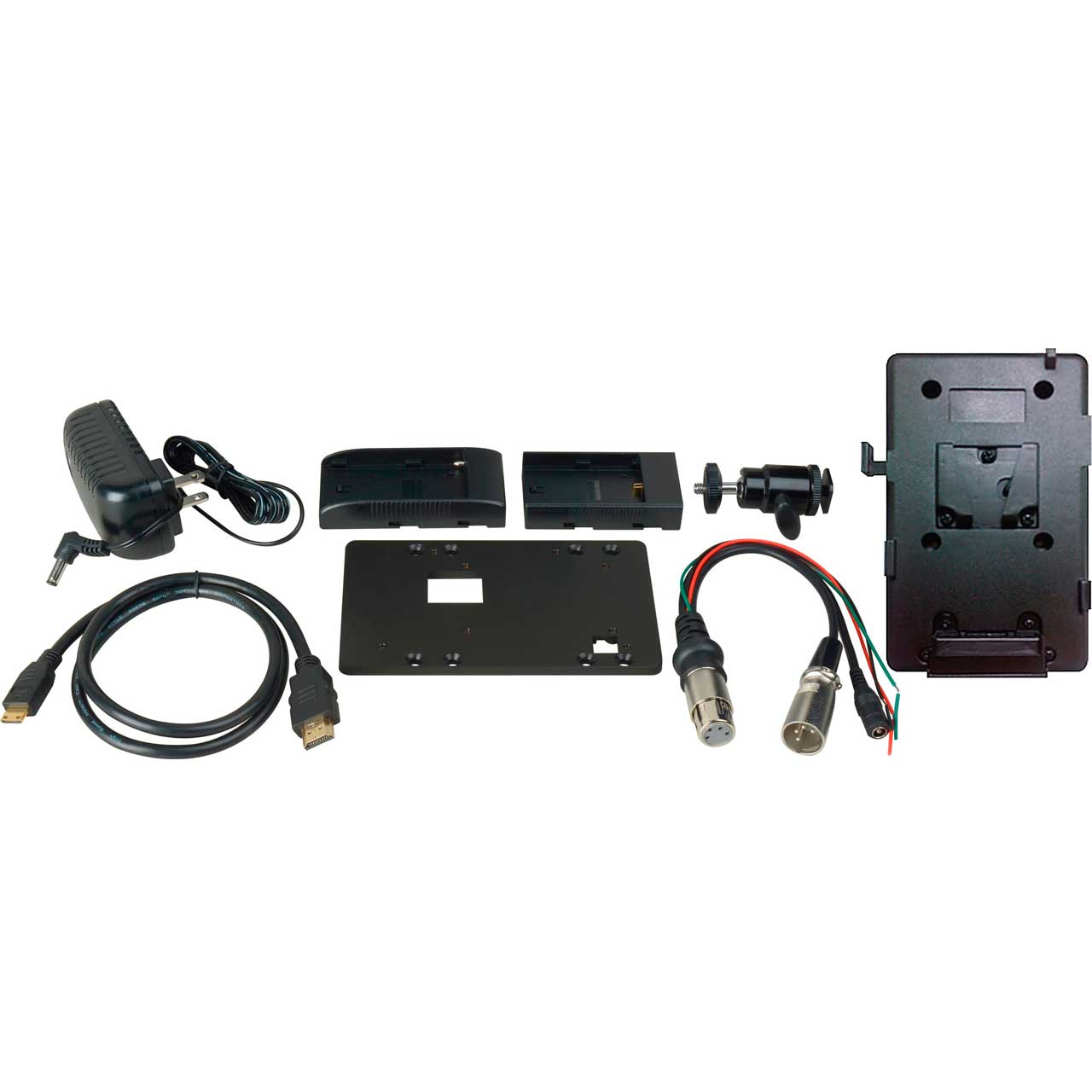

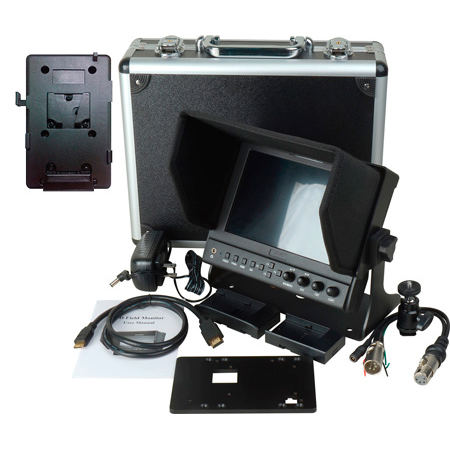

    • Item Includes

      • DELV-WFORM-7SDI
      • DELV-BPVM

    • Warranty

      • 1 Year
