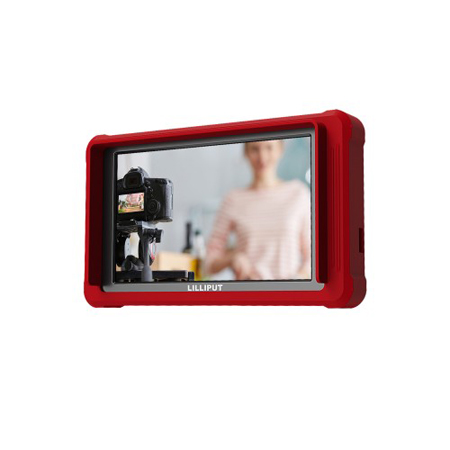

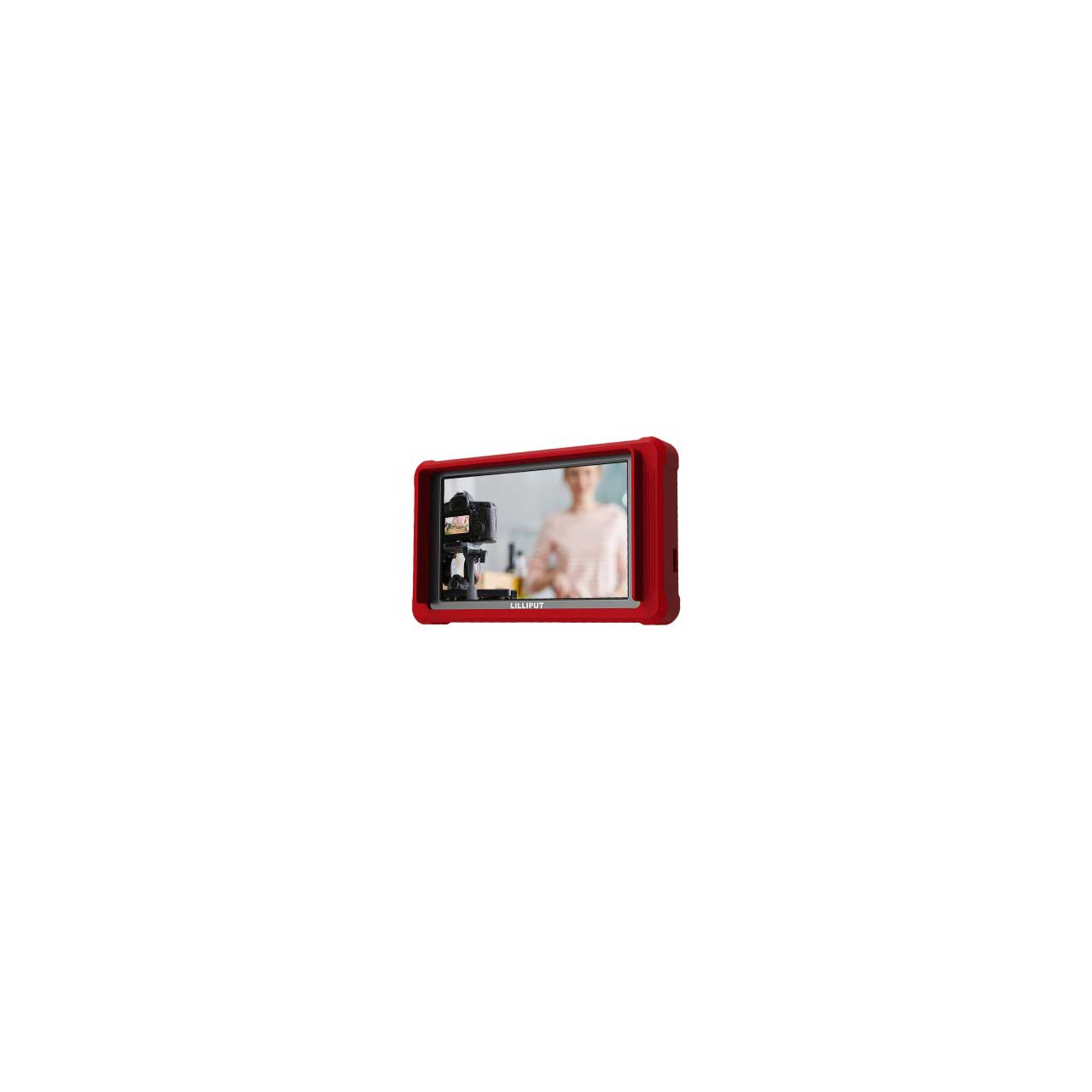

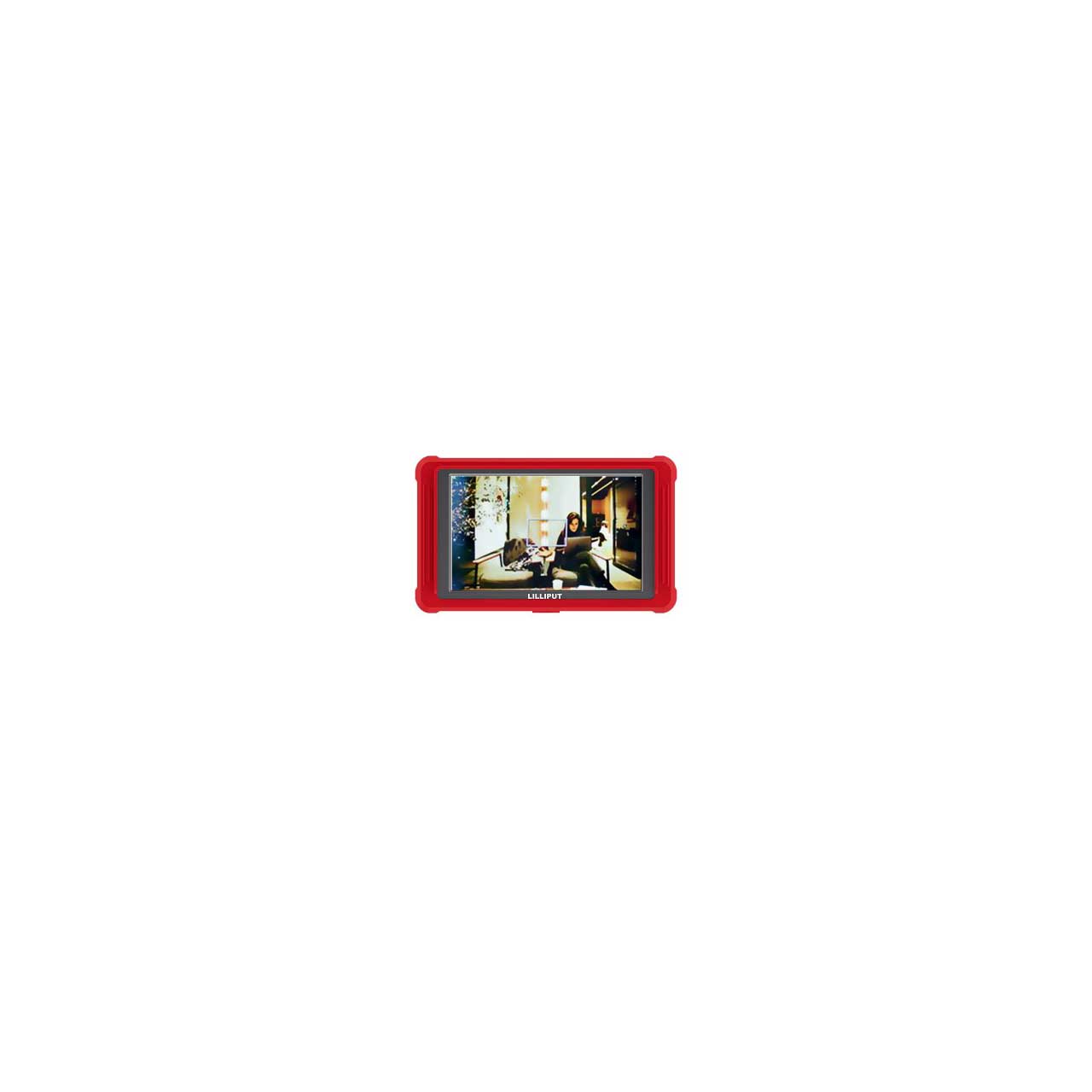

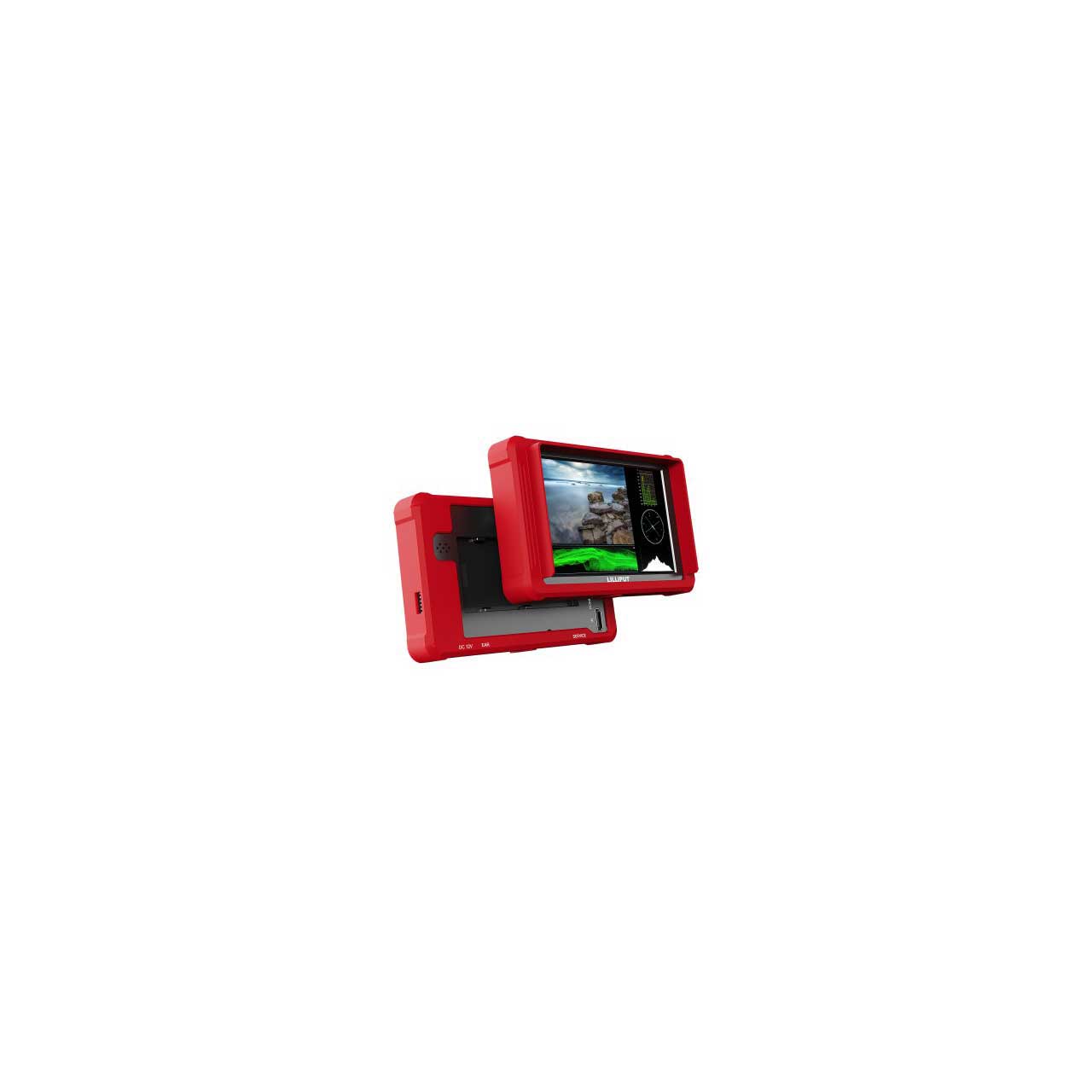

Lilliput FS5 5.4 Inch HDMI 2.0 and 3G-SDI 1920x1200 LTPS On-Camera Monitor with Red Silicone Case

ITEM #: LIL-FS5 MFG #: FS5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$259.00

Our Price:

$239.00

Availability: In Stock
iAvailability Description Popup


    FS5 - Overview

    Designed to Suit the Needs of the Portable 4K Video Shooter

    The Lilliput FS5 is a professional on-camera monitor perfect for FHD/4K camcorders and DSLR cameras. The 5.4" 1920x1200 Full HD native resolution screen features incredible picture quality and excellent color reproduction. The SDI ports support 3G-SDI signal input and loop output and the HDMI ports supports up to a 4K signal input with a loop output. The aluminum housing is designed with a silicone case to increase the monitors durability and it displays an 88% DCI-P3 color space, which offers an outstanding viewing experience.

    Excellent Display
    The Lilliput FS5 5.4" 16:10 LTPS panel features 1920x1200 full HD resolution, 1100:1 high contrast, 160° wide viewing angles, 600cd/m² high brightness, 88% DCI-P3 color space, which offers outstanding viewing experience.

    HDR
    When HDR is activated, the display reproduces a greater dynamic of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST 2084 300/1000/10000 and HLG.

    3D-LUT
    3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

    3G-SDI Input/Output
    SDI supports up to 1920x1080 60p/50p/30p/25p/24p(3G-SDI signal), and downward compatible with HD-SDI and SD-SDI.

    4K 60HZ HDMI 2.0
    HDMI 2.0 supports up to 4096x2160 60p/50p/30p/25p/24p and 3840x2160 60p/50p/ 30p/25p/24p.

    • Features:

      • Full screen waveform
      • Level meter
      • Histogram
      • False color
      • Peaking focus
      • Exposure
      • Check field
      • Aspect ratio

    • Specifications:

      • Panel: 5.4" LTPS
      • Physical Resolution: 1920 x 1200
      • Aspect Ratio: 16:10
      • Brightness: 600cd/m
      • Contrast: 1100:1
      • Viewing Angle: 160°/160° (H/V)
      • HDR: ST 2084 300/1000/10000 / HLG
      • Supported Log Formats: Slog2/Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User
      • LUT Support: 3D-LUT (.cube format)
      • Input 3G-SDI: 1 (4K 60Hz)
      • Input HDMI 2.0: 1 (4K 60Hz)
      • Output 3G-SDI: (4K 60Hz)
      • Output HDMI: (4K 60Hz)
      • Speaker: 1
      • Ear Phone Slot: 1
      • Current: 0.75A (12V)
      • Input Voltage: DC 7-24V
      • Battery Plate: NP-F/LP-E6
      • Power Consumption: =9W
      • Operating Temperature: -4°F - 122°F (-20°C - 50°C)
      • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
      • Dimensions (LxWxD): 6.08" x 3.54" x 0.79"
      • Weight: 0.65lbs

    • Item Includes:

      • 1x FS5 Monitor - Red Case
      • 1x 12V 2A DC Power Adapter
      • 1x 28" HDMI A - C Cable
      • 1x NP-F & LP-E6 Battery Plates
      • 1x Silicone Case
      • 1x Sunshade
      • 1x Hot Shoe Mount

    • Warranty:

      • 1 Year Warranty
