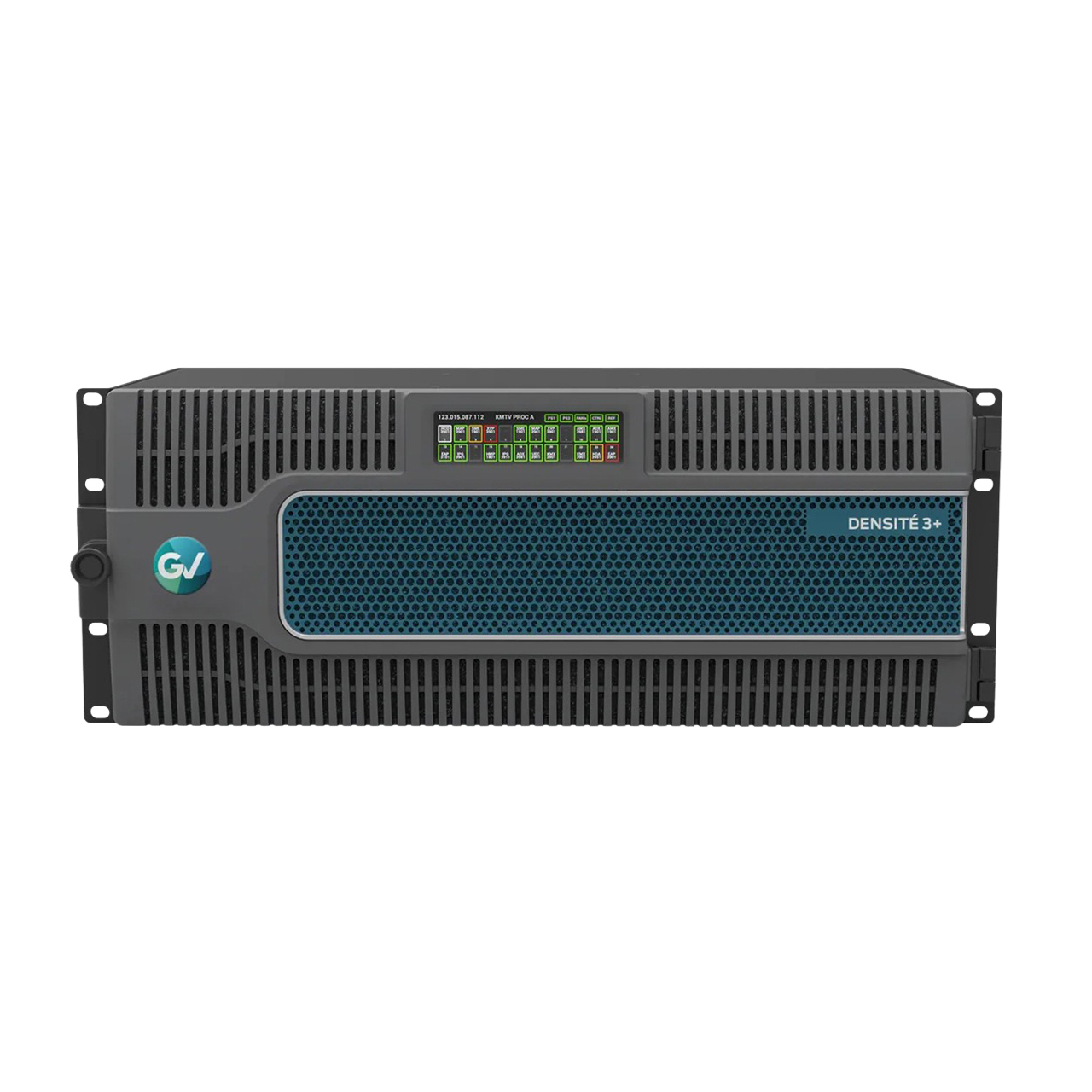

The Grass Valley 4 RU Densit‚ 3+ FR4 Frame is a modular frame and controller designed to deliver more power per slot and higher speed connectivity needed by the increased feature set of the latest Densit‚ products. The Densit‚ 3+ FR4 frame offers true multiformat operation, with the ability to process simultaneously SDI and IP 12G, 3G, HD, SD, and analog video, as well as AES and analog audio. The frame provides advanced monitoring and back-up capabilities along with a color LCD panel with integrated touchscreen for ease of status and control navigation on the front panel

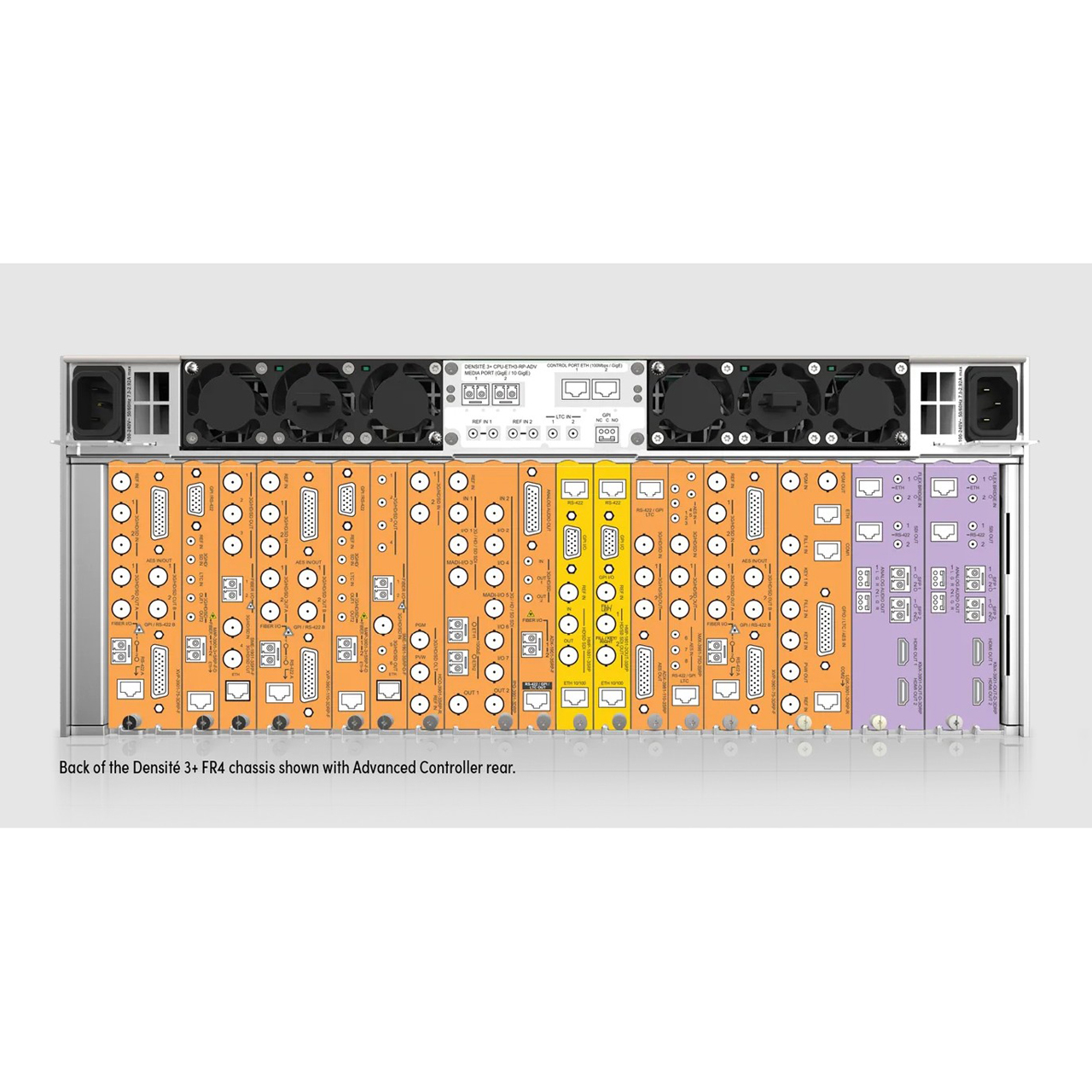

The front-opening frame features dual hot-swappable power supplies(PSUs) and fans. The processing modules or cards for the frame are also hot-swappable, and can be configured automatically when a card is replaced. The frame is front-to-back air-cooled and all modules, redundant PSUs and fans are monitored to provide status via GPI or the Ethernet port. All frame configurations include two PSUs and a controller card with internal GbE switch connectivity, which allows card parameters adjustments from the front panel.

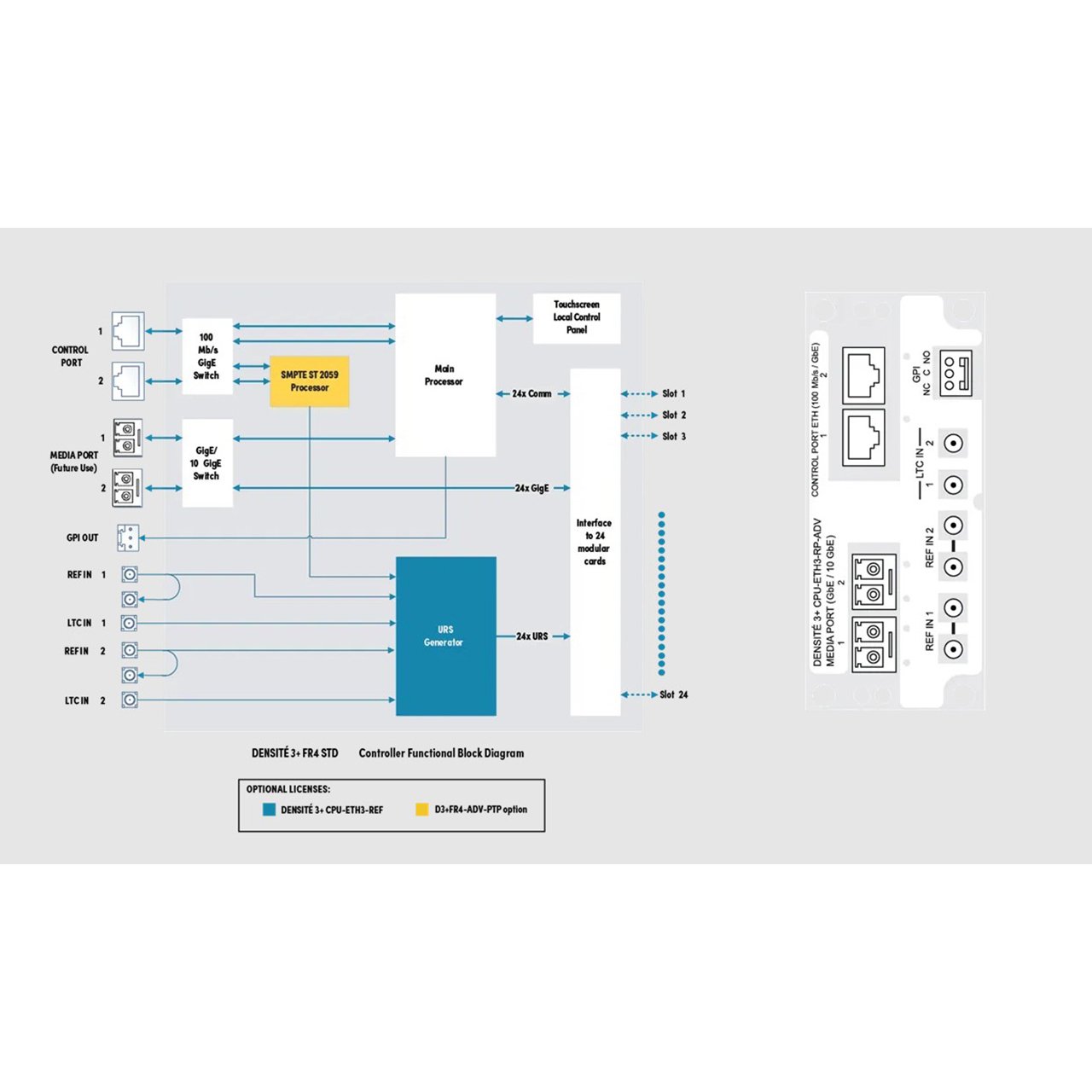

The Densit‚ 3+ FR4 ADV is a version of the frame with an advanced controller that delivers additional functionality with a second reference and timecode inputs, and support of SMPTE ST 2059 genlock over IP reference option. Existing Densit‚ 3+ FR4 frame Ethernet Controllers and rear panels can be field upgraded with the D3+FR4-ADV-UPG kit to deliver the same advanced controller features.
The Densit‚ 3+ FR4 frame can host any of the latest high powered Densit‚ modules, such as the XIP3901, and the IPG-3901 and KMX3901 but is also fully backwards compatible with all existing 3RU and 2 RU Densit‚ modules. With over 100 modules to choose from, this gives you mix and match flexibility and preserves your investment.
Please Note: Cards and Rear Modules are sold separately.
