Grass Valley KMX-3921-9X2 9x2 Scalable Kaleido Multiviewer for Densite 3+ - SD/HD/3G SDI

Name: Grass Valley KMX-3921-9X2 9x2 Scalable Kaleido Multiviewer for Densite 3+ - SD/HD/3G SDI
Brand: Grass Valley
SKU: GVLY-KMX-39219X2
Price: 9200.18 USD
Availability: Backorder

ITEM #: GVLY-KMX-39219X2 MFG #: KMX-3921-9X2

Grass Valley

List Price:

$9,684.40

Our Price:

$9,200.18

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

KMX-3921-9X2 - Overview

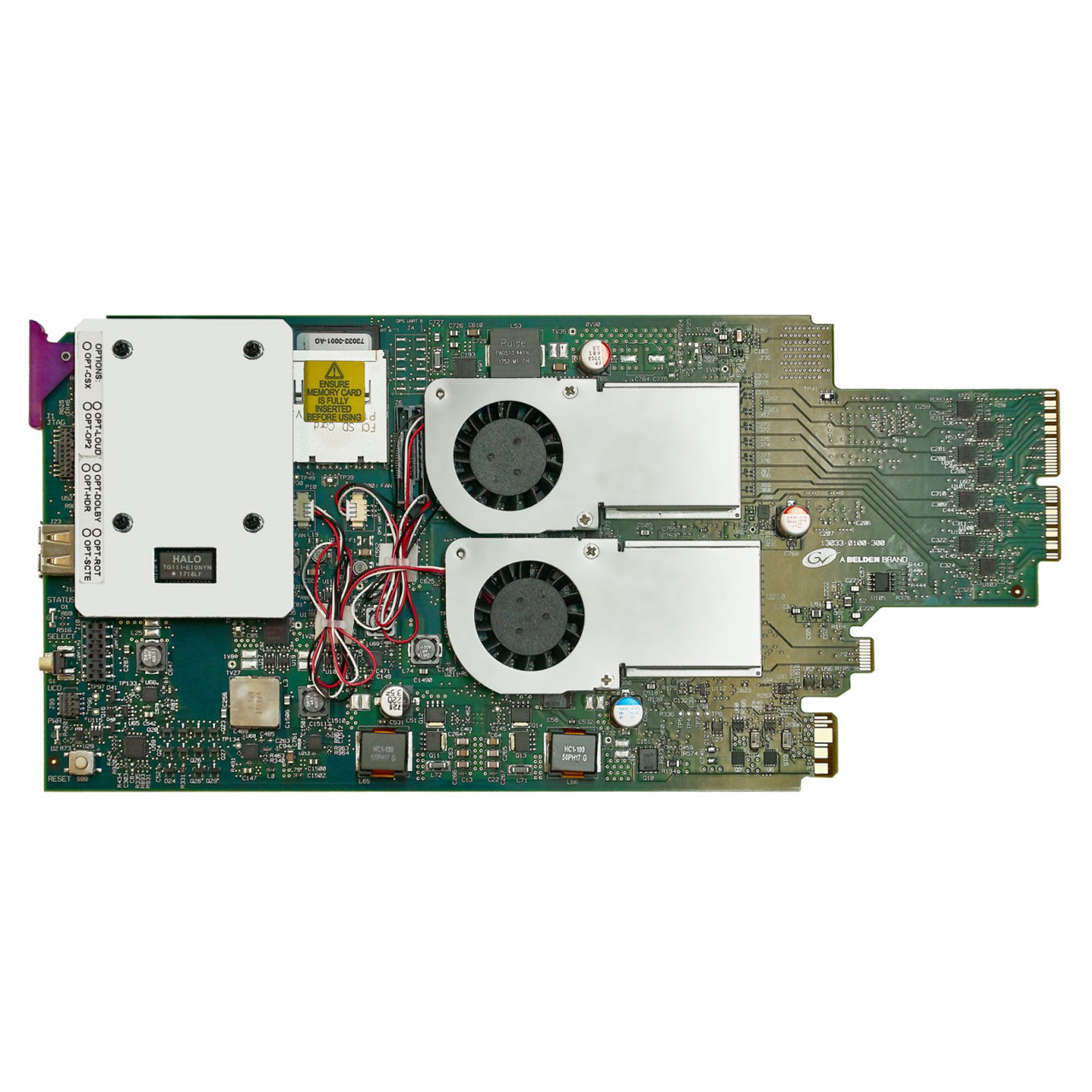

9x2 scalable Kaleido multiviewer for Densite 3+ (SD/HD/3GSDI). Provides up to 9 PIPs over 2 displays, or 4 display when used with appropriate rear panel.

The KMX-3921 multiformat multiviewer delivers unmatched flexibility with built-in high dynamic range processing and 4K UHD display outputs, making it ideal for live productions. Offering up to 48 multiviewer outputs per 4 RU frame-and expandable to 256 outputs when connected to an upstream router-it provides customizable options to ensure smooth and efficient operations during live events.

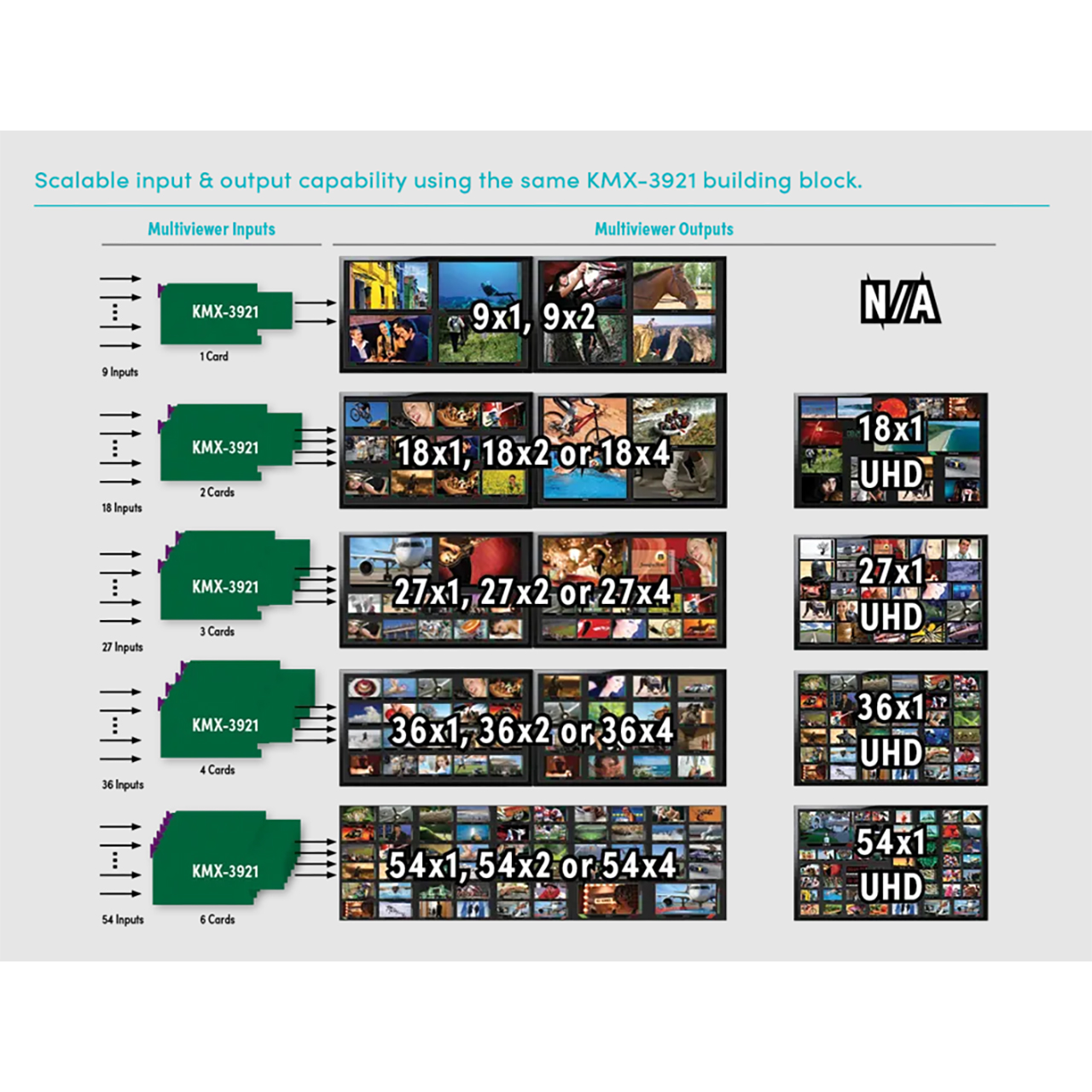

With up to 48 multiviewer outputs per 4 RU frame, the KMX-3921 can be expanded up to 256 multiviewer outputs when connected to an upstream router.Designed with live production operations in mind, the KMX-3921 offers the fastest processing on the market with only one field of latency. This fast multiviewer has also been optimized for reduction in space and power to meet the challenges of outside broadcast trucks. Ready for the future with 4K outputs for UHD displays and high dynamic range/wide color gamut (HDR/WCG) support, the KMX-3921 modular design is scalable from 9 to 54 inputs, and 1 to 4 outputs using the same building block module.

Introducing HDR and WCG into a live production workflow adds a challenge for accurately viewing these sources on a multiviewer. The KMX-3921 provides HDR and WCG processing for HLG, PQ and S-Log3 HDR formats, and BT.2020 WCG. Each input is individually configurable, which allows a mix and match of SDR and HD sources, as well as different formats of HDR, on the same display.

With advanced probing and metadata extraction, such as SCTE 104, the KMX-3921 is also perfect for playout and transmission master control operations to ensure the quality of signal delivery.

Features:
- Fastest multiviewer Extreme low processing latency of 20 ms @ 50
- Hz and 16.7 ms @ 59.94 Hz for live TV production requirements Unmatched image quality at any signal format.
- 3G/HD/SD HDR ready inputs.
- 4K UHD output available for higher resolution monitoring on 4K UHD displays.
- Space-saving portrait display orientation capabilities with a simple software license activation, no additional hardware required Modular multiviewer design.
- Each multiviewer expands up to 54 inputs.
- Up to 24 KMX-3921 cards fit in a single 4 RU Densite 3+ FR4 for up to 48 multiviewer outputs.
- Up to four 3G/HD outputs or a single 4K UHD output
- per multiviewer.

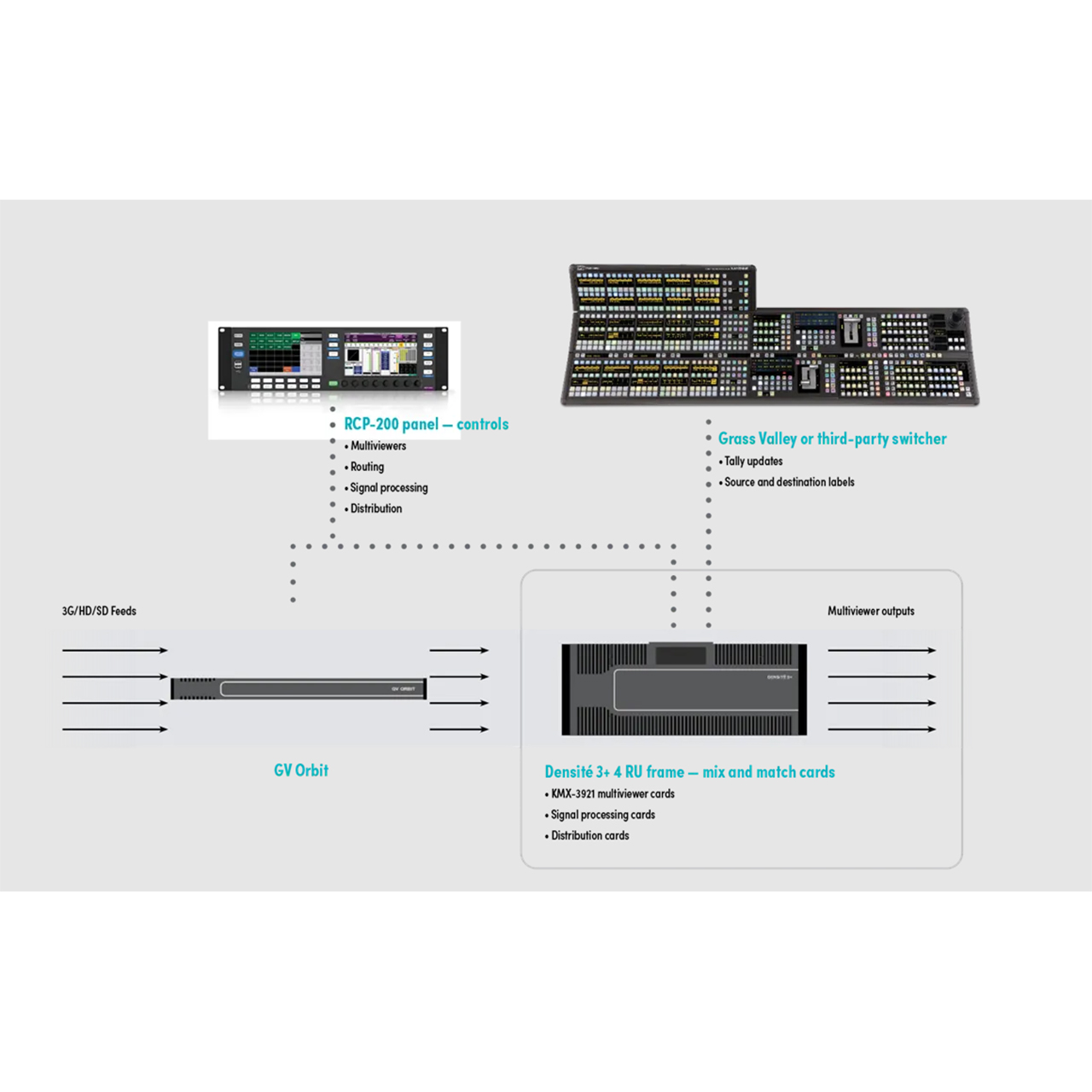

- Ethernet, LTC and reference distributed to all multiviewers within a Densite 3+ FR4 via frame controller.
- Choice of rear panel SFP output options: SDI coaxial, HDMI or fiber
- Scalable multiviewer system design up to 256 multiviewer outputs when connected to upstream router.
- Seamless control across multiple multiviewers in a cluster High Dynamic Range (HDR) and Wide Color Gamut (WCG) processing.
- Accurate monitoring experience of HDR/WCG sources on standard displays.
- Support for HLG, PQ and S-Log3 HDR format, and BT2020 WCG.
- Input individually configurable for mix and match SDR and HDR sources, or different formats of HDR, Ready for live production.
- Low processing latency of 1 field for live TV production requirements.

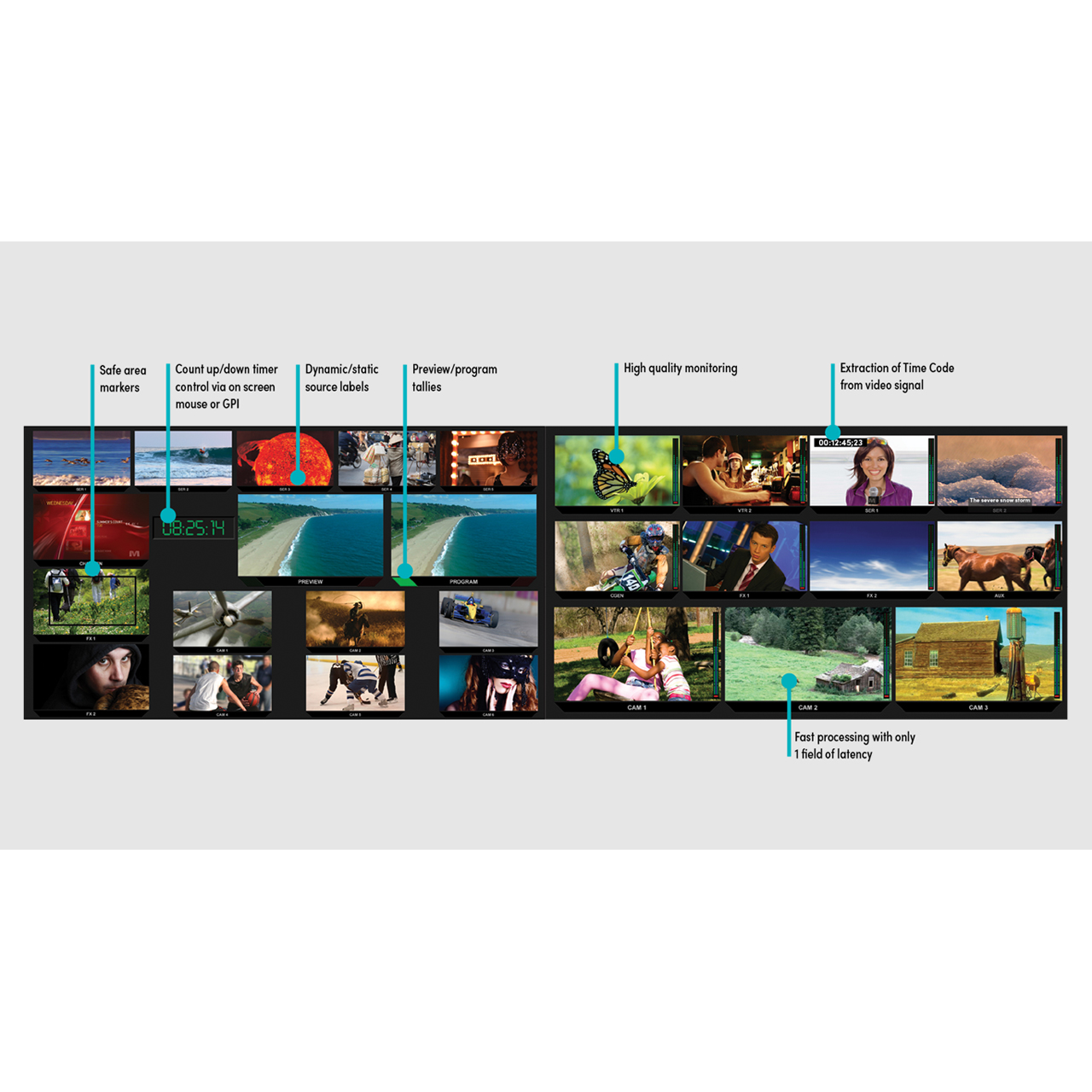

- Tallies and multiple UMD levels to simplify workflow.
- Timecode and timers to keep production staff on cue.
- Wide range of switcher interface protocols for easy installation and configuration. Advanced playout monitoring
- Extraction and display of SCTE 104 messages, including segmentation descriptors, for verifying transmission of ad insertion triggers and downstream processing signaling such as transcoders.
- Main & Backup 50/50 split view widget allowing operators to rapidly catch main versus backup channel problems.
- Zone-based black and freeze for excluding certain zones from signal probing, such as branding and lower third graphics.
- Loudness metering, closed captions and teletext subtitle detection to ensure compliance with regulatory broadcasting requirements.
- Dolby-E monitoring for silence detection without the need to decode the audio signal.

KMX-3921-9X2 - Reviews

KMX-3921-9X2 - Attachments

Grass Valley KMX-3921-9X2 Datasheet

Overview

KMX-3921-9X2 - Overview

9x2 scalable Kaleido multiviewer for Densite 3+ (SD/HD/3GSDI). Provides up to 9 PIPs over 2 displays, or 4 display when used with appropriate rear panel.

With advanced probing and metadata extraction, such as SCTE 104, the KMX-3921 is also perfect for playout and transmission master control operations to ensure the quality of signal delivery.

Features:
- Fastest multiviewer Extreme low processing latency of 20 ms @ 50
- Hz and 16.7 ms @ 59.94 Hz for live TV production requirements Unmatched image quality at any signal format.
- 3G/HD/SD HDR ready inputs.
- 4K UHD output available for higher resolution monitoring on 4K UHD displays.
- Space-saving portrait display orientation capabilities with a simple software license activation, no additional hardware required Modular multiviewer design.
- Each multiviewer expands up to 54 inputs.
- Up to 24 KMX-3921 cards fit in a single 4 RU Densite 3+ FR4 for up to 48 multiviewer outputs.
- Up to four 3G/HD outputs or a single 4K UHD output
- per multiviewer.
- Ethernet, LTC and reference distributed to all multiviewers within a Densite 3+ FR4 via frame controller.
- Choice of rear panel SFP output options: SDI coaxial, HDMI or fiber
- Scalable multiviewer system design up to 256 multiviewer outputs when connected to upstream router.
- Seamless control across multiple multiviewers in a cluster High Dynamic Range (HDR) and Wide Color Gamut (WCG) processing.
- Accurate monitoring experience of HDR/WCG sources on standard displays.
- Support for HLG, PQ and S-Log3 HDR format, and BT2020 WCG.
- Input individually configurable for mix and match SDR and HDR sources, or different formats of HDR, Ready for live production.
- Low processing latency of 1 field for live TV production requirements.
- Tallies and multiple UMD levels to simplify workflow.
- Timecode and timers to keep production staff on cue.
- Wide range of switcher interface protocols for easy installation and configuration. Advanced playout monitoring
- Extraction and display of SCTE 104 messages, including segmentation descriptors, for verifying transmission of ad insertion triggers and downstream processing signaling such as transcoders.
- Main & Backup 50/50 split view widget allowing operators to rapidly catch main versus backup channel problems.
- Zone-based black and freeze for excluding certain zones from signal probing, such as branding and lower third graphics.
- Loudness metering, closed captions and teletext subtitle detection to ensure compliance with regulatory broadcasting requirements.
- Dolby-E monitoring for silence detection without the need to decode the audio signal.
