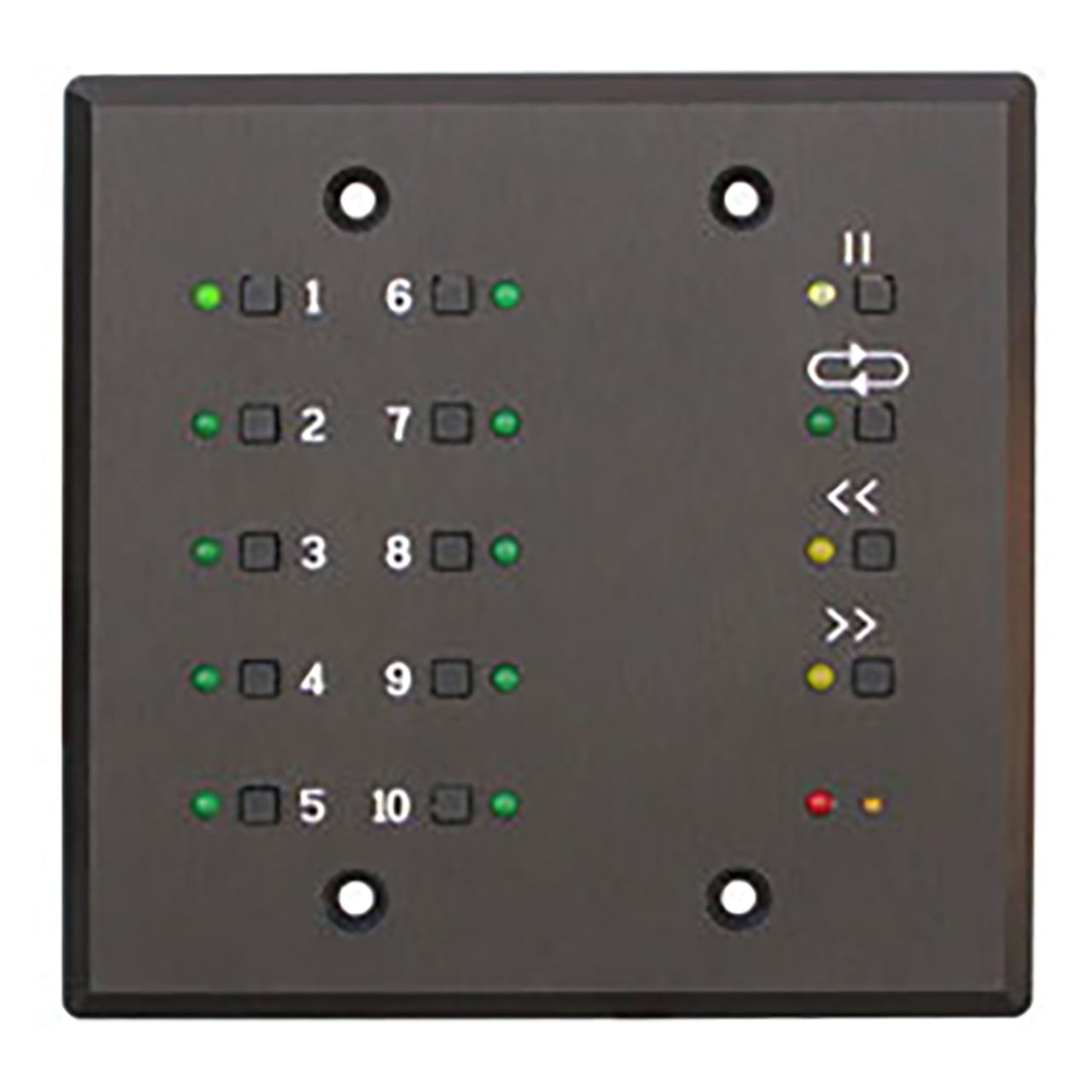

The Doug Fleenor Design RERUN-A Rerun Architectural is a lighting control station capable of storing up to ten 40-minute shows. Shows are recorded by capturing the output of a DMX512 console. The recorded show start and end points may be trimmed non-destructively. Each show can be set to hold the last look, loop to itself or link to another show. Shows are started by pressing one of the ten show buttons.

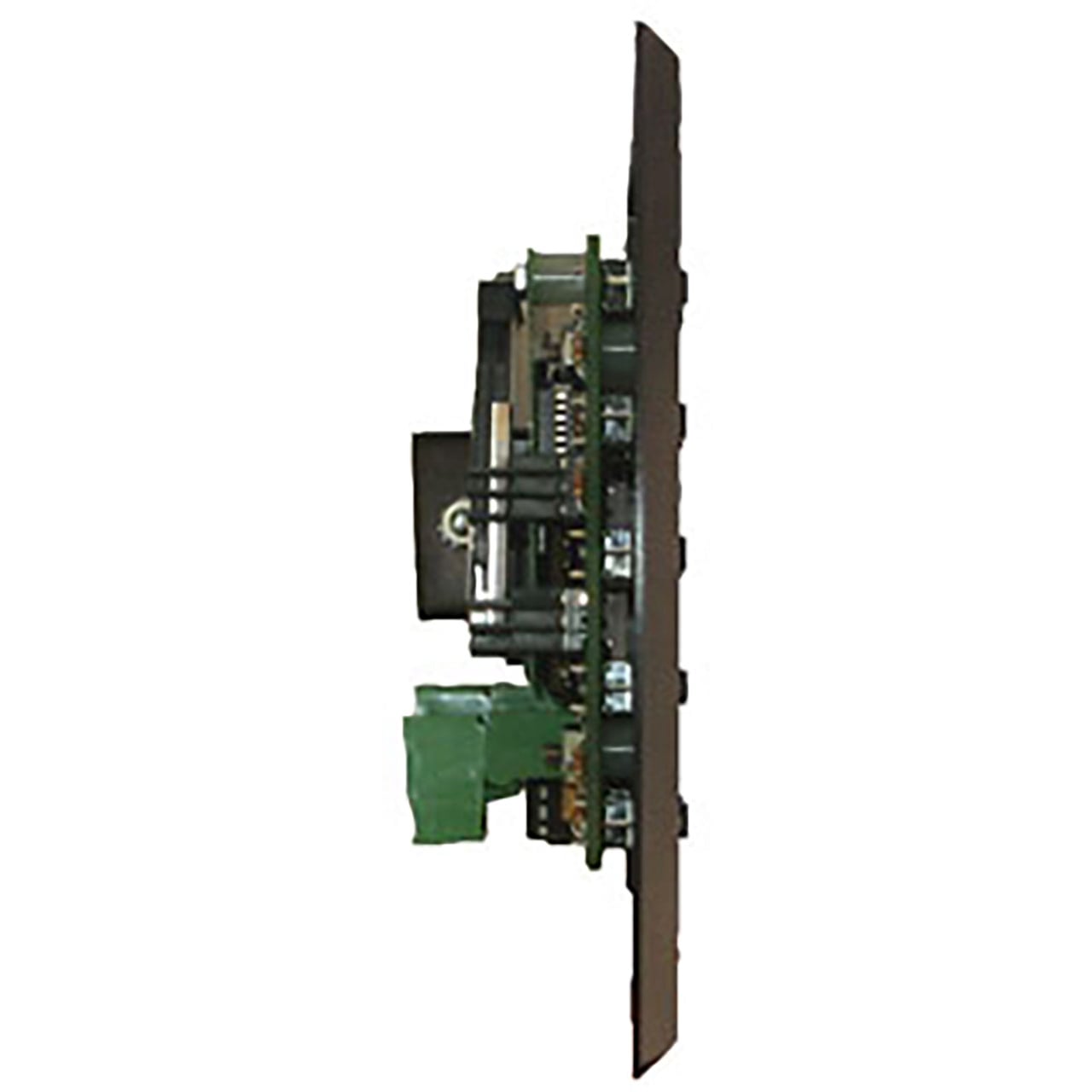

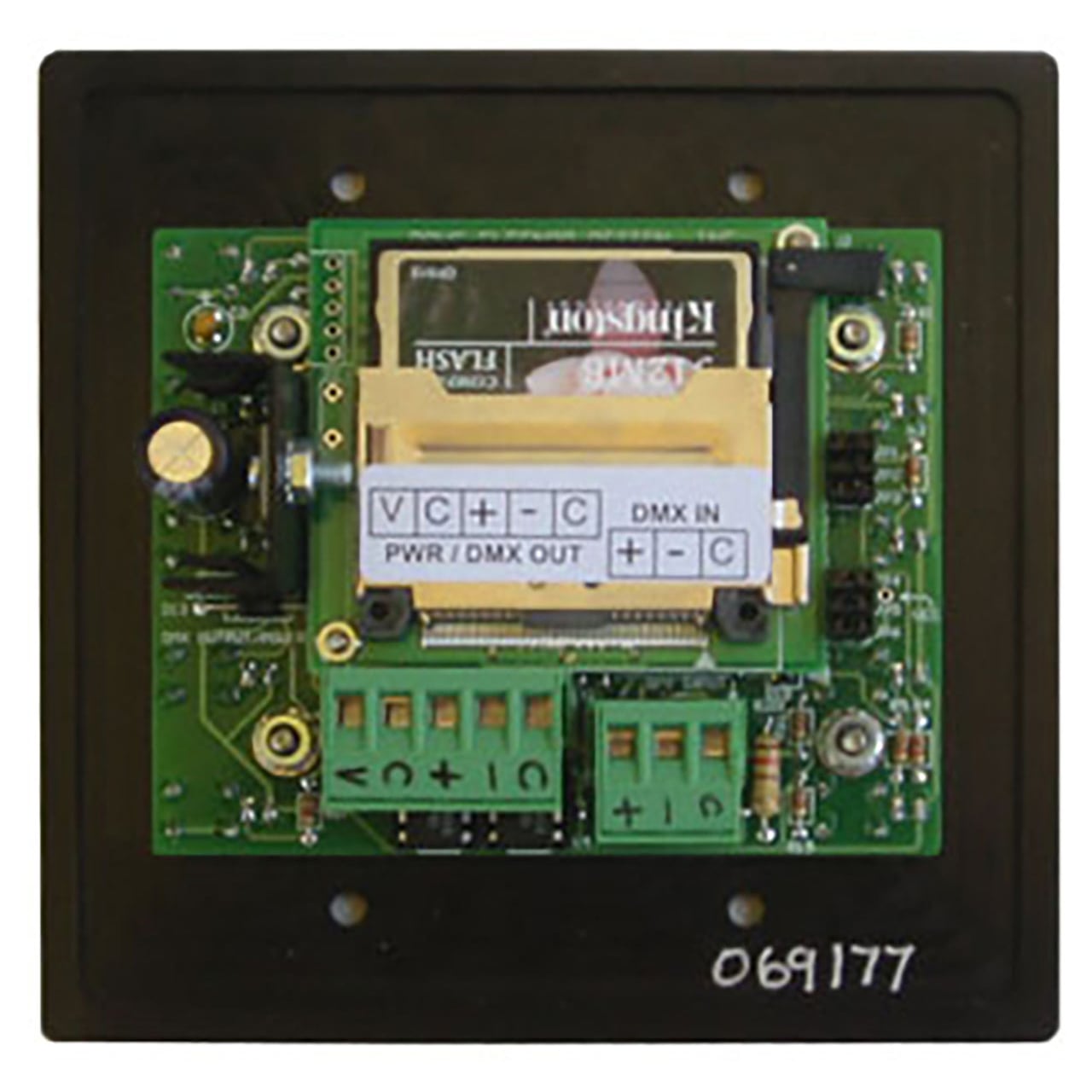

The basic system consists of a Rerun Architectural station and a power supply. The solid aluminum faceplate is designed to install over a standard two gang electrical box. Single gang remote stations can be added to remotely select shows. Connections to the Rerun Architectural are power (2 wires), DMX512 Input (3 wires) and DMX512 Output (3 wires). Power for the Rerun Architectural can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer.
The Rerun Architectural system can work in conjunction with a lighting console, automatically switching between recorded shows and console control. When the console generates DMX512 the Rerun Architectural retransmits the incoming DMX512 data. Thus the console operates normally. Upon loss of DMX512 from the console, the Rerun Architectural starts its previous show.
